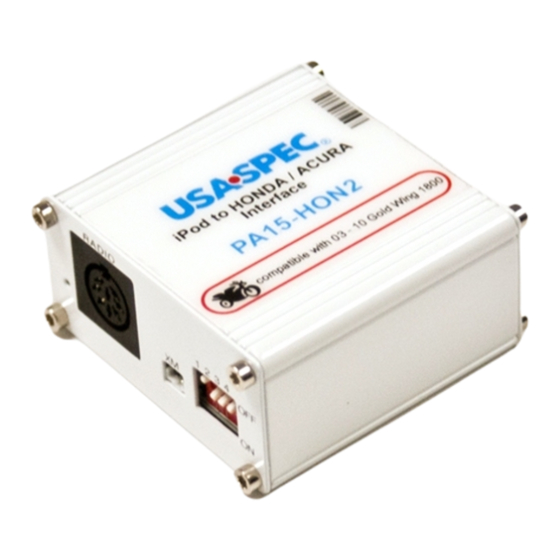

PA15-HON2
iPod to HONDA and ACURA Car Stereo Interface
Owner's Manual
(Preliminary Version)
2008.10.20
9AM to 5PM
(Pacific Time)
Tech Support Hot Lines
626-3363836
626-8906410

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA15-HON2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for USASPEC PA15-HON2

Summary of Contents for USASPEC PA15-HON2

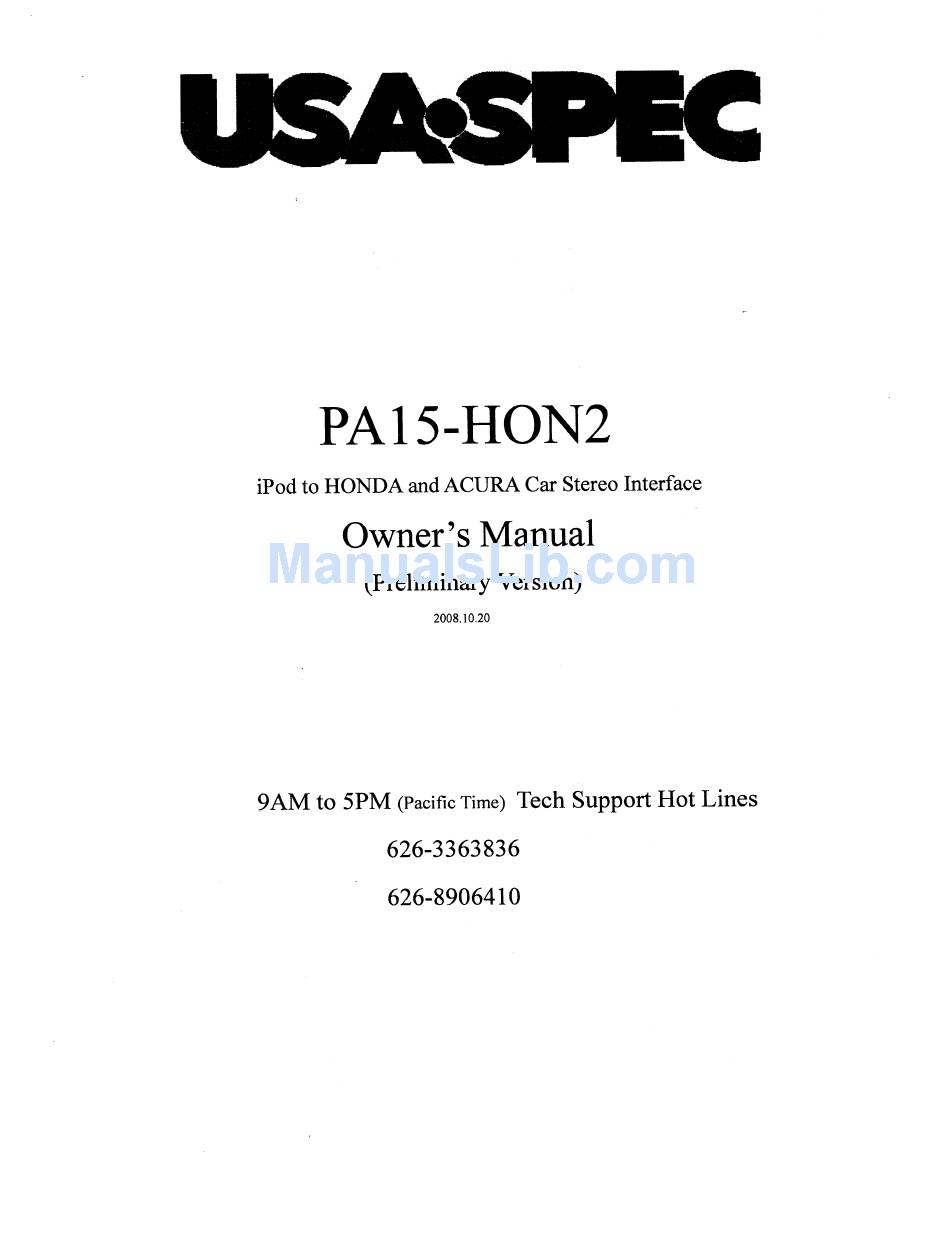

  • Page 1 PA15-HON2 iPod to HONDA and ACURA Car Stereo Interface Owner's Manual (Preliminary Version) 2008.10.20 9AM to 5PM Tech Support Hot Lines (Pacific Time) 626-3363836 626-8906410...
