Connection of the machine to the drain

This machine must be connected in accordance with the water supply regulations. Water byelaws
prohibit connection to a surface water drain.
Decide which plumbing option suits you best then follow the instructions below.
All machines are tested with water prior to leaving the factory so a small
amount of water may remain in the drum and drain hose.
Flooding could occur if any part of the installation is not completed correctly.

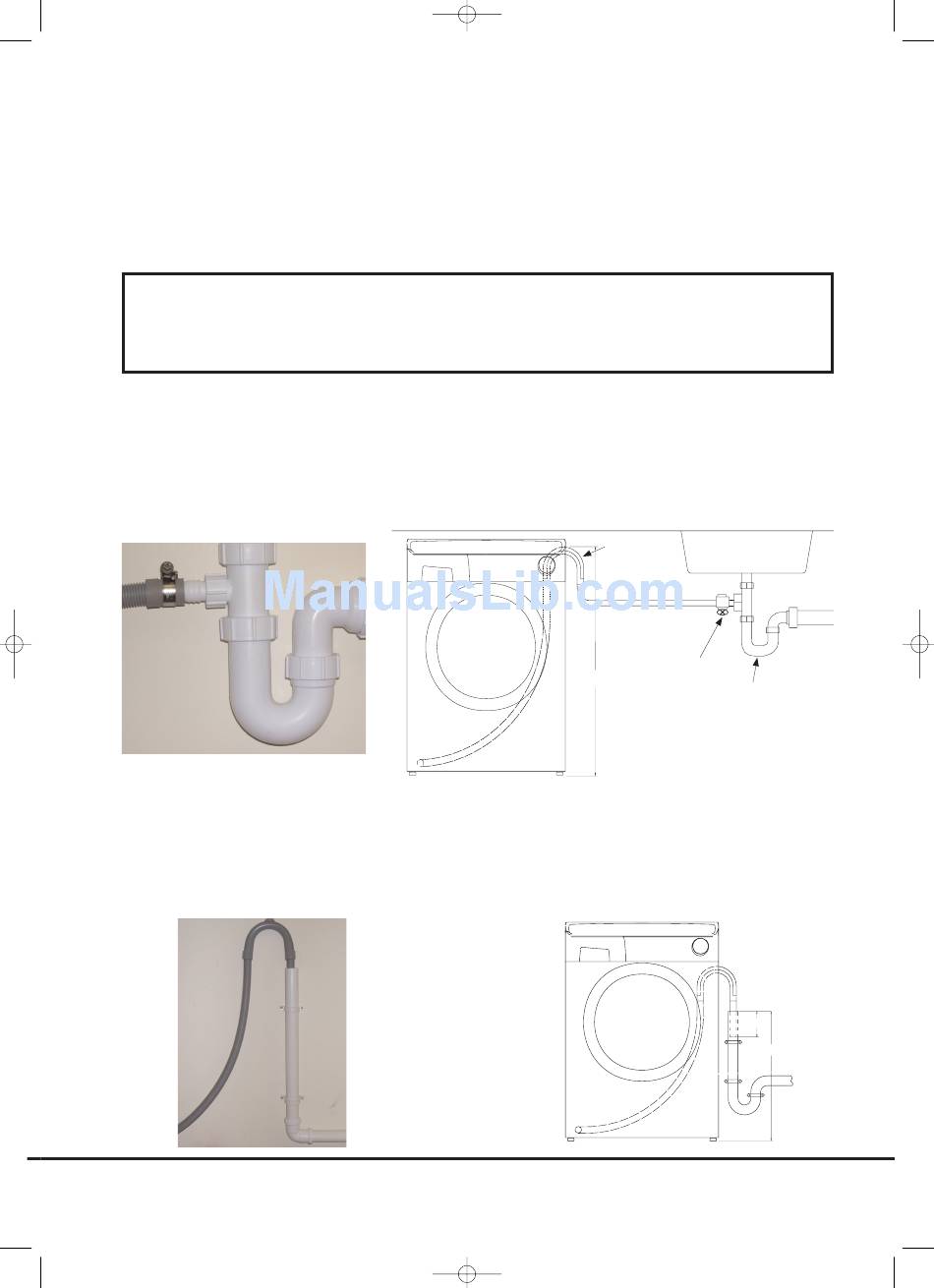

Option 1
Waste pipe connection (waste trap)
Fit the hooked end support to the outlet pipe. Position at least 800mm off the floor.
After removing the blanking plug or cutting the membrane from the waste system securely fix the outlet
pipe to the drainage system, using a hose clip.
Secure the hooked end support up to at least 800mm to avoid water being drawn back into the machine.
hooked end support
sink
flexible
discharge hose
hose clip
800 mm
trap with hose
adaptor
Option 2
Into a standpipe
Ensure that the standpipe (minimum diameter 38mm) is not located near an electrical socket.
Fit the hooked end support to the outlet pipe. Install the hose into the standpipe ensuring that the pipe
is at least 500mm from the floor.
Insert the outlet pipe approximately 100mm into the standpipe.
100 mm
500 mm min
