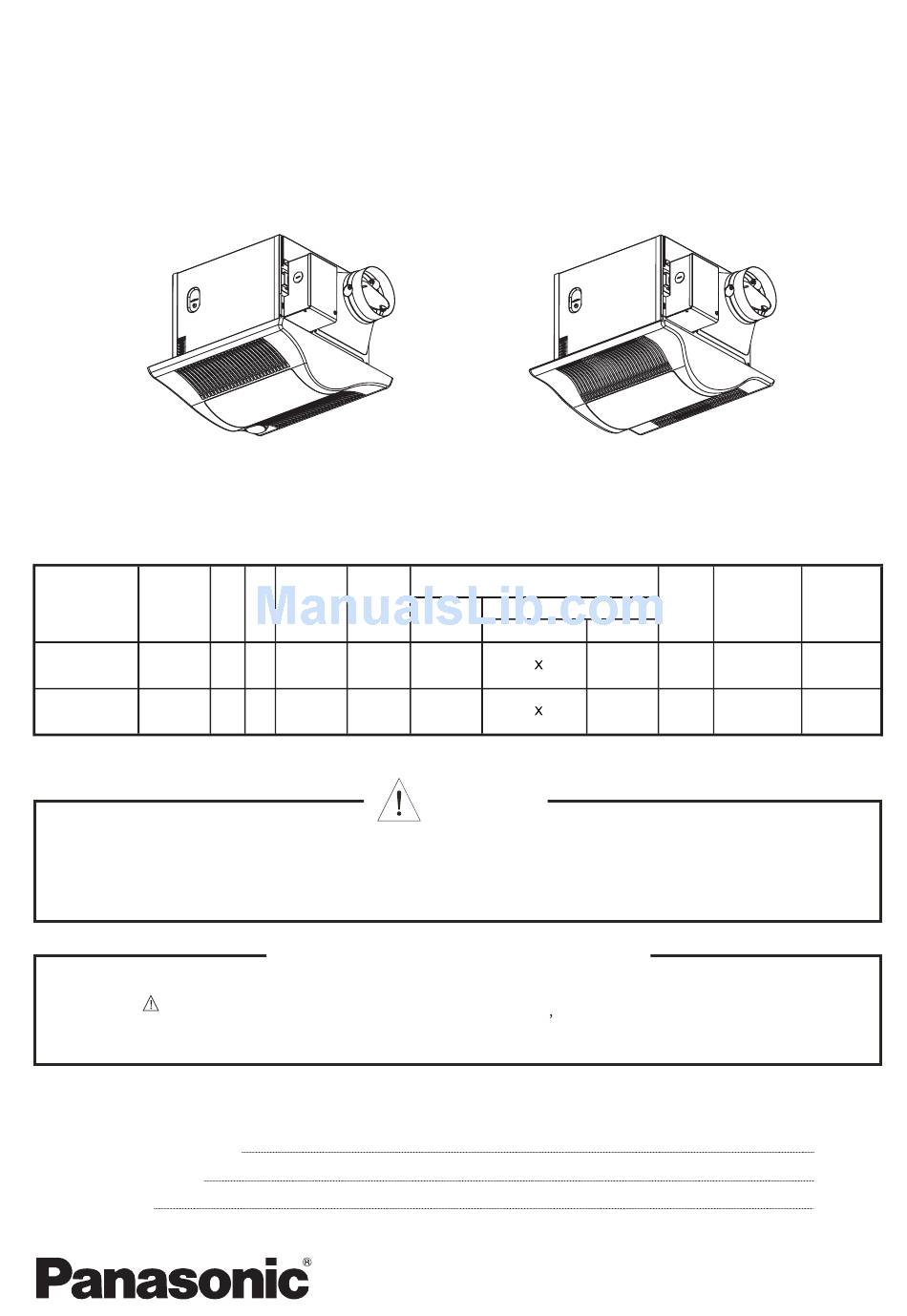

PEG0803006CE Version:0801 Service Manual Super Quiet Ventilating Fan/Light Combination Whisper Green-Lite (North American Market) FV-08VKSL1 FV-08VKML1 SPECIFICATIONS Power consumption(W) Duct Air deliver Noise Speed Weight Model V Hz diameter at 0.1"WG Lighting unit direction (sones) (rpm) Ib. (kg) Fan body...
Page 2
FV-08VKML1 Main Body Section Grille Unit Lighting Unit Circuit Unit (2pcs) (3pcs) Ventilation Unit Frame Unit Adaptor Unit...
FV-08VKML1 Packing & Accessories Section Grille Unit Fan Body Sensor Assy.
Page 7
FV-08VKSL1 Main Body Section Grille Unit Lighting Unit Circuit Unit (2pcs) (3pcs) Ventilation Unit Frame Unit Adaptor Unit...
Page 8
FV-08VKSL1 Frame Unit (4pcs) (3pcs) Adaptor Unit...
Page 9
FV-08VKSL1 Ventilation Unit (4pcs) (5pcs) Grille Unit (2pcs) (2pcs) (2pcs)
Page 10
FV-08VKSL1 Lighting Unit Circuit Unit (2pcs) (2pcs) Assembly State...
Page 11
FV-08VKSL1 Packing & Accessories Section Grille Unit Fan Body...
Page 12
FV-08VKML1 Fan body Junction box Main Control Circuit Switch Box White Black Black Black AC120V 60Hz White White DC-Motor Blue Yellow Orange Green Adjustment Switch Sensor Air volume Delay time Preset switch Preset switch Yellow Yellow White White Black Black...
Page 13
FV-08VKSL1 Fan body Junction box Switch Box Main Control Circuit White Black Black Black AC120V 60Hz White White DC-Motor Blue Yellow Orange Adjustment Switch Air volume Delay time Preset switch Preset switch Yellow White Black Lighting unit White Switch Box Current Fuse Electronic Black...
Page 14
FV-08VKML1 Main Body Section Part No. Part Name Q'ty Remark FFV3400117S Grille Unit FFV3420021S Lighting Unit FFV0930010S Circuit Unit FFV6400004S Ventilation Unit FFV1600092S Frame Unit FFV0000084S Adaptor Unit FFV0800001S Casing Support FFV7000011S Machine Screw For Fixing Lighting Unit & Adaptor Unit,Included In Accessory A...
Page 15
FV-08VKML1 Grille Unit Part No. Part Name Q'ty Remark FFV5500021S Sensor Cover FFV5560017S Spring FFV5560026S Spring Set Plate FFV7000055S Pan Tap Screw For Fixing Spring Set Plate Lighting Unit Part No. Part Name Q'ty Remark FFV3420022S Lighting Assy. FFV3420005S Night Lamp...
Page 16
FV-08VKSL1 Main Body Section Part No. Part Name Q'ty Remark FFV3400068S Grille Unit FFV3420021S Lighting Unit FFV0930011S Circuit Unit FFV6400004S Ventilation Unit FFV1600094S Frame Unit FFV0000085S Adaptor Unit FFV0800001S Casing Support FFV7000011S Machine Screw For Fixing Lighting Unit & Adaptor Unit,Included In Accessory A FFV7000097S Truss Screw For Fixing Circuit Unit FFV7000065S Bind Screw...
Page 17
FV-08VKSL1 Grille Unit Part No. Part Name Q'ty Remark FFV5560017S Spring FFV5560026S Spring Set Plate FFV7000055S Pan Tap Screw For Fixing Spring Set Plate Lighting Unit Part No. Part Name Q'ty Remark FFV3420022S Lighting Assy. FFV3420005S Night Lamp FFV3420007S Fluorescent Lamp Circuit Unit Part No.
