Halfords Bicycle Accessories Owner's Manual

Single seat trailer
Hide thumbs

Advertisement

Table of Contents

Single Seat Trailer
Owner's manual
and
safety instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bicycle Accessories and is the answer not in the manual?

Questions and answers

Related Manuals for Halfords Bicycle Accessories

Summary of Contents for Halfords Bicycle Accessories

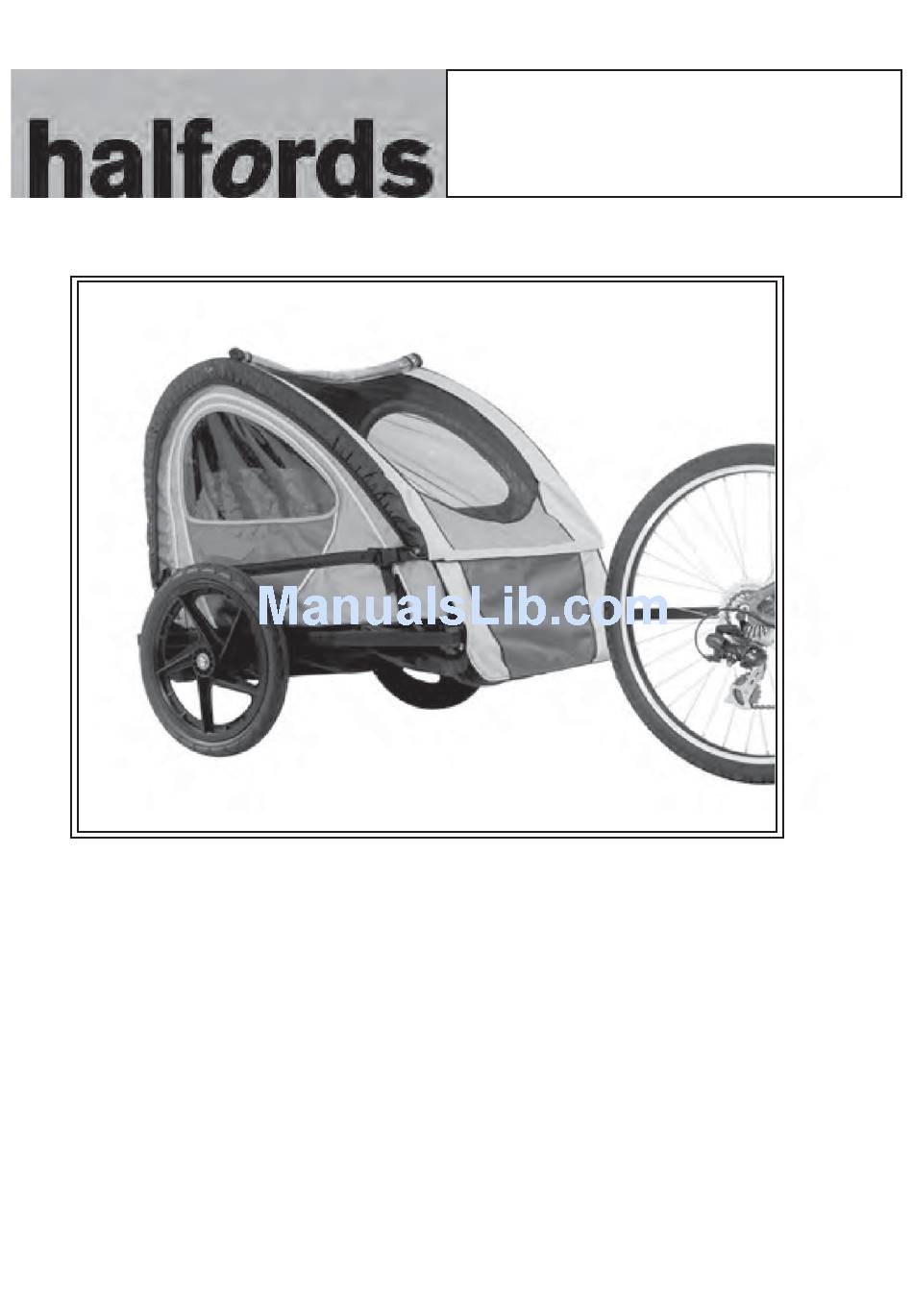

  • Page 1 Single Seat Trailer Owner’s manual safety instructions...

  • Page 2: Prior To Assembly

    WARNING To prevent injury, please exercise extreme care when folding and unfolding this product! Your Halfords trailer is 95% factory assembled. You need only install the safety flag, and attach the wheels before it is ready to use. This initial assembly should only take around 10-15 minutes, after which all you need do now is familiarize yourself with the essential safety information within this document and you’re ready to go.

  • Page 3: Assembly Instructions

    Remove all of the contents from inside the carton and place them on a clean flat surface. Check all the contents against the parts list on page1. Check the contents also for damage. Set the wheels to the side and remove the black plastic protective caps from the ends of the axles. Remove the rain canopy and flag pole assembly from inside the trailer.
  • Page 4 STEP 3 Adjust the sling seat Area of detail in photo 3B Front view of the trailer with the crossbar secured in place. To provide more comfort, the sling seat can be adjusted by pulling on one or both sets of straps that run underneath the bottom of the seat.
  • Page 5 STEP 6 Attach the wheels to the quick-release brackets and make sure they are secure Locate the rear wheel brackets on each side of the trailer and read the warnings carefully. Push one wheel axle completely through the bracket hole until you hear the axle click into place. IMPORTANT! Pull firmly on each wheel to ensure the lock mechanisms are securely engaged! STEP 7 Extend and secure the tow bar Bracket...
  • Page 6 STEP 9 Attach trailer tow bar to bike Tighten the bike hub nut securely with a wrench. Locate the front end of the tow bar around the coupler. Push the quick release pin through the holes in the tow bar and the coupler and fasten securely. Loop safety strap around bike frame and clip the end into the “D”...
  • Page 7 STEP 12 Install the safety flag 12A. Connect the flagpole sections and find the small opening near the top left edge of the canopy. 12B. Slide the end of the flagpole through the opening in the canopy. 12C. Slide the pole all the way down into the flag pole sleeve near the rear corner. WARNING Always use the safety flag when pulling this trailer! STEP 1 Proper use of the 5-point safety harness for one child WARNING To avoid serious injury, the child should always wear the seat belt and shoulder straps!
  • Page 8 REMOVAL, DISASSEMBLY, AND STORAGE INSTRUCTIONS Removal of the trailer from the bike 1. Remove children from inside the passenger compartment. 2. Unclip the tow bar safety strap from the “D” ring. 3. Loop the strap back around the bike frame tube so that the strap is free of the bike frame. 4.

  • Page 9: Safe Towing Tips

    WARNING Use a foot pump or hand pump to inflate tyres! Pressurized air hoses can cause over-inflation! WARNING Accessories or parcels placed in trailer/stroller may cause it to become unstable! WARNING Never use this trailer/stroller if it becomes damaged! WARNING To avoid serious injury, children should always wear the seat belt and the shoulder straps! WARNING Never leave children unattended in or around this trailer! WARNING Make sure your bike brakes work properly! Braking distance is increased when pulling a trailer! WARNING This trailer is wide! Allow extra clearance near kerbs, signs, parked cars, and other obstacles!
