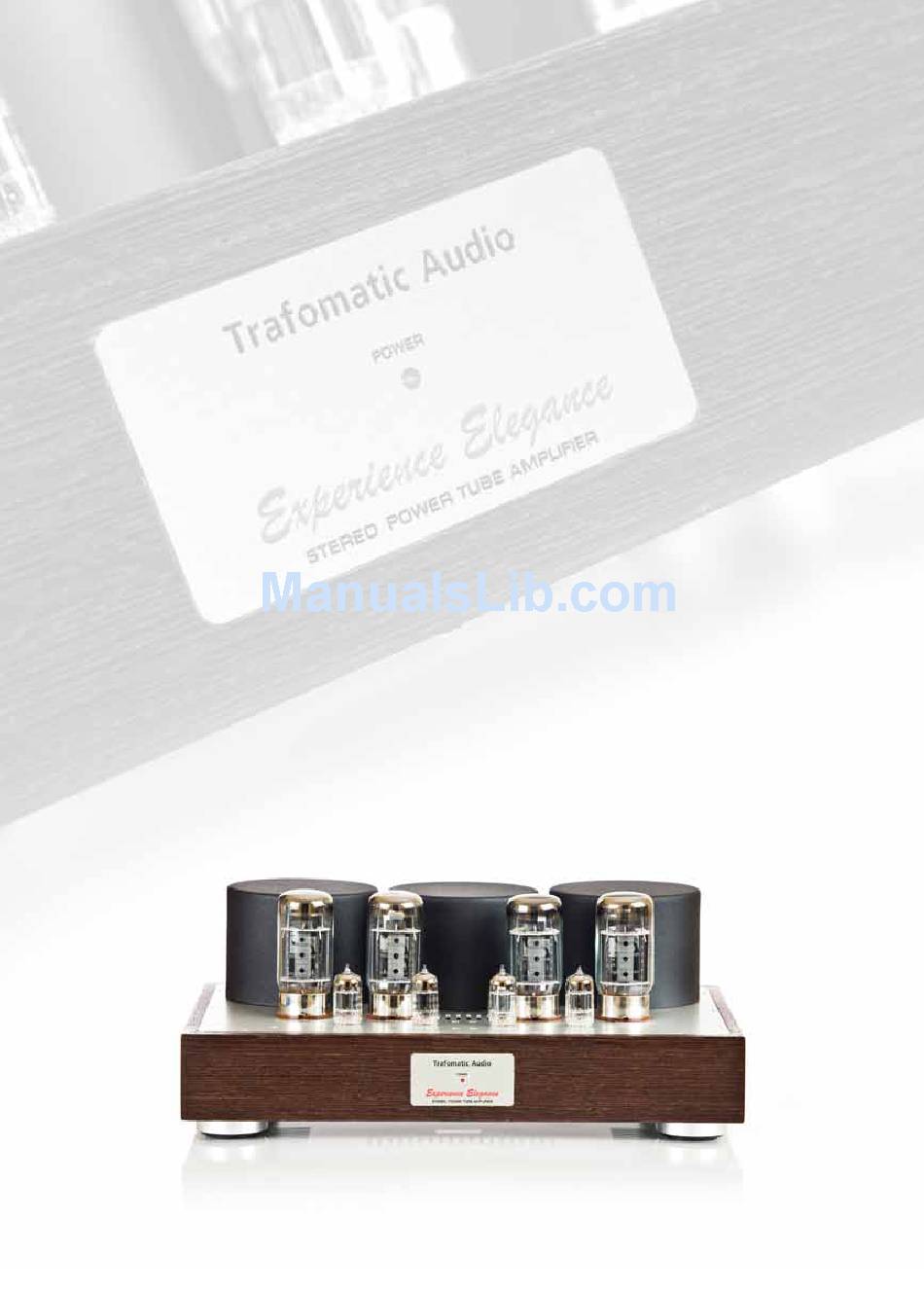

- Page 1 Trafomatic Audio Experience Elegance Stereo Tube Amplifier User’s Manual www.trafomaticaudio.com rev. 1...
-
Page 3: Table Of Contents
Trafomatic Audio Experience Elegance Table of Contents Section Page No. Safety Precautions 3, 4 Getting Started About Your Amplifier Construction and Testing Packaging/Unpacking 5, 6 Accessories Preparation for Use Operating Procedures Controls and Their Functions Vacuum Tube Layout: Tube Replacement 8, 9 Servicing Technical Specifications Trafomatic Audio... -
Page 4: Safety Precautions
Trafomatic Audio Experience Elegance SAFETY PRECAUTIONS IMPORTANT SAFEGUARDS PLEASE READ CAREFULLY ALL THE FOLLOWING IMPORTANT SAFEGUARDS THAT ARE APPLICABLE TO YOUR EQUIPMENT CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. SAFETY 6) Power Cord Protection 1) Read the User’s Manual and refer to it... -
Page 5: Trafomatic Audio
Trafomatic Audio. least ten minutes after the unit is turned off to pre- vent burns. Always place your amplifier away from SERVICE children and pets to prevent burns. -
Page 6: About Your Amplifier
Trafomatic Audio Experience Elegance Getting Started - About Your Amplifier Your Experience Elegance amplifier was designed fail as soon as the amplifier is powered on. Carefully to provide a significant value based on a high align the pins with the socket and gently insert the performance to price ratio that will exceed the sonic tube. Never force a tube into a socket. Should... -
Page 7: Operating Procedures
Trafomatic Audio Experience Elegance Operating Procedure 1. Make sure that you read instructions before attempting to operate your unit. 2. Attach the audio sources and speakers (refer to the picture below). Never run the amplifier without speakers connected since that may damage the transformers. Speaker’s minus terminal should be connected to the speaker terminal marked as zero (0) and positive termi- nal should be connected to the terminal that corresponds to the speaker’s nominal impedance (4 or 8 ohms). The amplifier is optimized for these impedances. Higher or lower impedance will result in higher distortion or loss of power. Do not use a speaker with impedance lower than 2 ohms on either of the outputs. Make sure to prevent short circuit at the amplifier’s speaker terminals as that will damage the amplifier. Figure 2: Experience Elegance speakers connection NOTE: 4 ohms and 8 ohms speakers cannot be connected to the speaker terminals at the same time! Make sure your amplifier is properly connected to a high-current power receptacle. -
Page 8: Controls And Their Functions
Trafomatic Audio Experience Elegance Controls and Their Functions Back Panel Power Switch Press the power switch to (I) turn the power on. Within 10-20 seconds, as the heaters reach operat- ing temperature the tubes will begin to glow a soft orange light. Press the power switch to (0) to turn the unit off. As the heaters cool off, the orange glow will slowly disappear. -
Page 9: Tube Replacement
Never force a tube into a socket Should you decide to buy replacement tubes from Trafomatic Audio, rest assured that they were fully tested before the shipment. Only 6550 power tubes can be used. Regarding... -
Page 10: Technical Specifications
Trafomatic Audio Experience Elegance Technical Specifications: Stereo tube amplifier Maximum output power: 40W Class of operation: A THD: 2% max (40W / 1kHz) Bandwidth: 10Hz - 85kHz Inputs: Aux Input sensitivity: 2Vef Input impedance: 100 kohm S/N: 83 dB (1KHz / 1W) Output (speaker) impedance: Speaker terminals for 4 and 8 ohms Tubes: 4 x ECC82, 4 x 6550 Input Voltage: 120V, 60Hz or 230V, 50Hz (as marked on the real plate) Maximum input current: 2A at 120V, 1A at 230V Dimensions: Width x Depth x Height: 390mm x 260mm x 160mm (15”x10”x6”) - Page 11 Trafomatic Audio Notes...
- Page 12 Trafomatic Audio Trafomatic Ltd. Andije Habusa 15 11400 Mladenovac, Serbia www.trafomatic.com Trafomatic Audio ® is a registered trademark of the Trafomatic LTD. Copyright 2007 - 2009 by Trafomatic. All rights reserved.
