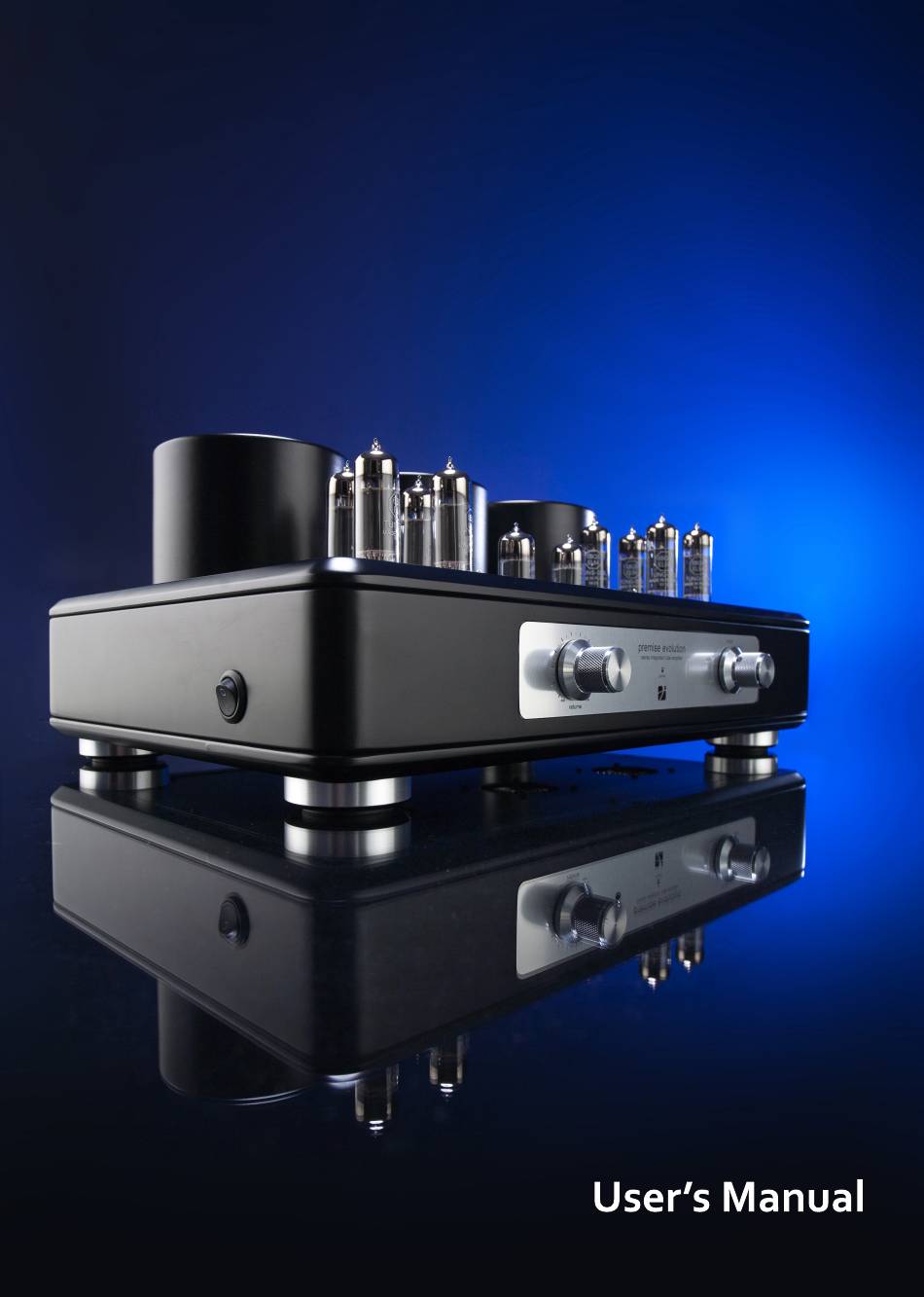

- Page 1 PREMISE EVOLUTION Tube Integrated Stereo Amplifier www.trafomaticaudio.com Rev. 1 www.trafomaticaudio.com Rev. 1...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Section Page No. Section Page No. Safety Precautions Safety Precautions Getting Started Getting Started About Your Line Preamplifier About Your Line Preamplifier Packaging / Preparation for use Packaging / Preparation for use Controls and Their Functions Controls and Their Functions Front Panel Front Panel Rear Panel... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT SAFEGUARDS PLEASE READ CAREFULLY ALL THE FOLLOWING IMPORTANT SAFE GUARDS THAT ARE APPLICABLE TO YOUR EQUIPMENT CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PER- SONNEL. - Page 6 1) Cleaning. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. Do not use any type of abrasive pad, scour- ing powder or solvent such as alcohol or benzene. 2) Tube replacement. Vacuum tubes have life in the 5000 hour range. We recommend replac- ing the tubes after 24-36 months, depending on your listening habits. That will ensure that the preamplifier always performs at its best and tube failure will not overstress other parts of the unit. 3) Biasing the amplifier. Biasing of the Premise Evolution is not required. SERVICE 1) Replacement Parts. When replacement parts are required, be sure that the service techni- cian uses replacement parts specified by the manufacturer or parts with the same character- istics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards. 2) Tube replacement. Should it become necessary to replace the vacuum tubes, remove the AC power plug from the wall and allow thirty minutes (30 min) for the high voltage capacitors to discharge.
-
Page 7: Getting Started
Your Premise Evolution Integrated Amplifier was designed to provide an excellent value based on its high performance, which is a result of carefully designed circuit and optimized com- ponent selection. The design utilizes minimum number of active parts and top quality passive elements. The Premise Evolution carved a place of its own within Trafomatic Audio’s Evolution product lineup. The design is based on Tungsol EL84 power tubes. Four tubes in each channel are configured to operate in push-pull and biased to operate in pure Class A. The power output of 25W per channel is adequate to drive even the most demanding speakers. -
Page 8: Packaging / Preparation For Use
By using the front panel input selector switch, select the appropriate audio source (rca1 through rca4). Make sure that volume control is set to minimum position. Turn on the Premise Evolution by using power switch located on the left side of the unit. Slowly increase volume, to make sure there are no unusual noises coming out of the speak- ers. -
Page 10: Controls And Their Functions
CONTROLS AND THEIR FUNCTIONS FRONT PANEL Input Selector: The four positions “Inputs” switch is used to select one of the four available line-level inputs, marked RCA1 through RCA4. Switches Ultralinear /Triode mode Volume control: regulates maximum outputs on the speaker terminals outputs. Top View The front panel also has the power on light and window for the remote control receiver. -
Page 12: Rear Panel
Power indicator Volume control Input select switc Front View Premise Evolution comes with its own dedicated remote control. For the sake of simplicity, reliability and long battery life, basic functionality is provided via two buttons: volume up and down. PREMISE EVOLUTION - TUBE INTEGRATED STEREO Amplifier - User Manual... -
Page 13: Servicing
SERVICING High quality parts and careful design of the Primavera ensure long and reliable operation without need for any maintenance other than that listed in the MAINTENANCE section. In an unlikely case that the unit does not operate as intended, please contact factory or your local distributor for assistance. -
Page 14: Technical Specifications
TECHNICAL SPECIFICATIONS: PREMISE EVOLUTION TUBE INTEGRATED STEREO Amplifier Class of operation: Push-Pull (class A), Triode or Ultralinear mode (user-selectable) Tube complement: 2xECC81, 8xEL84 (Tungsol) Input impedance: 100 Kohms Inputs: 4xRCA Input sensitivity: 0.85Vrms Outputs: 4, 8 ohms Output power: 2x25W THD: 0.25% @1W, 1kHz S/N ratio: 85dB Frequency bandwidth: 10Hz (-1dB) – 60kHz(-3dB) Input voltage: 230V/50Hz – 115V/60Hz switchable Power consumption: 250VA Remote controlled volume control Size: 450x320x195 mm Weight: 22 kg... - Page 15 www.trafomaticaudio.com...
