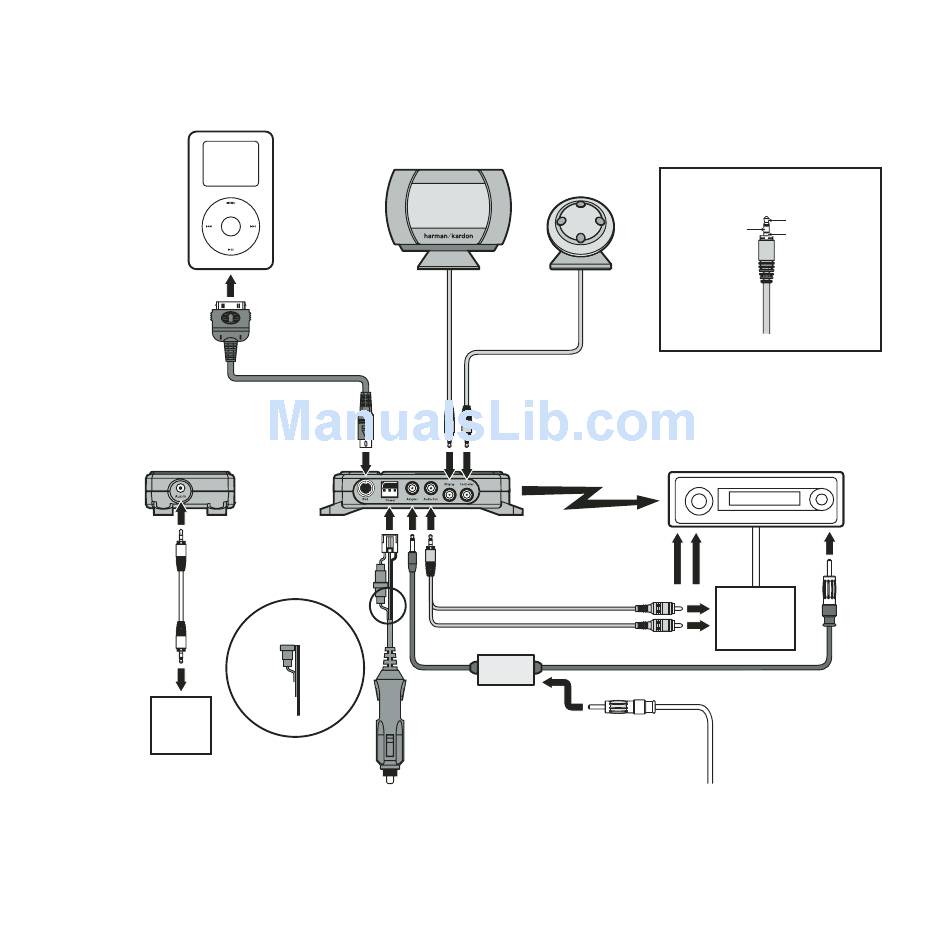

Wiring Diagram

iPod
Electronics Enclosure
Side
3.5mm Stereo Cable
(not included)
+12V = yellow
Auxiliary
Device
(optional)
Cell Phone,
Satellite Radio, etc.
Direct Connection of the 12-Volt Power Harness With
In-Line Fuse Holder
Use this method when you want a direct connection to the
vehicle's electrical system. Leaving the in-line fuse holder intact,
cut the cigarette lighter plug from the cord and strip about
4 inches of the thick, black insulation away from the three wires
inside.
Text Display
iPod Cable
Back
Removable
Power Connection
2A Fuse
Direct Power
or
Connection
2A Fuse
Cut and
Strip Cable
ACC = red
GND = black
12-Volt
Accessory
Power Cable
Control Knob
Wireless
FM Transmitter
(Only available in
selected countries)
or
Aux. L/R In
Line Out Cable
or
CD Changer L/R In
Wired
FM Adapter
Connect the red wire inside to the vehicle's ACC (accessory
circuit). Connect the yellow wire to the vehicle's constant 12V
power wire, and connect the black wire to the vehicle's ground
circuit. The best place to make those connections is in the harness
that provides power and ground to the vehicle's radio.
IMPORTANT: Replace the in-line fuse only with one of the
same type and rating.
INSTALLATION
Audio Input/Output Jacks
Tip = LEFT
RIGHT = Ring
Sleeve = GROUND
3.5mm Stereo
Mini-Plug Cable
Head Unit/Radio
Antenna In
or
Third-Party
CD Changer
Interface
(optional)
Antenna Cable
(disconnect from
Head Unit/Radio)
INSTALLATION 5
