ARDSLEY
TRADITIONAL VESSEL FAUCET
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended Tools & Materials
Adjustable Wrench
1

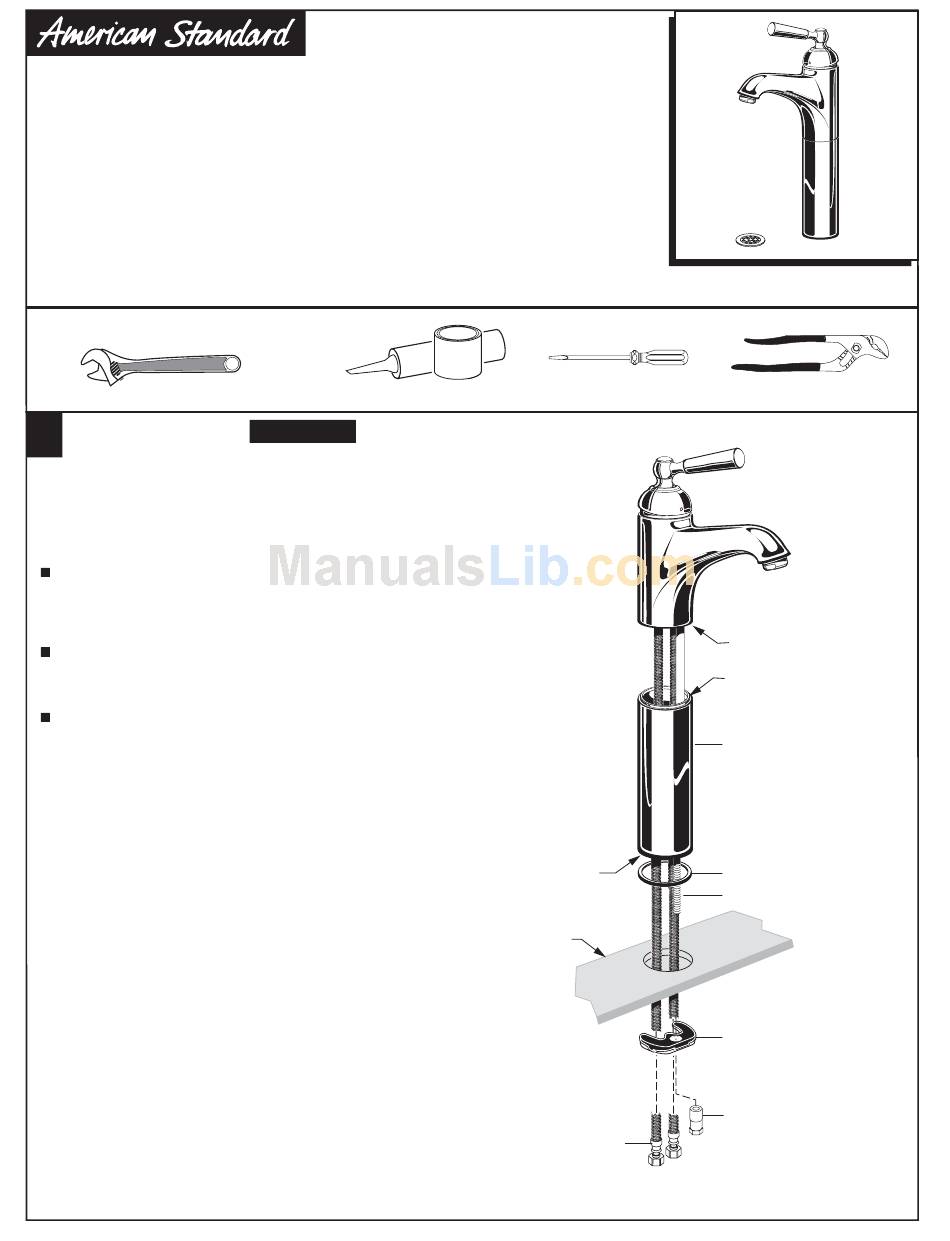

INSTALL FAUCET
For single hole only.
NOTE; The FAUCET with EXTENSION is used for
installation with above-counter sinks.
With the collar of the EXTENSION (1) facing up slide
the EXTENSION (1) over the FAUCET SUPPLIES (2) and
the MOUNTING STUD (3). The collar of the EXTENSION (1)
fits into the groove of the faucet.
Seat SEAL (4) into groove in EXTENSION (1) base.
Feed FAUCET SUPPLIES (2) and MOUNTING STUD (3)
through mounting hole of deck.
From below, push RETAINING WASHER and GASKET (5) onto
MOUNTING STUD (3). Secure Faucet with MOUNTING NUT (6),
pulling faucet to front of sink, so STUD (3) rests against mounting
hole. Before final tightening, adjust faucet so that it is centered.
Tighten MOUNTING NUT (6) to complete installation.
Plumbers' Putty or
Caulking
Turn off hot and cold water
CAUTION
supplies before beginning.
Installation
Instructions
4962.150
4962.151
Regular Screwdriver
GROOVE
(EXTENSION
BASE)
MOUNTING
SURFACE
2
Certified to comply with ANSI A112.18.1
M 9 6 8 8 4 7
Channel Locks
FAUCET
GROOVE
COLLAR
1
4
3
5
6
