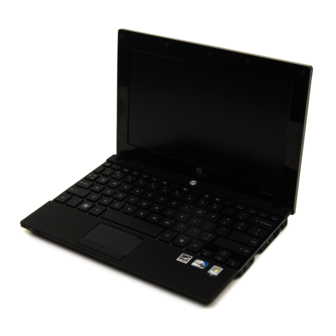

HP Mini 5101 Overview

HP Mini 5101 Overview

Hp mini 5101
Hide thumbs Also See for Mini 5101:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, User Manual
QuickSpecs
Overview
1. WLAN and WWAN antennas (select models)
2. Webcam LED
3. 2 MP Webcam
4. Volume mute function key
5. Integrated stereo microphones
6. Volume down function key
7. Volume up function key
DA - 13326 North America — Version 8 — November 6, 2009
8. Stereo speakers
9. Touchpad with scroll zone
10. Wireless on/off button with LED indicator
11. Internal storage activity LED indicator
12. Quick Launch button – web
13. Quick Launch button – mail
14. Power button with LED indicator
HP Mini 5101
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP Mini 5101

Summary of Contents for HP Mini 5101

  • Page 1 QuickSpecs HP Mini 5101 Overview 1. WLAN and WWAN antennas (select models) 8. Stereo speakers 2. Webcam LED 9. Touchpad with scroll zone 3. 2 MP Webcam 10. Wireless on/off button with LED indicator 4. Volume mute function key 11. Internal storage activity LED indicator 5.
  • Page 2 Optional integrated 802.11 a/b/g/n draft 2.0 wireless LAN module Up to 320 GB 7200 rpm hard drive with HP 3D DriveGuard protection, or up to 128 GB Solid State Drive Integrated 2 MP Webcam Flexible battery solutions for lightest weight or all-day computing Optional HP External USB 2.0 CD/DVD R/RW Drive and HP USB 2.0 Docking Station...

  • Page 3: Standard Features

    * All memory modules operate at the maximum system supported speed of 533 MHz. ** Maximum memory is 1 GB with Windows XP Home. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility.
  • Page 4 QuickSpecs HP Mini 5101 Standard Features Wireless Devices Support for secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Wireless LAN is factory configurable or available as an option to be added later. Mobile Broadband (WWAN) requires Windows XP and is available in select countries as a factory configurable feature only.
  • Page 5 Integrated stereo microphones Stereo headphone/line out Stereo microphone in Integrated 2 MP webcam Software Software with Windows HP Help and Support Center Corel Home Office XP Home Microsoft Office Professional 2007 60-day Convertible Trial McAfee Total Protection* Windows Live Messenger...
  • Page 6 (depending on model). HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.
  • Page 7 SODIMM* KT293AA * Runs at maximum system supported speed of 533 MHz Storage HP USB Diskette Drive DC361B HP External USB 2.0 CD/DVD R/RW Drive FS943AA HP 250 GB Pocket Media Drive FE477AA Expansion HP USB 2.0 Docking Station FQ834AA HP Essential USB 2.0 Port Replicator...

  • Page 8: Ddr2 Sdram

    Memory slot is user accessible. Please refer to the Hardware and Software Guide for installation procedures. Upgrades NOTE: Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. Memory Upgrades...

  • Page 9: Internal Storage Device

    QuickSpecs HP Mini 5101 Storage Internal Storage Device Hard Drives (2.5-inch SMART SATA) Quantity Supported Drive Bay 160 GB 7200 rpm Dedicated hard drive bay 250 GB 7200 rpm Dedicated hard drive bay 320 GB 7200 rpm Dedicated hard drive bay Solid State (2.5-inch)

  • Page 10: Technical Specifications

    QuickSpecs HP Mini 5101 Technical Specifications System Unit Dimensions (HxWxD) 0.91 (at front) x 10.30 x 7.09 in 23.2 (at front) x 262 x 180 mm Weight With 4-cell primary battery With 6-cell primary battery Starting at 2.64 lb (1.2 kg) Starting at 2.91 lb (1.3 kg)
  • Page 11 QuickSpecs HP Mini 5101 Technical Specifications * Configurations of the HP Mini 5101 that are ENERGY STAR qualified are identified as HP Mini 5101 ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net for registration status by country.
  • Page 12 QuickSpecs HP Mini 5101 Technical Specifications Display 10.1-inch LED WSVGA Dimensions (W x H) 8.77 x 4.93 in (22.27 x 12.52 cm) (1024 x 600) Diagonal Size 10.06 in (25.55 cm) Surface Treatment Anti-glare Contrast Ratio 400:1 (typical) Refresh Rate...
  • Page 13 QuickSpecs HP Mini 5101 Technical Specifications 320 GB 7200 rpm SATA Drive Weight 0.25 lbs (115 g) Hard Drive Capacity 320 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ Transfer Rate...
  • Page 14 QuickSpecs HP Mini 5101 Technical Specifications 160 GB 7200 rpm SATA Drive Weight 0.25 lb (115 g) Hard Drive Capacity 160 GB Height 0.37 in (9.5 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ Transfer Rate...
  • Page 15 QuickSpecs HP Mini 5101 Technical Specifications Audio Hardware Implementation ADI 1984AJCPZ High Definition CODEC Function Key Volume Volume up, volume down, and mute Controls Full Duplex Microphone In Stereo Headphone/Line Out Stereo Integrated Microphone Audio Output Quality Frequency Response 20 Hz - 20 kHz Signal to Noise Ratio >85 dB...
  • Page 16 QuickSpecs HP Mini 5101 Technical Specifications Manageability Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only) PXE 2.1 Remote Boot Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30))

  • Page 17: Configuration Utilities

    QuickSpecs HP Mini 5101 Technical Specifications Configuration Utilities HP Connection Manager LED Activity LED Off – Radio Off; Solid LED On – Radio On Intel WiFi Link 5100 Wireless LAN Standards IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (draft 2.0)* * The specifications for 802.11n draft 2.0 are draft specifications and are not...

  • Page 18: Configuration Utility

    802.11n WLAN devices. Interoperability Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows XP (details at: http://www.hp.com/go/notebooks/WLAN) Frequency Band 2.4 GHz and 5 GHz Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps...
  • Page 19 QuickSpecs HP Mini 5101 Technical Specifications Frequency Support 20 MHz: 2.4 GHz and 5 GHz bands 40 MHz: 2.4 GHz and 5 GHz bands Modulation Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM Security Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,...
  • Page 20 QuickSpecs HP Mini 5101 Technical Specifications LED Activity LED Off – Radio OFF; Solid LED On – Radio ON Check latest software/driver release for updates on supported security features. Maximum output power may vary by country according to local regulations.
  • Page 21 QuickSpecs HP Mini 5101 Technical Specifications Humidity Operating 10% to 90% Non-operating 5% to 95% Altitude Operating 15,000 ft (4,572 m) Non-operating 40,000 ft (12,192 m) Bluetooth Profiles Serial Port Profile (SPP) Supported Service Discovery Applicaton Profile (SDAP) Dial-Up Networking (DUN)

  • Page 22: Additional Information

    This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. information This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 23 Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards. Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment (http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/ gen_specifications.html):...
  • Page 24 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
