1385-7202-07:-
2008.12.2

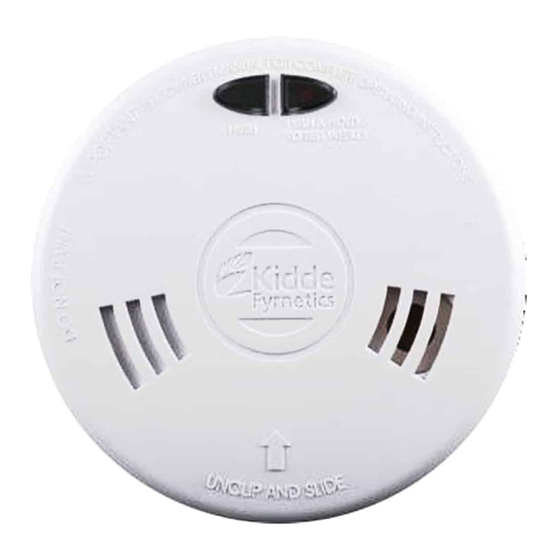

230V Interconnectable Mains Operated Alarms For models:
1SF23/9HI, 1SF23/9HIR, 2SF23/9HI, 2SF23/9HIR, 3SF23/9HI,
Thank you for purchasing a Kidde Fyrnetics alarm.
Please read through our guide in full.
Kidde Fyrnetics recommends for maximum protection that both ionisation and photo-elec-
tric (optical) smoke alarms be installed. Ionisation sensing alarms may detect invisible fire
particles (associated with fast flaming fires) sooner than photoelectric alarms.
Photoelectric sensing alarms may detect visible fire particles (associated with slow smoul-
dering fires) sooner than ionisation alarms. Home fires develop in different ways and are
often unpredictable. For maximum protection, Kidde recommends that both Ionisation and
Photoelectric alarms be installed.Heat alarms are useful in areas with condensa-
tion/dust/high humidity, such as kitchens and lofts. Heat alarms MUST ALWAYS be inter-
connected to smoke alarms.
Electrical rating 230V AC,
50Hz 80mA max per alarm
(maximum 80mA for originating unit
with 24 alarms interconnected).
*Applicable to 1SF & 2SF Series
+Applicable to 3SF Series
Kidde Safety Europe, Mathisen Way, Colnbrook, SL3 0HB, UK.
The additional Owner's Manual should be left in a safe place
Contents
Section
1.
Section
2.
Section
3.
Section
4.
Section
5.
Section
6.
Section
7.
Section
8.
Section
9.
Section 10.
Section 11.
Section 12.
Section 13.
Section 14.
Section 15.
Section 16.
5:30 PM
Smoke and Heat alarm
Lic No: 7861
BS 5446: Pt. 1: 2000
© Kidde Fyrnetics 2006
for the property owner. e.g. near Consumer Unit.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Page 1
Installer's Guide
*
Lic No: 503753
BS 5446: Pt. 2: 2003
. . . . . . . . . . . . . . . . . . . . . . . . .2
. . . . . . . . . . . . . . . . . . . . . .3
. . . . . . . . . . . . . . . . . . . . . . . . . .5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
. . . . . . . . . . . . . . . . . . . . . . . . . . . .7
®
3SF23/9HIR,
+
. . . . . . . . . . . . .2
1385-7202-07
Advertisement
Table of Contents
Related Manuals for Kidde 1SF23/9HI
Summary of Contents for Kidde 1SF23/9HI
-
Page 1: Table Of Contents
Thank you for purchasing a Kidde Fyrnetics alarm. Please read through our guide in full. Kidde Fyrnetics recommends for maximum protection that both ionisation and photo-elec- tric (optical) smoke alarms be installed. Ionisation sensing alarms may detect invisible fire particles (associated with fast flaming fires) sooner than photoelectric alarms. -
Page 2: Installation Instructions - Introduction
1385-7202-07:- 2008.12.2 5:30 PM Page 2 1. Installation Instructions – Introduction This alarm is designed for installation by a qualified electrician, in accordance with the latest I.E.E. Regulations and in regard to relevant Building Regulations. • Read these instructions before proceeding. People’s •... -
Page 3: Locations To Be Avoided (Smoke Alarms)
1385-7202-07:- 2008.12.2 5:30 PM Page 3 • On peaked ceilings install within 900mm (36") of highest point. 300mm (12") Dead • Install one in every room, including occupied attics, but not in kitchens/bath rooms/shower rooms/boiler rooms/garages. Loft Conversion Bedroom Bedroom Bathroom Living Room Kitchen... -
Page 4: Installing Alarm
Select suitable location having regard to earlier advice. • Bring house wiring through a dry lining box or Kidde Fyrnetics Surface Mount Pattress[SMK23]into back of alarm; side entry, via mini trunking is also possible by carefully knibbling away edge on terminal block cover. Make good joint, with white sealant, if necessary. -
Page 5: Loose Battery Models
1385-7202-07:- 2008.12.2 5:30 PM Page 5 5. Loose Battery Models • The alarm will not locate without a battery in the compartment Never remove or connect cable harness, without having disconnected mains power, or arcing could occur, damaging the alarm. ✘... -
Page 6: Interconnecting
3 core & earth cabling, for interconnect line. If installing using old cabling (different colors), take great care / follow IEE Reqs. • You may interconnect up to 23 Kidde Fyrnetics AC smoke, heat or CO alarms to this unit. i.e. 24 in total. •... -
Page 7: Status
1385-7202-07:- 2008.12.2 5:30 PM Page 7 10. L.E.D. Status • Green L.E.D. is lit when AC power is present. • Red L.E.D. blinks to indicate normal operation of alarm function. (If model with battery back-up, also indicates healthy battery.) In alarm state (i.e. triggered), L.E.D. will flash rapidly. -
Page 8: Troubleshooting
1385-7202-07:- 2008.12.2 5:30 PM Page 8 14. Limitations of Smoke/Heat Alarms mum protection, Kidde recommends that both Ionisation and Photoelectric alarms be installed. Heat alarms are useful in areas with condensation/dust/high humidity, such as kitchens and lofts. Heat alarms MUST ALWAYS be interconnected to smoke alarms. Heat alarms are triggered when a temperature of 57°C is reached - they are not suitable for use as a fire safety device independently, they must always be used in conjunction and interconnected to smoke alarms. -
Page 9: Service And Guarantee
AC or DC electrical power,or damage caused by failure to abide by the instructions supplied. The liability of Kidde Fyrnetics, arising from the sale of this alarm or under the terms of this guarantee shall not in any case exceed the cost of replacement of the alarm, in no...
