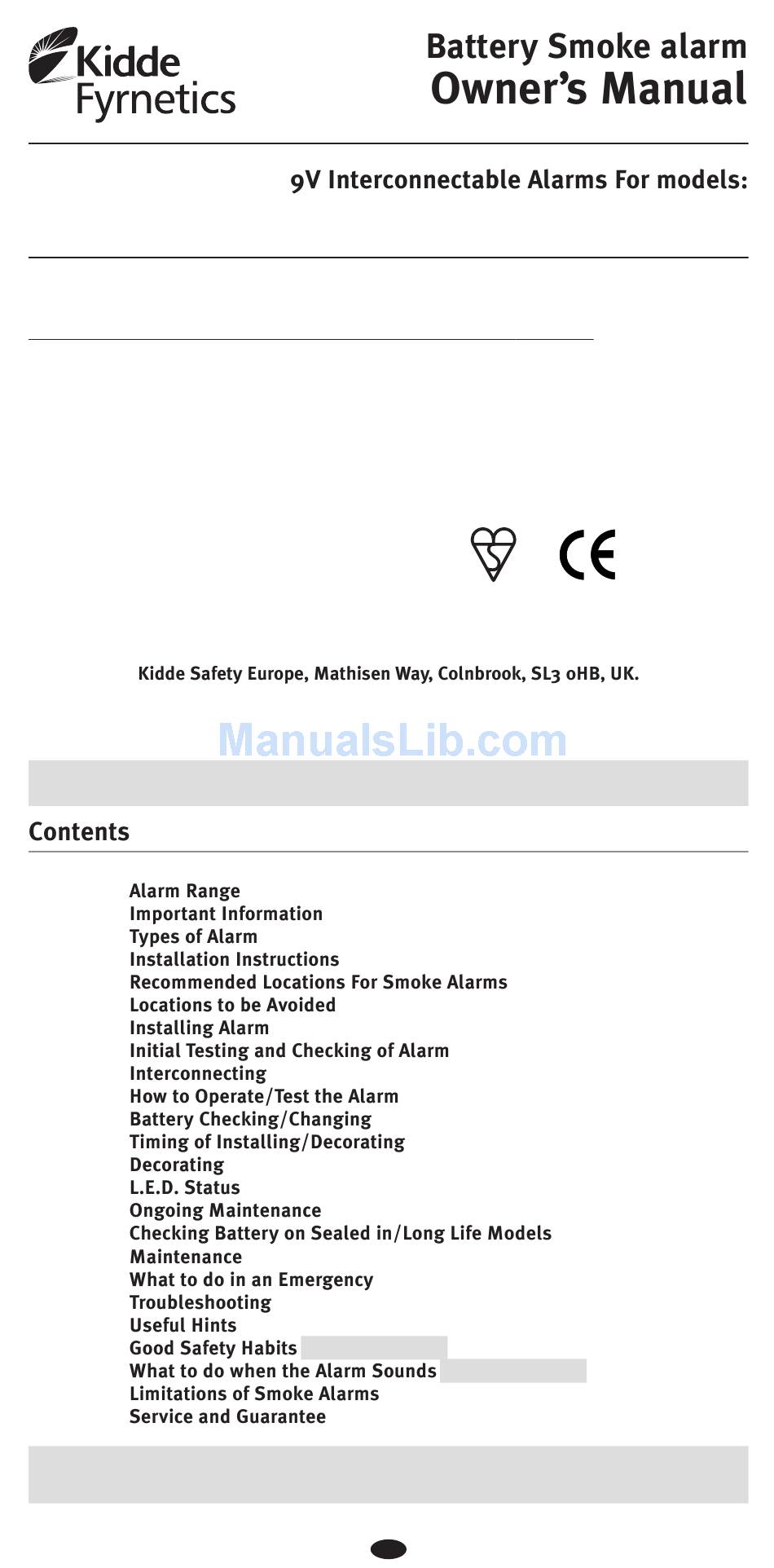

Thank you for choosing a Kidde Fyrnetics alarm.
Please read through our guide in full. It should be retained for future reference.
Cut out page 6 and pin up near your Consumer Unit/Fuse Box.
Kidde Fyrnetics recommends for maximum protection that both ionisation and
optical (photo-electric) smoke alarms be installed. Ionisation technology is
faster at detecting fast flaming fires that give off little smoke. Optical (photo-
electric) technology is faster at responding to slow, smouldering smoky fires.
Heat alarms (hard wired only) are installed in environments where excessive
steam, dust etc. make smoke alarms impractical e.g. kitchens/boiler
rooms/lofts.
Electrical rating 9V DC,
80mA max per alarm
with 12 alarms interconnected).
SAVE THIS MANUAL FOR FUTURE REFERENCE
Section 1.
Section 2.
Section 3.
Section 4.
Section 5.
Section 6.
Section 7.
Section 8.
Section 9.
Section 10.
Section 11.
Section 12.
Section 13.
Section 14.
Section 15.
Section 16.
Section 17.
Section 18.
Section 19.
Section 20.
Section 21.
Section 22.
Section 23.
Section 24.
Read this manual thoroughly and follow its instructions regards
19HI, 19HILL, 29I, 29ILL, 29HI, 29HILL,
www.kiddefyrnetics.co.uk
© Kidde Fyrnetics 2000
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
(Cut off Section)
regular maintenance. – it could save your life.
Lic No: 7861
BS 5446: Pt. 1: 1990 (19 series)
BS 5446: Pt. 1: 2000 (29 series)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
. . . . . . . . . . . . . . . . . . . . . . . . .6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
. . . . . . . . . . . . . . . . . . . . . . . . . .7
(Cut off Section)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
1
. . . . . . . . . . . . . . . . . . . .3
. . . . . . . . . . . . . . .10
. . . . . . . . . . . . .7
DCOM/100
Advertisement
Related Manuals for Kidde 19HI
Summary of Contents for Kidde 19HI
- Page 1 Please read through our guide in full. It should be retained for future reference. Cut out page 6 and pin up near your Consumer Unit/Fuse Box. Kidde Fyrnetics recommends for maximum protection that both ionisation and optical (photo-electric) smoke alarms be installed. Ionisation technology is faster at detecting fast flaming fires that give off little smoke.
- Page 2 (If you are in rented property, you may need to tell your Landlord.) Smoke and heat alarms will only function if properly selected, located, installed and maintained as per KIDDE Fyrnetics instruction manuals. a. Power Supply • DC alarms 9V battery powered units, but will only function if battery is in good condition –...
- Page 3 • Read these instructions thoroughly before proceeding. Peoples lives depend on it. • Only interconnect to the identical brand and type of smoke or heat alarm. Do not connect to any other brand of alarm/auxilary device. • When testing the alarm, stand back so your hearing is not damaged by the 85dB sounder.
- Page 4 • Install one in every room, including occupied attics, but not in kitchens/ bath rooms/shower rooms/boiler rooms/garages. Attic Office Bedroom Bedroom Bathroom Heat Alarm (Hard wired - mains only) Ion Alarm Living Room Kitchen Garage Optical Alarm Do not fit (Smoke Alarms) •...
- Page 5 • After selecting the proper smoke alarm location as described in Section 5, attach the mounting plate to the ceiling as shown. Use the screws and wall plugs provided to secure the mounting plate. • If interconnecting bring interconnect wiring into terminal connectors on rear of alarm.
- Page 6 – Connect (+) to (+) on each alarm and (–) to (–). • You may interconnect up to 11 Kidde Fyrnetics DC smoke or CO alarms to this unit. i.e. 12 in total. • Total cable length between alarms must not exceed 250m (273yds) and be of 12V bell wire type, with a maximum resistance of 50Ω...
- Page 7 Develop and practice a plan of escape: • Make a floor plan indicating all doors and windows and at least two escape routes from each room. Second storey windows may need a rope or chain ladder. • Have a family meeting and discuss your escape plan, showing everyone what to do in case of a fire.
-
Page 8: Section 7 (Maintenance)
Press and hold the test button until the alarm sounds. Any interconnected alarms will also sound. (Do not stand too close to the alarm during testing – hearing may be damaged.) c. Hush Button • If your alarm has this feature it has the capability of temporarily desensitising the alarm circuit for approximately 7 minutes. - Page 9 iii. Flip up lid and note position of red plastic bar, under battery. When you remove battery, the red door stop bar prevents the door closing unless a battery is reinstalled. Red Battery Flag This safety feature also prevents the alarm from being mounted back on its mounting base plate.
- Page 10 • The red L.E.D. blinks to indicate normal operation of alarm function. (If model with battery back-up, also indicates healthy battery.) In alarm state (i.e. triggered), L.E.D. will flash rapidly. If interconnected to other alarms only the triggering alarm will have a rapidly flashing L.E.D.. On optical alarms if the red L.E.D.
- Page 11 • If an alarm sounds without anyone pressing the test button you have a potential emergency. • Don’t panic – you will need to think clearly to ensure all family members escape as soon as possible. Never stop to collect belongings etc. – they are replaceable.
- Page 12 The liability of Kidde Fyrnetics, arising from the sale of this alarm or under the terms of this guarantee shall not in any case exceed the cost of replacement of the alarm,...
