Quick Start Guide — MPA 152 Amplifier
To install and set up an MPA 152 Mini Power Amplifier, follow these
steps:
Step 1
Turn all of the equipment off and disconnect it from power sources.
Step 2

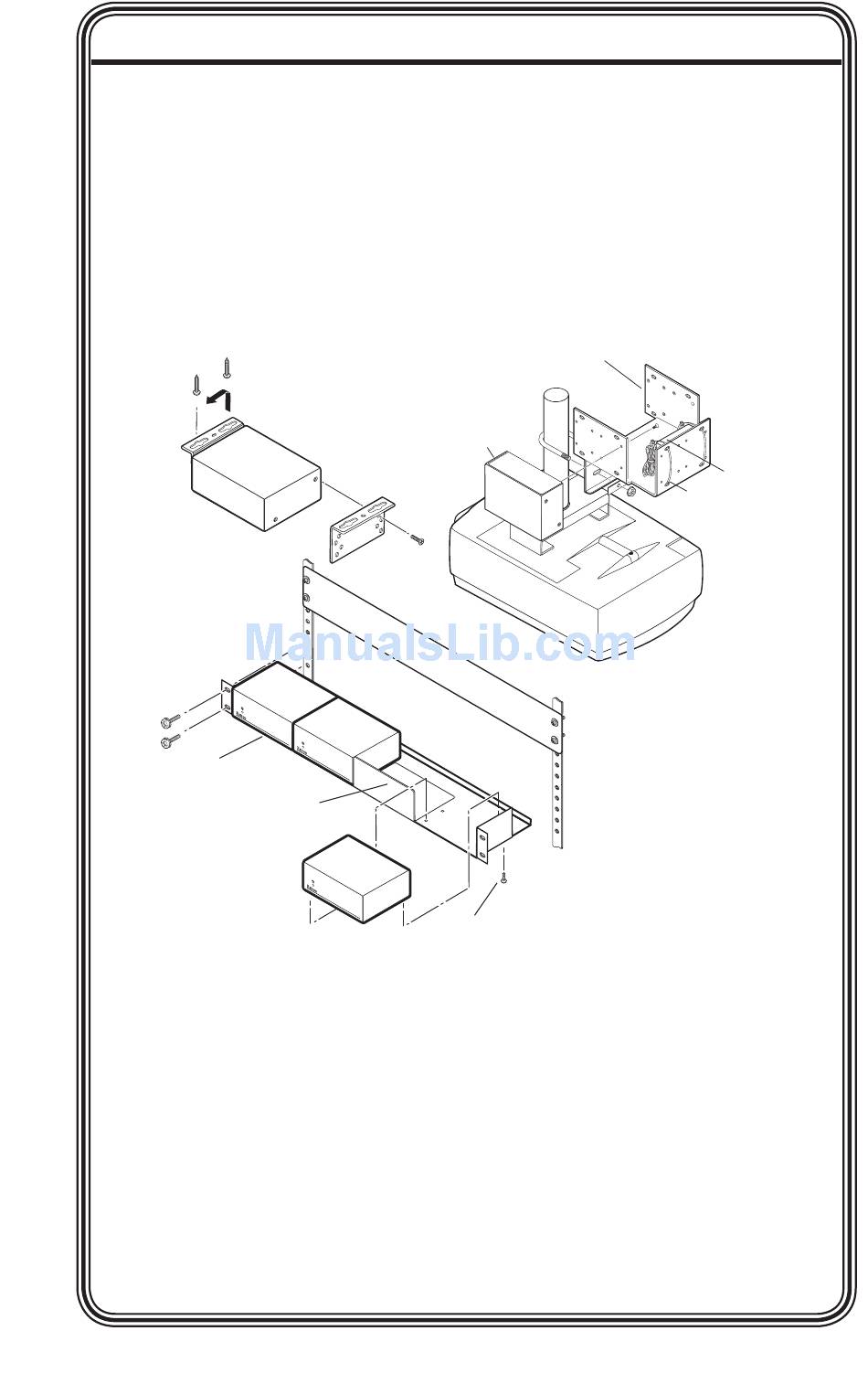

Mount the MPA 152 on a rack, under a desk, or on a projector, as
illustrated below.
Under Desk
D IS
T R
IB U
3.5" Rack Shelf
1/4 Rack Width False Front
Face Plate
Use 2 mounting holes on
opposite corners.
Step 3
Attach the speakers to the MPA 152.
Step 4
Attach inputs to the MPA 152 unit from the audio source and/or
projector. Ensure that the projector's audio output is set to variable
out. Multiple input options can be used simultaneously and result in
audio mixing (see "Audio Inputs" in Chapter 2 for more information).
T IO
N A
M P
L IF
IE R
D IS
T R
IB U
T IO
N A
M P
L IF
IE R
D IS
T R
IB U
T IO
N A
M P
L IF
IE R
(2) 4-40 x 3/16" screws
Rack Mount
MPA 152 Amplifier • Quick Start Guide
Extron PMK 300
Projector Mounting
Bracket
Extron
MPA 152
Mini Power
Amplifier
Extron
Power Supply
Plastic Tie
Projector Mount
QS-i
