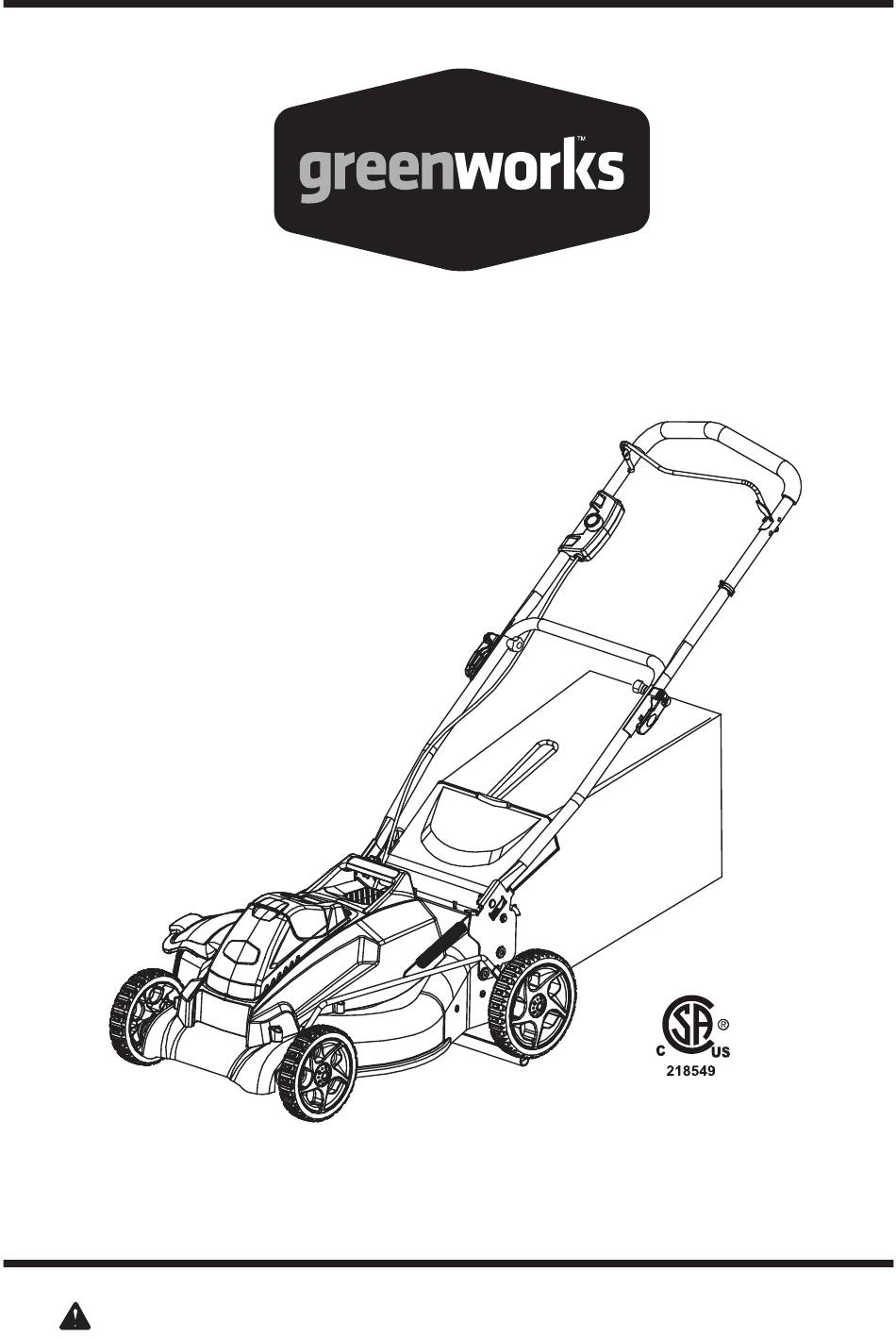

19" 40 V Lithium-Ion Cordless Mower
25292
Owner's Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
www.GreenWorksTools.com
Read all safety rules and instructions carefully before operating this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25292 and is the answer not in the manual?

Questions and answers

Related Manuals for GreenWorks 25292

Summary of Contents for GreenWorks 25292

  • Page 1 19” 40 V Lithium-Ion Cordless Mower 25292 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.

  • Page 2: Table Of Contents

    CONTENTS Contents ..........................2 Product specifications ......................2 Safety information ......................3-7 Symbols ..........................8-9 Know your lawn mower ...................... 10 Assembly ........................11-16 Operation ........................17-21 Battery charger ......................22-23 Maintenance ......................... 24-26 Service ..........................27 Environmentally safe battery disposal ................28 Troubleshooting .........................

  • Page 3: Safety Information

    SAFETY INFORMATION GENERAL SAFETY RULES READ ALL INSTRUCTIONS CAREFULLY W A R N I N G This symbol indicates important safety instructions. If these instructions are not followed, it could endanger the personal safety and/or property of the operator and others. Read and understand all instructions in this manual before attempting to operate the mower.
  • Page 4 SAFETY INFORMATION • Carefully read all instructions on the mower and in the manual before attempting to assemble and operate the mower. Keep this manual in a safe place for future reference, and consult it regularly. • Become familiar with all controls and their proper operation. Know how to stop the mower and how to disengage the power in an emergency.
  • Page 5 BATTERY & CHARGER C A U T I O N USE ONLY GREENWORKS APPROVED REPLACEMENT BATTERIES, OTHER BATTERIES MAY CAUSE INJURY OR DAMAGE TO THE MOWER. Use with GREENWORKS 40V 4Ah battery. BATTERY SAFETY RULES • Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition.
  • Page 6 SAFETY INFORMATION • Do not charge battery tool in a damp or wet location. Following this rule will reduce the risk of electric shock. • For best results, your battery tool should be charged in a location where the temperature is more than 45°F but less than 104°F.
  • Page 7 SAFETY INFORMATION • Keep the mower and the charger away from water, heat sources (radiators, heaters, stoves, etc.), flames, and chemicals. • Make sure the battery pack is secured in the charger before beginning operation. • The battery pack will become slightly warm to the touch while charging. This is normal and does not indicate a problem.

  • Page 8: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL DESIGNATION/EXPLANATION Volts Amperes Hertz Watts Hours Precautions that involve your safety.
  • Page 9 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

  • Page 10: Know Your Lawn Mower

    KNOW YOUR LAWN MOWER Read this operator's manual and safety rules before operating your lawn mower. Compare the illustration in Figure 1 to your lawn mower in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Bail switch Height Safety...

  • Page 11: Assembly

    ASSEMBLY INSTRUCTIONS UNPACKING • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •...
  • Page 12 ASSEMBLY INSTRUCTIONS UNFOLDING AND ADJUSTING HANDLE (See Figure 2) • Pull up and back on the upper handle to raise the handle into operating position. Make certain the handles snap into place securely. • Tighten the upper handle with the cam locks on both sides. •...
  • Page 13 ASSEMBLY INSTRUCTIONS INSTALLING THE GRASS CATCHER BAG (See Figure 3) • Lift the chute cover (1). • Lift the grass catcher by its handle (2) and place under the chute cover so that the hooks (3) on the grass catcher frame are seated into the slots in the handle bracket. •...
  • Page 14 ASSEMBLY INSTRUCTIONS INSTALLING THE MULCHING PLUG (See Figure 4) • To remove the mulching plug, lift the chute cover (1). • Grasp the handle (2) of the mulching plug and pull the mulching plug out using the handle. • The mulching plug (3) is inserted on an angle, so it requires some force to remove it. •...
  • Page 15 ASSEMBLY INSTRUCTIONS INSTALLING SIDE DISCHARGE CHUTE (See Figure 5) • Lift the side discharge cover (1). • Align the grooves on the discharge chute (2) with the pins on the underside of the discharge cover (1). • Lower the discharge chute (2) until the hooks on the mower deck are secured in the openings in the discharge chute (2).
  • Page 16 ASSEMBLY INSTRUCTIONS TO INSTALL BATTERY PACK (See Figure 6) • Lift and hold up the battery door. • Place the battery pack on the mower. Align guided ribs on battery pack with grooves in the product’s battery port. • Make sure the latch on bottom of the battery pack snaps in place and that battery pack is fully seated and secure in the mower before beginning operation.

  • Page 17: Operation

    OPERATING YOUR LAWN MOWER STARTING/STOPPING THE MOWER (See Figure 6-7) To start the motor: • Open the battery door and insert the key into the slot. (See Fig. 6) • Press and hold the safety lock-out button (1). (See Fig. 7) •...
  • Page 18 OPERATING YOUR LAWN MOWER CUTTING HEIGHT ADJUSTMENT (See Figure 8) When shipped, the wheels on the mower are set to a low-cutting position. Before using the mower for the first time, raise the cutting position to the height best suited for your lawn. The average lawn should be between 1 1/2"...
  • Page 19 OPERATING YOUR LAWN MOWER SLOPE GAUGE (See Figure 9) W A R N I N G Slopes are a major factor related to accidents involving slips and falls, which can result in severe injury. Operating the mower on a slope requires extra caution. If you feel uneasy on a slope, do not mow it.
  • Page 20 OPERATING YOUR LAWN MOWER MOWING TIPS NOTE: A sharp blade will greatly enhance the performance of the mower, especially when cutting high grass. Be sure to check the blade and to sharpen it at least once per year, as described in the Maintenance section. •...
  • Page 21 OPERATING YOUR LAWN MOWER EMPTYING THE GRASS CATCHER BAG (See Figure 10) • Stop mower, allow blades to completely stop, and remove key. • Lift the rear chute cover. • Lift the grass catcher bag by its handle to remove from mower. •...

  • Page 22: Battery Charger

    BATTERY CHARGER CHARGING PROCEDURE (See Figure 11) NOTE: The battery is not shipped fully charged. It is recommended to fully charge before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time.
  • Page 23 BATTERY CHARGER W A R N I N G If the battery is inserted into the charger when warm or hot, the CHARGING LED indicator light on the charger may switch on and illuminate GREEN. If this occurs allow the battery to cool outside of the charger from approximately 30 minutes.

  • Page 24: Maintenance

    ALWAYS remove the key when servicing or transporting the mower. Use only a GREENWORKS replacement blade. • REMOVE BATTERY. • While wearing leather padded gloves, wedge a block of wood between the blade and the mower deck in order to prevent the blade from turning when the nut is being removed.
  • Page 25 MAINTENANCE REPLACING THE BATTERY The mower battery is designed for maximum life; however, like all batteries, it will eventually need to be replaced. Charge the new battery pack before use. To install a new battery: • Remove the key. • Carefully unlock and remove the battery pack. •...
  • Page 26 MAINTENANCE CLEANING THE MOWER W A R N I N G In order to reduce the risk of electric shock, do not expose the mower to water. The underside of the mower deck should be cleaned after each use, because grass clippings, leaves, dirt, and other debris will accumulate, which will cause rust and corrosion.

  • Page 27: Service

    SERVICE • When ser vicing the mower, use only replacement par ts that are available from the manufacturer. In order to obtain replacement parts, call the toll-free helpline, at 1-888-909- 6757. The use of parts that do not meet the original equipment specifications may lead to improper performance, and may compromise safety.

  • Page 28: Environmentally Safe Battery Disposal

    ENVIRONMENTALLY SAFE BATTERY DISPOSAL The batteries used in this mower's battery pack contain the following toxic and corrosive material: LITHIUM-ION. W A R N I N G Toxic materials must be disposed of in a specified manner in order to prevent contamination of the environment.

  • Page 29: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The battery is not charged. Charge the battery. The switch is defective. Replace the switch (call the tollfree helpline, at 1-888-909-6757 Grass jammed at blade. Remove battery; check under deck for The mower does jams. not start.

  • Page 30: Warranty

    (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for...

  • Page 31: Exploded View

    EXPLODED VIEW...

  • Page 32: Parts List

    PARTS LIST ITEM NO. PART NO. DESCRIPTION 31104488 Upper handle assy. 33305469-3 Bail switch 31110487 Motor engagement box 3220439 Lock nut 33323250 Stop sheet 32208250 Screw M5x30 33302463-4 Lower handle 34103466-3 Cam lock bracket 31103487 Cam lock assy. 32901466 34102466-3 Cam lock handle 33201466 Cam lock bolt...
  • Page 33 PARTS LIST ITEM NO. PART NO. DESCRIPTION 33332250 Spring 34103467-1 Side discharge chute 31104487 Side discharge cover assy. 40-1 34102467-1 Side discharge cover 40-2 33308250 Side discharge axle 40-3 33307250 Side discharge bracket 40-4 33331250 Spring 3220136 Screw 31301487 19” deck 34106488 Wheel cover 3290135...
  • Page 34 PARTS LIST ITEM NO. PART NO. DESCRIPTION 32910131 Nut M10 33310234 Spring (Left) 33905234-4 Height adjustment plate (Left) 33201234 Rear cover rod 34101234-4 Rear cover 34106463-2 Mulching plug 31102487 Grass catcher bag assy. 80-1 33907234-5 Catcher bag frame 80-2 34902234-3 Catcher bag 31101975 40V Battery...
  • Page 35 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 01 (10-28-11) Printed in China on 100% Recycled Paper...
