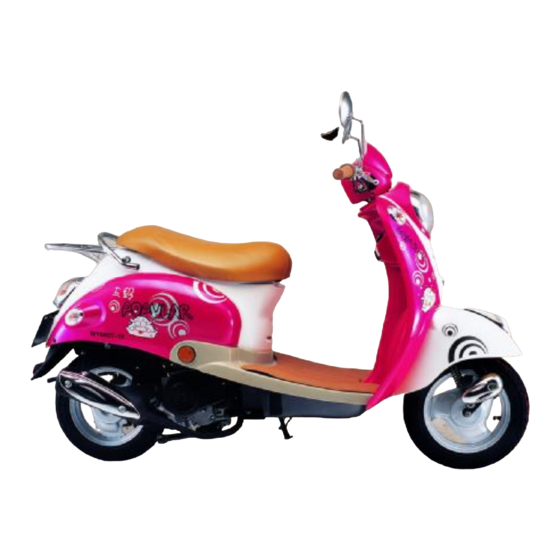

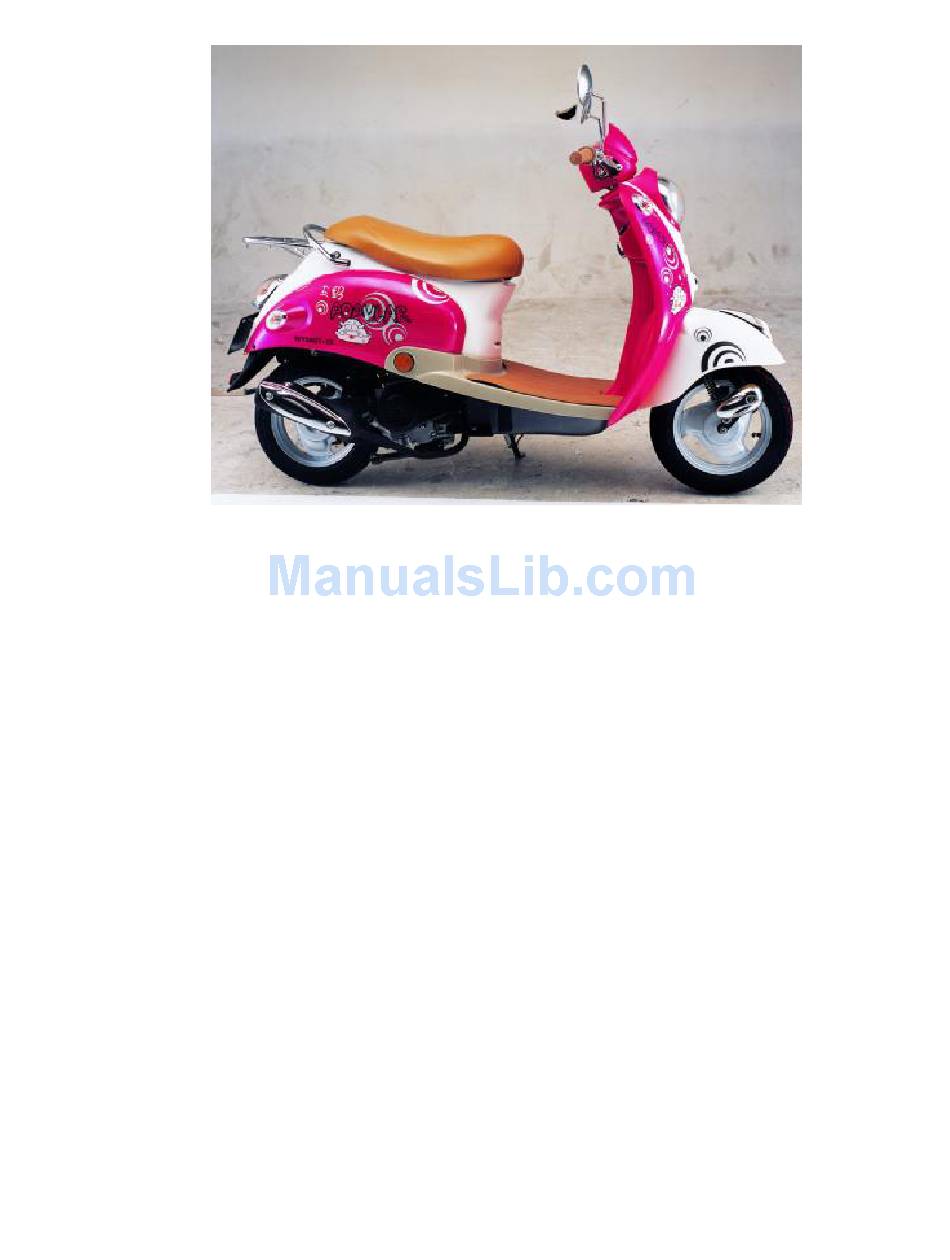

User's manual ：WY50QT-10
PREFACE
Thanks for your purchasing the motorcycle WY50QT-10, and
sincerely welcome you to be our motorcycle user. To enjoy a more safe
and pleasurable driving, at first please familiarity with the manual must
carry on before driving. Your personal safety depends not only the
vigilance and familiar operation skills, but also relates to whether you
are familiar with the mechanical performance. Before driving, check-up
and periodical maintenance are basic requirement. If maintenance and
repair needed, go to our service center for help. If you know the
mechanic knowledge and have the tools, the dealer can offer you help
with the maintenance and repair, like providing the parts catalogue and
the spare parts.
This manual explains in detail the correct operation and maintenance,
together with the expectation for your long-time use. Modifications in
specification could cause the discrepancy with some figures and content
in the manual, we feel sorry for that and hold the final right of
interpretation.
Have a good enjoyment and thanks again for your purchasing.
Advertisement
Table of Contents
Related Manuals for WangYe WY50QT-10
Summary of Contents for WangYe WY50QT-10
- Page 1 User’s manual ：WY50QT-10 PREFACE Thanks for your purchasing the motorcycle WY50QT-10, and sincerely welcome you to be our motorcycle user. To enjoy a more safe and pleasurable driving, at first please familiarity with the manual must carry on before driving. Your personal safety depends not only the vigilance and familiar operation skills, but also relates to whether you are familiar with the mechanical performance.
-
Page 2: Table Of Contents
The important points to attention Ÿ The driver and passenger This motorcycle was limited to one driver and one passenger (except children younger than 12 years old). Never exceed the Max load capacity of motorcycle. Ÿ For the safety, avoid driving the motorcycle in atrocious weather or cold weather (under -12℃). Ÿ... -
Page 3: Ⅰ. Motorcycle Safe Drive
Ⅰ. Motorcycle safe drive Rule for safe drive Only the driver can be sure the motorcycle safety. 1、 The motorcycle happens many accidents; all reasons are that the car drivers didn’t look at the motorcycle drivers. So the motorcycle drivers must: ※Wear the bright color clothes. -
Page 4: The Parts & Subassemblies And Use Manual Parts & Subassemblies
II. The parts & subassemblies and use manual （Fig1、Fig2） Parts & subassemblies Meter and light Fr .Brake handle luggage battery Production Label Main stand Fig 1 - 3 - rr.brake handle Oil box Seat lock Air cleaner starter Side stand Fig2 。... -
Page 5: Ignition Switch
Meter and indicator light （Fig3） ⑴ Odometer：Records vehicle mileage。 ⑵Speedometer ：When the vehicle, the speed of the vehicle。 ⑶Fuel Meter：Show gasoline stocks。 ⑷ Right Turning indicate light： When turning lights when clicked, right button right turn indicator will Fig3 shine。 ⑸Headlight indicate light：Variable light switch button in the “... -
Page 6: High-Low Beam Switch
High-Low beam switch 1（Fig7） Press “ ” button，to get high beam；Press“ ”button，to get low beam. Turning light switch 2（Fig7） When the switch is on“ ”, turn left; When the switch is on“ ” button, turn right. Press it down the light turn off. Horn switch 3（Fig7）... -
Page 7: Iii. The Operation
III. The operation ·Inspection before riding Make routine check-up before riding to insure the vehicle perform well and safe driving. Gasoline volume Turn on the ignition switch and check the fuel meter, replenish gasoline when the pointer is close to red section, moreover, check the fuel tank and oil filter if leakage. - Page 8 The free path of rear brake handle（Fig14、Fig16） Measure the free path of rear brake handle before the detent function. The free path should be within （10～20）mm from the end of brake handle to calculate. Adjust nut： （A）Increase the free path. （B）Decrease the free path.
-
Page 9: Engine Starting
Fig16 Tyre Check the tyre pressure periodically and adjust it if necessary. Check the tire pressure only when it is cooled. Check if there any metal trash or gravel in the groove of tyres，repair the tyre if leaking. Check if any metal trash or gravel in the groove of tires. If any impair please show your motorcycle to the maintain service to inspect. -
Page 10: Drive The Motorcycle
Drive the motorcycle: WARNING: Wear the trousers to avoid touching with exhaust pipe and was burnt. All the device must be installed according to requirement of the traffic rule. Take the license to ride. Each equipment of the motorcycle should accord with the traffic law of local government。... -
Page 11: Stopping Engine
Stopping engine（ 19、 20） Close oil: revolve to the lowest place according to picture. (Loosen the throttle grip in normal situation, and the engine is under idling speed mode) Turn the ignition switch to （ ） Fig18 fig19 Stop operation: ）position, put down stand and lock handle（refer to When stop the motorcycle, put the key to（... - Page 12 Maintenance periodic table（Table3） Check before driving must be conducted while periodical maintenance (refer to page 9) I: Check-up and adjustment if needed. C：Clean R：Change table3 cycle speedometer（×1000km） running in period item page ﹡ Fuel pipe ﹡ Operation of the Throttle ﹡...
-
Page 13: Obviate The Simple Trouble
Obviate the simple trouble （ Table4） Table4 Trouble Trouble reason Solution Phenomenon Spark plug wear out Change Ignition wire wear out Change Spark plug no spark CDI wear out Change Ignition switch wear out Change Ignition come off or become flexible Connect well or firm Spark plug gap too small or big Adjust... -
Page 14: Cleaning Air Filter
（ Cleaning air filter 20） Take out air cleaner cover Screw up the blot. Take apart the core from air cleaner box. Compress air or use dry brush clean the filter element or put a new filter in the air clean box. Do the above opposite to reinstall the air filter. - Page 15 oil replacement、Machine oil oil filler strainer's clean Change the oil（fig25） When replaces the machine oil, should when engine's temperature not yet cools, the automobile body carries on by the jiffy stand support reliable condition, guaranteed that fast and complete puts the machine oil clean 。...
-
Page 16: Changing Oil From Gear Box
Changing Oil from Gear box（Fig25） Proposal Oil Trademark SAE 80W/90（Using prevent frostbite Oil in the Very cooled area） Oil capacity Resolving capacity ：0.10L Changing capacity ：0.09L Place the vehicle by the main stand. Screw out the leaking bolt 1 and oil-drain bolt 2. Warning ：... -
Page 17: Ⅵ.vehicle Identification
Ⅴ.Vehicle Storage Stockpile For the motorcycle not to be used for a long time, some steps should be taken to prevent malfunction and damage to the parts. Besides, before the long-time storage, proper repairs should also be done. Change the engine oil. Drain out the fuel in the fuel tank and carburetor Warning: Gasoline is inflammable and may cause fire and even explosion under certain conditions. -
Page 18: Ⅷ. Main Technique Parameter
Ⅷ. Main technique Parameter Blank5 Item Item Parameter Parameter Front Tire 3.00-10 L×W×H 1690×645×1055 Wheel Base 1195 Rear Tire 3.00-10 Pressure Front Tire Ground Clearance Pressure RearTire Dry Weight Transmission Automatic CVT Max Payload Turning Angle of Steering ≤48 Battery 12V 4Ah º... -
Page 19: Ⅸ. Circuit Diagram
- 33 - X. Emission Control System Warranty Statement Wangye USA Co., LLC is pleased to explain the emission control system warranty on Highway Motorcycle. New Highway Motorcycle must be designed, built and equipped to regulations and standards of the United States Environmental Protection Agency and the California Air Resource Board and free from defects in material and workmanship that may keep it from these requirements in the all applicable regulations. - Page 20 Wangye USA, and the above warranty constitutes your sole remedy and the full liability of Wangye USA. In no event shall Wangye USA be liable for special, incidental or consequential damages howsoever caused, whether by negligence or otherwise resulting directly or indirectly from the use of the Motorcycle, or the Motorcycle’s...
