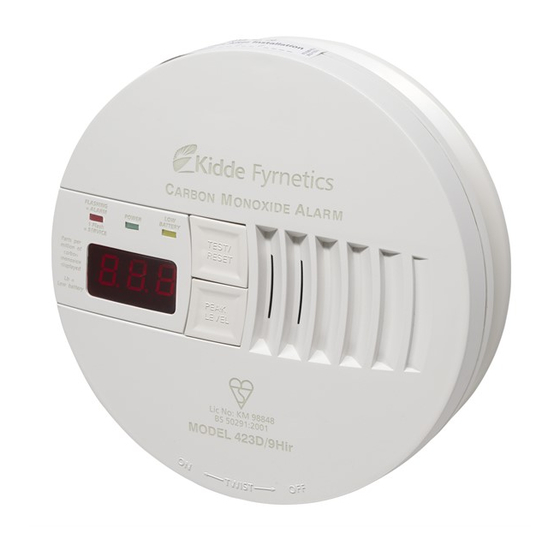

Kidde 423D/9HIR Installer's Manual

230v interconnectable mains operated alarm with rechargeable lithium ion back up
Hide thumbs Also See for 423D/9HIR:

Advertisement

Table of Contents

2512-7205-01.qxd:_
230V Interconnectable Mains Operated Alarm with
423D/9HIR CO Alarm with digital display, Peak level Memory and Smart Interconnect
423/9HIR CO Alarm with Smart Interconnect
Thank you for purchasing a Kidde Fyrnetics alarm.
Please read through our guide in full.
This Kidde Fyrnetics CO Alarm is suitable as a single station and/or multiple station
device - up to 18 alarms. It is designed for residential premises only.
Electrical rating 230V AC,
50Hz 30mA max per alarm
(maximum 30mA for originating unit
with 18 alarms interconnected).
Kidde Safety Europe, Mathisen Way, Colnbrook, SL3 0HB, UK.
Contents
Installation
Section
1.
Recommended Locations for CO Alarms
Section
2.
Where not to install your alarm
Section
3.
Installing the Alarm
Section
4.
Battery Checking and Charging
Section
5.
Initial Checking and Testing of Alarm
Section
6.
Interconnect Wiring
Section
7.
Interconnecting with Kidde CO, Smoke and Heat Alarms
Section
8.
Timing of Installing
Section
9.
Decorating
Section
10.
Ongoing Maintenance
Section
11.
Repair/Servicing
Section
12.
Limitations of CO Alarms
Section
13.
Troubleshooting
Section
14.
Service and Guarantee
Section
15.
Specifications
Section
16
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with Local Authority or Distributor for recycling advice.
2008.4.1
2:05 PM

Carbon Monoxide alarm

Rechargeable Lithium Ion Back Up
www.kiddefyrnetics.co.uk
© Kidde Fyrnetics 2005
The Owner's Manual should be left in a safe place
for the property owner. e.g. near Consumer Unit.
Page 1
Installer's Guide
Lic No: KM 98848
EN50291:2001
1

Advertisement

Table of Contents
loading

Related Manuals for Kidde 423D/9HIR

Summary of Contents for Kidde 423D/9HIR

  • Page 1: Carbon Monoxide Alarm

    Thank you for purchasing a Kidde Fyrnetics alarm. Please read through our guide in full. This Kidde Fyrnetics CO Alarm is suitable as a single station and/or multiple station device - up to 18 alarms. It is designed for residential premises only.

  • Page 2: Installation Instructions

    2512-7205-01.qxd:_ 2008.4.1 2:05 PM Page 2 1. Installation Instructions This alarm is designed for installation by a qualified electrician, in accor- dance with the latest I.E.E. Regulations and relevant British Standards. Read these instructions thoroughly before proceeding. This CO alarm must be installed by a competent person. This manual is supplied for your guidance and is for use by qualified electricians.

  • Page 3: Where Not To Install Your Alarm

    2512-7205-01.qxd:_ 2008.4.1 2:05 PM Page 3 3. Where not to install your alarm To avoid causing damage to the unit, to provide optimum performance, and to prevent unnecessary nuisance alarms. Do not install in bathrooms, garages or boiler rooms or anywhere that may expose the sensor to substances that could damage or contami- nate it.
  • Page 4 2512-7205-01.qxd:_ 2008.4.1 2:05 PM Page 4 4. Installing the Alarm powered from a single circuit. • The SMK 23 has 2 external alignment marks to assist in lining up. • If alarm is not being interconnected, the white interconnect cable from the alarm is unused.

  • Page 5: Interconnect Wiring

    7. Interconnect Wiring This CO alarm can be used independently or interconnected up to 17 Kidde Fyrnetics AC smoke, heat or CO alarms. i.e. 18 in total, as listed below. • Crossing line and neutral connections or line and interconnect con- nections will fatally damage all interconnected alarms invalidating the guarantee.
  • Page 6 3 long beeps, 1 second of silence, repeated. Note: You do not need to press the Test button to take a CO reading. Smoke/Heat Alarm Indicator When an interconnected Kidde Fyrnetics smoke alarm detects smoke, or a heat alarm detects 57 C, this unit will sound an alarm pattern of 3 long beeps, followed by a 1 second silence.

  • Page 7: Ongoing Maintenance

    2512-7205-01.qxd:_ 2008.4.1 2:05 PM Page 7 9. Timing of Installing New Build • Install the base plate (and surface pattress if used) at first fix. • Do not install alarm itself until following trades have finished e.g. plas- terers, painters, carpet fitters, etc. •...

  • Page 8: Limitations Of Co Alarms

    2512-7205-01.qxd:_ 2008.4.1 2:05 PM Page 8 13. Limitations of CO Alarms • This alarm will only indicate the presence of CO at the sensor. • CO may be present elsewhere in the property. • All alarms must be tested regularly to make sure the back up batteries and the alarm circuits are in good operating condition.

  • Page 9: Service And Guarantee

    AC electrical power, or damage caused by failure to abide by the instructions supplied. The liability of Kidde Fyrnetics, arising from the sale of this alarm or under the terms of this guarantee shall not in any case exceed the cost of replacement of the alarm, in no...
  • Page 10 Lic No: KM 98848 EN50291:2001 Kidde Safety Europe, Mathisen Way, Colnbrook, SL3 0HB, UK. www.kiddefyrnetics.co.uk © Kidde Fyrnetics 2005 The additional Ownerʼs Manual should be left in a safe place for the property owner, e.g., near Consumer Unit. Patent Pending...
