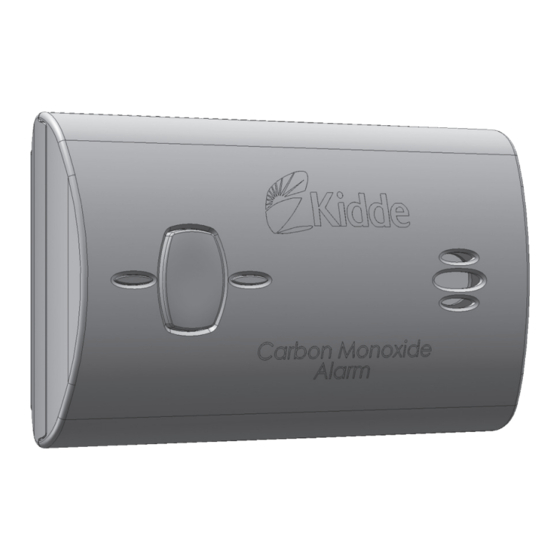

- Page 1 Carbon Monoxide Alarm User Guide Models: KN-COB-LP2 KN-COB-LP2 • Event Memory • Battery Operation ATTENTION: Please take a few minutes to thoroughly read this user guide which should be saved for future reference and passed on to any subsequent owner.
-
Page 2: What To Do When The Alarm Sounds
What to do When the Alarm Sounds! Carbon Monoxide Alarm Procedure WARNING: Activation of the CO Alarm indicates the presence of Carbon Monoxide (CO) which can kill you. 1) Operate the Test/Reset button; 2) Call your emergency services (Fire Department or 911); PHONE NUMBER: 3) Immediately move to fresh air - outdoors or by an open door/ window. -
Page 3: Important Warning Statements
Note: Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO”. This Kidde carbon monoxide (CO) alarm is an important part of your family’s home safety plan. This alarm has been designed and tested to detect CO buildup in a residential environment. Your alarm is for use specifically in the home. - Page 4 This alarm has not been independently investigated for carbon monoxide detection below 70 PPM. Contents of This User Guide 1. Information About Carbon Monoxide 2. Product Features and Specifications 3. Installation Locations 4. Installation Instructions 5. KN-COB-LP2 Operating Characteristics 6. Alarm Characteristics 7. Maintenance 8. Limited Warranty...
-
Page 5: Information About Carbon Monoxide
1. Information About Carbon Monoxide General Carbon Monoxide Information Carbon monoxide is a colorless, odorless and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen. Periodically review this user guide and discuss your CO alarm emergency procedure with all the members of your family. -
Page 6: Conditions That Can Produce Carbon Monoxide
1. Information About Carbon Monoxide • Automobiles, furnaces, gas ranges/stoves, gas clothes dryers, water heaters, portable fuel burning space heaters and generators, fireplaces, wood-burning stoves and certain swimming pool heaters. • Blocked chimneys or flues, back drafts and changes in air pressure, cor- roded or disconnected vent pipes, loose or cracked furnace exchangers. - Page 7 Because carbon monoxide is a cumulative poison, long-term exposures to low levels may cause symptoms, as well as short-term exposures to high levels. This Kidde unit has a time-weighted alarm – the higher the level of CO present, the sooner the alarm will be triggered.
-
Page 8: Product Features And Specifications
Button Power LED Red, Alarm LED Model KN-COB-LP2 WARNING: After ten (10) years from initial power up, this alarm will “beep” two times every 30 seconds to indicate that it Green, is time to replace the alarm. Replace the alarm immediately! It... -
Page 9: Recommended Installation Locations
(4.4°C) or hotter than 100°F (37.8°C) such as crawl spaces, attics, porches and garages. • Do not install within 5 ft. of heating or cooking appliances. (Kidde recommends 15 ft. to prevent nuisance alarms). • Do not install near vents, flues, chimneys or any forced/unforced air ventilation openings. -
Page 10: Installation Instructions
4. Installation Instructions Battery Installation and Replacement To install or replace the batteries in this Kidde CO alarm, please perform the following steps. 1. Slide open the bottom cover to expose the battery compartment. 2. If replacing batteries, remove the old batteries and properly dispose of them as recommended by the battery manufacturer. -
Page 11: Important Labels Provided
4. Installation Instructions Mounting This CO alarm can be either wall mounted or placed on a tabletop. For wall mounting, follow these steps: 1. Remove back mounting plate from the alarm, place it in the desired location, and mark the location of the two holes needed on the wall Screw Head Distance 2. -
Page 12: Alarm Characteristics
5. Model KN-COB-LP2 Operating Characteristics Whenever the alarm is operating, the green Power LED flashes every 60 seconds to indicate the unit is monitoring for CO. If the alarm senses dangerous levels of CO, the red Alarm LED will flash and the alarm will emit an audible alarm pattern. -
Page 13: Event Memory
Event Memory If the unit has detected a CO concentration of 100ppm or greater, the Green LED will flash every 10 seconds. Pushing the test button will clear the Event Memory and initiate the test sequence. 7. Maintenance NOTE: This unit is sealed. The cover is not removable. Due to the loudness of the alarm, we suggest that you place your fingers over the sounder opening while testing your alarm. - Page 14 7. Maintenance Move the CO Alarm to a remote location, to prevent possible damage or contamination of the sensor, prior to performing any of the following: • Staining or stripping floors or furniture, painting or wall-papering, • Using aerosols or adhesives WARNING: Reinstall the CO Alarm as soon as possible to assure continuous protection.
- Page 15 8. Maintenance FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 16 IMPORTANT: Do not remove unit back cover. Back cover removal will void warranty. Your Kidde Carbon Monoxide Alarm is not a substitute for property, disability, life or other insurance of any kind. Appropriate insurance coverage is your responsibility. Consult your insurance agent.
Need help?
Do you have a question about the KN-COB-LP2 and is the answer not in the manual?
Questions and answers

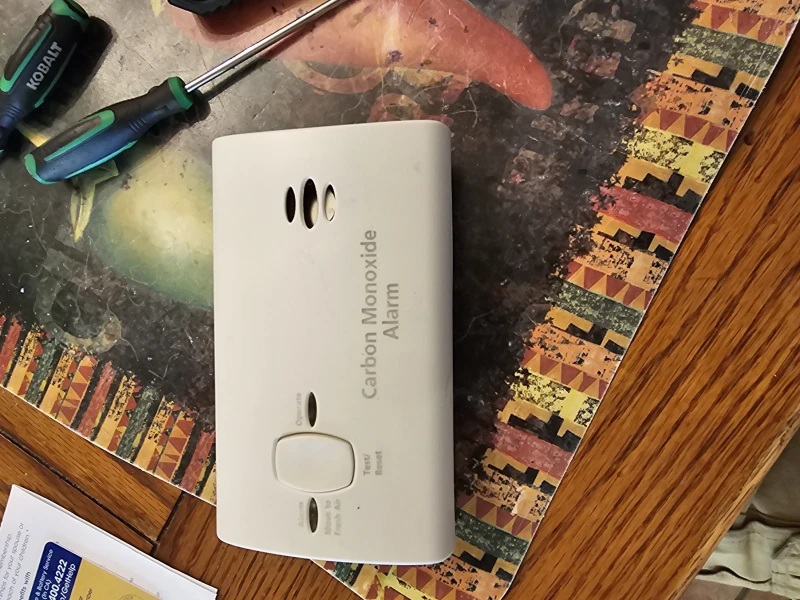

How to open to change batteries
How to open where is door ?
Slide open the bottom cover to expose the battery compartment.
This answer is automatically generated
How to remove the back mounting plate?
The document does not provide specific instructions on how to remove the back mounting plate of the Kidde KN-COB-LP2. However, it mentions that the back mounting plate should be removed before installation.
This answer is automatically generated
How can U open the carbon monoxide
The Kidde KN-COB-LP2 carbon monoxide detector has a battery door that allows access to the batteries. The manual mentions that the battery compartment includes a safety feature that makes it difficult to close the door without the batteries being installed. However, it does not provide specific instructions on how to open the device.
This answer is automatically generated
Changed batteries twice. Still chirps
The Kidde KN-COB-LP2 may continue to chirp after changing the batteries twice due to the End of Life notification. After ten years from initial power-up, the alarm will beep twice every 30 seconds, indicating it needs to be replaced. The End of Life Hush feature allows silencing the chirps for 3 days, up to a total of 30 days, but after that, the alarm must be replaced. If the chirping persists despite new batteries, it likely means the unit has reached the end of its life and needs to be replaced.
This answer is automatically generated
