230V Interconnectable Mains Operated Alarm with

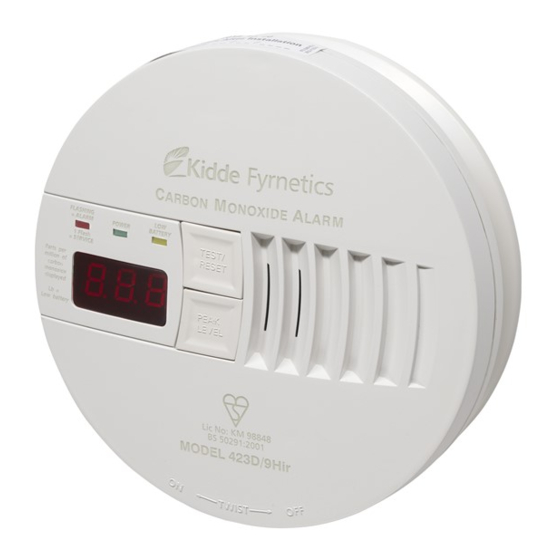

423D/9HIR CO Alarm with digital display, Peak level Memory and Smart Interconnect
423/9HIR CO Alarm with Smart Interconnect
Thank you for purchasing a Kidde Fyrnetics alarm.
Please read through our guide in full.
This Kidde Fyrnetics CO Alarm is suitable as a single station and/or multiple station device
- up to 18 alarms. It is designed for residential premises only.
Electrical rating 230V AC,
50Hz 30mA max per alarm
(maximum 30mA for originating unit
with 18 alarms interconnected).
Kidde Safety Europe, Mathisen Way, Colnbrook, SL3 0HB, UK.
Contents
Installation
Section
1.
Recommended Locations for CO Alarms
Section
2.
Where not to install your alarm
Section
3.
Installing the Alarm
Section
4.
Battery Checking and Charging
Section
5.
Initial Checking and Testing of Alarm
Section
6.
Interconnect Wiring
Section
7.
Interconnecting with Kidde CO, Smoke and Heat Alarms
Section
8.
Testing
Section
8
Timing of Installing
Section
9.
Decorating
Section
10.
Ongoing Maintenance
Section
11.
Repair/Servicing
Section
12.
Limitations of CO Alarms
Section
13.
Troubleshooting
Section
14.
Service and Guarantee
Section
15.
Specifications
Section
16
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with Local Authority or retailer for recycling advice.
Rechargeable Lithium Ion Back Up
www.kiddefyrnetics.co.uk
© Kidde Fyrnetics 2005
The Owner's Manual should be left in a safe place
for the property owner. e.g. near Consumer Unit.
Carbon Monoxide alarm
Installer's Guide
Lic No: KM 98848
EN50291:2001
1
Advertisement
Table of Contents
Related Manuals for Kidde Fyrnetics 423/9HIR
Summary of Contents for Kidde Fyrnetics 423/9HIR
-
Page 1: Carbon Monoxide Alarm
Thank you for purchasing a Kidde Fyrnetics alarm. Please read through our guide in full. This Kidde Fyrnetics CO Alarm is suitable as a single station and/or multiple station device - up to 18 alarms. It is designed for residential premises only. -
Page 2: Installation Instructions
IMPORTANT! THIS CARBON MONOXIDE ALARM IS DESIGNED TO DETECT CARBON MONOXIDE FROM ANY SOURCE OF IMPROPER OR MALFUNCTIONING APPLIANCES. IT IS NOT DESIGNED TO DETECT SMOKE, FIRE, OR ANY OTHER GAS. THIS CARBON MONOXIDE WILL NOT SENSE SMOKE, FIRE, OR ANY POISONOUS GAS OTHER THAN CARBON MONOX- IDE. -
Page 3: Where Not To Install Your Alarm
3. Where not to install your alarm To avoid causing damage to the unit, to provide optimum performance, and to prevent unnecessary nuisance alarms. Do not install in bathrooms, garages or boiler rooms or anywhere that may expose the sensor to substances that could damage or contaminate it. Do not install in areas where the temperature is colder than 4.4 º... - Page 4 If AC power is ON, and after 10 hours the red SERVICE LED and amber Low Battery LED are still flashing, contact your Installer, landlord or Kidde Fyrnetics. 6. Initial Checking and Testing of Alarm • Having energised circuit, press and release the test button – the alarm should sound and other interconnected ones also, within a few seconds.
-
Page 5: Interconnect Wiring
Ion Smoke Alarms: 123i - 123/9hi - 123/9hill - 1SF23/9hi - 1SF23/9hir - 1SF23/9hire Photo Smoke Alarms: 223i - 223/9i - 223/9hi - 223/9ill - 223/9hill - 2SF23/9hi - - 2SF23/9hir - 2SF23/9hire Heat Alarms: 323/9hi - 323/9hill - 3SF23/9hi - 3SF23/9hir Carbon Monoxide Alarms: 423D/9hir - 423/9hir... - Page 6 Test button to take a CO reading. Smoke/Heat Alarm Indicator When an interconnected Kidde Fyrnetics smoke alarm detects smoke, or a heat alarm detects 57 C, this unit will sound an alarm pattern of 3 long beeps, followed by a 1 second silence.
-
Page 7: Ongoing Maintenance
9. Timing of Installing New Build • Install the base plate (and surface pattress if used) at first fix. • Do not install alarm itself until following trades have finished e.g. plasterers, painters, carpet fitters, etc. • Do not install if property remains damp or unheated. •... -
Page 8: Limitations Of Co Alarms
13. Limitations of CO Alarms • This alarm will only indicate the presence of CO at the sensor. • CO may be present elsewhere in the property. • All alarms must be tested regularly to make sure the back up batteries and the alarm circuits are in good operating condition. -
Page 9: Service And Guarantee
AC electrical power, or damage caused by failure to abide by the instructions supplied. The liability of Kidde Fyrnetics, arising from the sale of this alarm or under the terms of this guarantee shall not in any case exceed the cost of replacement of the alarm, in no... - Page 10 EN50291:2001 Kidde Safety Europe, Mathisen Way, Colnbrook, SL3 0HB, UK. www.kiddefyrnetics.co.uk © Kidde Fyrnetics 2005 The additional Owner’s Manual should be left in a safe place for the property owner, e.g., near Consumer Unit. DO NOT LEAVE THIS INSTALLER’S GUIDE WITH THE PROPERTY OWNER.
