Haier HRF-305 Owner's Manual

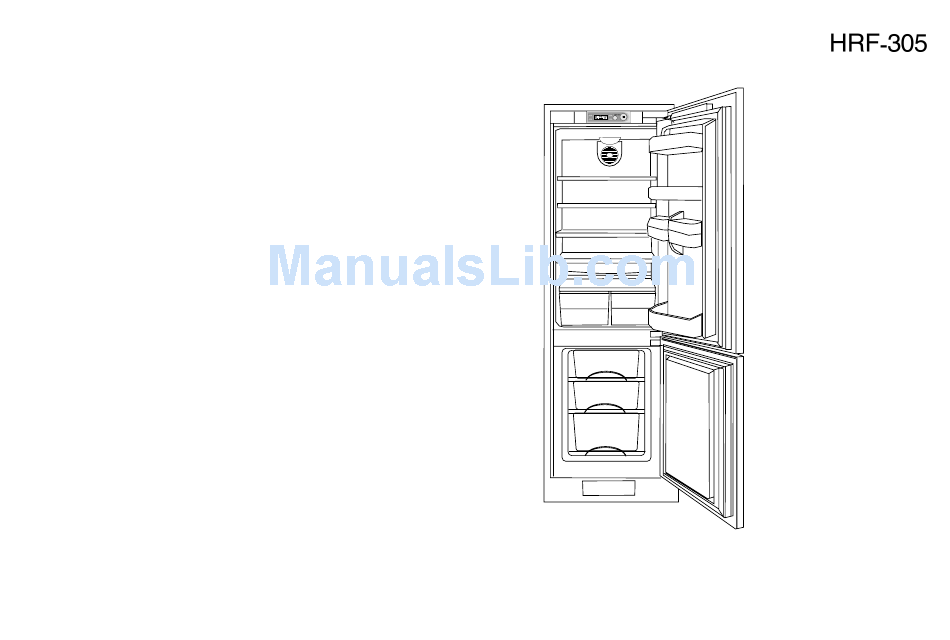

Haier built-in refrigerator owner manual
Hide thumbs

Advertisement

Quick Links

Haier
Built-in Refrigerator
Fridge Temp
Freezer Temp
Super Freezing
Fuzzy
Read the "Safety Precautions" and using methods carefully before using the refrigerator.
Keep this manual in a proper place, so that you can refer to it at any time.
We may change the product profile and specification to improve its quality without informing cus-
tomers in advance.

Advertisement

loading

  Related Manuals for Haier HRF-305

  Summary of Contents for Haier HRF-305

  • Page 1 Super Freezing Fuzzy Read the “Safety Precautions” and using methods carefully before using the refrigerator. Keep this manual in a proper place, so that you can refer to it at any time. We may change the product profile and specification to improve its quality without informing cus-...
  • Page 2: Safety Precautions

    Don’t put the refrigerator on the cord, and try to When the cord is damaged, find help in desig- avoid stepping on the cord.
  • Page 3 Safety Precautions W a r n i n g W a r n i n g In case there is gas or flammable gas Don’t put socket, transformer or mi- leakage crowave on top of the fridge, and it is Close the valve.
  • Page 4 Safety Precautions W a r n i n g W a r n i n g It is not good to put too much materials Don’t put heating device near the or food on top of and inside the fridge, fridge.
  • Page 5 Usage Instruction W a r n i n g W a r n i n g This product adopts AC 220V voltage. The plug shall be connected to sole-purpose 220V socket. Installation Method This product is usually a built-in type fridge put in fridge cabinet. When you want to block up the fridge on a level floor, you have to use solid and flameproof materials, and you must not use foam used during the transportation of the fridge.
  • Page 6: Operation Check

    Operation Check Power Connection After the plug is connected to power, the fridge starts automatically. Power the fridge after power off, press power button 3s, the green indicator is on, the fridge start to operate. Temperature Setting (Refer to Page 12) Even if you don’t set the temperature, the fridge can operate.
  • Page 7 Functions and Temp. Setting Method After the fridge is powered, power button indicator and function indicator will on. Fridge Temp Freezer Temp Fuzzy Super Freezing A Fresh Food Temp. [set the temperature of fresh food compartment, fresh food compartment ON/OFF button] B Cooling Speed[button to adjust the cooling speed of the fresh food compartment and the freezer] C Freezer Temp.
  • Page 8 Functions and Temp. Setting Method Fridge Temp Freezer Temp Super Freezing Fuzzy Setting of Intelligence Function Press Intelligence Button (D), the indicator (d) is on, and the intelligence function starts to work. When you want to cancel the intelligence function, press the Intelligence Button (D) 3s, the intelligence indicator (d) is off, and the function is cancelled.
  • Page 9 Functions and Temp. Setting Method Fridge Temp Freezer Temp Fuzzy Super Freezing Auto Diagnosis Display Function Sensors in the fridge can guarantee effective control of the fridge. The digital display will show [Type: F1, F2, F3, F4], when any sensor detect abnormal temperature. The fridge will still operate, even with these abnormality display.
  • Page 10 Fresh Food Compartment Usage and Food Storage Store the short term stored or frequent food is the fresh food compartment The temperature in the fresh food compartment is 2~7¡ , the fresh food compartment keeps food fresh shorter than the freezer does.
  • Page 11 Fresh Food Compartment Usage and Food Storage Store vegetables against their growing direction. Cut leaves of radish species. Some nourishment may be lost. Put egg into egg holder. Defrost frozen food in the fresh food compartment. Cooling air steamed by frozen food can decrease the fresh food compartment temperature, and reduce power consumption.
  • Page 12 Freezer Usage & Food Storage Cool hot food naturally before put them into the fridge. f you put hot food into the fridge, they will affect nearby food and increase power consumption. Put food in small bag, each bag shall be less than 2.5kg.
  • Page 13 Clean Auto Defrost of Fresh Food Compartment The fresh food compartment can do auto defrost. The ice is melted into water and discharged. Don’t block holes on crisper, if it is blocked, open it with discharge pin. Freezer Auto Defrost After long time usage, water is accumulated on the evaporator, and make it easy to frost.
  • Page 14: Problems And Solutions

    Stoppage When you are out for a while or on holiday For short period, take out food that is easy to degenerate, and adjust to proper temperature. For long period, draw out the power plug, and take all food out, clean the fridge and open the doors.
  • Page 15 Problems and Solutions The installation position affect vibrating There is heat radiation at the back of the sound and its power. Sound can be fridge, and the temperature there is high, reduced when the fridge is good leveled. which is normal. The power consumption in the product specification is measured after it is in...
  • Page 16 During transportation and installation, do not squeeze power cord. Damaged power cord may cause fire disaster. Do not dismantle the refrigerator, except it is indicated in the manual. Otherwise, there may be electrical shock, fire hazards. After installation, do not throw this instruction, and keep it properly together with the refrigerator manual.
  • Page 17: Exploded View

    Combination Refrigerator HRF-305 Exploded View Combination Refrigerator HRF-305 Components list 1. sheet to adjust clearance 2. Upper fixing board 3. Lower fixing plate 4 piece connected 3 categories 2 pieces connected 4 pieces connected 5. upper pad Steel 6. upper fixing board cover 7.
  • Page 18 Move the hinge from right to left for the left open cabinet, and install accordingly. 1. Basic Dimensions Refrigerator cabinet: Width (outside) Width (inside) Confirm the right angle of every refrigerator cabinet Confirm the refrigerator cabinet air inlet and outlet refrigerator cabinet door (Upper): Width Height...
  • Page 19 Damaged power cord may cause fire disaster. 2. Connect the power. (If the socket is at the back of the cabinet, first connect the power before put the refrigerator cabinet into its place.) 3. For safeties, put the power switch in off position, and the switch of the whole room as well.
  • Page 20 (2 each in the upper and lower door) _ they are stored separately The upper fixing plate is used when you install refrigerator cabinet door. (for installation method, please refer page 15~17 )
  • Page 21 Open the refrigerator door, hang the refrigerator cabinet door on the height adjusting bolt in the upper side of the refrigerator, and fix with hex nut. (it shall not be too tight, and it shall be movable!/ 2 in the left and right ) Close the door and the screw shall not be tightened, and adjust the left and right clearance of the upper end.
  • Page 22 (Refer to Figure D on Page 19: Stick the magnetic part of gasket to the side panel of refrigerator.) When change the hinge position, remember to insert hinge hole sheet.
  • Page 23 Installation Sequences Figure E Assembly Method When it is left-open door, take off change the position of hinge. That is to insert sheet to the hinge fixing hole on the other side. Figure F Assembly Method Figure G Assembly Method Figure H Assembly Method Figure I Assembly Method hinge hold sheet, and...
