  • Page 1 User manual mermaid ventura 170 TFT Analog Only Model...

  • Page 2: Table Of Contents

    170 TFT - User manual Version 1.0 ___________________________________________________________________________________ Table of Content: Table of Content: 1. Preface 2. Important Information 3. Content of the Box 4. Unpacking, Placement and Set-up (PC) 5. OSD Key Functions 6. OSD Functions & Adjustments 7.

  • Page 3: Preface

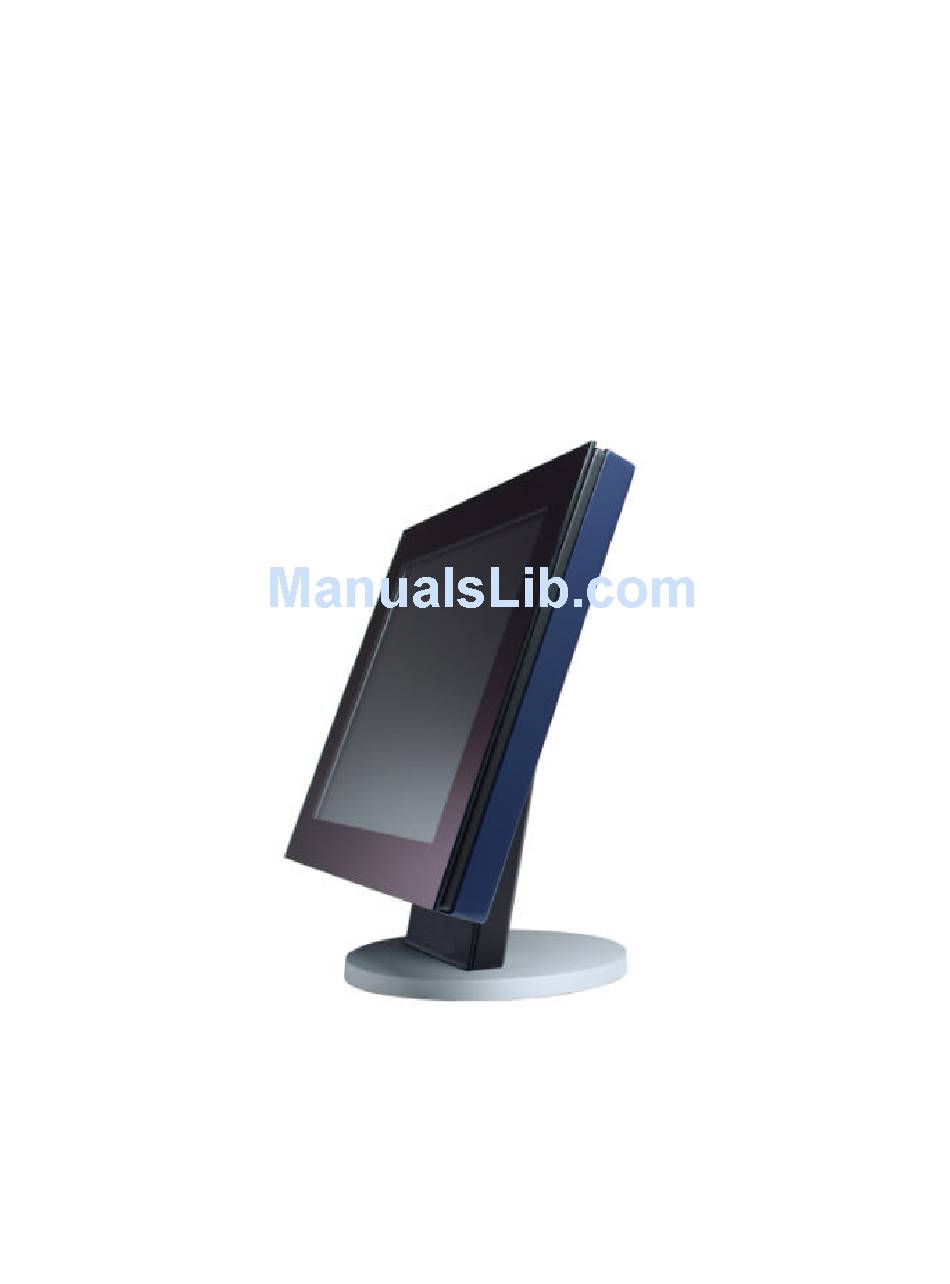

    1. Preface The mermaid ventura 170 TFT is a state of the art high-tech flat panel TFT monitor, including a high quality TFT-LCD panel with maximum resolution of 1280x1024 @75 Hz, based on the newest TN technology, and high brightness 4 -lamp CCFL backlight unit.

  • Page 4: Content Of The Box

    When using the mermaid ventura 170 TFT with Windows NT, the computer needs to be started in VGA mode the first time. Log on as administrator and set the resolution to 1280x 1024 and refresh rate to 60 Hz. The computer can then...

  • Page 5: Osd Key Functions

    170 TFT - User manual Version 1.0 ___________________________________________________________________________________ 5. OSD Key Functions Menu Bright Bright Source Info Hot Key Normal Select Down Exit Left Right Pre-Menu Function Description Menu (Hot Key) Activate the OSD Bright (Hot Key) Activate brightness control OSD...

  • Page 6: Osd Functions & Adjustments

    170 TFT - User manual Version 1.0 ___________________________________________________________________________________ 6. OSD Functions & Adjustments Function Description 1. Brightness Changes the overall brightness of the image. 2. Contrast Changes the ratio between white and black. ¢¸ Distinct ¢º Vague 3. Phase Fine tune vertical and horizontal noise in the display.
  • Page 7 170 TFT - User manual Version 1.0 ___________________________________________________________________________________ OSD Functions & Adjustments - continued Function Description H-Position Moves the location of the OSD menu. V-Position OSD Timeout Specifies the time span before the OSD menu disappears. (20 - 200 seconds) Language Specifies the OSD language.
  • Page 8 170 TFT - User manual Version 1.0 ___________________________________________________________________________________ OSD Functions & Adjustments - continued Function Description Dynamic Brightness Smart Inverter Control. This function allows the system to adjust the brightness of the backlight automatically in conjunction with the quantity of the input data.
  • Page 9 170 TFT - User manual Version 1.0 ___________________________________________________________________________________ OSD Functions & Adjustments - continued Function Description Auto Adjust The built-in microprocessor will optimize all display adjustment sets such as video offset gain, position, phase and frequency automatically acording to the pre- programmed auto adjustment program.

  • Page 10: Guarantee Terms

    170 TFT - User manual Version 1.0 ___________________________________________________________________________________ 7. Guarantee Terms mermaid ventura 15” are covered by a 3-year guarantee agreement (1 year SWAP + 2 years Pick-UP). SWAP Exchange at your address. If your mermaid ventura needs repairing, contact mermaid customer services, who will arrange to have your screen exchanged for a new one within 5-7 working days.

  • Page 11: Troubleshooting

    170 TFT - User manual Version 1.0 ___________________________________________________________________________________ 9. Troubleshooting If you have troubles using this monitor, please refer to following suggestions for troubleshooting. If you can not rectify the problem yourself, please contact your distributor or place of purchase.

  • Page 12: Appendix A: Connector Specifications

    170 TFT - User manual Version 1.0 ___________________________________________________________________________________ Appendix A: Connector Specifications Analog RGB in Pin no. Function Pin no. Function Pin no. Function Pin no. Function Green Blue R_GND G_GND B_GND H Sync V. Sync...

  • Page 13: Appendix B: Power Management Mode: Vesa Dpms Protocol Applied

    170 TFT - User manual Version 1.0 ___________________________________________________________________________________ Appendix B: Power Management Mode: VESA DPMS protocol applied Mode Horizontal sync Vertical sync Video signal Power Consumption Active Active Active 32 watts (typ.) Stand by Inactive Active Blanked Suspend...

  • Page 14: Appendix C. Technical Specifications

    170 TFT - User manual Version 1.0 ___________________________________________________________________________________ Appendix C. Technical Specifications Input Video and sync signal Item Description Notes Type: Analog RGB Level: 0.7Vp-p 5% Input VESA Polarity: Positive Bright Compliance Impedance: 75 5% (Terminated) Resolution Optimum: 1280x1024@60Hz...
  • Page 15 170 TFT - User manual Version 1.0 ___________________________________________________________________________________ Electrical Parameters Description Unit DC power supply Volts Supply Current (Vcc=12Volt) Amp. Additional parameters Description Value Unit Driver element a-Si TFT active matrix Display Colors 16.7M (true) Colors Display area 337.92(H) x 270.336(V)

  • Page 16: Appendix D: Video Mode Support

    170 TFT - User manual Version 1.0 ___________________________________________________________________________________ Appendix D: Video Mode Support Mode Resolution Total Horizontal Vertical Pixel Clock Frequency Polarity Frequency Polarity 720x400 900x449 31.47KHz 70.0 Hz 28.322MHz 640x480 800x525 31.47KHz 60.0 Hz 25.175MHz 640x480 864x525 35.00KHz...

  • Page 17: Apppendix E: Optical Characteristics - Ventura 170 Tft

    170 TFT - User manual Version 1.0 ___________________________________________________________________________________ Apppendix E: Optical Characteristics – ventura 170 TFT The following items were measured under stable conditions. The optical characteristics should be measured in a dark room or equivalent state. * Measuring equipment:...
