Summary of Contents for Mermaid 170

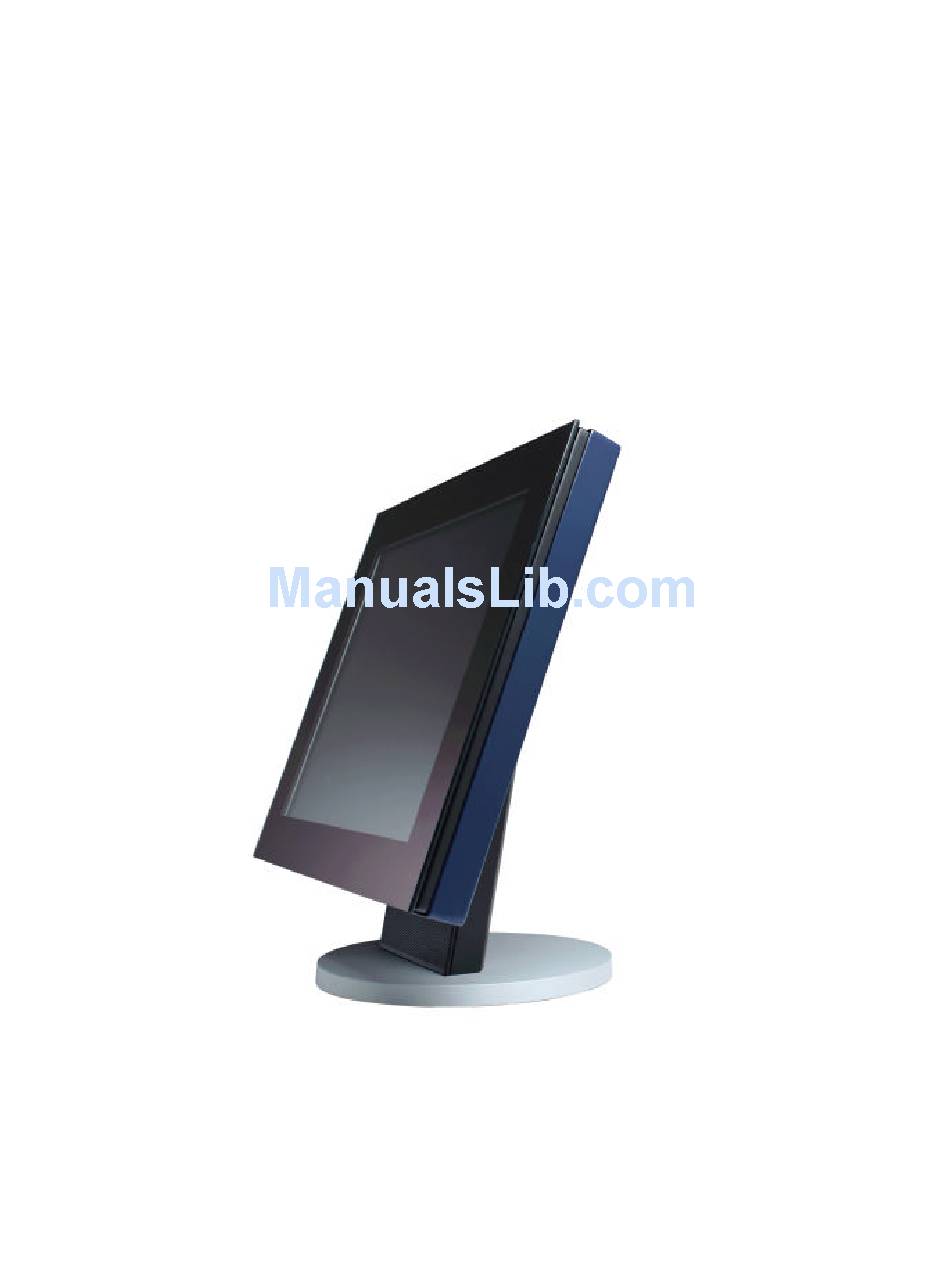

- Page 1 User manual mermaid ventura 170/181 TFT Video...
-
Page 2: Table Of Contents
170/181 TFT Video Models - Users Manual Version 1.0a Table of Content: Table of Content: ... 2 1. Introduction... 3 2. Important Information ... 3 3. Content of the Box ... 4 4. Unpacking, Placement and Setup (PC) ... 4 5. -
Page 3: Introduction
170/181 TFT Video Models - Users Manual Version 1.0a 1. Introduction The mermaid ventura 170 TFT and 181 TFT are state of the art high-tech flat panel TFT monitors, incorporating high quality TFT-LCD panels with maximum resolution of 1280x1024. They are based on the newest technology with high brightness 4-lamp CCFL backlight units. -
Page 4: Content Of The Box
OSD panel is located beneath the monitor ventura 170 TFT and ventura 181 TFT are plug & play compatible via VESA DDC1/2B. Windows 98, ME and XP will recognise this and self configure. When using the ventura 170 TFT and ventura 181 TFT with Windows NT, the computer needs to be started in VGA mode the first time. -
Page 5: Osd Key Functions
170/181 TFT Video Models - Users Manual Version 1.0a 5. OSD Key Functions Auto Config: (Hot key) Source select: (Hot key) Select OSD Menu: (Hot key) OSD Menu selected: Enter/ Escape Function Description Menu (Hot Key) Activates the OSD... -
Page 6: Osd Functions & Adjustments
170/181 TFT Video Models - Users Manual Version 1.0a 6. OSD Functions & Adjustments RGB Main Menu Several picture adjustments like brightness, contrast picture Picture position etc. Advanced Advanced picture adjustments Options Monitor setup Utilities Monitor setup RGB Picture Menu... -
Page 7: Rgb Advanced Menu
170/181 TFT Video Models - Users Manual Version 1.0a RGB Advanced Menu Sharpness Adjustment of picture sharpness 5 = “Sharp” picture 1 = “Soft” picture Gamma Selection of the appropriate “Gamma curve” Two different curves “linear” and “crt” are available. The “linear” gamma curve does not correct any color information, which will be directly transferred to the display panel. -
Page 8: Rgb Advanced Menu - Continued
170/181 TFT Video Models - Users Manual Version 1.0a RGB Advanced Menu - Continued Color temp Adjustment of the color temperature. Select between 3 pre-defined temperature (6500K, 7300K or 9000K) Or use the “User” setting to select the appropriate values yourself. -
Page 9: Rgb Utilities Menu
170/181 TFT Video Models - Users Manual Version 1.0a RGB Utilities Menu Adjustment of OSD turn off time after last key pressed. OSD timeout You can select values between 5 and 60 sec. (5 sec. steps) Changes type of the OSD background... -
Page 10: Guarantee Terms
170/181 TFT Video Models - Users Manual Version 1.0a 7. Guarantee Terms mermaid ventura 170 TFT and ventura 181 TFT Video Models are covered by a 1-year Pick-Up service Pick-Up Collection from and return to your address. If your mermaid ventura needs repairing, contact mermaid customer service, who will arrange to have your screen collected, repaired and returned to you within 14 working days. -
Page 11: Troubleshooting
170/181 TFT Video Models - Users Manual Version 1.0a 9. Troubleshooting If you have troubles using your ventura monitor, please refer to following suggestions for troubleshooting. If you can not rectify the problem yourself, please contact your distributor or place of purchase. -
Page 12: Appendix A: Connector Specifications
170/181 TFT Video Models - Users Manual Version 1.0a Appendix A: Connector Specifications Analog RGB in Analog RGB Input Connector : D-Sub 15pin Analog Red GREEN Analog Green BLUE Analog Blue Reserved Digital GND RGND Red Return GGND... -
Page 13: Appendix C: Technical Specifications
170/181 TFT Video Models - Users Manual Version 1.0a Appendix C: Technical Specifications Input Video and sync signal Parameter Value Max. Output Resolution 1280x1024 Data Processing Input impedance Video Sync Sync Polarities Sync Levels TTL compatible Max. Number of colors 16.7 M... -
Page 14: Appendix D: Video Mode Support
170/181 TFT Video Models - Users Manual Version 1.0a Appendix D: Video Mode Support The ventura 170 TFT and ventura 181 TFT support any video mode at inputs within the following ranges: The signal sample frequency on the input •... -
Page 15: Appendix E: Optical Characteristics - Ventura 170 Tft
170/181 TFT Video Models - Users Manual Version 1.0a Appendix E: Optical Characteristics – ventura 170 TFT Page 15 of 15... -
Page 16: Appendix F: Optical Characteristics - Ventura 181 Tft
170/181 TFT Video Models - Users Manual Version 1.0a Appendix F: Optical Characteristics – ventura 181 TFT Page 16 of 16...
