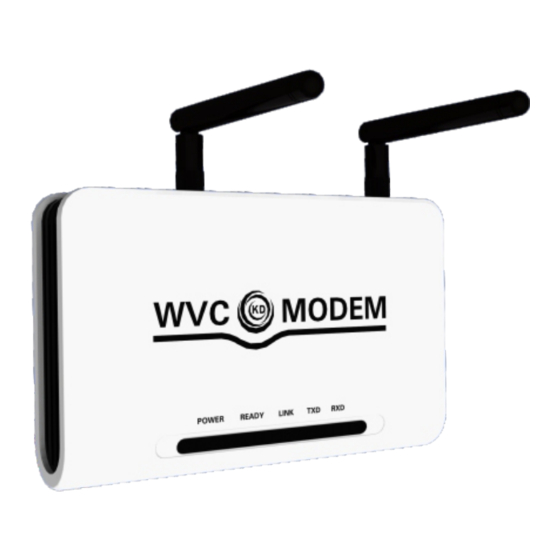

- Page 1 KaiDeng WVC Modem User Manual KaiDeng Energy Technology Co., Ltd 07/2012 V1.0 0 ...
-
Page 2: Application Fields And Range
WVC Modem have provided a reliable relay communication data support for centralized and round‐the‐clock devices monitoring management. And the user can through this manual to understanding the detailed of KaiDeng WVC Modem’s use method and attentions. 1.2 Application Fields and Range KaiDeng WVC Modem is a special device for KaiDeng communication type generation system and need to match up to KaiDeng’s communication micro inverter and KaiDeng Power Monitoring System for use. It hasn’t compatibility for other company products. 1.3 Copyright statement ... -
Page 3: Equipment Components
1. If the system has only one group and WVC Modem distance less than 15 meters, we can choose RS232 standard interface； 2. If the system have more than 1 group or WVC Modem installation distance is more than 15 meters, we need to choose RS485 standard interface； In the whole power system, WVC Modem system simple structure schemes like below: (detailed installation chart please see KaiDeng communication power generation system installation structure guide)： Equipment components KaiDeng WVC Modem standard components including ： 1. WVC Modem unit ( Integrated switching power supply/power line /plug)； 2 ... -
Page 4: Installation
http://www.kaidengdg.com Power line/plug ... - Page 5 http://www.kaidengdg.com Female contact of lunk ...
- Page 6 2.3.2 Installation ways of WVC Modem which the distance is more than 15M If your system has more than one group of micro inverters and the installation distance is far, we need to choose RS485 interface. We need add a concentrator for RS232 serial port between WVC Modem and a computer. The function of concentrator is to make one computer can connect to several WVC Modems. Below is concentrator of eight serial ports, ： just as examples illustrate WVC Modems installation details as follows: 1. Connect WVC Modem with serial port line connector though RS485 serial port line; 2. Connect RS232 serial port line of WVC Modem with PC; 3. Connect and turn on all WVC Modems; 4. WVC Modems installation complete; Equipment initialization and Instructions KaiDeng WVC Modem will start to initialize automatically a few seconds later after power on, and indicator light will be flashing for about 1 minute until installation complete. WVC Modem will automatically complete part of instructions and KaiDeng Monitoring System will manually or automatically complete the rest instructions. (Referring to KaiDeng Monitoring System Instructions) The sequence of devices start and operation is the most important in KaiDeng Generation System, and details of the sequence please refer to section 2.4 of the manual. 2.5 Equipments operation sequence instructions The devices of the new communicational PV generate system could work in good condition to achieve the best. In order to have KaiDeng communicational PV generate system operate and work fluently, please pay attention to system operation 5 ...
- Page 7 http://www.kaidengdg.com sequence. And wrong sequence may lead to wrong and delayed data. And here is the system operation sequence as ...
-
Page 8: System Database
Micro Micro Micro Micro Micro Micro Inverter Inverter Inverter Inverter Inverter Inverter Modem power line communication power line communication Auto-Data Instructions Collection KaiDeng Monitoring System System Database Chart Of Analysis 2.7 Equipment reboot It is simple to reboot KaiDeng WVC Modem, two ways as follows: 1. Turn WVC Modem power off, then wait for seconds to restore power supply; 2. Press Reboot Modem button of Inverter Monitor System to reboot WVC Modem. (Referring to KaiDeng Inverter Monitor System Manual) Notes: KaiDeng WVC Modem will reinitialize after rebooting, the other related work cannot be taken until reboot finished. If some in verter monitoring by WVC Modem change after rebooting, you should click Disconnect online button on Inverter Monitor System and then connect online to recognize the inverters that was removed ; 7 ... -
Page 9: Operational Environment & Fault Handling
http://www.kaidengdg.com 2.8 Disconnect sequence According to KaiDeng WVC Modem’ serial port connection, please DO NOT disconnect or install KaiDeng WVC Modem to keep the hardware safe when power on. Please refer to the following steps to disconnect: ... - Page 10 http://www.kaidengdg.com Check KaiDeng Inverter Monitoring system initialization settings. ...
