ThinPrint® Gateway
TPG60 / TPG120
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ThinPrint TPG60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEH ThinPrint TPG60

Summary of Contents for SEH ThinPrint TPG60

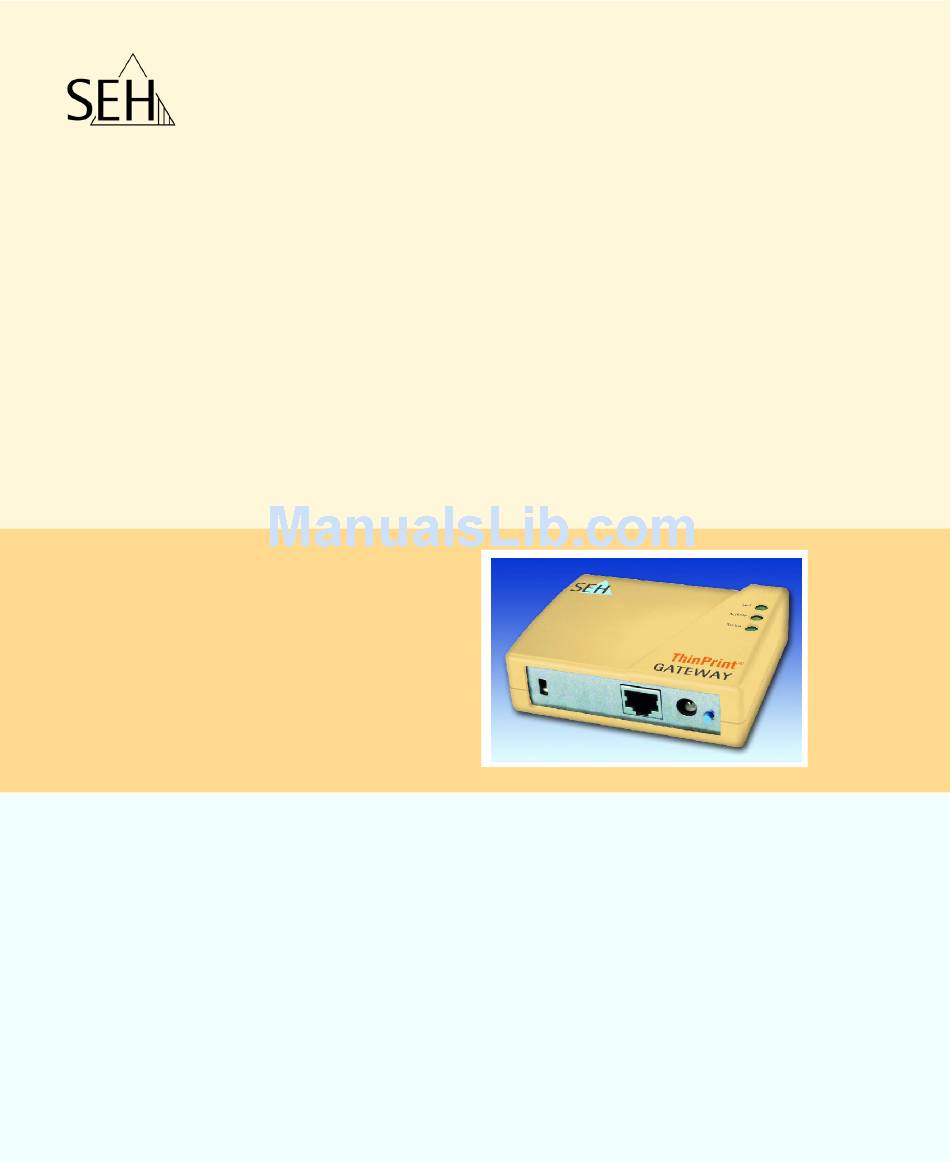

  • Page 1 ThinPrint® Gateway TPG60 / TPG120 User Manual...
  • Page 2 SEH Computertechnik GmbH has endeavoured to ensure that the information in all manuals is correct. If you detect any inaccuracies please inform us at the address indicated below. SEH Computertechnik GmbH will not accept any liability for any error or omission. The information in this manual is subject to change without notification.

  • Page 3: Table Of Contents

    Table of Contents 1 General Information........5 1.1 ThinPrint®...
  • Page 4 6 Security ..........60 6.1 How to Define a Password for the TPG (Read/Write Protection) .

  • Page 5: General Information

    General Information 1 General Information This chapter contains information concerning the device and the documentation as well as notes about your safety. You will learn how to benefit from your TPG and how to operate the device properly. What information do •...

  • Page 6: Thinprint® Gateway

    The TPG (ThinPrint®Gateway) contains a completely integrated Thin- Print® .print client. This ThinPrint .print client allows you to receive and decompress print data. The ThinPrint .print gateways TPG60 an TPG120 were especially deve- loped for environments using ThinPrint .print technology for print job compression and bandwidth control.
  • Page 7 General Information Features The TPG supports the following features: • The feature .print AutoConnect allows you to automatically create the required printer objects for the relevant client on the server. .print AutoConnect will automatically connect all selected printers on the server with a ThinPrint® port; provided that templates exist.

  • Page 8: Documentation

    General Information Documentation Structure of the The TPG documentation consists of the following documents: Documentation User Manual Detailed description of the TPG configuration and administration. Quick Installation Guide Information about security, hardware installation, and the initial operation procedure. Document Features This documentation has been designed as an electronic document for screen use.
  • Page 9 General Information Symbols and A variety of symbols are used within this document. Their meaning is Conventions listed in the following table: Table 1: Conventions within the documentation Symbol / Convention Description A warning contains important information that must be heeded. Non-observance may lead to malfunctions.

  • Page 10: Support And Service

    8:00 a.m. to 4:15 p.m. (CET) ℡ +49 (0)521 94226-44 support@seh.de Current Services The following services can be found on the SEH website at www.seh.de. • current update files • current tools • current documentation • current product information •...

  • Page 11: Your Safety

    This will avoid potential misuse and prevent damages to people and devices. SEH Computertechnik GmbH will not accept any liability for perso- nal injuries, property damages and consequential damages resulting from the non-observance of the mentioned safety regulations and warnings.

  • Page 12: First Steps

    General Information First Steps This section provides all the information that you need to operate the TPG. Proceed as follows: 1. Connect the TPG to the network and the mains supply. ’Quick Installation Guide’ . 2. Make sure that an IP address is stored in the TPG; see: ’Saving the IP Address in the TPG’...

  • Page 13: Saving The Ip Address In The Tpg

    General Information Saving the IP Address in the TPG Why IP Addresses? An IP address is used to address network devices in an IP network. TCP/IP network protocols require the storing of the IP address in the TPG so that the device can be addressed within the network. How Does the TPG TPGs are shipped without an IP address.
  • Page 14 General Information ZeroConf If no IP address can be assigned via boot protocols, the TPG assigns itself an IP address via ZeroConf. Requirements The 'ZeroConf' parameter has been activated; see: For this purpose, the TPG picks an IP address at random from the address range (169.254.0.0/16) which is reserved for ZeroConf and sends a query to the network.
  • Page 15 General Information ARP/PING The assignment of the IP address to the hardware address can be done via the ARP table. The ARP table is an internal system file in which the assignment is temporarily saved (about 15 min). This table is administered by the ARP protocol.
  • Page 16 General Information InterCon-NetTool (IP Wizard) The IP Wizard of the InterCon-NetTool helps you to configure the TCP/IP parameters, e.g. the IP address. You can easily enter the desi- red IP address and save it in the TPG using the IP Wizard. Requirements The TPG is connected to the network and the mains voltage.

  • Page 17: Administration Methods

    Administration Methods 2 Administration Methods You can administer and configure the TPG in a number of ways. The following chapter gives you an overview of the various administration options. You will get information on when to use these methods and which functions these methods support.
  • Page 18 Simply select the relevant flag. You will also see contact information of the manufacturer. Clicking the General - Manuals link brings you to the SEH web site. Here, you can download the latest manuals as *.pdf files. All other menu items are intended for the configuration of the TPG and are described in this manual.

  • Page 19: Administration Via The Intercon-Nettool

    Administration Methods Administration via the InterCon-NetTool The software InterCon-NetTool has been developed by SEH Compu- tertechnik GmbH for the administration of SEH network devices (print server, TPG, ISD, etc.). Depending on the network device you can configure various features via the InterCon-NetTool.
  • Page 20 Administration Methods Windows The installation file is available as ’*.exe’ for Windows systems. Proceed as follows: 1. Start the InterCon-NetTool installation file. 2. Select the desired language. 3. Follow the installation routine. The InterCon-NetTool is installed on the system. To start the program, double-click the InterCon-NetTool icon The icon is found on the desktop or the Windows start menu.
  • Page 21 It can be used in many Linux and UNIX distributions. If no suitable Package Manager is available, you can obtain ’*.tgz’ or ’*.deb’ installation files upon request from SEH Computertechnik GmbH. The installation of the files depends on the distribution. ’*.tgz’ files can be extracted directly without the Package Manager in the root directory.
  • Page 22 Administration Methods ./usr/local/lib/nettool/lang_de.qm ./usr/local/lib/nettool/lang_es.qm ./usr/local/lib/nettool/lang_fr.qm ./usr/local/lib/nettool/lang_it.qm ./usr/local/lib/nettool/lang_jp.qm ./usr/local/lib/nettool/lang_kr.qm ./usr/local/lib/nettool/lang_pt.qm ./usr/local/lib/nettool/lang_zh.qm ./usr/local/lib/nettool/InterCon-NetTool.png ./usr/local/lib/nettool/license.txt ./usr/local/lib/nettool/lang_wt_de.qm ./usr/local/lib/nettool/lang_wt_es.qm ./usr/local/lib/nettool/lang_wt_fr.qm ./usr/local/lib/nettool/lang_wt_it.qm ./usr/local/lib/nettool/lang_wt_pt.qm Before you start the InterCon-NetTool make sure that the ’*.qm’ lan- guage files, the license file ’license.txt’ and the ’tcpmon.ini’ file are in the ’/usr/local/lib/nettool’ directory. Proceed as follows: 1.
  • Page 23 Administration Methods Structure of the After the program start you will see the main dialog with the follo- InterCon-NetTool wing elements. The dialog may vary, depending on which elements you have chosen to be shown or hidden. Toolbar Device list Menu bar Log window Filter for the device list...
  • Page 24 Administration Methods Toolbar A toolbar with various commands is available in the InterCon-Net- Tool. The toolbar can either be shown or hidden. Select Extras – Show Toolbar from the menu bar. Table 2: Description of the Toolbar Icons Icon Name Description Properties This opens the 'Properties' dialog.*...
  • Page 25 Administration Methods Device List All connected devices are shown in a list in the right-hand section of the main dialog of the InterCon-NetTool. This section is referred to as the device list. Icons indicate the status or the kind of network device. Devices that are not available in the network, appear dimmed.
  • Page 26 Administration Methods Search Parameters The InterCon-NetTool searches the network for existing devices and for the Network Scan displays them in the device list. The following search options can be selected for the network scan: • Searching via the IPX protocol (Novell NetWare) •...
  • Page 27 SEH network devices. Configuration via the 'Properties' Dialog Many SEH network devices offer the 'Properties' dialog where you can display and edit the individual configuration parameters of the device. Double-click the TPG in the device list to start the dialog.

  • Page 28: Administration Via An Ftp/Ftps Connection

    Administration Methods Administration via an FTP/FTPS Connection The File Transfer Protocol (FTP) allows the exchange of data between a server and an FTP client in TCP/IP networks. FTP over SSL The TPG also supports FTPS (FTP over SSL) for a safe data inter- change between the server and the client.

  • Page 29: Administration Via The Tpg Status Button

    Administration Methods Configuring Parameters via an FTP Connection You can configure all TPG parameters via FTP. To this purpose, you must download the 'parameters' file to your local computer via FTP and then edit it. A detailed description of the TPG parameters can be found in the ’Parameter List’...

  • Page 30: Status Information

    Status Information 3 Status Information The TPG offers you a multitude of information. This chapter describes how to receive, display, and interpret the information. You can get information on the TPG, the embedded printers, the printer connections, and the print jobs (Job History). What information do •...

  • Page 31: How To Get Printer Status Messages

    Status Information Displaying Status Information via the InterCon-NetTool Proceed as follows: 1. Start the InterCon-NetTool. 2. Double-click the TPG in the device list. The Properties dialog appears. 3. Select Status – General from the navigation bar. The status information is shown. How to get Printer Status Messages You can view printer error messages (Paper empty, Offline, Paper jam, etc.) and printer status messages (idle, printing, warming up,...
  • Page 32 Status Information Configuring an SNMP Query via the InterCon-NetTool Proceed as follows: 1. Start the InterCon-NetTool. 2. Double-click the TPG in the device list. The Properties dialog appears. 3. Select Configuration – ThinPrint® from the navigation bar. 4. Tick snmp. 5.

  • Page 33: How To Get Status Information On The Printer Connections

    Status Information How to Get Status Information on the Printer Connections You can view the connection status of the embedded printers. The following connection statuses can be displayed: Connection Status Description Time out No connection to the printer at present. A connection was available at an earlier stage.
  • Page 34 Status Information Configuring a ’ping’ Query via the InterCon-NetTool Proceed as follows: 1. Start the InterCon-NetTool. 2. Double-click the TPG in the device list. The Properties dialog appears. 3. Select Configuration – ThinPrint® from the navigation bar. 4. Tick Monitoring via ping. 5.

  • Page 35: How To Display The Job History

    Status Information How to Display the Job History You can get information about the print jobs that have been sent to the TPG. The print jobs are registered and shown in the Job History. A maximum of 64 print jobs are displayed. The first-in, first-out method is applied from the 65th print job onwards.
  • Page 36 Status Information The following information is shown in the Job History: Information Description Status Status of the print connection. The following statuses are possible: • 'Completed' means that the TPG has completely forwarded the print job to the printer. • 'Pending' means that the print job has been accepted by the TPG but that the data transfer has not yet started.

  • Page 37: How To Print A Status Or Service Page

    Status Information How to Print a Status or Service Page You can print status pages or a service page. Status page The status page contains TPG basic information such as TPG model, MAC address, IP address, subnet mask, gateway etc. Service page The service page contains a list of the current TPG parameter values.
  • Page 38 Status Information Specifying the Data Format and the Printer via the TPG Homepage Proceed as follows: 1. Start the TPG Homepage. 2. Select Configuration – General. 3. Select the desired data format from the Status page mode list. 4. Select the desired printer ID from the Status Page Printer list. 5.
  • Page 39 Status Information Printing the Status Page via an FTP Connection Using an FTP connection, you can download a status page to your local computer and print it. Proceed as follows: 1. Switch to the directory in which you wish to save the file. 2.
  • Page 40 Status Information Printing the Status Page via the TPG Status Button Using the status button of the TPG, you can print a status page. Proceed as follows: 1. Press the status button for a short time. The status page is printed. Printing the Service Page via the TPG Status Button Using the status button of the TPG, you can print a service page.

  • Page 41: Network And Device Settings

    Network and Device Settings 4 Network and Device Settings You can configure the device time and the device lan- guage on the TPG. You can define various parameters for an ideal integration of your TPG into a network. This chapter explains which network settings are supported by the TPG.

  • Page 42: How To Configure Tcp/Ip Parameters

    Network and Device Settings How to Configure TCP/IP Parameters The TCP/IP (Transmission Control Protocol over Internet Protocol) is divided into two areas. The Internet Protocol (IP) is used for the fragmentation and addressing of data and transfers the data from the sender to the recipient.
  • Page 43 Network and Device Settings 5. Click OK to confirm. The settings are saved. Table 3: TCP/IP Parameters Parameters Description IP Address IP address of the TPG Subnet Mask Subnet mask of the TPG Gateway IP address of the gateway Multicast router as gateway If this parameter has been enabled, the address of the found multicast router will be entered automatically as gateway address.

  • Page 44: How To Configure The Dns

    Network and Device Settings How to Configure the DNS DNS is a service that translates domain names into IP addresses. Using DNS, names can be assigned to IP addresses and vice versa. If a DNS server is available in your network, you can use DNS for your TPG.

  • Page 45: How To Enable/Disable Bonjour

    Network and Device Settings Table 4: DNS Parameters Parameters Description Enables/disables DNS. Domain name Domain name of an existing DNS server (e.g. company.de) Primary DNS server IP address of the primary DNS server (e.g. 192.168.0.21) Secondary DNS server IP address of the secondary DNS server. The secondary DNS server is used if the primary DNS server is not available.
  • Page 46 Network and Device Settings What do you want ’Configuring DNS via the TPG Homepage’ to do? ’Configuring DNS via the InterCon-NetTool’ Configuring Bonjour via the TPG Homepage Proceed as follows: 1. Start the TPG Homepage. 2. Select Configuration – TCP/IP. 3.

  • Page 47: How To Adapt The Network Speed

    Network and Device Settings How to Adapt the Network Speed You can adapt the speed of the TPG to other network components, such as switches or hubs. The 'Auto' mode is preset. The speed is identified automatically and adapted to the other network compon- ents.

  • Page 48: How To Configure The Device Time

    Network and Device Settings How to Configure the Device Time You can set the time of the TPG via a time server (SNTP server) in the network. A timeserver is a computer networking device that reads the actual time from a reference clock and distributes this informa- tion to its clients.

  • Page 49: How To Configure The Language Of The Device

    Network and Device Settings The settings are saved. Configuring the Device Time via the InterCon-NetTool Proceed as follows: 1. Start the InterCon-NetTool. 2. Double-click the TPG in the device list. The Properties dialog appears. 3. Select Configuration – Time from the navigation bar. 4.
  • Page 50 Network and Device Settings Configuring the Language of the Device via the TPG Homepage Proceed as follows: 1. Start the TPG Homepage. 2. Select Configuration – General. 3. Select the desired language from the TPG language list. 4. Click Save to confirm. The settings are saved.

  • Page 51: How To Determine A Description

    Network and Device Settings How to Determine a Description You can assign freely definable descriptions to the TPG. This gives you a better overview of the devices available in the network. What do you want ’Determining Descriptions via the TPG Homepage’ to do? ’Determining Descriptions via the InterCon-NetTool’...

  • Page 52: Thinprint® Settings

    ThinPrint® Settings 5 ThinPrint® Settings You must define the port, bandwidth, and printer if you want the TPG to communicate with a ThinPrint® server via a port or if you want the TPG to receive and forward print jobs. This chapter describes how to match the parameter values in an ideal way.

  • Page 53: How To Define The Bandwidth

    ThinPrint® Settings Defining the ThinPrint® Port via the InterCon-NetTool Proceed as follows: 1. Start the InterCon-NetTool. 2. Double-click the TPG in the device list. The Properties dialog appears. 3. Select Configuration – ThinPrint® from the navigation bar. 4. Enter the port number into the ThinPrint® port box. 5.

  • Page 54: How To Integrate Printers

    TPG forwards the data to the printers. The print jobs are assigned via a printer ID. Up to six (TPG60) or twelve (TPG120) network printers can be connected to the TPG. When integrating the connected printers you must define the prin- ter parameters (name, driver, remote address) and a transfer method.
  • Page 55 ThinPrint® Settings Your advantage: When using the LPD protocol for data transfer, additional print job attributes will be transferred and displayed in the job history. What do you want ’Integrating Printers via the TPG Homepage’ to do? ’Integrating Printers via the InterCon-NetTool’ Integrating Printers via the TPG Homepage Proceed as follows: 1.

  • Page 56: How To Define Timeouts

    ThinPrint® Settings Table 5: Printer Parameters Parameters Description A printer is identified by its printer ID. Printer The printer name is a description and is used to distinguish the printers. The printer can only use the .print AutoConnect feature if a printer name was defined.
  • Page 57 ThinPrint® Settings advisable to abort a print job if the print job cannot be executed due to a printer error (for example, no paper). Both timeouts cause the print jobs to be deleted. In ’pure’ ThinPrint® printing, an error message is also sent to the ThinPrint® server. No error message is sent to the ThinPrint®...

  • Page 58: How To Use The Thinprint Connection Service

    ThinPrint® Settings ® How to Use the ThinPrint Connection Service The .print Connection Service sends print jobs via TCP/IP to .print cli- ents (i.e. the TPG) in masked networks (NAT), for example. The Connection Service manages the entire communication between the ThinPrint®...
  • Page 59 ThinPrint® Settings 2. Double-click the TPG in the device list. The Properties dialog appears. 3. Select Configuration – ThinPrint® from the navigation bar. 4. Select the Connection Service tab. 5. Tick Connection Service. 6. Enter the relevant data; see: Table 6 7.

  • Page 60: Security

    Security 6 Security A number of security mechanisms are available to ensure optimum security for the TPG. This chapter describes how to make use of these security mecha- nisms. The following security mechanisms can be configured and activated according to your demands: What information do •...

  • Page 61: How To Define A Password For The Tpg (Read/Write Protection)

    Security How to Define a Password for the TPG (Read/Write Protection) Write Protection A password can protect the TPG against unauthorized access. If a password was set, you must enter the password before you can save the changes to the parameters. This means that changes to the para- meters can only be made using a valid password.

  • Page 62: How To Protect The Tpg Against Unauthorized Access

    Security 4. Enter a password into the Password box in order to define the write protection. 5. Tick Access control in order to define the read protection. 6. Click OK to confirm. The settings are saved. You can also define the password using the menu bar of the Inter- Con-NetTool.

  • Page 63: How To Enable/Disable Ftp & Http (Port Control)

    Security 4. Click Save to confirm. The settings are saved. Assigning Authorizations via the InterCon-NetTool Proceed as follows: 1. Start the InterCon-NetTool. 2. Double-click the TPG in the device list. The Properties dialog appears. 3. Select Configuration – Protection from the navigation bar. 4.
  • Page 64 Security Never disable the protocols HTTP and FTP/FTPS at the same time. Otherwise the TPG can no longer be configured. What do you want ’Enabling/Disabling a Protocol via the TPG Homepage’ to do? ’EnablingDisabling a Protocol via the InterCon-NetTool’ Enabling/Disabling a Protocol via the TPG Homepage Proceed as follows: 1.

  • Page 65: How Does The Tpg Receive Encrypted Data

    Security How Does the TPG Receive Encrypted Data A secure connection during the transfer of print jobs between Thin- Print® (server or Connection Service) and the TPG is guaranteed by means of an SSL encryption. The ThinPrint® server requests a certificate from the TPG. By means of this certificate, the ThinPrint®...

  • Page 66: Network Authentication

    Network Authentication 7 Network Authentication By means of an authentication, a network can be pro- tected against unauthorized access. The TPG can parti- cipate in various authentication procedures. This chapter describes which procedures are supported and how these procedures are configured on the TPG. What is IEEE 802.1x? The IEEE 802.1x standard provides a basic structure for various authentication and key management protocols.

  • Page 67: How To Configure Eap-Md5

    Network Authentication How to Configure EAP-MD5 Benefits and EAP-MD5 validates the identity of devices or users before they gain Purpose access to network resources. You can configure the TPG for the EAP-MD5 network authentication. This makes sure that the TPG gets access to protected networks.

  • Page 68: How To Configure Eap-Tls

    Network Authentication 2. Double-click the TPG in the device list. The Properties dialog appears. 3. Select Configuration – Protection from the navigation bar. 4. Select the Authentication tab. 5. Select EAP-MD5 from the Authentication list. 6. Enter the user name and the password that are used for the configuration of the TPG on the RADIUS server.
  • Page 69 Network Authentication by a CA. The RADIUS server and the TPG must validate the certi- ficate. After the mutual authentication was successful, the access to the network will be freed. Since each device needs a certificate, a PKI (Public Key Infrastruc- ture) must be available.

  • Page 70: How To Configure Eap-Ttls

    Network Authentication How to Configure EAP-TTLS Benefits and EAP-TTLS (Tunneled Transport Layer Security) validates the identity Purpose of devices or users before they gain access to network resources. You can configure the TPG for the EAP-TTLS network authentication. This makes sure that the TPG gets access to protected networks. Basic Functions EAP-TTLS consists of two phases: •...
  • Page 71 Network Authentication 2. Select Configuration – Protection. 3. Select Authentication. 4. Select EAP-TTLS from the Authentication list. 5. Enter the user name and the password that are used for the configuration of the TPG on the RADIUS server. 6. Select the settings intended to secure the communication in the TLS channel.

  • Page 72: How To Configure Peap

    Network Authentication How to Configure PEAP Benefits and PEAP (Protected Extensible Authentication Protocol) validates the Purpose identity of devices or users before they gain access to network resources. You can configure the TPG for the PEAP network authen- tication. This makes sure that the TPG gets access to protected net- works.
  • Page 73 Network Authentication 6. Select the settings intended to secure the communication in the TLS channel. 7. To make the connection more secure, you can also install the root certificate of the RADIUS server on the TPG. 8. Click Save to confirm. The settings are saved.

  • Page 74: How To Configure Eap-Fast

    Network Authentication How to Configure EAP-FAST Benefits and EAP-FAST (Flexible Authentication via Secure Tunneling) validates Purpose the identity of devices or users before they gain access to network resources. You can configure the TPG for the EAP-FAST network authentication. This makes sure that the TPG gets access to protec- ted networks.
  • Page 75 Network Authentication Enabling EAP-FAST via the TPG Homepage Proceed as follows: 1. Start the TPG Homepage. 2. Select Configuration – Protection. 3. Select Authentication. 4. Select EAP-FAST from the Authentication list. 5. Enter the user name and the password that are used for the configuration of the TPG on the RADIUS server.

  • Page 76: Certificate Management

    Certificate Management 8 Certificate Management The TPG has its own certificate management. This chapter explains how certificates are used and when the use of certificates is recommended. What are Certificates can be used in TCP/IP-based networks to encrypt data Certificates? and to authenticate communication partners.

  • Page 77: How To Create A Self-Signed Certificate

    Certificate Management The authenticity of the CA certificate can be verified by means of a so-called root certificate issued by the certification authority. The root certificate is stored on an authentication server in the network. Upon delivery, a certificate (the so-called default certificate) is stored in the TPG.
  • Page 78 Certificate Management 3. Select TPG certificate. 4. Enter the relevant parameters, see: Table 7 5. Click Create self-signed certificate. The certificate will be created and installed. This may take a few minutes. Creating Self-Signed Certificates via the InterCon-NetTool Proceed as follows: 1.

  • Page 79: How To Create A Certificate Request For Ca Certificates

    Certificate Management Parameters Description State name Specifies the state in which the company is based. You can enter a maximum of 64 characters. (Optional Entry) Country name Specifies the country in which the company is based. Enter the two-digit country code according to ISO 3166. Examples: DE = Germany, GB = Great Britain, US = USA Issued on Specifies the date after which the certificate is valid.
  • Page 80 Certificate Management 2. Select Configuration – Certificates. 3. Select TPG certificate. 4. Enter the required parameters, see: Table 7 5. Click Create certificate request. The creation of the certificate request is in progress. This may take a few minutes. 6. Save the request in a text file. 7.

  • Page 81: How To Save Ca Certificates In The Tpg

    Certificate Management How to Save CA Certificates in the TPG The certificate must be in base 64 format. What do you want ’Saving CA Certificates via the TPG Homepage’ to do? ’Saving CA Certificates via the InterCon-NetTool’ Saving CA Certificates via the TPG Homepage Proceed as follows: 1.

  • Page 82: How To Save Pkcs12 Certificates In The Tpg

    Certificate Management How to Save PKCS12 Certificates in the TPG PKCS12 Certificates can be used to store private keys with accompa- nying public key certificates, protected with a password-based sym- metric key. If a self-signed certificate or a CA certificate has already been saved in the TPG, the content of this certificate will be displayed.

  • Page 83: How To Save Root Certificates In The Tpg

    Certificate Management 5. Click Next. 6. Specify the certificate. 7. Enter the password. 8. Click Next. The PKCS12 certificate is saved in the TPG. This may take a few minutes. How to Save Root Certificates in the TPG The TPG offers a number of authentication methods to verify its identity in a network.

  • Page 84: How To Delete Certificates

    Certificate Management Saving Root Certificates via the InterCon-NetTool Proceed as follows: 1. Start the InterCon-NetTool. 2. Mark the TPG in the device list. 3. Select Actions – Certificate – Root certificate from the menu bar. The Certificate dialog appears. 4. Click …. 5.
  • Page 85 Certificate Management Deleting Certificates via the InterCon-NetTool Proceed as follows: 1. Start the InterCon-NetTool. 2. Mark the TPG in the device list. 3. Select Actions – Certificate – Server certificate from the menu bar. The Certificate dialog appears. 4. Click Delete. The certificate is deleted.

  • Page 86: How To Install Certificates On A Windows Client

    Certificate Management How to Install Certificates on a Windows Client Why do I need The following cases require a certificate on the client: Certificates on the • If, during the transfer of print data, an encrypted connection Client? between the client and the TPG is additionally secured by means of an authentication.
  • Page 87 Certificate Management 2. Click Continue to this website. A note (Certificate Error) is displayed Fig. 7: Internet Explorer - Certificate Error 3. Click View certificates. The Certificate dialog appears. Fig. 8: Internet Explorer - Certificate 4. Class the certificate as 'trusted' and click Install Certificate. The Certificate Import Wizard is started.

  • Page 88: Maintenance

    Maintenance 9 Maintenance Various maintenance procedures can be carried out on the TPG. This chapter contains information on securing and resetting the parameter values. It also explains how to restart and update the device. What information do • ’How to Save TPG Parameters (Backup)’ you need? •...

  • Page 89: How To Save Tpg Parameters (Backup)

    Maintenance How to Save TPG Parameters (Backup) All TPG settings (with the exception of passwords) are saved in the parameters file. You can save the parameters file as backup copy on your local client. This allows you to get back to a stable configuration status at any time.
  • Page 90 Maintenance Fig. 9: InterCon-NetTool - Parameter Download Editing the Parameters File using a Text Editor You can edit the parameters file using any text editor. Use a text editor that is installed on your computer or the text editor that is provided by the InterCon-NetTool.
  • Page 91 Maintenance Downloading the Parameters File to one or more TPG using the InterCon-NetTool You can configure one or more TPG using the parameters file. For this purpose, the file is downloaded to the TPG. When downloading the parameters file to several TPG, the parame- ter default settings 'IP address,' and 'Host name,' of the respective TPG will be maintained.

  • Page 92: How To Reset Parameters To Their Default Values

    Homepage cannot be started or displayed. You must reset the parameters, for example, if you have changed the location of the TPG60 and if you want to use the TPG in a different network. Before this change of location, you should reset the para- meters to their default settings to install the TPG in a different net- work.
  • Page 93 Maintenance If the TPG is protected by a password, the password has to be ente- red before resetting the parameters. Only by using the status button of the TPG can the parameters be reset without entering the password. What do you want ’Resetting Parameters via the TPG Homepage’...
  • Page 94 Maintenance Resetting Parameters via an FTP Connection Proceed as follows: 1. Open an FTP connection to the TPG: ftp <IP Address> Syntax: Example: ftp 192.168.0.123 2. Enter the password of the TPG, if applicable, or press ENTER. 3. Reset the parameters: quote SITE RESET 4.
  • Page 95 Maintenance These three steps are illustrated in the following. The illustrations may vary slightly from your device model. [Phase 1] Reset [Phase 2] Device start Turn the TPG off Turn the TPG off (Disconnect the power socket) (Disconnect the power socket) Press the status button and Turn the TPG on keep it pressed.

  • Page 96: How To Perform An Update

    An update should be undertaken if function do not work properly Recommended? and if SEH Computertechnik GmbH has released a new software ver- sion with new functions or bug fixes. Check the currently installed software version of your TPG. The ver- sion number can be found in the device list of the InterCon-NetTool.
  • Page 97 Maintenance In order to reduce the amount of administration you can carry out an update for several TPGs at the same time. To this purpose, the update files have to be stored in a directory. Requirements The TPG is known to the network via its IP address. All print jobs are finished.
  • Page 98 Maintenance 4. Click Choose. 5. Select the update file. 6. Click Start update. 7. Confirm the security query. The update is executed. The TPG is restarted. Fig. 10: InterCon-NetTool - Update Standard Update via FTP You can update the standard of your TPG via an FTP connection. Proceed as follows: 1.
  • Page 99 Maintenance 6. Transfer the update file to the TPG: put <name of update file> binfile Syntax: Example: put tpg-10.1.3.bin binfile 7. Close the FTP connection: quit Dynamic Update via the TPG Homepage Specify a directory on the file server for automatic (dynamic) updates.
  • Page 100 Maintenance Fig. 11: TPG Homepage - Dynamic Firmware Update Dynamic Update via the InterCon-NetTool Specify a directory on the file server for automatic (dynamic) updates. The directory contains the current software files. Requirements The file server on which the software files are stored either uses the anonymous login or the TPG is set up as user on the file server.
  • Page 101 Maintenance 6. If you use a proxy server, tick Use proxy server and enter the IP address of the proxy server. 7. Click OK to confirm. The settings are saved. At each restart, the TPG verifies the version of the software files. If the TPG detects a higher version, this version will be installed automatically on the TPG.

  • Page 102: How To Restart The Tpg

    Maintenance How to Restart the TPG Some situations make it necessary to restart the TPG. What do you want ’Restarting the TPG using the TPG Homepage’ to do? ’Restarting the TPG via the InterCon-NetTool’ Restarting the TPG using the TPG Homepage Proceed as follows: 1.

  • Page 103: Appendix

    Appendix - 10 Appendix The appendix contains a glossary, the TPG parameter list, and the index lists. What information do • ’Glossary’ you need? • ’Parameter List’ • ’List of Figures’ • ’Index’ TPG User Manual...

  • Page 104: Glossary

    Appendix - Glossary 10.1 Glossary The glossary contains terms from the world of network technology. What information do • ’Hardware Address’ you need? • ’TPG Default Name’ • ’IP Address’ • ’Host Name’ • ’Gateway’ • ’Subnet mask’ Hardware Address The TPG is addressable by means of its world-wide unique hardware address.
  • Page 105 Appendix - Glossary The use of separators within the hardware address depends on the platform. Note the following conventions when entering the hard- ware address: Operating system Representation Example Windows Hyphen 00-c0-eb-00-01-ff UNIX Colon or 00:c0:eb:00:01:ff or period 00.c0.eb.00.01.ff TPG Default Name The TPG name is made up of the two letters 'IC' and the device num- ber.
  • Page 106 Appendix - Glossary Host Name The host name is an alias for an IP address. The host name uniquely identifies the TPG in the network and makes it easier to remember. Gateway Using a gateway, you can address IP addresses from external net- works.

  • Page 107: Parameter List

    Appendix - Parameter List 10.2 Parameter List This chapters gives an overview of all available TPG parameters. The parameter list gives details about the functions and values of the individual parameters. What information do • ’Parameter List - General’ you need? •...
  • Page 108 Appendix - Parameter List Table 8: Parameter List - General Parameters Value Default Description info_txt 64 characters [blank] Freely definable description of [Dealer] [a-z, A-Z, 0-9, _, -] the dealer or supplier. info_url 64 characters [blank] Freely definable description of [Dealer URL] [a-z, A-Z, 0-9, _, -] the URL of a dealer or supplier.
  • Page 109 1 - 65535 4001 Defines the port number used [Port] [5 characters, 0-9] by the TPG60 to communicate with the Connection Service. tp_retry 5 - 6000 Defines the interval (in [Connection retry] [4 characters, 0-9] seconds) for connection retries...
  • Page 110 It is advisable to abort a print job if the print job cannot be executed due to a printer error (for example, no paper). spage_printer TPG60 = 1-6 Defines the ID of the status [Status page TPG120 = 1-12 page printer.
  • Page 111 Appendix - Parameter List Parameters Value Default Description tp1_remote_queue max. 64 characters Defines the LPD Queue name. Is used when the LPD protocol tp12_remote_queue was selected as transfer [Port] method between the TPG and the printer. tp1_remote_lpd on/off Specifies the transfer method between the TPG and the prin- tp12_remote_lpd ter:...
  • Page 112 Appendix - Parameter List Parameters Value Default Description ip_bootp on/off Enables/disables the BOOTP [BOOTP] protocol. ip_auto on/off Enables/disables the IP [ARP/PING] address assignment via ARP/PING. ip_set_by 0 = Unknown [blank] Shows the applied method for [IP Address] 1 = SNMP the IP address assignment.
  • Page 113 Appendix - Parameter List Table 11: Parameter List - DNS Parameters Value Default Description on/off Enables/disables the name [DNS] resolution via a DNS server. dns_domain max. 255 characters [blank] Defines the domain name of [Domain name] an existing DNS server. Defines the IP address of the dns_primary valid IP address...
  • Page 114 Appendix - Parameter List Table 13: Parameter List - Protection Parameters Value Default Description passwd max. 16 characters [blank] Defines the password for the [Password] authorization to change TPG parameters. If a password was set, you must enter the password before you can save the changes to the parameters.
  • Page 115 Appendix - Parameter List Table 14: Parameter List - EAP Authentication Parameters Value Default Description eap_auth_type 1 = not defined Defines the authentication [Authentication] 2 = not defined method applied by the TPG to 3 = EAP-MD5 identify itself in the network. 4 = EAP-TLS 5 = EAP-TTLS 6 = PEAP...
  • Page 116 Appendix - Parameter List Table 15: Parameter List - Dynamic Update Parameters Value Default Description dyn_update on/off Enable/disables the dynamic [Dynamic update. firmware update] dyn_update_url max. 255 characters [blank] Defines the location of the [Update URL] files needed for the dynamic update.

  • Page 117: List Of Figures

    Appendix - List of Figures 10.3 List of Figures InterCon-NetTool - IP Wizard ......16 TPG Homepage - Home .

  • Page 118: Index

    Appendix - Index 10.4 Index Default certificate Default name Default setting Descriptions Device number Symbols DHCP DNS (Domain Name Service) .print AutoConnect Documentation .print Client Domain name .print Connection Service Download Configure parameters file Reconnect Service page .print Engine Status page Dynamic update Access control Address...
  • Page 119 Appendix - Index Hotline Configuration via FTP HTTP Default setting parameters file Resetting parameters file 29, 89 Improper Use Password Intended Use PEAP InterCon-NetTool ping Installation Port number Logging Printer ID network scan Printer open timeout searching network devices Printer status messages Start Printing Toolbar...
  • Page 120 Appendix - Index Status information display Status page Data format Printer Printing Subnet Mask Support System Requirements TCP/IP ThinPrint® port Bandwidth Time of the device Time server Time zone Toolbar Resetting TPG Homepage Start Transfer method Update Wizard Write Protection ZeroConf TPG User Manual...

This manual is also suitable for:

Thinprint tpg120

Table of Contents
