FAVI RioHD-LED-4S User Manual

User Guide

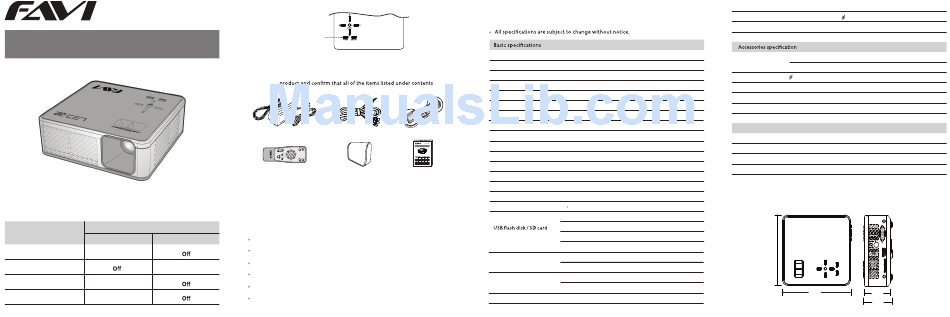

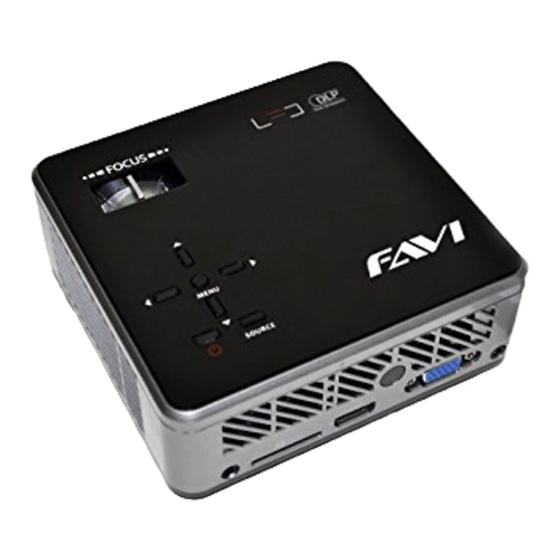

RioHD-LED-4S
1
POWER INDICATIONS
LED Indicators
Status/symptoms
Green
Red
On
Standby
Power ON On
Fan Failure Blinking
Temperature Failure Blinking
Power Indicator
2
PACKAGE CONTENTS
Unpack the
have been included.
AV cable
Power adapter VGA cable
RioHD-LED-4S
POWER INDICATIONS
/ LED
Remote control Projector carrying bag
User manual
3
PRODUCT FEATURES
The LED-4S integrates high-performance, optical projection technoloy with
a user-friendly design. The LED-4S features include:
Three picture modes with various application options
Digital keystone correction with auto-adjust feature
16.77 million color display
Multi-language On-Screen Display (OSD) menu
Over 30,000 hours of lamp life
Brightness of 150 ANSI lumens
4
SPECIFICATIONS
Model
RioHD-LED-4S
Dimension ( L x W x H ) 5.3 x 5.1 x 1.9 in
Approximately 1.4 lb
Weight
Display system DLP projection technology
Light source technology
RGB LED
Brightness 150 ANSI lumens
Native resolution
858 × 600
Contrast ratio 2000:1
Screen size 15"-100"
Projection distance 0.5m-5m
Aspect ratio
16:9/4:3
Focus Manual
Keystone
Manual/Auto
Ports Input: DC/AV/VGA/HDMI/USB/SD; Output: Audio
Power consumption
MAX: 85W, Standard: 45W
LED life span 30 000 hours
Audio: MP3, WMA
Picture: JPG, JPEG
Video: MPEG2, MPEG4, RMVB, VOB, MP4
Maximum resolution: 800 x 480
Best resolution: 800 x 600, 60Hz
VGA input
Maximum resolution: 1280 x 720, 60Hz
Standard: NTSC/PAL/SECAM
AV input
Maximum resolution: 720p
HDMI input Maximum resolution: 1920 x 1080, 60Hz
Audio Supports audio input, 3.5mm audio output
Menu guide Keybord/Remote control
Safe mode Overheat protection
Input: AC100~240V 1.5A /50-60Hz; output: DC19V 4.74A
Power adaptor
Maximum output power: 90W; Length of the cable: 1.8 m
3.5 mm, Length: 0.4 m, Composite: AC cable
AV cable
Remote control 121 x 46 x 22 mm, Color: Silver grey
VGA cable PVC black 50P, Length: 1.5 m
AC power cable 220V/6A, Length of the cable: 1.3 m
Battery Remote control: AAA alkaline battery
Environmental requirement
0°C~40°C (32°F~104°F)
Operating temperature
Storage temperature -20°C~45°C (-4°F~113°F)
Operating humidity 10%RH~80%RH
Storage humidity 5%RH~95%RH
5
INTRODUCTIONS
5 . 1 Dimension ( L x W x H ): 5.3 x 5.1 x 1.9 in
5.3
5.1 1.9
2.1
