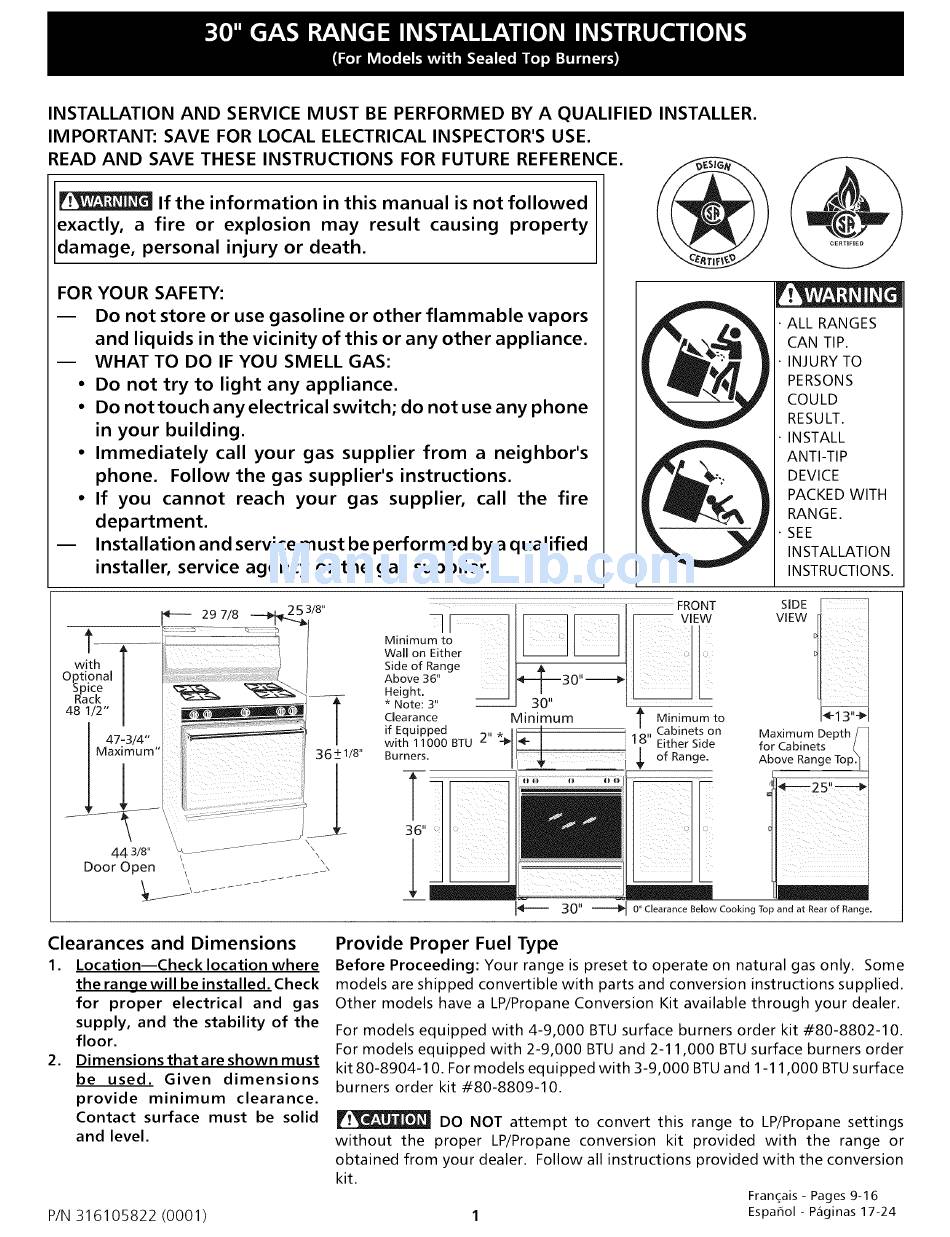

Frigidaire FGF379WECR Installation Instructions Manual

INSTALLATION
AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
pr_ If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
-- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
-- Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
ALL RANGES
CAN TIP.
INJURY TO
PERSONS
COULD
RESULT.
INSTALL
ANTI-TIP
DEVICE
PACKED WITH
RANGE.
SEE
INSTALLATION
INSTRUCTIONS.
t
with
1
Optional
Spice
Rack
48 1/2"
47-3/4"
Maximum"
297/8
44 3/8"
\
Door Open \\
2 5 3/8"
Side of Range I I
Above 36"
I_--- B O" -------_
*"e4go_t; s,, I 3;"
Clearance Minimum
if Equipped
2"
with 11000 BTU
Burners.
t Minimum to
18" Cabinetson
Either Side
of Range.
SIDE
VIEW
1÷13"÷1
Maximum Depth
for Cabinets
Above Range
30"
Clearance Below Cooking Top and at Rear of Range.
Clearances and Dimensions
1. Location--Check location where
the range will be installed. Check
for proper electrical and gas
supply, and the stability of the
floor.
2. Dimensions that are shown must
be used. Given dimensions
provide minimum clearance.
Contact surface must be solid
and level.
P/N 316105822 (0001)
Provide Proper Fuel Type
Before Proceeding: Your range is preset to operate on natural gas only. Some
models are shipped convertible with parts and conversion instructions supplied.
Other models have a LP/Propane Conversion Kit available through your dealer.
For models equipped with 4-9,000 BTU surface burners order kit #80-8802-10.
For models equipped with 2-9,000 BTU and 2-11,000 BTU surface burners order
kit 80-8904-10. For models equipped with 3-9,000 BTU and 1-11,000 BTU surface
burners order kit #80-8809-10.
DO NOT attempt to convert this range to LP/Propane settings
without the proper LP/Propane conversion kit provided with the range or
obtained from your dealer. Follow all instructions provided with the conversion
kit.
Fran(_ais- Pages 9-16
1 Espafiol- P_ginas 17-24
