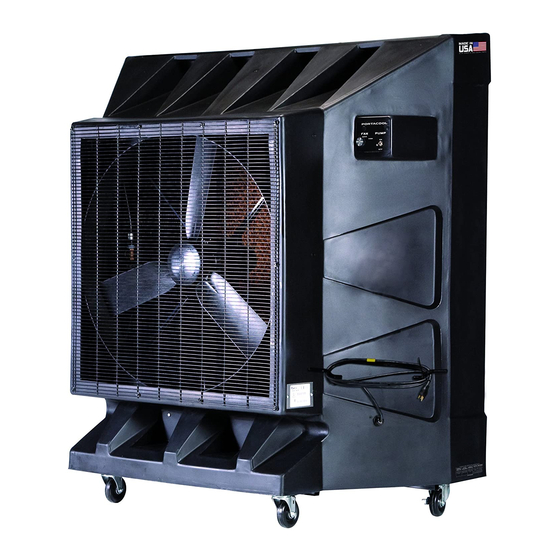

Port A Cool Cyclone Owner's Manual

Evaporative cooling unit
Hide thumbs Also See for Cyclone:
Table of Contents

Advertisement

Quick Links

Owners Manual

®
Includes
Port-A-Cool Cyclone ™
Port-A-Cool JetStream ™
READ AND SAVE
THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cyclone and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Port A Cool Cyclone

Summary of Contents for Port A Cool Cyclone

  • Page 1: Owners Manual

    Owners Manual ® Includes Port-A-Cool Cyclone ™ Port-A-Cool JetStream ™ READ AND SAVE THESE INSTRUCTIONS...
  • Page 2 ® QUICK SET UP GUIDE Remove box Position unit on level surface Fill sump or attach water hose Plug unit into appropriate outlet Pads should appear wet before starting the fan. Check the water gauge (see in- structions for setup) to monitor water level in tank.

  • Page 3: Table Of Contents

    A. Unpacking the PORT-A-COOL® unit B. Connecting the water and electricity III. OPERATING PROCEDURES ............page 2-3 A. Specifications. B. Placement of the PORT-A-COOL® unit. C. Filling with water. D. Starting the pump and adjusting the water flow. E. Starting the fan.

  • Page 4: Safe Operation

    II. SETUP A. Unpacking the PORT-A-COOL® unit. PORT-A-COOL® units are shipped completely assembled. The PAC2K482S, PAC2K361S, PAC2K363S, PAC2K36HPVS, PAC2K24HPVS, PAC3SVT, PACJS1600, PACJS2400, PAC2KCYC01 and PAC2KCYC01A models ship on a plastic pallet with a cover box strapped over the unit. Cut the straps and remove the box by lifting it over the unit.

  • Page 5: Operating Procedures

    Locate the brass hose adapter on the side of the PORT-A-COOL® unit (all models except PAC163SVT) near the water adjustment and drain valves. Verify that the hose washer is in position and in good condition. Attach a standard garden hose to the brass hose adapter and tighten to preclude leaks.

  • Page 6: Starting The Pump And Adjusting The Water Flow

    The PORT-A-COOL® unit creates a fan-shaped air pattern that disburses the air over a large area. This pattern may be disturbed or broken up by obstacles such as shelves, work benches, etc. It is important to insure that a clean, unbroken path for the air from the unit is provided to the maximum extent possible.

  • Page 7: Maintenance & Storage

    Iv. MAINTENANCE & STORAGE Very little maintenance is required on the PORT-A-COOL® unit. Cleanliness is the most important part of a maintenance program. Keeping the unit clean will do more than any other single item to keep your unit in peak operating condition. The rugged, corrosion-resistant construction of the unit and industrial grade components ensure low maintenance characteristics.

  • Page 8: Technical Support

    PORT-A-COOL® HP portable evaporative cooling unit shall be warrantied by PORT-A-COOL, LLC for a period of three years from the date of installation. All transportation charges on parts submitted for replacement or repair under this warranty must be borne by the purchaser. If said equipment develops such defects within this period, it will be repaired or replaced at our option.

  • Page 9: Fan Motor Replacement

    Make sure to mount it in the correct railings of the motor housing and at the correct distance from front or back on all four arms to ensure stability and alignment) (See Figure 4 NEXT PAGE) Figure 1 PORT-A-COOL OWNER’S MANUAL • PAGE 6...
  • Page 10 7) Replace switch box cover. Secure pump wire to fan bracket assembly using new bundle ties. 8) Replace pads by installing pads from outside toward center replacing center pad last. Replace pad flap with screws. Figure 2 Figure 1 Figure 3 PAGE 7 • PORT-A-COOL OWNER’S MANUAL...
  • Page 11 2) Remove the cover plate on the electrical box to disconnect the motor quick connect and the zip ties holding it together. (Figure 1) 3) Remove the pump from the sump. 8) Install new pump by reversing above steps. Figure 1 PORT-A-COOL OWNER’S MANUAL • PAGE 8...
  • Page 12 PAC2KCYC01 NEW 02/10/2009 ITEM# PART # DESCRIPTION ITEM# PART # DESCRIPTION BASE-CYCLONE CADDY FRAME PAD6022/26 KUUL PAD SET FOR CYCLONE BLOWER-01 BLOWER HOUSING PAD-SCREEN-CYL CYCLONE UNIT PAD SCREEN BLOWER-WHL-01 BLOWER WHEEL POLY-FTG-06 90 DEG. FITTING FOR SIGHT TUBE BONNET-05 BONNET...
  • Page 13 VALVE-01 PUMP TO SPRAY BAR CONTROL VALVE LOUVERS-CYC-11 LOUVER W/MESH - CYCLONE2000 TUBE-01 PUMP TO SPRAY BAR TUBING 220/50 and 220/60 models may require additional parts. Please contact Customer Service at 936-598-5651 for assistance PORT-A-COOL OWNER’S MANUAL • PAGE 10...
  • Page 14 FRONT LOUVER FOR JS/VT UNITS VALVE-01 PUMP TO SPRAYBAR CONTROL VALVE MOTOR-013-04 1/6HP VOSTERMAN MOTOR VENT16-INJ-01 VENTURI FOR 16" FAN 220/50 and 220/60 models may require additional parts. Please contact Customer Service at 936-598-5651 for assistance PAGE 11 • PORT-A-COOL OWNER’S MANUAL...
  • Page 15 1/4” POLY SIGHT TUBE JS-ACC-02 2” TREADED CAP VALVE-01 1/2” GATE VALVE LOUVERS-JS-24 LOUVER W/MESH FOR 24” JS/VT VENTURI-24-02 24” VENTURI 220/50 and 220/60 models require additional parts. Please contact Customer Service at 936-598-5651 for assistance PORT-A-COOL OWNER’S MANUAL • PAGE 12...
  • Page 16 PAC163SVT ORG. SN# &SUBSEQUENT NEW 09/29/20 Port-A-Cool, LLC 2009 220/50 and 220/60 models may require additional parts. Please contact Customer Service at 936-598-5651 for assistance PAGE 13 • PORT-A-COOL OWNER’S MANUAL...
  • Page 17 220/50 and 220/60 models require additional parts. Please contact Customer Service at 936-598-5651 for assistance PORT-A-COOL OWNER’S MANUAL • PAGE 14...
  • Page 18 220/50 and 220/60 models require additional parts. Please contact Customer Service at 936-598-5651 for assistance PAGE 15 • PORT-A-COOL OWNER’S MANUAL...
  • Page 19 220/50 and 220/60 models require additional parts. Please contact Customer Service at 936-598-5651 for assistance PORT-A-COOL OWNER’S MANUAL • PAGE 16...
  • Page 20 220/50 and 220/60 models require additional parts. Please contact Customer Service at 936-598-5651 for assistance PAGE 17 • PORT-A-COOL OWNER’S MANUAL...
  • Page 21 220/50 and 220/60 models require additional parts. Please contact Customer Service at 936-598-5651 for assistance PORT-A-COOL OWNER’S MANUAL • PAGE 18...
  • Page 22 220/50 and 220/60 models require additional parts. Please contact Customer Service at 936-598-5651 for assistance PAGE 19 • PORT-A-COOL OWNER’S MANUAL...
  • Page 23 VI. WIRING DIAGRAM for TWO-SPEED MODELS PORT-A-COOL OWNER’S MANUAL • PAGE 20...
  • Page 24 WIRING DIAGRAM for VARIABLE SPEED MODELS PAGE 21 • PORT-A-COOL OWNER’S MANUAL...
  • Page 25 WIRING DIAGRAM for ONE-SPEED MODELS PORT-A-COOL OWNER’S MANUAL • PAGE 22...
  • Page 26 WIRING DIAGRAM for THREE-SPEED MODELS PAGE 23 • PORT-A-COOL OWNER’S MANUAL...

  • Page 27: Unit Operation Warnings & Overviews

    • Not intended for use by persons with lack of experience and knowledge, unless they have been given instruction and are supervised during operation • Children should be supervised to ensure that they do not play with the appliance PORT-A-COOL CYCLONE™ 3000 UNIT OVERVIEW Control Panel Adjustable Louvers Water...
  • Page 28 • Not intended for use by persons with lack of experience and knowledge, unless they have been given instruction and are supervised during operation • Children should be supervised to ensure that they do not play with the appliance PORT-A-COOL CYCLONE™ 2000 UNIT OVERVIEW Adjustable Louvers Hose Connection Control Panel...
  • Page 29 PORT-A-COOL JETSTREAM™ UNIT OVERVIEW Water Adjustment Control Valve Panel Adjustable Louvers Cord Wrap Hose Connection Electrical Plug Locking Casters Control Panel Water Adjustment Valve Adjustable Louvers Cord Wrap Hose Connection Electrical Plug Locking Casters PORT-A-COOL OWNER’S MANUAL •PAGE 26...
  • Page 30 PORT-A-COOL® UNIT OVERVIEW Control Panel Cord Wrap Electrical Plug Water Adjustment Valve Drain Valve Hose Connection Locking Casters PAGE 27 • PORT-A-COOL OWNER’S MANUAL...

  • Page 31: Troubleshooting

    Certain problems may be associated with more than one system. With an understanding of all the systems of the PORT-A-COOL® unit and how they depend on each other, it becomes much simpler to define and solve any problems.

  • Page 32: Direct Drive

    FAN SYSTEM This section is divided into the two categories of fans used on all PORT-A-COOL® models: Direct Drive and Belt Drive. Both have some symptoms in common, and both have problems that are particular to each. BELT DRIvE MODELS...
  • Page 33 Sump tank is empty. Fill with water. periodically Spray bar valve is closed. Open valve. Pump will not run and power is Switch making closure contact. Check continuity/ available and pump is functional. Replace switch. PORT-A-COOL OWNER’S MANUAL • PAGE 30...

  • Page 34: Water System

    Spray Bar Adjustment valve. Water leaking from Drain Valve. Washer worn. Replace washer. Stem worn. Replace Drain Valve. Water leaking from Spray Bar Valve. Washer worn. Replace washer. Stem worn. Replace Spray Bar Valve. PAGE 31 • PORT-A-COOL OWNER’S MANUAL...
  • Page 35 Clear object. Breaker trips or fuse blows Pump motor locked. Replace pump. when switch is turned on. Pump won’t run and power Switch making closure contact. Replace switch. is available and pump is functional. PORT-A-COOL OWNER’S MANUAL • PAGE 32...
  • Page 36 Ix. FREQUENTLY ASKED QUESTIONS Q. WHAT ASSEMBLY IS REQUIRED? A: None. PORT-A-COOL® units are ready to use right out of the box. Q. HOW DO I PREPARE MY PORT-A-COOL® UNIT FOR STORAGE? A Drain the unit, dry out the pads and place the unit, preferably covered, in a dry place for the winter season.

  • Page 37: Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS (continued) Q. WHAT IS THE BEST ENVIRONMENT FOR THE PORT-A-COOL® UNIT TO PRODUCE THE MOST COOL AIR? A: For optimum performance, the temperature should be 85 degrees F or higher and the relative humidity should be below 75%. However, PORT-A-COOL® units will reduce the temperature in almost any environment, making it more pleasant.
  • Page 38 Parts/ Technical Support. Q. WHAT IF MY QUESTIONS AREN’T ANSWERED HERE? A: Tech Support staff is available 8 a.m. to 5 p.m. Central Time, Monday though Friday at 1-888-COOL-AID or by e-mail at support@port-a-cool.com. PAGE 35 • PORT-A-COOL OWNER’S MANUAL...
  • Page 39 PORT-A-COOL OWNER’S MANUAL • PAGE 36...
  • Page 40 Port-A-Cool® Products and Accessories KÜÜL® Pads Cooling Media are manufactured by Port-A-Cool, LLC P.O. Box 2167 • 709 Southview Circle • Center, TX 75935 Phone 936-598-5651 • 800-695-2942 www.port-a-coolllc.com PAC-ACC-03 04132011...
