TOOLS AND
MATERIALS REQUIRED
TOOLS
[3
Drill, electric
or ratchet
drive
[3
1-1/4"
Spade
bit
[3
Common
head
and phillips
head
screwdriver
[3
Pliers
[3
Tape
measure
or ruler and pencil
r For Ducted
Installations
ONLY:
1
I [3 Saber
saw or drywall
saw
I
L [3 Metal
snips
j
MATERIALS
[3
Electrical
wiring
and supplies
of type
to comply
with
local
codes
r [3 Roof or wall cap
1
I [3 Roof cement
or caulk
I
L [3 Duct and duct tape
j
For
Installation
on Kitchen
Cabinets
with
Recessed
Bottoms
Only:
[3
Two
1" x 2" x 12" (approximate
length)
wood
strips
(pur-
chase
locally)
[3
Four
1-1/4"
long flat head
wood
screws
(purchase
locally)
to fasten
strips
to cabinet
bottom

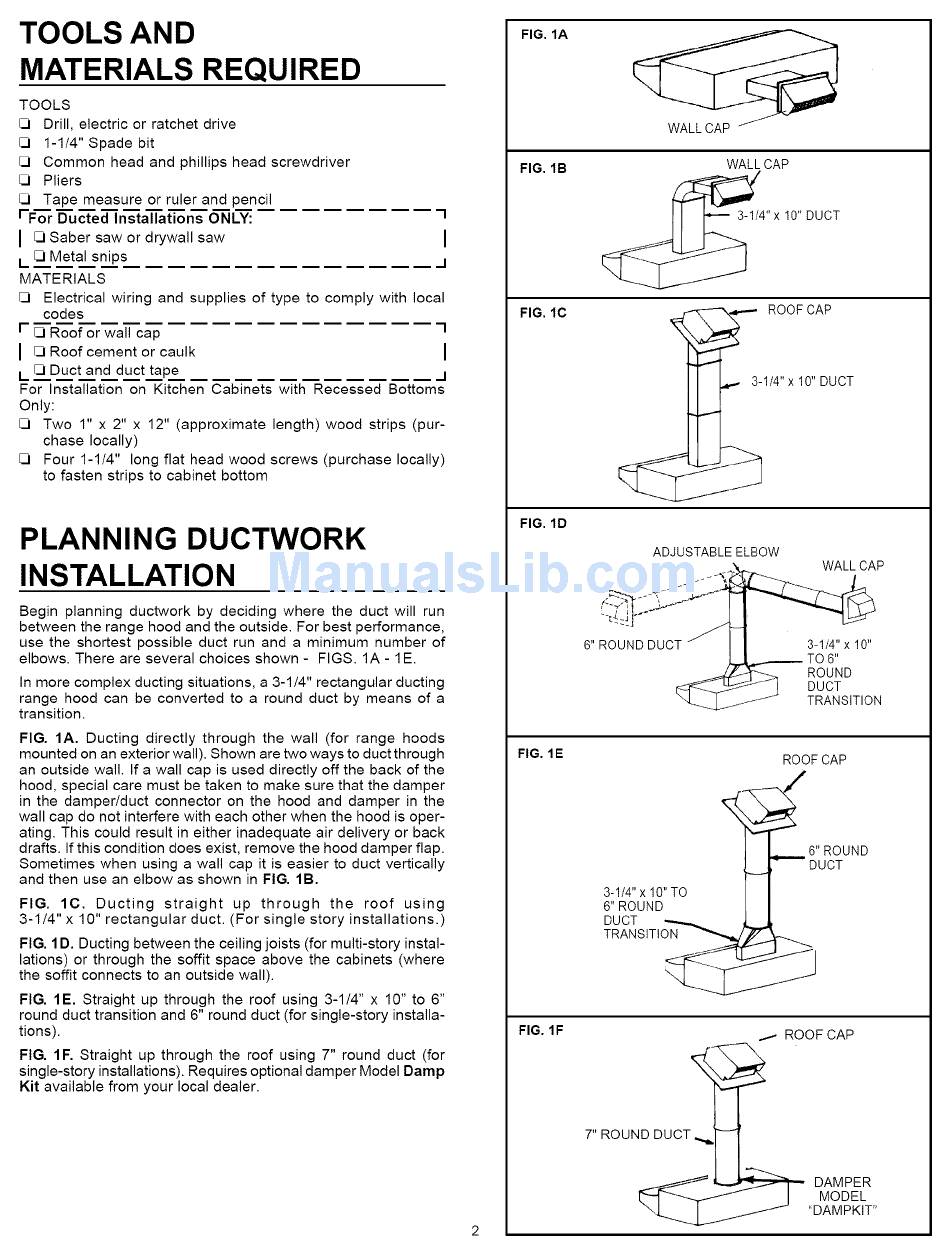

PLANNING DUCTWORK
INSTALLATION
Begin
planning
ductwork
by deciding
where
the duct
will run
between
the range hood and the outside.
For best performance,
use the shortest
possible
duct
run and a minimum
number
of
elbows.
There
are several
choices
shown
- FIGS.
1A-
1E.
In more complex
ducting
situations,
a 3-1/4"
rectangular
ducting
range
hood
can be converted
to a round
duct
by means
of a
transition.
FIG.
IA.
Ducting
directly
through
the wall
(for
range
hoods
mounted
on an exterior
wall). Shown
are two ways to duct through
an outside
wall.
If a wall cap is used directly
off the back of the
hood,
special
care
must be taken to make
sure that the damper
in the damper/duct
connector
on the hood
and damper
in the
wall cap do not interfere
with each other when the hood is oper-
ating.
This could
result
in either
inadequate
air delivery
or back
drafts.
If this condition
does exist, remove
the hood damper
flap.
Sometimes
when
using a wall cap it is easier
to duct vertically
and then
use an elbow
as shown
in FIG. lB.
FIG.
lC.
Ducting
straight
up
through
the
roof
using
3-1/4"
x 10" rectangular
duct.
(For single
story
installations.)
FIG. 1D. Ducting
between
the ceiling joists
(for multi-story
instal-
lations)
or through
the soffit space
above
the cabinets
(where
the soffit connects
to an outside
wall).
FIG.
1E. Straight
up through
the roof
using
3-1/4"
x 10" to 6"
round duct transition
and 6" round duct (for single-story
installa-
tions).
FIG. 1F. Straight
up through
the roof using
7" round
duct
(for
single-story
installations).
Requires
optional
damper
Model Damp
Kit available
from
your local dealer.
FIG. 1A
FIG. 1B
FIG. 1C
FIG. 1D
FIG. 1E
FIG. 1F
WALL CAP
WALL CAP
4" x 10" DUCT
ROOFCAP
1/4" x 10" DUCT
ADJUSTABLE ELBOW
WALL CAP
6"ROUND DUCT
3-1/4" x 10"
TO6"
ROUND
DUCT
TRANSITION
ROOF CAP
.IROOFCAP
7"ROUN_
DAMPERMoDEL
"DAMPKIT"
