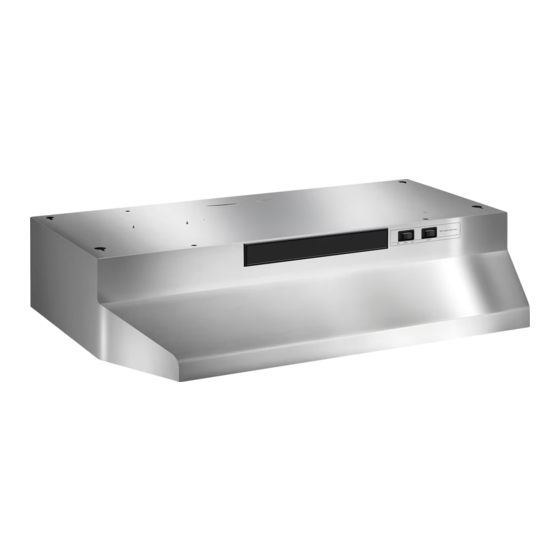

Frigidaire F30WC19ES Installation Instructions Manual

4-way convertible range hood

Advertisement

Quick Links

j .," ,,/_n_#
F30WC, F36WC, & F42WC SERIES
4-WAY CONVERTIBLE RANGE HOOD
INTENDED FOR DOMESTIC COOKING ONLY
IMPORTANT
For Non-ducted
(Ductfree)
Installation:
a) Purchase
non-ducted
filter
separately.
b) Remove
and discard
damper/duct
connector
and louver cover
(See Step 4) in "Prepare
the Hood',' Page 2.
c) Follow
all steps except
steps
inside
dotted
lines.
For
Ducted
Installation:
I-F_T_o'_ all steps,
including
steps
inside dotted
lines.
1
WARNING
TO REDUCE
THE RISK OF FIRE, ELECTRIC
SHOCK,
OR IN-
JURY TO PERSONS,
OBSERVE
THE
FOLLOWING:
1.
Use this unit only in the manner
intended
by the manufac-
turer.
If you
have
questions,
contact
the manufacturer
at
the address
or telephone
number
listed
in the warranty.
2.
Before
servicing
or cleaning
unit,
switch
power
off at ser-
vice
panel
and
lock the service
disconnecting
means
to
prevent
power
from being
switched
on accidentally.
When
the service
disconnecting
means
cannot
be locked,
securely
fasten
a prominent
warning
device,
such as a tag, to the
service
panel.
3.
installation
work
and electrical
wiring
must
be done
by a
qualified
person(s)
in accordance
with all applicable
codes
and standards,
including fire-rated
construction
codes
and
standards.
4.
Sufficient
air is needed
for proper
combustion
and exhaust-
ing of gases through
the flue (chimney)
of fuel burning
equip-
ment to prevent
backdrafting.
Follow the heating
equipment
manufacturer's
guideline
and safety standards
such as those
published
by the National
Fire Protection
Association
(NFPA),
and the American
Society
for Heating,
Refrigeration
and Air
Conditioning
Engineers
(ASHRAE),
and the local code au-
thorities.
5.
When
cutting
or drilling
into wall or ceiling,
do not damage
electrical
wiring
and other hidden
utilities.
6.
Ducted
fans must always
be vented
to the outdoors.
7.
Do not use this unit with
any solid-state
speed
control
de-
vice.
8.
To reduce
the risk of fire, use only metal
ductwork.
9.
Use with approved
cord-connection
kit only.
10. This unit must be grounded.
TO REDUCE
THE RISK OF A RANGE
TOP GREASE
FIRE:
1.
Never
leave
surface
units
unattended
at high
settings.
Boilovers
cause
smoking
and greasy
spillovers
that may
ignite.
Heat oils slowly
on low or medium
settings.
2.
Always
turn
hood
ON when
cooking
at high
heat or when
cooking
flaming
foods.
3.
Clean
ventilation
fans frequently.
Grease
should
not be al-
lowed
to accumulate
on fan or filter.
4.
Use proper
pan size. Always
use cookware
appropriate
for
the size of the surface
element.
WARNING
TO REDUCE
THE
RISK
OF INJURY
TO PERSONS
IN THE
EVENT
OF A RANGE
TOP
GREASE
FIRE,
OBSERVE
THE
FOLLOWING:*
1. SMOTHER
FLAMES
with a close-fitting
lid, cookie
sheet,
or
metal
tray, then turn off the burner.
BE CAREFUL
TO PRE-
VENT BURNS.
If the flames do not go out immediately,
EVACU-
ATE
AND CALL THE FIRE DEPARTMENT.
2. NEVER
PICK
UP A FLAMING
PAN - You may be burned.
3. DO NOT USE WATER,
including
wet dishcloths
or towels
-
a violent
steam
explosion
will result.
4. Use an extinguisher
ONLY
if:
A.
You
know
you have a Class
ABC
extinguisher
and you
already
know how to operate
it.
B.
The fire is small and contained
in the area where
it started.
C. The fire department
is being called.
D. You can fight the fire with your back to an exit.
* Based on "Kitchen
Fire Safety Tips" published
by NFPA.
CAUTION
1. For general
ventilating
use only.
Do not use to exhaust
hazardous
or explosive
materials
and vapors.
2. To
avoid
motor
bearing
damage
and
noisy
and!
or
unbalanced
impellers,
keep
drywall
spray,
construction
dust, etc. off power
unit.
3. Your hood motor has a thermal
overload which will automatically
shut off the motor
if it becomes
overheated.
The motor will
restart
when it cools
down.
If the motor continues
to shut off
and restart, have the hood serviced.
4. For best capture
of cooking
impurities,
your range hood should
be mounted
18-24"
above the cooking
surface.
5. Please read specification
label on product for further information
and requirements.
INSTALLER:
Leave This Manual With
the Homeowner.
HOMEOWNER:
Use and Care
Information
on Page 5.

Advertisement

Table of Contents
loading

Summary of Contents for Frigidaire F30WC19ES

  • Page 1 j .," ,,/_n_# F30WC, F36WC, & F42WC SERIES 4-WAY CONVERTIBLE RANGE HOOD INTENDED FOR DOMESTIC COOKING ONLY WARNING IMPORTANT For Non-ducted (Ductfree) Installation: a) Purchase non-ducted filter separately. TO REDUCE RISK OF INJURY TO PERSONS IN THE b) Remove and discard damper/duct connector and louver cover...
  • Page 2: Materials Required

    TOOLS AND FIG. 1A MATERIALS REQUIRED TOOLS Drill, electric or ratchet drive WALL CAP 1-1/4" Spade Common head and phillips head screwdriver WALL CAP FIG. 1B Pliers Tape measure or ruler and pencil r For Ducted Installations ONLY: I [3 Saber saw or drywall 4"...
  • Page 3: Preparing The Range Hood

    PREPARING THE RANGE HOOD FIG. 2 1. Unpack hood and check contents. You should receive: 1 - Aluminum Filter 1 - 3-1/4" x 10" Damper/Duct Connector (mounted inside hood for shipping only) (Save screws for mounting.) 1 - 7" Round Duct Plate (mounted on top of hood) (not shown) (Save...
  • Page 4: Installing The Ductwork

    [INSTALLING FIG. 8 3-1/4" x 10" DUCT DUCTWORK FRONTOF NOTE THESE INSTRUCTIONS WILL FOLLOW THE PLANS MADE ON PAGE 2. START AT THE EXTERIOR AND RUN THE DUCT BACK TO THE RANGE HOOD. FOR BEST PERFORMANCE OF YOUR RANGE HOOD, HOR ZONTAL TJ/8 USE THE SHORTEST POSSIBLE DUCT RUN AND A MINI-...
  • Page 5: Installing The Range Hood

    INSTALLING THE RANGE HOOD .,G. lo 16.Bring electrical cable through access hole drilled in wall or CONNECTOR bottom of cabinet. Provide 6" wire leads and install proper connector for type of cable being used. Remove lock from connector and let prepared cable project through cabi-...
  • Page 6: Service Parts

    SERVICE PARTS F30WC, F36WC, & F42WC SERIES RANGE HOOD < KEY NO. DESCRIPTION Outlet Box Cover #8 x 3/8 Sheet Metal Screw* Bulb Holder with Wires Light Lens Screw/Nut Kit (includes 2 - #I0-16 x .500 screws 2 - #I0-16 sheet metal nuts) Fan Blade...
  • Page 8 Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance...
