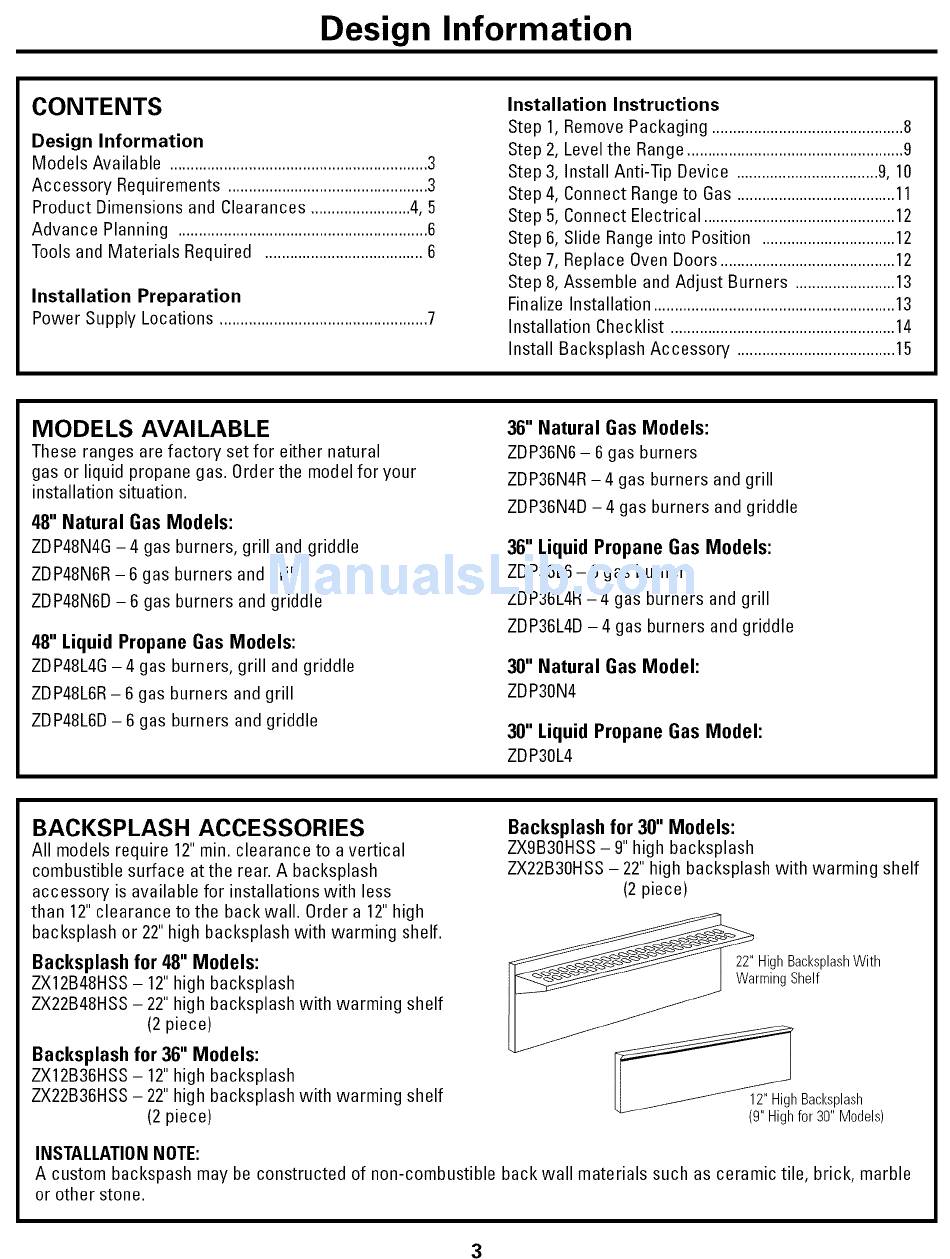

Design Information
CONTENTS
Design Information
Models Available .............................................................. 3
Accessory Requirements ................................................ 3
Product Dimensions and Clearances ........................ 4 , 5
Advance Planning ............................................................ 6
Tools and Materials Required ......................................6
Installation Preparation
Power Supply Locations .................................................. 7
Installation Instructions
Step 1, Remove Packaging .............................................. 8
Step 2, Level the Range .................................................... 9
Step 3, Install Anti-Tip Device .................................. 9 , 10
Step 4, Connect Range to Gas ...................................... 1 1
Step 5, Connect Electrical .............................................. 1 2
Step 6, Slide Range into Position ................................ 1 2
Step 7, Replace Oven Doors .......................................... 1 2
Step 8, Assemble and Adjust Burners ........................13
Finalize Installation .......................................................... 1 3
Installation Checklist ...................................................... 1 4
Install Backsplash Accessory ...................................... 1 5
MODELS AVAILABLE
These ranges are factory set for either natural
gas or liquid propane gas. Order the model for your
installation situation.
48" Natural Gas Models:
ZDP48N4G -4 gas burners, grill and griddle
ZDP48N6R-6 gas burners and grill
ZDP48N6D -6 gas burners and griddle
48" Liquid Propane Gas Models:
ZDP48L4G - 4 gas burners, grill and griddle
ZDP48L6R - 6 gas burners and grill
ZDP48L6D - 6 gas burners and griddle
36" Natural Gas Models:
ZDP36N6 - 6 gas burners
ZDP36N4R - 4 gas burners and grill
ZDP36N4D - 4 gas burners and griddle
36" Liquid Propane Gas Models:
ZDP36L6 - 6 gas burners
ZDP36L4R - 4 gas burners and grill
ZDP36L4D - 4 gas burners and griddle
30" Natural Gas Model:
ZDP30N4
30" Liquid Propane Gas Model:
ZDP30L4
BACKSPLASH ACCESSORIES
All models require 12" rain. clearance to a vertical
combustible surface atthe rear. A backsplash
accessory is available for installations with less
than 12" clearance to the back wall. Order a 12" high
backsplash or 22" high backsplash with warming shelf.
Backsplash for 48" Models:
ZX12B48HSS - 12" high backsplash
ZX22B48HSS - 22" high backsplash with warming shelf
(2 piece)
Backsplash for 36" Models:
ZX12B36HSS - 12" high backsplash
ZX22B36HSS - 22" high backsplash with warming shelf
(2 piece)
Backsplash for 30" Models:
ZX9B30HSS - 9" high backsplash
ZX22B30HSS - 22" high backsplash with warming shelf
(2 piece)
HighBacksplash With
helf
12" HighBacksplash
(9" Highfor 30" Models)
INSTALLATION NOTE:
A custom backspash may be constructed of non-combustible back wall materials such as ceramic tile, brick, marble
or other stone.
3
