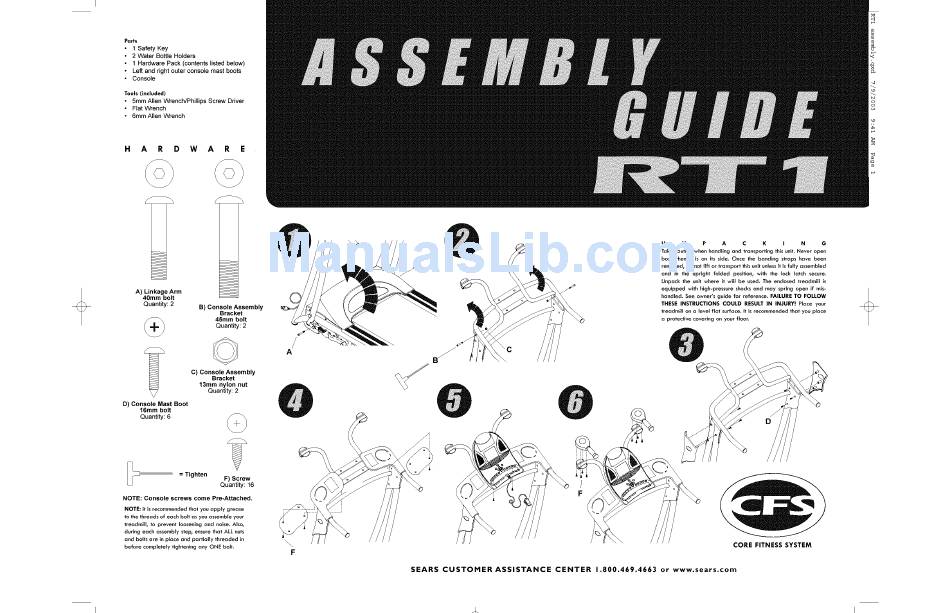

CFS RT1 Assembly Manual

Parts
• 1 Safety Key
• 2 Water Bottle Holders
• 1 Hardware Pack (contents listed below)
• Left and right outer console mast boots
• Console
Tools (included)
• 5rnm Alien Wrench/Phillips Screw Driver
• Flat Wrench
• 6mm Alien Wrench
HARDWARE
A) Linkage Arm
40mm bolt
Quantity: 2
B) Console Assembly
Bracket
45mm bolt
Quantity: 2
C) Console Assembly
Bracket
13mm nylon nat
Quantity: 2
D) Console Mast Boot
16mm bolt
Quantity: 6
= Tighten
F) Screw
Quantity: 16
NOTE: Console screws come Pre-Attached.
NOTE: It is recommended that you apply grease
to the threads of each bolt as you assemble your
treadm[ll_ to prevent loosening and noise. Abo,
during each assembly step_ ensure that ALL nuts
and bolts are in place and partially threaded in
before completely tightening any ONE bolt.
A
\\\
F
F
U N P A C K I N G
Take caution when handffng and transporting this unit. Never open
box when it is on its side. Once the bandh_g straps have been
removed, do not llft or transport this unit unless it is fully assembled
and in the upright folded posff[on, with the lock Jatch secure.
Unpack the unit where it wlll be used. The enclosed treodmlll is
equipped wffh high-pressure shocks and may spring open if mis-
handled. See owner's guide for reference. FAILURE TO FOLLOW
THESE INSTRUCTIONS COULD RESULT IN INJURY_ Pk_ce your
treadln[ll on a level fiat surface. It is recommended that you place
a proted_ve covering on your floor.
CORE FITNESS SYSTEM
SEARS CUSTOMER ASSISTANCE CENTER 1.800.469.4663 or www.sears.com
