CHAPTER 2 PANEL LOCATION

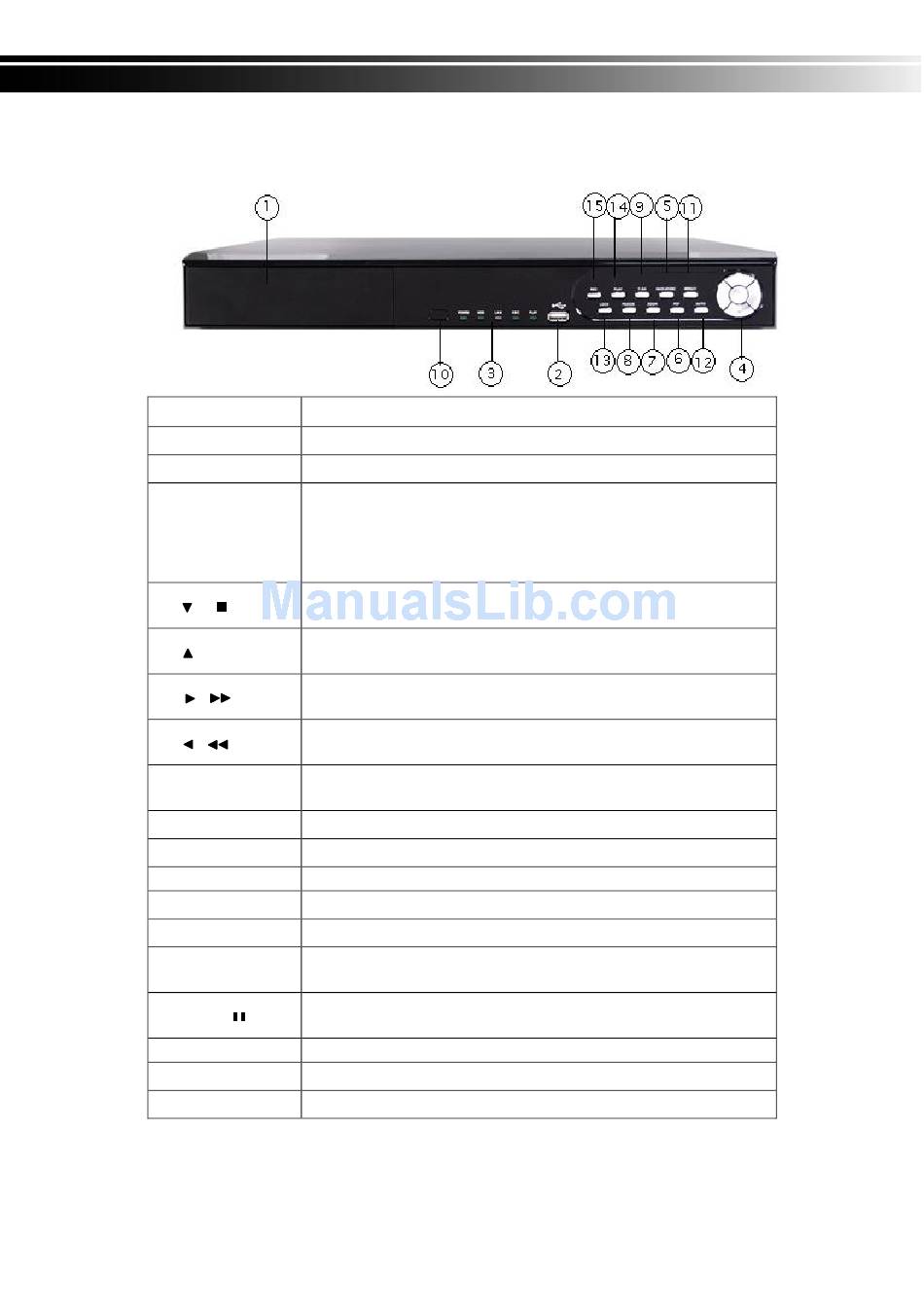

2-1 16CH FRONT PANEL CONTROLS
Control Keys
① DVD Writer
Optional DVD-RW (CD-RW) backup device. (Optional)
② USB 2.0 Port
Port for USB external devices.
Power: Power is on. HDD: Hard disk is in use.
③ LED Display
LAN: Connected to the internet (in red): Remote user logged in.
(From left to right)
REC: Recording. (or Schedule Recording and recording are on)
PLAY: Playing back.
In SETUP mode, press to move cursor down. In PLAYBACK mode, press
④
/
to stop playing back.
In SETUP mode, press to move cursor up. In PLAYBACK mode, press to
/ SLOW
slow down.
In SETUP mode, press to increase value. In PLAYBACK mode press to
/
play forwards.
In SETUP mode, press to reduce value. In PLAYBACK mode, press to
/
play rewind.
In LIVE mode, press to display the BACKUP menu. In SETUP mode,
⑤ BACKUP/ESC
press to return to previous page.
⑥ PIP
In LIVE mode, display with picture in picture format.
⑦ ZOOM
In LIVE or PLAYBACK mode, enlarge the display of a channel.
⑧ FREEZE
Turn on/off screen freeze function.
⑨ T-SRH
Display the search menu.
⑩ IR Sensor
Input sensor for the remote control.
In SETUP mode, press to enter values. In PLAYBACK mode, switch
⑪ ENTER/MODE
between full, quad, 9-channel, 16-channel display in order.
In LIVE mode, press to display menu. In PLAYBACK mode, press to pause
⑫ MENU/
playback.
⑬ MUTE
Turn on/off KEY tone function.
⑭ REC
Start or stop recording.
⑮ PLAY
Play back in normal speed.
