Summary of Contents for IVIEW HD-104

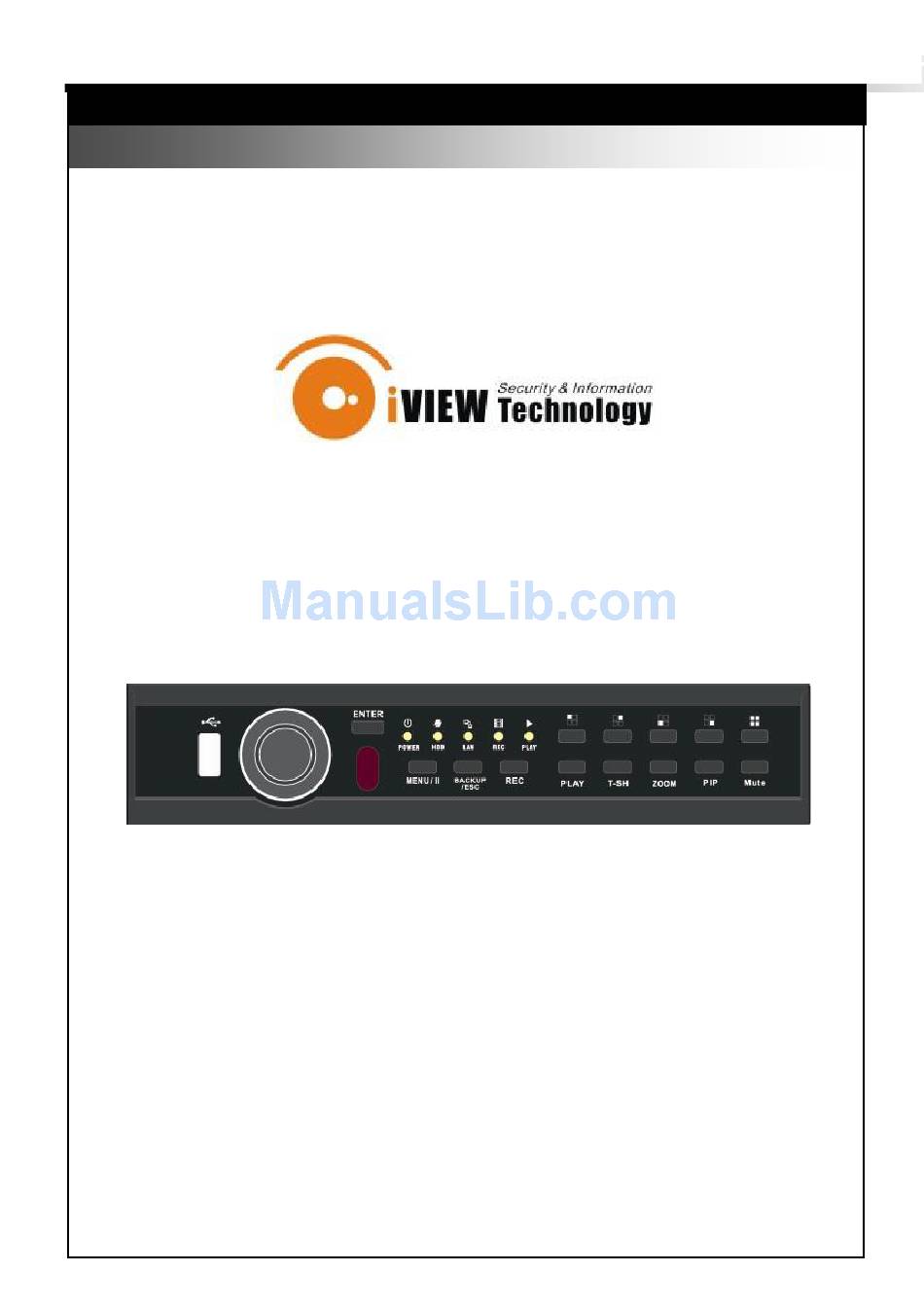

- Page 1 User Manual HD-114 v0.4(S02) HD-104 ─ 4CH DVR ─ This document contains preliminary information and subject to change without notice.
- Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. NOTE: This equipment has been tested and found to comply with the limits for a class digital device, pursuant to part 15 of the FCC Rules.
-
Page 3: Table Of Contents
4-10 DIAGNOSTIC ______________________________________________ 37 CHAPTER 5 BACKUP & SEARCH ____________________________________ 38 5-1 BACKUP SETUP ____________________________________________ 38 5-2 SEARCH SETUP ____________________________________________ 39 5-2.1 EVENT SEARCH _______________________________________ 39 5-2.1.1 CRITERIA SETUP FOR EVENT SEARCH _____________ 40 5-2.2 TIME SEARCH _________________________________________ 41 HD-104 User Manual... - Page 4 9-6.7 File Playback __________________________________________ 71 9-6.8 Event Playback ________________________________________ 72 9-6.9 Snapshot Data ________________________________________ 72 9-6.10 Recording Data _______________________________________ 73 APPENDIX I I-DVR.NET REGISTRATION _____________________________ 74 APPENDIX II Remote Monitoring IE ActiveX Control Installation InstructionError! Bookmark not d HD-104 User Manual...
-
Page 5: Chapter 1 Packing Detail And Installation
1-1 PACKING 1. DVR 2. Quick Start 3. IR Remote Control 4.Batteries x2 5. CD 6. Hard Disk Mount x2 7.Screws x8 8. Power Adaptor 9. SATA Cord x 1 Note: Standard shipping products do not include HDD HD-104 User Manual... -
Page 6: Hard Disk Installation
Step 2) Place the HDD on the HDD plate and screw it as indicated. Step 3) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual 4-9 System Tools for reference. HD-104 User Manual... -
Page 7: Chapter 2 Panel Location
⑮ In LIVE or PLAYBACK mode, switch to CH2。 ⑯ In LIVE or PLAYBACK mode, switch to CH3。 ⑰ In LIVE or PLAYBACK mode, switch to CH4。 ⑱ In LIVE or PLAYBACK mode, switch to 4-channel display。 HD-104 User Manual... -
Page 8: 4Ch Rear Panel Connectors
Switch between NTSC and PAL format. ⑩ LAN Network port ⑪ EXTERNAL I/O EXTERNAL I/O port (see below for pin definition) CHAPTER 3 LIVE, PLAYBACK AND PTZ OPERATIONS The IR remote control and mouse operate differently under each mode; this chapter describes HD-104 User Manual... -
Page 9: Live Mode
Turn on picture-in-picture format. Click on the channel name can switch to PIP/Zoom + other channels. Enable PTZ control. AUTO In AUTO mode, all available channels will be cycled through in full screen. Table 3-1.2 Graphical icons that will display after right-clicking your mouse under LIVE mode. HD-104 User Manual... - Page 10 FREEZE. PIP, picture in picture ZOOM, double the screen size AUTO-sequence LOCK, activate the key lock. Full screen display. Quad display. Table 3-1.3 Description of on screen graphical icons in LIVE mode Icon Description Recording is on HD-104 User Manual...
-
Page 11: Playback Mode
( see below picture) will show up at right lower corner of the screen. You can drag the panel by mouse to place it on any location of your screen. HD-104 User Manual... - Page 12 2x, 4X, 8X, 16x, 32X and 64X. Fast forward. Each press increases the speed to the next level. There are six speeds: 2x, 4X, 8X, 16x, 32X and 64X. Stop playback. Table 3-2.2 The mouse operation under the PLAYBACK mode. HD-104 User Manual...
-
Page 13: Ptz Mode
Switch to the PTZ mode by pressing “PTZ” button under the LIVE mode. The PTZ icon will appear on upper left side of screen and the control panel will appear on the down right side of screen. HD-104 User Manual... - Page 14 Set current PTZ location as the start of line-scan. ＊ Activate auto line-scan. FREEZE Set current PTZ location as the end of line-scan.＊ ZOOM ＊ PTZ communication protocols from different brands aren‟t compatible 100% sometime s. Therefore, some of these functions may be unavailable. HD-104 User Manual...
- Page 15 Please check us er manual of your PTZ for more detail. AUX 1~8,「AUTO」Key ＋ Number key「1~8」 「Backup」, Customized function。 ＊PTZ communication protocols from different brands aren‟t compatible 100% sometimes. Therefore, some of these functions may be unavailable. HD-104 User Manual...
-
Page 16: Chapter 4 Main Menu Setup
Switch between numbers and letters. Press to cancel the setup, and re-choose the login account. Delete the last character. Enter to identify the password. It will enter the set up menu, If the password is verified. Space key HD-104 User Manual... -
Page 17: Record Setup
Setup the quality and frame rate for each channel under normal Setup recording and event recording type. OSD position X Setup OSD X axis OSD position Y Set up OSD y axis OSD position setup Set up OSD axis HD-104 User Manual... -
Page 18: 4-1.1 Quality & Frame Rate Setup
You can setup quality and FPS separately for record type. Check/uncheck the box enable/disable selected channel recording Quality Select quality: Lowest/ Low/ Normal/ High/ Highest Select recording frame rate. Auto Assign each channel with its maxima accessible fps 4-2 EVENT SETUP HD-104 User Manual... -
Page 19: 4-2.1 Motion Setup
Drag the white bar or press ◀ ▶ to set up Sensitivity from Sensitivity value 1 to 10 for each channel. The lower value you set the higher sensitivity it will be Motion Area Setup Enter to setup motion detection area HD-104 User Manual... -
Page 20: 4-2.1.1 Motion Area Setup
Mask Mouse Selection All Area Detection Select entire screen as detection area. Mask All Area Deselect entire detection area. Continue Continue setup Exit & Save Save setup and leave Exit & Discard Cancel setup and leave 4-2.2 SENSOR SETUP HD-104 User Manual... -
Page 21: Schedule Setup
Description Page Each page provides 10 schedules for setup. 5 pages in total. Holiday Setup Enter to setup holiday, up to 50 days, other than weekends,. View Event/ Motion/ View Normal/ Motion / Sensor Setup Sensor Setup HD-104 User Manual... -
Page 22: 4-3.1 Schedule Record Setup
Click on the time on the left side. The setup menu will be displayed. You can have detail setup by dates, Time and event. 4-3.2 Holiday Setup Since holidays are different by different country and region, you can setup the holiday of your location accordingly. HD-104 User Manual... -
Page 23: Camera Setup
Drag the bar or press ◀ ▶ to adjust Hue of your camera from value 1 ( This function doesn’t support at to 255. The default value is 128. PAL system) Name Set up name of each channel Audio volume for CH1 under LIVE mode and recording mode can be Volume adjusted. HD-104 User Manual... -
Page 24: Account Setup
Set up password for each user. Password is 8-digits required and can be mixed by letters and numbers with case-sensitive. Letters can be mixed with capitals or lowercases. Permissions Set up Permissions for each user Change Admin Change administrator‟s password Password Picture Change user‟s picture HD-104 User Manual... -
Page 25: 4-5.1 Permission Setup
Setup menu, Network operation, PTZ function, Playback, Utility, Backup, Password expiry date and Mask on specific channels while playing back. 4-5.2 User Picture Setup User can select picture wished to be changed to from hard drive. HD-104 User Manual... -
Page 26: Networking Setup
Enter to set up DDNS Mail Setup Enter to set up mail 4-6.1 NETWORKING SETUP There are three ways to connect to the network as followed. 4-6.1.1 DHCP When DHCP is selected, IP address will be assigned by DHCP server automatically. HD-104 User Manual... -
Page 27: 4-6.1.2 Lan
(Note: The correct DNS address must be entered for DDNS function). 4-6.1.3 ADSL Select ADSL for network connection, the following information is required. Item Description User Name Enter user name provided by ISP Password Enter password provided by ISP HD-104 User Manual... -
Page 28: 4-6.2 Http Setup
Enter a valid port value from 1 up to 65000. The default value is 80. Auto Assign each channel with its maxima accessible fps Chanel number Quality Set up record quality. There are below basic, basic, normal, high, highest Set up record FPS 4-6.3 DDNS Setup HD-104 User Manual... -
Page 29: 4-6.4 Mail Setup
User Name Enter user name. Password Enter password. ＊ For more detailed I-DVR.NET operation instruction, please refer to appendix I. 4-6.4 Mail Setup When event occurs (VLOSS, MOTION, SENSOR), email will be sent to the receiver account automatically. HD-104 User Manual... -
Page 30: Ptz & Rs485 Setup
Baud Rate Select Baud Rate for PTZ from 2400, 4800, 9600, 19200 RS-485 ID Select RS-485 ID from 1 to 64 RS-485 Baud Rate Select RS-485 Baud Rate from 2400. 4800, 9600, 19200 Keyboard Select Keyboard. (Li-Lin) HD-104 User Manual... -
Page 31: System Setup
DVR numbered 3. It only responds when use 1 to 4 remote control. Display Setup Enter to set up Display Date/Time Setup Enter to set up Date/Time Enter to set up Buzzer & Relay Device Setup Enter to set up Spot Spot Setup HD-104 User Manual... -
Page 32: 4-8.1 Display Setup
Turn On / Off date and time display Show Channel Name Turn On / Off channel name display Deflicker(only for CRT monitor) Border Color Set up the color of border in LIVE , PLAYBACK mode.（Red, Green, Blue） 4-8.2 DATE/TIME SETUP HD-104 User Manual... -
Page 33: 4-8.2.1 Change Date & Time
4-8.2.1 CHANGE DATE & TIME Setup date and time of DVR manually according to user‟s local time. 4-8.2.2 TIME ZONE AND DAYLIGHT SAVING TIME SETUP Set up time zone and activate Daylight Saving Time function according to user‟s DVR location. HD-104 User Manual... -
Page 34: 4-8.2.3 Internet Time Setup
Effective by this option selected, DVR will automatically Synchronization synchronize the time upon rebooting or by every 24 hours after booting. Effectively, Date and Time show on DVR will immediately Update Now correspond with those in internet server. 4-8.3 BUZZER & RELAY SETUP HD-104 User Manual... -
Page 35: 4-8.4 Spot Setup
The DVR has two modes of video output; one is main video output, the other is spot video output. SPOT setup is for controlling the order of channels the system cycles through in SPOT mode. User can monitor every channel in the SPOT mode. HD-104 User Manual... -
Page 36: Utility Setup
Please stop recording and backup setup configuration before upgrading. System will reboot automatically when the upgrade is completed. Notice! DO NOT TURN OFF POWER OR UNPLUG USB DEVICE DURING THE UPGRADE as it may cause incomplete firmware upgrade and damage to the DVR. HD-104 User Manual... -
Page 37: Diagnostic
USING means the HDD is being used for recording Status GOOD/BAD means the HDD has a known/unknown format for the DVR. (Note: Please initialize your newly-installed HDD before using it.) Format Time The latest format time of HDD HD-104 User Manual... -
Page 38: Chapter 5 Backup & Search
Calculate the size of backup file Start backup operation. Start Be sure to calculate the size of backup file BEFORE operating backup. Note! Do not unplug the USB device or turn off the DVR during the backup process to avoid unrecoverable error. HD-104 User Manual... -
Page 39: Search Setup
Rest your cursor under the line and press “enter”, or left click your mouse to playback the recording data. P.S. Event Records will still be generated even when hard disk is not installed or the record function is not activated. However, the record can’t be viewed after selecting it. HD-104 User Manual... -
Page 40: 5-2.1.1 Criteria Setup For Event Search
The amount of events can be numerous. Therefore, you can facilitate event sorting by setting up “criteria”. Setup “start time” and “end time” for event search, then the search result will be limited to this specific period of time. Only checked events and channels will be sorted in event search. HD-104 User Manual... -
Page 41: 5-2.2 Time Search
(hour/minute/second) or click on a specific time of time bar by mouse then press “ok”. DVR will playback the selected recording data. AP software:「DVR Remote Desktop」can allow you to remotely access and control the DVR from PC. HD-104 User Manual... -
Page 42: Chapter 6 Rempte Software Installation And Setup
Step Two: Windows as below will show up. Please enter the user name and password. Default user name and password is admin/123456. Other related setup about user account and password, please check “4-5 Account Setup. “ Step Three: Click on the link to start downloading the AP software. HD-104 User Manual... - Page 43 Step Five: If you choose to run the software, Start window will be shown up. Please enter information of login DVR: IP, Port, Username and Password, or choose “Play Recorded File” to open backup files in your PC. Step Six: You‟ve logged into the DVR HD-104 User Manual...
-
Page 44: How To Do Remote Monitoring Through Ie
IE view, please refer to next chapter for more information) p.s. There will be IE connection security issue when clicking this link for the first time. Please refer to index II for Remote Monitoring IE ActiveX Control Installation Instruction. HD-104 User Manual... - Page 45 Step Four: DVR images appear. Note：4CH DVR will display 4 channels and 8CH DVR will display 8 channels. HD-104 User Manual...
-
Page 46: Ap Software Operation
Radeon R700series, Radeon HD 3xxx IGPseries, Mobility Radeonseries (9500 above), Mobility Radeon Xseries, Mobility Radeon HDseries, or FireGL Vseries etc. Or visit: http://en.wikipedia.org/wiki/Comparison_of_ATI_graphics_processing_units SiS: SiS 67Xseries, or SiS 77Xseries etc. Or visit: http://www.sis.com/support/support_compare.htm Intel: 91Xseries, 94Xseries, 96Xseries, G3Xseries, or G4Xseries, etc. Or visit: http://en.wikipedia.org/wiki/Intel_GMA HD-104 User Manual... -
Page 47: Chapter 7 Specificaitons
Remote control External I/O 1 RS-485, 4(4CH) sensor input, 1 Relay Output Ethernet 1 RJ45 connector, 10/100 Mbps 6. ELECTRICAL Power Source DC 12V / 3A 7. ENVIRONMENTAL 5℃ ~ + 40℃ Operation Temperature Humidity Less than 90% HD-104 User Manual... - Page 48 720 x 240 120fps / 4CH Speed 720 x 480 60fps / 4CH (Independent 352 x 288 100fps / 4CH setting for each 704 x 288 100fps / 4CH channel) 704 x 576 50fps / 4CH Compression Method H.264 HD-104 User Manual...
-
Page 49: Chapter 8 Mobile Application Installation And Usage
CD that packed with DVR through Bluetooth or USB cable. Step 2: Install the application software “DVRH264.jar” in your mobile device. It might be installed automatically after downloading; otherwise, select it from the downloading file for installation. HD-104 User Manual... -
Page 50: 8-1.2 Mobile Application Operation
Network connectivity will take some time. It‟ll be affected by networking environment and bandwidth flow. Live image will show up after a successful connection. PS. The Live can not be displayed in your mobile when the recoding is off in local DVR. HD-104 User Manual... -
Page 51: 8-1.2.3 Modify The Login Information Of Dvr
“Delete” command can be used to remove the DVR information if it is no longer useful. Select the DVR on the name list then choose “Delete” 8-1.3 Live Monitoring Operation This paragraph describes some operation under the LIVE monitoring mode in your mobile device. HD-104 User Manual... -
Page 52: 8-1.3.1 Scroll The Image
Select “Single” under the “Menu”, there will be all channels of your DVR in list for you to choose. PS. The Live can not be displayed in your mobile when the recoding is off in local DVR. HD-104 User Manual... -
Page 53: 8-1.3.4 Size Of Image
Motion Detected, Sensor Triggered and Vloss. Graphical icons below will be shown on the status: : Motion detected : Sensor triggered : Video loss Select the “Alarm” under the “Menu” to switch this function on or off. HD-104 User Manual... -
Page 54: Mobile Application Installation And Operation For Windows Mobile System
Step 2: Install the application software “Jrviewer.CAB” and “H264Pocket.CAB” in your mobile device, two folders named ”Jrviewer” and “H264Pocket” will be created. It might be installed automatically after downloading; otherwise, select it from the downloading file for installation. HD-104 User Manual... -
Page 55: 8-2.2 Mobile Application Operation
The fee rate will depend on the telecom company and package fee you go with. Modify Login Choose DVR, press “Modify”, and press”OK” to save change. Modify Delete Login Choose DVR and press ”Delete” to delete the DVR info. Delete HD-104 User Manual... -
Page 56: 8-2.3 Operation Under The Live Monitoring
“View” to inactivate this function. If the channel video with sound input, turn this Sound Sound option to hear the real sound You can choose one channel to display in full Full Screen Full screen display screen by check this function. HD-104 User Manual... -
Page 57: Chapter 9 Cms Installation And Usage Guide
4. Select “Next”, and then select “Browse” to change installation path if needed. To check available space on hard disk, please select “Disk Cost” then please select “Next” to the next step. HD-104 User Manual... - Page 58 5.”Confirm Installation” window shows. Select „Next’ then the installation starts. 6. Select „Close’ to finish installation when the “Installation Complete” window shows. HD-104 User Manual...
-
Page 59: Instruction For Log-In Failure To Cms After Upgrade
Step 1: Please enter file manager to enter folder, “Windows” and then folder “Systme32” (ex:C:\Windows\System32) Step 2: Locate file, “iCMS.dat” and delete it. Step 3: Restart CMS. Log-in successfully. HD-104 User Manual... -
Page 60: Cms Login And Environment
A set of 10 operations are provided by CMS. See “ 9-6 Operation 安 裝 此 ⑤ Operation Bar Bar” for detail. 軟 體 後，安裝 速 度 會 依 使 用 者 的 網 路 頻 寬 HD-104 User Manual 大 小 而 有 所 不... -
Page 61: Dvrs, Groups & Events
“9-6.3 display. Group Administration” for further information. Left-clicking on a connected DVR will expand/collapse status of its all channels as below: Icon Description Video Loss Motion Detected Sensor Triggered HD-104 User Manual... -
Page 62: 9-3.2 View Event Logs
Also see “9-6.6 recording data” for detail. Take snapshot to save in local PC storage. To view all the snapshots you‟ve taken, please go Snapshot to ” Snapshot” under the operation bar. See “9- 6.5 Snapshot data” for detail. HD-104 User Manual... -
Page 63: Main Display
In live mode, you can turn on/off the audio signal of Ch1~Ch4: 「 」Audio signal is On 「 」Audio signal is Off Turn on/off by clicking on the graphical icon, please note there can allow only one chan nel‟s audio signal to be on at one time. HD-104 User Manual... -
Page 64: 9-5.2 Emap Display
If the channel has been set up to use e-MAP, the menu will show all the e-MAP titles that have been entitled to this channel; otherwise, “No eMaps” will be shown. Please check “9-6.4 eMAP administration” for setup information. HD-104 User Manual... -
Page 65: 9-5.3 Ptz Control
Setup the “start” and “end” of liner scan.＊ Activate the liner scan cruise. ＊ Customization function AUX 1~8 ( For AUTO+1 ~ AUTO+8 customization) ＊PTZ communication protocols from different brands aren‟t compatible 100% sometimes. Therefore, some of these functions may be unavailable. HD-104 User Manual... -
Page 66: Operation Bar
Remote Playback. Please see “8-6.5 Remote Playback”. HDD Playback. Please see “8-6.6 HDD Playback” File Playback. Please see “8-6.7 File Playback” Event Playback. Please see “8-6.8 Event Playback” Snapshot Data. Please see “8-6.9 Snapshot Data” Recording Data. Please see “8-6.10 Recording Data” HD-104 User Manual... -
Page 67: 9-6.1 User Administration
SDVR:This feature is currently reserved Address: DVR IP Address Port: DVR Network Port Channel: DVR Camera Number DVR Login Account Password: DVR Login Password Description: Other Description Camera Description: Carera Description From DVR: Load Camera name from DVR HD-104 User Manual... -
Page 68: 9-6.3 Group Administration
6. Drag a channel from the lower left panel into the main display to a preferred location. Or, change the channel location in the main display by mouse dragging. 7. You can „Select’ again to add other channels, but the un-saved channel locations will be lost. 8. Click “OK” to save the setup. HD-104 User Manual... -
Page 69: 9-6.4 Emap Administration
2. Select a picture, click OK and the picture will show in the right panel. 3. Drag channels in the left lower corner onto the picture to any position. 4. To delete a channel already on the picture, right click the channel and click „Remove‟. 5. Click OK to save. HD-104 User Manual... -
Page 70: 9-6.5 Remote Play
DVR and a display mode on top of the screen. After the recorded segments are listed below, double click on one to show its image on the right. Icon Description Start playing. Pause. Fast forward. Fast rewind. HD-104 User Manual... -
Page 71: 9-6.6 Hdd Playback
You can play the recorded .irf files by “File Play” in CMS. It allows you to change the display mode, forward or rewind the file and drag the time bar. Icon Description Start Playback. Pause. Stop playback. Fast forward. Fast rewind. HD-104 User Manual... -
Page 72: 9-6.8 Event Playback
3. Double click an event and play back the images on the right. Use buttons at the bottom to control the playback. 9-6.9 Snapshot Data It can display all the snapshots you‟ve taken in line in “Snapshot Data”. You can review, delete or save as other files here. HD-104 User Manual... -
Page 73: 9-6.10 Recording Data
1. Choose the recording time at upper left corner, it will be played on the main display. 2. You can choose the display mode. 3. Time bar will be shown at right lower corner, please drag the time bar to specify the recording time you‟d like to play. HD-104 User Manual... -
Page 74: Appendix I I-Dvr.net Registration
“host.domain” is named by your choice. If DVR IP has any changes, there are updates “iddns.i-dvr.net” is what the main Here at the same time. Press, “F5: Refresh” server generates And then IP column will update automatically to it’s real IP Address. HD-104 User Manual... - Page 75 Step 4. Enter DVR →Main Menu → Network Setup → DDNS. Activate DDNS functions and input related information. HD-104 User Manual...
- Page 76 1. When remote monitoring on IE for the first time, an alert message occurs “Install ActiveX control” on the tool bar. 2. Click at this alert message and select “Install ActiveX Control” 3. “Do you want to install this software” alert pops up. Select “Install” HD-104 User Manual...
- Page 77 5. If message, “Your security Settings do not allow web sites to use ActiveX controls installed on your computer.” pops on when logging in, please follow the next instruction. 6. First select “Tools” on the tool bar and then select “Internet Options” HD-104 User Manual...
- Page 78 7. Select Security →Trusted Sites → Sites 8. Enter DVR address (This address is only for demonstration. Please use the address depends on the setup of on-site DVR.) into the blanks shown in picture, and then press “add.” HD-104 User Manual...
- Page 79 9. Newly added website will appear at the trusted web sites list. Press close. 10. Go back to IE window, press refresh button or F5. HD-104 User Manual...
