Summary of Contents for Side-Power RC-10E

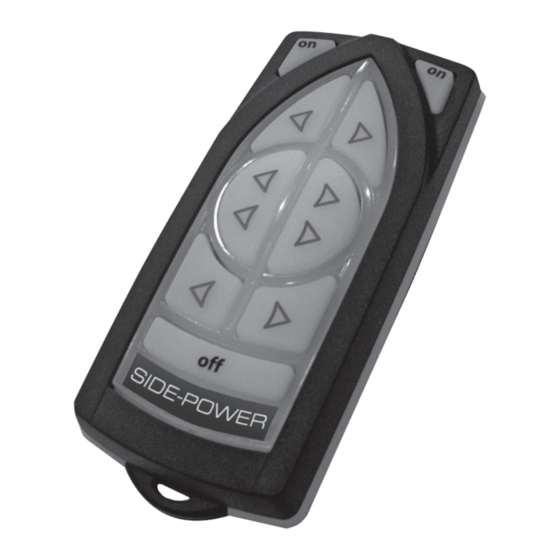

- Page 1 Installation & User Manual Radio Remote RC-10E SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway w w w . s i d e - p o w e r . c o m Tel: +47 69 30 00 60 s i d e p o w e r @ s l e i p n e r.
-
Page 2: Table Of Contents
Programming additional transmitters ................... 7 Replacing the battery........................8 User precautions ........................9 How to use Side-Power thrusters ....................10 Service Centres ........................12 Model range The radio remote control can control a single bow thruster or a bow and stern thruster combined. -
Page 3: Technical Specifications
When additional transmitters are to be used, the receiver must be programmed again for all transmitters (please see programming section on page 7). • If a Side-Power automatic main switch is fitted, the “OFF” button on your transmitter will shut off the main switch providing no other control panels are “ON”. -
Page 4: Receiver Installation
Receiver installation Prior to installation, it is important that the responsible installer reads this guide to ensure necessary acquaintance with this product. Warning! • Remote receiver power supply negative lead must be connected to the thrusters`s negative lead. Caution! • Install the receiver minimum 1 meter (3ft) from high power cables and NMEA cables or other sources of electrical interference, i.e. - Page 5 Installation & User Manual, Radio Remote RC10E Page 5...
-
Page 6: Visual Wiring Diagram
Red: 12/24V Batt. + (5A fuse!) Fused power supply from a circuit with ON/OFF switch! To stern thruster To stern thruster control panel Yellow: Automatic main switch (optional) Sleipner Motor AS • Norway www.side-power.com Installation & User Manual, Radio Remote RC10E Page 6... - Page 7 Programming additional receivers Push the Pair Button with a plastic stick The original transmitter and receiver have the same factory preset code so that no programming is necessary. When additional transmitters are to be used, the receiver must be programmed again for all transmitters.
-
Page 8: Replacing The Battery
Replacing the battery Battery WARNING: Before working on the transmitter, deactivate the transmitter and the receiver (push “OFF” on the transmitter(s)) and turn off the power to the receiver as well as the thruster mainswitch. 1. Open the transmitter. 2. Take out the battery by inserting a screwdriver or similar between battery and holder at point A, and gently flip the battery out, taking care not damaging the battery grips at point B 3. -
Page 9: User Precautions
(batteries) so that the thruster can be turned off in case of a malfunction. • If a Side-Power automatic main switch is fitted, the “OFF” button on your transmitter will shut off the main switch providing no other control panels are “ON”. - Page 10 Bow + Stern thruster Remote control “ON” Turn boat to Port Turn boat to Starboard Remote control “OFF” Auto-OFF appr. 4 min. Hold for 2 seconds How to use a bow thruster 1. Turn the main power switch for the bow thruster on. Turn on the power to the receiver. 2. Turn on the transmitter by pushing the transmitter’s two “ON” buttons. The remote system is now activated and then turns off automatically appr.
- Page 11 Electric schematics 4-lead & 1-lead connector Channel B Channel A Installation & User Manual, Radio Remote RC10E Page 11...
-
Page 12: Service Centres
SIDE-POWER SERVICE CENTRES Argentina Estonia/Latvia/Lithuania Japan Spain Trimer SA Miltec Systems OÜ Turtle Marine Inc. Imnasa Marine Products Buenos Aires Tallin Nagasaki Girona Tel:+54 11 4580 0444 Tel: +372 5013997 Tel:+81 95 840 7977 Tel:+34 902 300 214 Fax:+54 11 4580 0440...
Need help?
Do you have a question about the RC-10E and is the answer not in the manual?
Questions and answers
Habe Batterie ersetzt aber nur noch Gepiepe und keine Funktion mehr.
If the Side-Power RC-10E beeps and does not function after replacing the battery, a likely cause is that the transmitter and receiver are no longer paired. After battery replacement, the receiver may need to be reprogrammed with the transmitter. Follow the pairing steps:
1. Make sure the receiver and all transmitters are off.
2. Turn on power to the receiver.
3. Press the Pair Button on the receiver with a plastic stick until the LED blinks.
4. Within 5 seconds, press both “ON” buttons on the transmitter.
5. The LED will switch to a continuous light when pairing is successful.
If this is not done, the system may beep and not respond.
