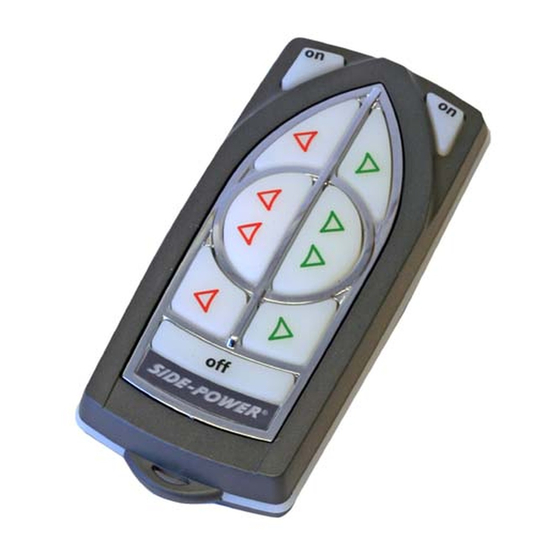

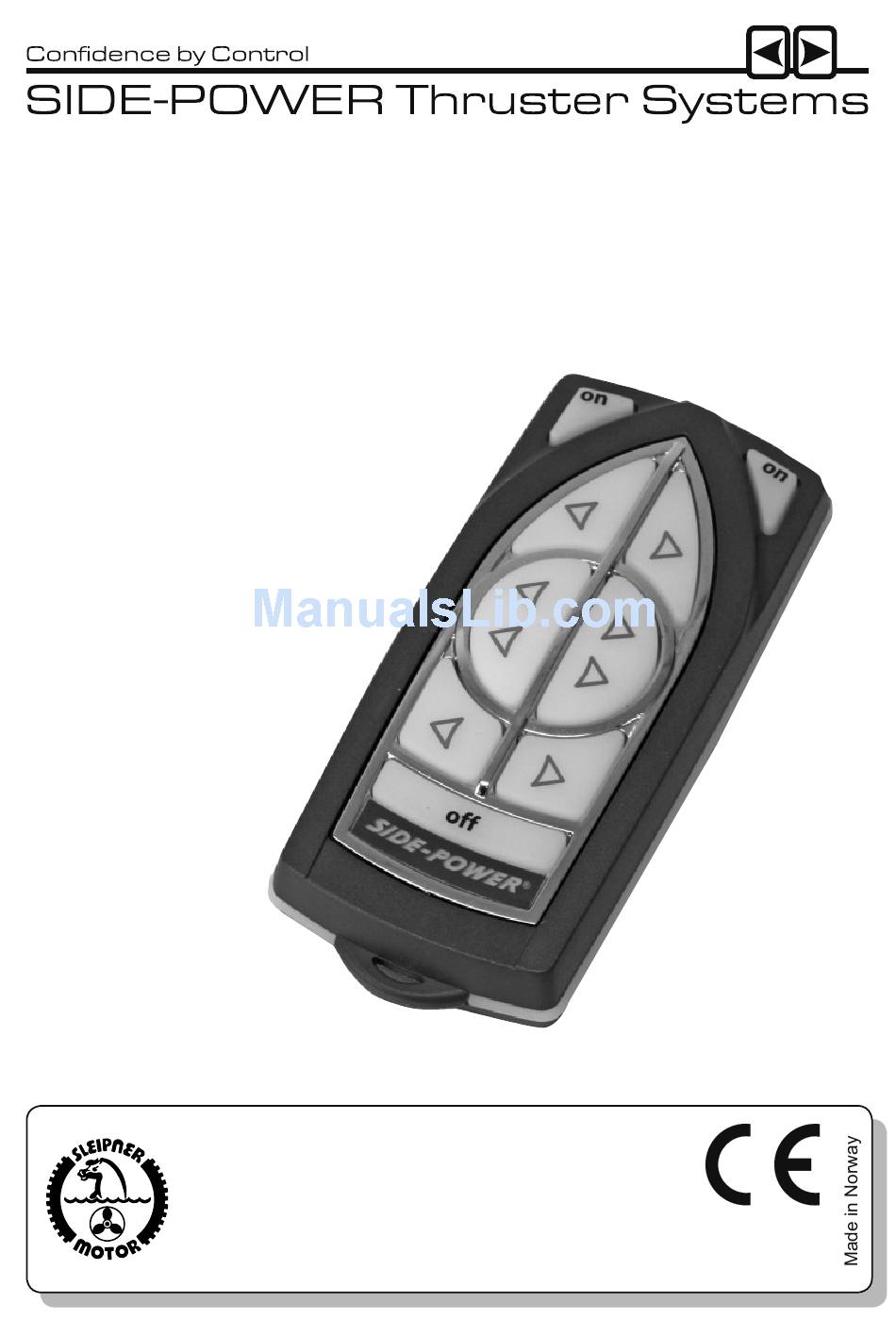

- Page 1 Installation & User Manual Radio Remote 8980 / 8981 SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway w w w . s i d e - p o w e r . c o m Tel: +47 69 30 00 60 s i d e p o w e r @ s l e i p n e r.
-
Page 2: Table Of Contents
(please see programming section on page 6). We Sleipner Motor AS declare that this device complies with health and safety requirements according to the Directive 89/336/EEC of 23 May 1989 amended by 92/31/EEC and 93/68/EEC. Installation & User Manual, Radio Remote 8980/8981 Page 2... -
Page 3: Technical Specifi Cations
(please see programming section on page 7). • If a Sidepower automatic main switch is fi tted, the “OFF” button on your transmitter will shut off the main switch providing no other control panels are “ON”. Installation & User Manual, Radio Remote 8980/8981 Page 3... -
Page 4: Receiver Installation
- Above sea level - Away from sources of electrical interference. Note! Faulty installation will render all warranty given by Sleipner Motor AS void. Installation & User Manual, Radio Remote 8980/8981 Page 4... - Page 5 Installation & User Manual, Radio Remote 8980/8981 Page 5...
-
Page 6: Visual Wiring Diagram
Red: 12/24V Batt. + (5A fuse!) Fused power supply from a circuit with ON/OFF switch! To stern thruster To stern thruster control panel Yellow: Sidepower automatic main switch (optional) Sleipner Motor AS • Norway www.side-power.com Installation & User Manual, Radio Remote 8980/8981 Page 6... - Page 7 8. Turn on the transmitter(s) and check that the receiver LED is blinking slowly (User mode) 9. Turn off the power to the receiver and put the plastic plug back in place. Installation & User Manual, Radio Remote 8980/8981 Page 7...
-
Page 8: Replacing The Batteries
4. Close the transmitter. Put the cover back in place, ensure that the rubber seal between remote upper and lower part is located correctly. Place the 3 screws (remember sealing washer) in their recessed holes and tighten. Installation & User Manual, Radio Remote 8980/8981 Page 8... -
Page 9: User Precautions
• Make sure that only one control is used at the same time, if two panels are operated in oppo- site directions at the same time the thruster will not run at all. If they are operated in the same direction the thruster will run in this direction. Installation & User Manual, Radio Remote 8980/8981 Page 9... - Page 10 Remote Control Deactivation Push the transmitter’s “OFF” button (the remote control deactivates automatically after appr. 4 minutes after the last usage). Turn off the power switch for the receiver. • If in doubt, try in open water first! Installation & User Manual, Radio Remote 8980/8981 Page 10...
- Page 11 Electric schematics 4-lead & 1-lead connector Channel B Channel A Installation & User Manual, Radio Remote 8980/8981 Page 11...
-
Page 12: Part
Fax: +44 1364 649 399 www.imtra.com Fax: +385 51 704 600 andy@sleipner.co.uk side-power@imtra.com acy@net.hr Sleipner Motor AS • P. O. Box 519, N-1612 Fredrikstad • Norway Tel: +47 69 30 00 60 • Fax: +47 69 30 00 70 • sidepower@sleipner.no • www.side-power.com...
