Dishwasher
DW15-PFE1**/PFE2**
Instructions for Use
en

Advertisement

COMING SOON

   Also See for Haier DW15-PFE1

   Related Manuals for Haier DW15-PFE1

   Summary of Contents for Haier DW15-PFE1

  • Page 1

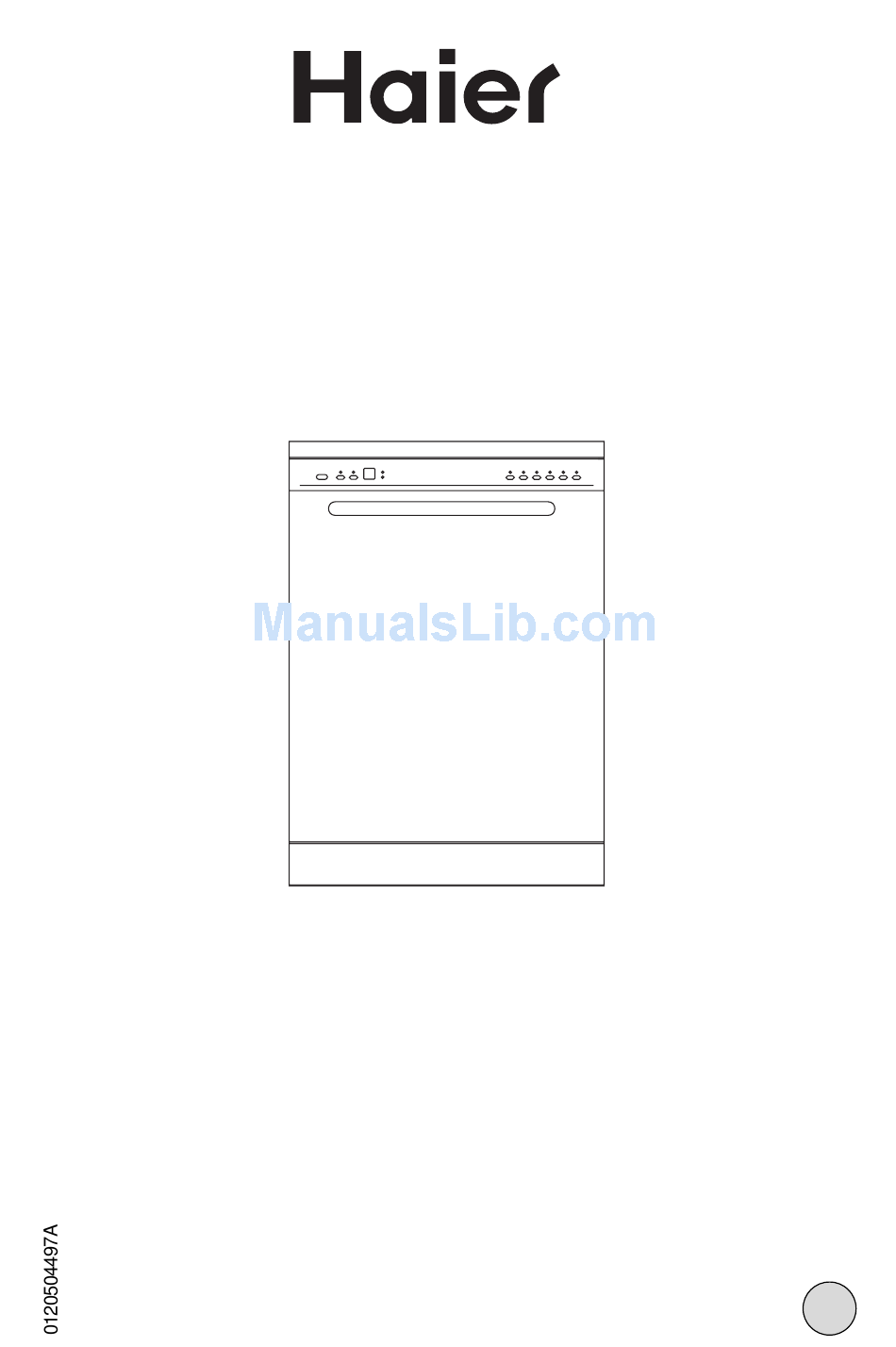

    Dishwasher DW15-PFE1**/PFE2** Instructions for Use...

  • Page 3: Table Of Contents

    Index Safety information Installation How to remove the top of your dishwasher Getting to know your dishwasher How to fill the salt How to fill rinse aid Not suitable for the dishwasher Arranging crockery, glasses, etc. in the dishwasher How to fill the detergent dispenser...

  • Page 4: Safety Information

    Do not use solvents of any kind inside your dishwasher. They could cause an explosion danger. Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out. Do not touch the heating element during or after a wash cycle.

  • Page 5: If A Fault Occurs

    The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. Keep detergents out of the reach of children, who must also be kept away from the dishwasher when it is open.

  • Page 6: Installation

    Anti-Flooding protection (for some models) The dishwasher is equipped with a system that stops the supply of water in the event of a problem with the water supply hose, or leaks within the unit, in order to prevent damage to your home. If for any reason the box containing the electrical components happens to get damaged, remove the plug for the appliance from the socket immediately.

  • Page 7: Drain Hose Connection, Electrical Connection

    Caution: The dishwasher plug must be accessible even when the appli- ance is installed as a built-in unit so that maintenance can be done safely.

  • Page 8: How To Remove The Top Of Your Dishwasher

    How to remove the top of your dishwasher Please follow below pictures step by step. 100-150mm...

  • Page 9: Getting To Know Your Dishwasher

    Delayed Start Indicator Models explanation Model DW15-PFE1 DW15-PFE1ME DW15-PFE1SS DW15-PFE2 DW15-PFE2ME DW15-PFE2SS You can select dishwasher with big handle or without big handle according to requirement. Time-remaining Indicator Low Salt Indicator Low Rinse Aid Indicator Programme Button Programme Indicator Colour White Silver...

  • Page 10

    Dishwasher interior Upper Rack Lower Rack Top Spray Arm Silverware Basket Third Sprayer Bottom Spray Arm Salt Container Cap Washing Filter Detergent and Rinse Aid Dispenser Water Inlet Hose Drain Hose Power Supply Cord...

  • Page 11: How To Fill The Salt

    How to fill the salt Salt The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.

  • Page 12: Adjusting Salt Consumption

    Adjusting salt consumption The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimize and customize the level of salt consumption so that it remains at a minimum.

  • Page 13: How To Fill Rinse Aid

    This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on the inside panel of the door . For DW15-PFE1** When the low rinse aid indicator “ 2 ” is bright ,it means the rinse aid is low,you must load rinse aid .

  • Page 14: Not Suitable For The Dishwasher

    Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further information from detergent manufacturers. Select a programme with a low temperature and a short duration as possible. To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

  • Page 15: Arranging Crockery, Glasses, Etc. In The Dishwasher

    Arranging crockery, glasses, etc. in the dishwasher Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from be- coming clogged, which results in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are soaked before washed.

  • Page 16

    Shelf Lean tall glasses and those with long stems against the shelf- not against other items to be washed. Place glasses, cups and small bowls on the additional cup rack. The additional cup rack can be swivelled in or out as required (see fig.F).

  • Page 17: How To Fill The Detergent Dispenser

    How to fill the detergent dispenser Detergent Detergent specifically intended for use with dishwashers must be used. The dispenser must be refilled before the start of each wash cycle following the instructions provided in the "Programme overview". The detergent dispenser is located on the inside panel of the door.

  • Page 18: Programme Overview

    Programme overview Type of crokery e.g. Wash china, pots/ pan s, programme cutiery, glasses, etc Soups, Non- casseroles, Intensive delicate sauces, Wash potatoes, pasts, rice, eggs, roast or fried food. Normal Wash Soups, potatoes, pasta, rice, Light Wash eggs, roast or (IEC- EN50242) fried food.

  • Page 19

    Detergent Delayed Start Extended Prewash ( for DW15-PFE2** ) Wash * EN50242 test with rinse aid setting 5 Rinse Aid 7.5g 7.5g 7.5g Energy Duration in consump- consump- minutes tion in kWh tion in litres 1.62 1.48 1.24 1.15 1.10 1.00 1.12 1.10...

  • Page 20: Washing Dishes

    Turbisensor* *on applicable models The Aquasensor ia an optical measuring device with which the cloudiness of the water in the dishwasher is measured. A photoelectric sensor is used to detect the degree of soiling in the water, caused by dissolved food particals such as egg, fat and rolled oats, etc.

  • Page 21: Switching The Dishwasher Off

    Press programme button “J1” , programme indicator “ K1” blinks. If the door is closed, after 5 seconds, the programme indicator “ K1” bcomes to light and the dishwasher beeps one time , then the programme starts automatically. For DW15-PFE2** Turn on the tap.

  • Page 22

    When you open the door, the dishwasher will beep ten times every thirty seconds. If the appliance has already heated up or the hot water was switched ON and then the appliance door opened, leave the door ajar for several minutes and then close.

  • Page 23

    Cancelling or modifying a cycle A cycle that is underway can be modified if it has only been running for a short time. Otherwise, the detergent may have already been used, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled ( see the paragraph entitled, “...

  • Page 24: How To Keep Your Dishwasher In Shape

    Seals One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring. The door should not be left in the open position since this could present a tripping hazard.

  • Page 25: Care And Maintenance

    Care and maintenance Regular inspection and maintenance of your appliance helps to prevent problems from occurring.This saves time and aggravation.You should therefore carefully inspect the inside of your dishwasher from time to time. Overall condition of appliance Check that no grease or scale has accumulated on the inside of the dishwasher.

  • Page 26: Spray Arms

    Spray arms Lime and remnants of food in the washing water can block the nozzles in the spray arms “ 11 ” and “ 12 ” and the arm mountings. Inspect the nozzles in the spray arms for blocked holes due to remnants of food.

  • Page 27: Fault Finding

    Fault finding Resolving minor problems yourself Experience has shown that you can resolve most problems that rise during normal daily usage yourself, without having to call out a service engineer.Not only does this save costs,but it also means that the appliance is available for use again that much sooner.

  • Page 28

    OFF, and wait a few minutes. You can power the dishwasher on, try it again , if the dishwasher still does not function and/or the problem persists, contact the nearest authorised service center and provide them with the following information: the nature of the problem.

  • Page 29

    ...with the dishes,cutlery, etc. Remnants of food are stuck to the dishes, cutlery,etc. Dishwasher was not loaded properly. Jets of water could not reach all parts of the dishes, ect. Too many items in the rack. Items in the rack were touching each other.

  • Page 30

    Dishes,cultlery,etc.have not been dried Selected programme did not include drying function. Amount of rinse-aid was set too low. Items were removed from dishwasher too soon. Glasses have a dull appearance Amount of rinse-aid was set too low. Tea stains or traces of lipstick have not been completely removed Detergent does not have a sufficient bleaching effect.

  • Page 31: Technical Data

    Technical data Width Depth Height Capacity Mains water pressure Power voltage Maximum current intensity Total absorbed power 60 cm 60 cm 85 cm 15 standard place settings 0.03-0.6MPa 220-240V~ 50Hz 1950W...

  • Page 32: Important Information

    Measures must be taken to ensure that built-under and built-in units that are subsequently re-sited as free-standing appliances cannot topple over. This can be achieved by bolting the dishwasher to the wall or fitting it under a continuous work surface which is screwed to the adjacent cupboards.

  • Page 33

    Information on comparability tests implemented in compliance with EN 50242 Appliance loaded in accordance with standard specifications. Example of loaded dishwasher: See Fig 1 , 2 and 3. Capacity: 15 place settings Comparability programme: Light wash Rinse-aid setting: 5 Detergent: 30+7.5g Fig.1...

  • Page 34

    For DW15-PFE1** A: Wiring box B: Door switch C: Water level switch D: Drain pump motor For DW15-PFE2** A: Wiring box B: Door switch C: Water level switch D: Drain pump motor E: Dispenser E: Dispenser I: Washing pump motor...

  • Page 35

    The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collec- tion point for the recycling of electrical and electronic equipment. By ensuring this prod- uct is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
