iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED
iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS
FOR FUTURE REFERENCE.
If the information
in this manual is not followed
exactly,
a fire or explosion
may result causing property damage, personal
injury or death.
FOR YOUR SAFETY:
--
Do not store or use gasoline or other flammable
vapors and
liquids in the vicinity of this or any other appliance.
--
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in
your building.
immediately
call your gas supplier from a neighbor's
phone.
Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the fire department.
--
installation
and service must be performed by a qualified
installer, service agency or the gas supplier.
Appliances
installed
in the state
of
Massachusetts:
This Appliance can only be installed in the
state of Massachusetts by a Massachusetts
licensed plumber or gasfitter.
This appliance must be installed with a
three (3) foot/36
in. long flexible gas
connector.
A"T" handle type manual gas valve must
be installed in the gas supply line to this
appliance.
1 1/2"Max.
Shave Raised
(3.8 cm
Max.
Edge to Clear
Space for a
31s/_"min
(81 cm)
Wide
Cooktop.
Dimension C in
table.
Locate Cabinet Doors 1" (2.5 cm)
Min. from Cutout Opening.
iMPORTANT: Cabinet
and countertop
width
should match the
cutout
width.
" Min.
(61 cm Min.)
Grounded
Box or Wall Outlet Should Be
Located 8" to 17" (20.3 cm to 43.2 cm) From Right
Cabinet and 2" to 4" (5.1 cm to 10.2 cm) From Floor.
Do not install the unit in the cabinet
before
reading
next page.

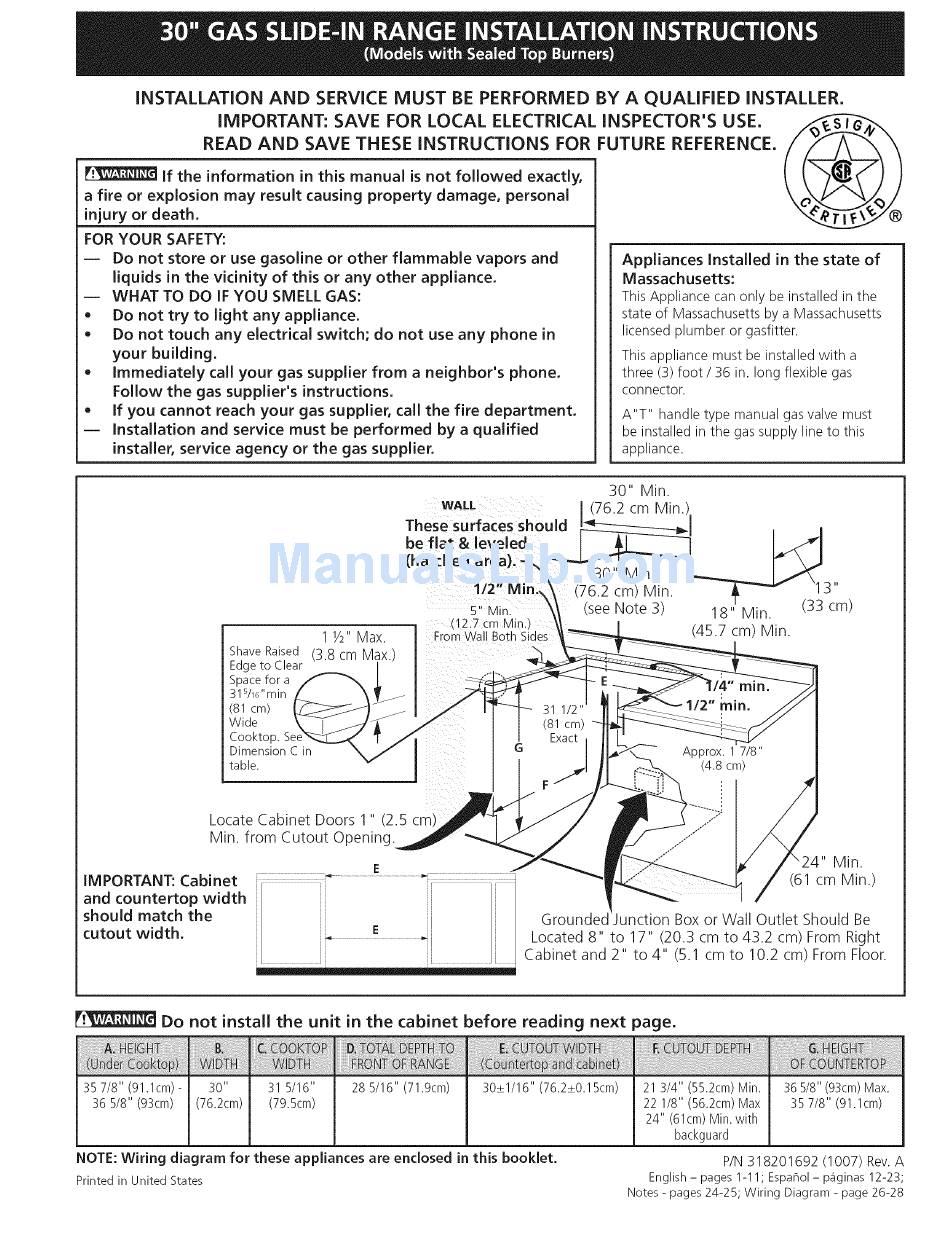

35 7/8" (91.1cm) -
31 5/16"
28 5/16" (71.9cm)
36 5/8" (93cm)
(79.5cm)
30_+1/16" (76.2_+0.15cm)
NOTE: Wiring
diagram
for
these
appliances
are enclosed
in this
booklet.
Printed in United States
21 3/4" (55.2cm) Min.
22 1/8" (56.2cm) Max
24" (61cm) Min. with
backguard
36 5/8" (93cm) Max.
35 7/8" (91.1cm)
P/N 318201692
(1007)
Rev. A
English - pages 1-11; Espahol-
p_iginas 12-23;
Notes - pages 24-25; Wiring Diagram - page 26-28
