Installation Instructions

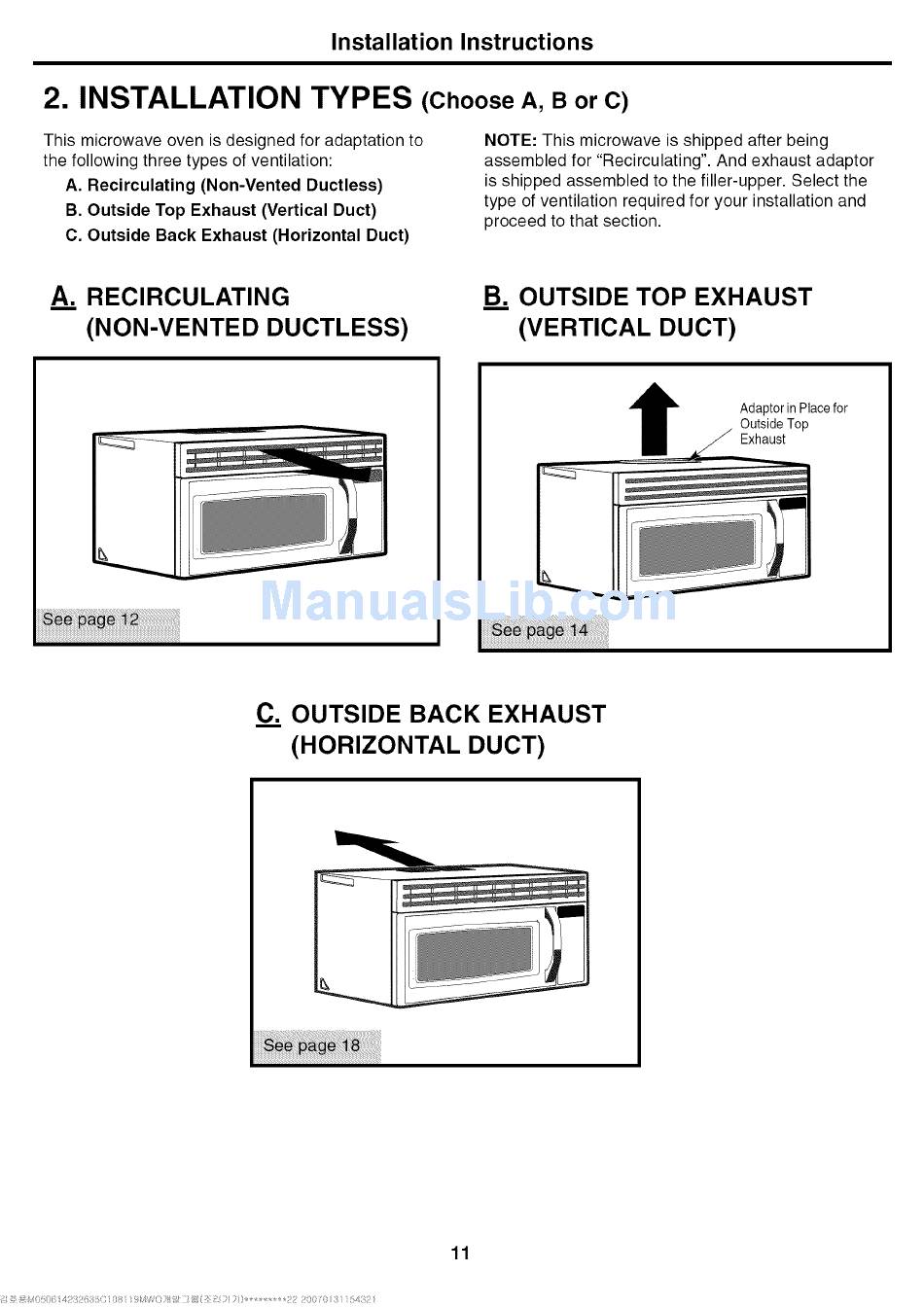

2. INSTALLATION TYPES
(Choose A, B or C)
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Recirculating (Non-Vented Ductless)
B. Outside Top Exhaust (Vertical Duct)
C. Outside Back Exhaust (Horizontal Duct)
NOTE: This microwave is shipped after being
assembled for "Recirculating". And exhaust adaptor
is shipped assembled to the filler-upper. Select the
type of ventilation required for your installation and
proceed to that section.
A. RECIRCULATING
(NON-VENTED DUCTLESS)
B. OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
Adaptor in Place for
Outside Top
Exhaust
C__OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
11
