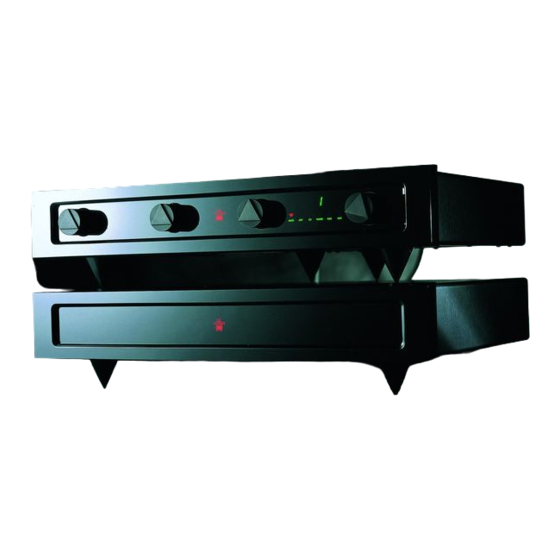

- Page 1 OWNERS MANUAL THE GRYPHON ELEKTRA...
-
Page 2: Inside The Box
First of all, we would like to thank you for purchasing the Gryphon Elektra preamplifier created by Gryphon Audio Designs for Audio Reference use. The Gryphon Elektra is a refined product of leading edge technology. This manual will enable you to fully utilize and appreciate its quality. -
Page 3: Installation
The Elektra should ideally be connected to a separate AC group independent of other equipment. The Elektra is designed for use with a three-pin AC connector with separate ground, but may in some countries be used with alternative grounding. Your Gryphon dealer or importer... -
Page 4: Front Panel Functions
PIN 3 Negative If you wish to connect more than 1 balanced power amplifier to your Elektra, your Gryphon dealer can make a dedicated cable that allows you to take advantage of a balanced power amplifier inputs ability to drive an interconnect cable in balanced mode from a single ended source. -
Page 5: Dc Power Supply
Orestes phono module. DC POWER SUPPLY Connect the external Elektra power supply to the DC power input with the supplied cables. Be careful to route the AC and DC power supply cables free of input interconnects. The DC power connectors are a Swiss made lock-type connector. -
Page 6: Green Bias
It is the actual position of the Elektra’s volume control (not the playback level), that sets the Antileon bias. The Elektra’s Green bias circuit board can be set in 2 modes: Position of volume control Antileon Bias... -
Page 7: Maintenance
Small scratches may be removed with a damp cloth. Do not use spirits or paper tissue. AC FUSES The Elektra power supply has a AC fuseholder for each channel. 100-120V countries: 630 mAT 5x20mm SlowBlow 200-240V countries: 315mAT 5x20mm SlowBlow... - Page 8 ELEKTRA Frequency response: ( +/- 1 dB ) DC - 3MHz TECHNICAL SPECIFICATIONS Phase Linearity: ( 10 - 120 kHz ) < 0.5 degree < 0.01% Gain: 21.4 dB S/N ratio: 100 dBA ( A weighted ) Channel separation: 100 dBA ( A weighted )
- Page 11 OWNERS MANUAL THE GRYPHON ORESTES MODULE FOR THE GRYPHON ELEKTRA...
- Page 12 Gryphon Elektra MC version INTRODUCTION Orestes was Elektra’s brother in the Opera by Richard Strauss. The Orestes is the most ambitious High End phono stage ever developed.
- Page 13 Orestes is DC coupled, absolutely dual mono and comes with two separate power supplies featuring our famous C-core custom-made transformers. The separate Orestes power supplies are mounted inside the Elektra power supply. The Orestes will prove to be the ultimate tool for appreciation and evaluation of vinyl recordings.
-
Page 14: Impedance Selector
YOU PROCEED ! POWERSUPPLY Connect the Orestes phono section with the extra set of power supply cables ( identical to the other set of Elektra power supply cables. MC OR MM ? The Orestes is factory set for Moving Coil cartridges, but can be interchanged to MM by relocating 3 straps on the circuit board. -
Page 15: Balanced Cables
IMPORTANT: The formula to find the correct value is as follows: DO NOT CHANGE Desired load impedance: Rload IMPEDANCE WHEN PREAMP IS IN PHONO Rload x 23500 PLAYBACK 47000 - Rload The result of this calculation equals the value of each of the resistors that is to be inserted in the sockets ( 1 pair per side ) We recommend the use of 1% low inductance metal-film resistors nut any resistor of preference can be used. - Page 16 WIRING SCHEMATIC EXAMPLE: LEFT CHANNEL NEGATIVE SHIELD POSITIVE VERY IMPORTANT: THE SHIELD OF THE CABLE MUST BE SHIELD INSULATED FROM THE OUTER PART OF THE LEMO CONNECTOR. SHIELD MUST ONLY BE CONNECTED TO THE SOLDERING POINT OF THE CONNECTOR. CARTRIDGE STANDARD CARTRIDGE PIN CONNECTION: WHITE: POSITIVE LEFT...
-
Page 17: Specifications
SIDE. ( TIFFANY BRAND ) TONEARM The Ground wire from the tonearm can be connected to the grounding post on the Elektra Preamplifier. GROUNDING Most Audiophiles have learned that there are no clean cut rules when it cones to efficient grounding of tonearms. - Page 18 In the Elektra design a number of tweaks can be found and the result is a fine balance that can easily be disturbed.
-
Page 19: Warranty
10 days of purchase. REGISTRATION CARD The warranty of your Gryphon Elektra is effective only if you fill out the enclosed registration card and return it to us or to your national Gryphon distributor. Your comments are highly appreciated. - Page 20 NOTES ELEKTRA Serial No. GRYPHON AUDIO DESIGNS Industrivej 9 8680 Ry Tel. +45 8689 1200 Fax. +45 8689 1277...
