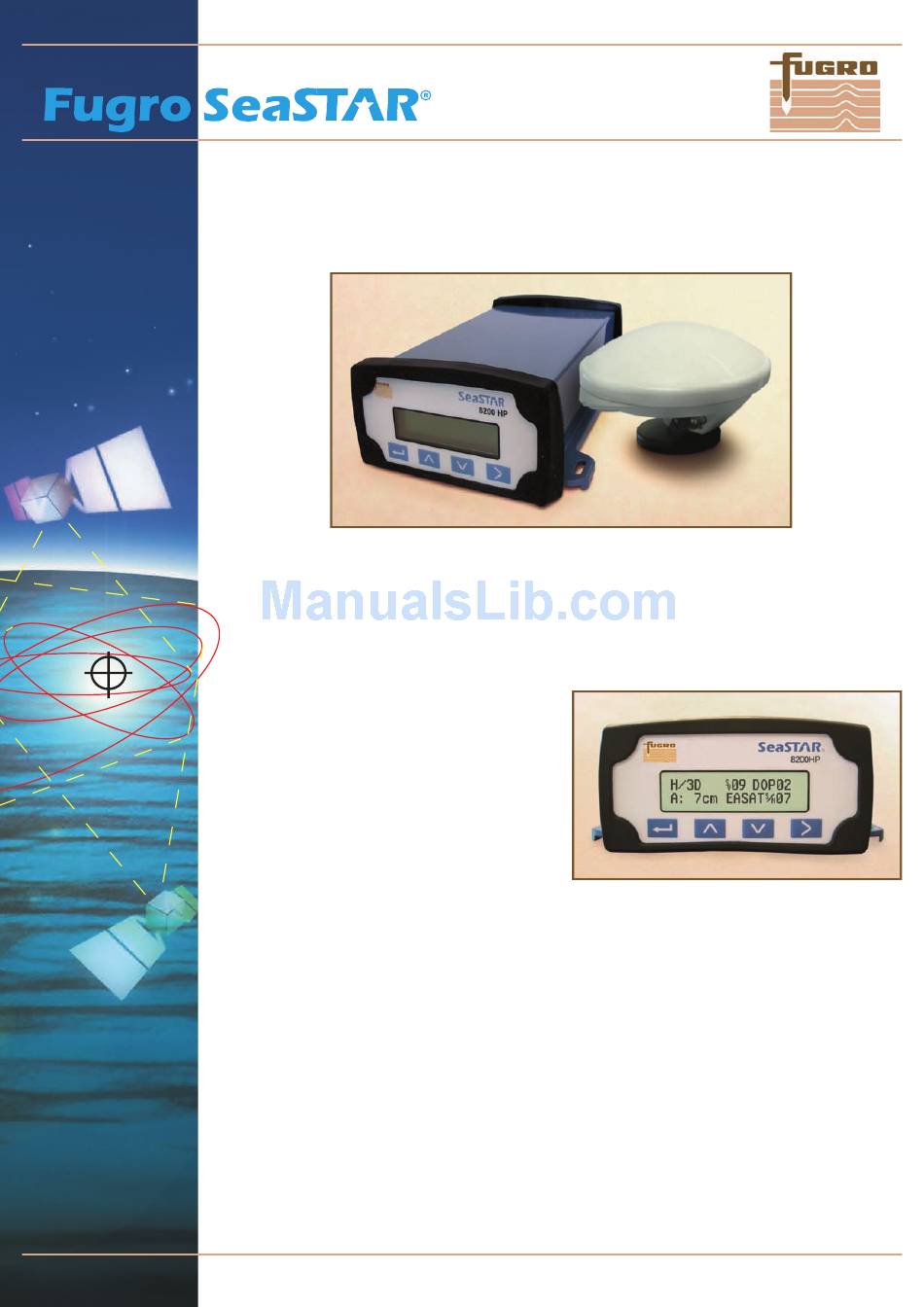

Fugro SeaSTAR 8200 HP Specifications

SeaSTAR 8200 HP System
The 8200HP receiver is a low cost, low maintenance,
user friendly, dual frequency (L1/L2) GPS receiver
with integrated L-BAND demodulator to receive
DGPS corrections.
The 8200HP receiver is able to output DGPS positions
with an accuracy from 10 cm to 1 m depending on
what service the receiver is subscribed to.
The receiver can be subscribed to Fugro SeaSTAR's
following services:
● VBS service : accuracy 1 m 95%
● XP service : accuracy 20 cm 95%
● HP service : accuracy 10 cm 95%
When the receiver is subscribed to HP or XP, it will
also be subscribed to VBS for back-up purposes.
If the receiver is not able to compute an HP or XP
position it will automatically fall back to VBS, hence
still providing reliable positioning.

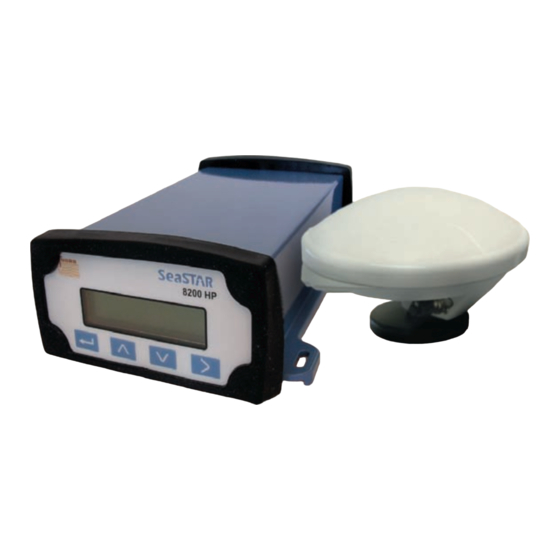

A typical 8200HP system consists of:
● 8200HP receiver c/w PSU
● L1/L2/DGPS antenna
● 30 m low loss antenna cable
● Interface cables
● User Guide / manual
The receiver has a display and a keypad through
which it can be monitored and configured. There is
no need for a PC.
The main display gives all the essential information,
see illustration below.
Information available on the main screen:
H/3D - The receiver outputs a converged HP
position
SV/09 - The receiver is tracking 9 satellites
DOP02 - The current DOP value is 2
A: 7cm - Estimated Position Error is 7 cm (1 sigma)
EASAT - Using the EASAT to receive corrections
s/n07 - The signal to noise ratio of the EASAT is 7
The rear panel contains 2 power/data connectors
with the following functions:
● Input of Power (350 mA @ 12 V)
● Output of Position data (NMEA-0183)
● Output of Corrections (RTCM SC-104)
March 2007
