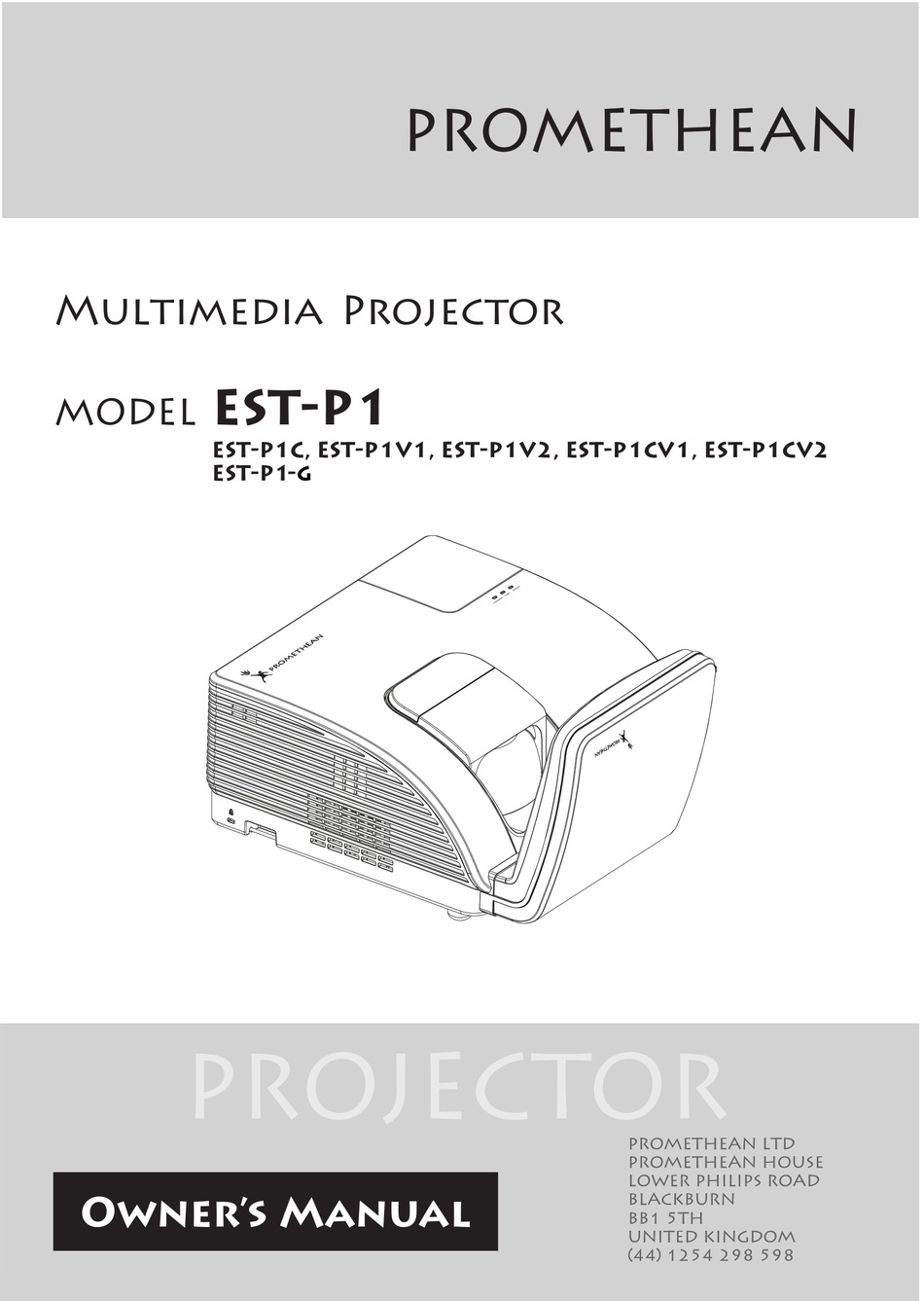

- Page 1 Multimedia Projector EST-P1 MODEL EST-P1C, EST-P1V1, EST-P1V2, EST-P1CV1, EST-P1CV2 EST-P1- PROJECTOR PROMETHEAN LTD PROMETHEAN HOUSE LOWER PHILIPS ROAD Owner’s Manual BLACKBURN BB1 5TH UNITED KINGDOM (44) 1254 298 598...
-
Page 2: Important Safety Information
Alerts you to situations that may damage the unit, create a hazardous environment, or cause per- sonal injury. Throughout this manual, component parts and items in the OSD menus are denoted in bold font as in this example: “Push the Menu button on the remote control to open the Main menu.” Promethean, Company Confidential... -
Page 3: Projector Installation Notice
Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic. Remove the batteries from the remote control when storing or not in use for a prolonged period. Promethean, Company Confidential... -
Page 4: About This Manual
This printer-friendly format is both for your convenience and to help save paper, thereby protecting the environment. It is suggested that you only print sections that are relevant to your needs. Promethean, Company Confidential... -
Page 5: Table Of Contents
Focusing Procedure ( II )............................43 TROUBLESHOOTING..............................44 ..........................44 OMMON PROBLEMS AND SOLUTIONS ............................44 IPS FOR ROUBLESHOOTING LED E ..............................45 RROR ESSAGES ................................45 MAGE ROBLEMS ................................46 ROBLEMS ............................46 EMOTE ONTROL ROBLEMS Promethean, Company Confidential... - Page 6 ........................48 ROJECTION ISTANCE VS ROJECTION EST-P1 Projection Distance and Size Table......................48 EST-P1 T ............................49 IMING ABLE ..............................51 ROJECTOR IMENSIONS REGULATORY COMPLIANCE............................52 FCC W .................................. 52 ARNING .................................... 52 ANADA ..............................52 AFETY ERTIFICATIONS Promethean, Company Confidential...
-
Page 8: Getting Started
Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommend that you keep the original packing material should you ever need to return the equipment for warranty service. Caution: Avoid using the projector in dusty environments. Promethean, Company Confidential... -
Page 9: Views Of Projector Parts
(see LED Error Messages on page POWER LED Flashing Error code Important: Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do not obstruct any of the ventilation openings. Promethean, Company Confidential... -
Page 10: Rear View
Connect the POWER CABLE HDMI Connect the HDMI CABLE from a HDMI device Note: If your video equipment has various input sources, it is recommended to connect in priority of HDMI/DVI, component (thru VGA), S-Video, Composite for better picture quality. Promethean, Company Confidential... -
Page 11: Bottom View
(not less than 5.15 kg) over a period of 60 seconds. Promethean, Company Confidential... -
Page 12: Remote Control Parts
3. The buttons and keys on the projector have the same functions as the corresponding buttons on the remote control. This user’s manual describes the functions based on the remote control. Promethean, Company Confidential... - Page 13 Page Up Page up when connected through USB to a PC Left Left arrow when connected through USB to a PC Enter Enter key when connected through USB to a PC Power Turns the projector on or off Promethean, Company Confidential...
-
Page 14: Remote Control Operating Range
15 degrees above or below the projector level. If the projector does not respond to the remote control, move a little closer. Projector and Remote Control Buttons The projector can only be operated using the remote control. All operations can be carried out with the remote control. Promethean, Company Confidential... -
Page 15: Setup And Operation
Replace the cover. Caution: 1. Only use AAA batteries (Alkaline batteries are recommended). 2. Dispose of used batteries according to local ordinance regulations. 3. Remove the batteries when not using the projector for prolonged periods. Promethean, Company Confidential... -
Page 16: Connecting Input Devices
Connect the COMPOSITE CABLE from a video device Connect the USB CABLE from a computer AC IN Connect the POWER CABLE Warning: As a safety precaution, disconnect all power to the projector and connecting devices before making connections. Promethean, Company Confidential... -
Page 17: Starting And Shutting Down The Projector
RGB to COMPONENT ADAPTER.) • VGA 1/VGA 2: Analog RGB Component: DVD input YCbCr / YPbPr, or HDTV input YPbPr via HD15 connector • Composite Video: Traditional composite video • S-Video: Super video (Y/C separated) • HDMI: HDMI, DVI Promethean, Company Confidential... - Page 18 When the “Power Off? /Press Power again” message appears, press the POWER button. The projector turns off. Caution: Do not unplug the power cord until the POWER LED change to orange–indicating the projector has cooled down. Promethean, Company Confidential...
-
Page 19: Setting An Access Password (Security Lock)
If you lose the password, contact your reseller for information on clearing the password. Press the MENU button to open the OSD menu. Press the cursor ◄► button to move to the Installation I menu. Press the cursor ▲▼ button to select Advanced. Promethean, Company Confidential... - Page 20 Security Lock is enabled. Enter the password in the order you set it at step 5. In case you forget the password, please contact the service center. Service center will validate the owner and help reset the password. Promethean, Company Confidential...
-
Page 21: Adjusting The Keystone
Adjusting the Keystone Use the KEYSTONE buttons the remote con- trol to correct image- trapezoid (wider top or bottom) effect. The keystone control appears on the display. Promethean, Company Confidential... -
Page 22: On-Screen Display (Osd) Menu Settings
Depending on the video source, not all items in the OSD are available. For example, the Horizon- tal/Vertical Position items in the Computer menu can only be modified when connected to a PC. Items that are not available cannot be accessed and are grayed out. Promethean, Company Confidential... -
Page 23: Setting The Osd Language
1. Press the MENU button. Press the cursor ◄► button to navigate to Installation I. 2. Press the cursor ▲▼ button until Language is highlighted. 3. Press the cursor ◄► button until the language you want is highlighted. 4. Press the MENU button twice to close the OSD. Promethean, Company Confidential... -
Page 24: Osd Menu Overview
Projection Auto Power On On, Off Ceiling Aspect Fill, 4:3, 16:9, LetterBox, Normal, Fan Speed Ratio Native High Normal, Keystone -15 ~ 15 Lamp Mode Bright Digital Zoom Advanced -10 ~ 10 Advanced Factory Reset Reset Status Promethean, Company Confidential... -
Page 25: Osd Sub-Menu Overview
OSD Sub-Menu Overview Promethean, Company Confidential... -
Page 26: Image Menu
Press the cursor ◄► button to adjust the gamma correction of the display. Press (Enter) / ► to enter the Advanced menu. See Advanced Feature on page Advanced Reset Press (Enter) / ► to reset all settings to default values. Promethean, Company Confidential... -
Page 27: Advanced Feature
Color Temperature (Range: Cold – Normal – Warm) Press (Enter) / ► to enter the color manager menu. (Range: Red-Green-Blue- Color Manager Cyan-Magenta-Yellow-White). See page 21 for more information on Color Manager. Promethean, Company Confidential... -
Page 28: Color Manager
Select to enter the Yellow Color Manager. Yellow Press the◄► buttons to adjust the Hue, Saturation, and Gain. Select to enter the White Color Manager. White Press the ◄► buttons to adjust the Red, Green, and Blue. Promethean, Company Confidential... -
Page 29: Computer Menu
Press the cursor ◄► button to adjust the A/D sampling clock. Tracking Press the cursor ◄► button to adjust the A/D sampling dot. Press (Enter) / ► to automatically adjustment for phase, tracking, size and posi- Auto Image tion. Promethean, Company Confidential... -
Page 30: Video Menu
Press the ◄► buttons to enable or disable closed captioning. Reset Press (Enter) / ► to reset all settings to default values. Note: Video jagging may occur when playing interlace video. To overcome this issue, open the Video menu and adjust the Film Mode feature. Promethean, Company Confidential... -
Page 31: Installationi Menu
Press the cursor ◄► button to adjust the Digital Zoom menu. Advanced Press (Enter) / ► to the Advanced menu. See Advance Feature on page 25. Reset Press (Enter) / ► to reset all settings to default values (except Language). Promethean, Company Confidential... -
Page 32: Advanced Feature
Press the cursor ◄► button to enable or disable presentation timer. Timer Period Press the cursor ◄► button to select timer period (1 ~ 60 minutes) Timer Reset Press (Enter) / ► to reset the timer settings. Promethean, Company Confidential... -
Page 33: Installation Ii Menu
(Enter) / ► to enter the Advanced menu. See Advanced Feature on page Advanced Factory Reset Press (Enter) / ► to reset all items to factory preset values. Press (Enter) / ► to enter the Status menu. See page 35 for more information on Status Status. Promethean, Company Confidential... -
Page 34: Advanced Feature
(Enter) / ► to enter the Network menu. See page 29 for more information on Network Network settings. Note: To enjoy the 3D function, first enable the Play Movie in 3D setting found in your DVD device under the 3D Disc Menu. Promethean, Company Confidential... -
Page 35: Osd Menu Setting
(Enter) / ► to test the IR remote controller for diagnostic. Test Color Test Press (Enter) / ► to select different colors on screen. USB Test Press (Enter) / ► to test the USB connection with connected PC. Promethean, Company Confidential... -
Page 36: Lamp Hour Reset
Enter a valid Subnet Mask if DHCP is turned off. Gateway Enter a valid Gateway address if DHCP is turned off. Enter a valid DNS name if DHCP is turned off. Apply Press (Enter) / ► to confirm settings. Promethean, Company Confidential... - Page 37 ESCRIPTION Press ◄► to select Off, DLP-Link or IR. 3D Sync Invert Press ◄► to turn 3D Sync Invert On or Off. Note: The EST-P1 is 3D ready, please contact Promethean for more details. Promethean, Company Confidential...
- Page 38 Brightness and Contrast settings. Also, projector status information, such as: Video-Source, Sound- Mute, etc. LAN_RJ45 1. Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop). 2. On the PC (Laptop), select Start Control Panel Network Connections. Promethean, Company Confidential...
- Page 39 3. Right-click on Local Area Connection, and select Properties. 4. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP). 5. Click Properties. Promethean, Company Confidential...
- Page 40 The projector is setup for remote management. The LAN/RJ45 function displays as follows. Based on network web-page for the input-string in tools tab, the limitation for Input-Length is in the below list (“space” and the other punctuation key included): Promethean, Company Confidential...
- Page 41 Projector Location Assigned To DHCP (Enabled) (N/A) IP Address Network Configuration Subnet Mask Default Gateway DNS Server Enabled (N/A) User Password New Password Confirm Enabled (N/A) Admin Password New Password Confirm For more information, please visit http://www.crestron.com/. Promethean, Company Confidential...
-
Page 42: Factory Reset
ESCRIPTION Active Source Display the activated source. Displays resolution/video information for RGB source and color standard for Video Video Information source. Lamp Hours Lamp hour used information is displayed. Normal and Bright counters are separated. (Normal, Bright) Promethean, Company Confidential... -
Page 43: Maintenance And Security
Be sure to turn off and unplug the projector at least 30 minutes before replacing the lamp. Failure to do so could result in a severe burn. Remove the single screw on the lamp compartment cover. Remove the lamp com- partment cover. Promethean, Company Confidential... - Page 44 While installing, align the lamp module with the connector and ensure it is level to avoid damage. Note: The lamp module must sit securely in place and the lamp connector must be connected properly before tightening the screws. Promethean, Company Confidential...
-
Page 45: Resetting The Lamp
Press the cursor ▼▲ button to move down to Lamp Hour Reset. Press the cursor ► or Enter but- ton. A message screen appears. Press ▼▲◄► buttons to reset the lamp hour. Press the MENU button to get back to Installation II. Promethean, Company Confidential... -
Page 46: Cleaning The Projector
1. Always turn the projector off and allow to cool for at least 30 minutes prior to cleaning. 2. Never touch the projector mirror or Lens directly by hand. 3. Do not use hard fibre cloths. 4. Do not use abrasive cleaners, solvents or other harsh chemical cleaners. Promethean, Company Confidential... -
Page 47: Cleaning The Case
3. If a little water gets into the projector interior while cleaning, leave unplugged in a well-ventilated room for several hours before using. 4. If a lot of water gets into the projector interior when cleaning, have the projector serviced. Promethean, Company Confidential... -
Page 48: Using The Physical Lock
Kensington, 2853 Campus Drive, San Mateo, CA 94403, U.S.A. Tel: 800-535-4242, http://www.Kensington.com. Using the Security Bar In addition to the password protection function and the Kensington lock, the Security Bar helps pro- tect the EST-P1 from unauthorized removal. See the following picture. Promethean, Company Confidential... -
Page 49: Adjusting The Focus
When alignment lines are clearly marked on the focus rings the following presets are available: For 87” ActivBoard, adjust the focus rings until the white lines align For 95” ActivBoard, adjust the focus rings until the three orange lines align Promethean, Company Confidential... -
Page 50: Focusing Procedure ( Ii )
1. With the projector mounted and op- erator facing ActivBoard, turn the Front Focus Ring all the way to the left (opposite to PROMETHEAN logo). 2. Adjust the Rear Focus Ring to ob- tain the best overall focus of the image. -
Page 51: Troubleshooting
For example, if you replace batteries and the problem remains, put the original batteries back and go to the next step. Keep a record of the steps you take when troubleshooting: The information may be useful when call- ing for technical support or for passing on to service personnel. Promethean, Company Confidential... -
Page 52: Led Error Messages
Adjust the Contrast setting on the Image menu of the OSD. Problem: The color of the projected image does not match the source image. Adjust the Color Temperature and Gamma settings on the Image menu of the OSD. Promethean, Company Confidential... -
Page 53: Lamp Problems
Include a description of the problem and a checklist of the steps you took when trying to fix the problem: The information may be useful to service personnel. For servicing, return the projector to the place you purchased it. Promethean, Company Confidential... -
Page 54: S Pecifications
PECIFICATIONS Specifications EST-P1 Model (EST-P1C, EST-P1V1, PEST-P1V2, EST-P1CV1, EST-P1CV2, EST-P1-G) Display type TI DMD 0.65" WXGA Resolution WXGA 1280 x 800 Native Weight 9 kg (19.8 lbs) Projection distance 22.4+/-10mm 62.3+/-10mm Projection screen size (diago- 16:10 (87") 16:9 (95") nal) -
Page 55: Est-P1 Projection Distance And Size Table
Projection Distance vs. Projection Size EST-P1 Projection Distance and Size Table WXGA EST-P1 16:9 16:10 Distance 62.3+/-10mm 22.4+/-10mm 40.2+/-10mm Diagonal 95" 87" 77" Image Width 2089mm 1868mm 1566mm Image height 1175mm 1167mm 1175mm 440+/-50mm 342+/-50mm 380+/-50mm Promethean, Company Confidential... -
Page 56: Est-P1 Timing Mode Table
Macintosh 1024 x 768 60.2 74.9 — — 1152 x 870 68.7 75.1 — — 480i 15.734 60.0 — — SDTV 576i 15.625 50.0 — — 576p 31.3 50.0 — — EDTV 480p 31.5 60.0 — — Promethean, Company Confidential... - Page 57 56.3 50.0 — — O: Frequency supported —: Frequency not supported The resolution of the panel for the EST-P1 is 1280 x 800. Resolution other than native resolution may display with uneven size of text or lines. Promethean, Company Confidential...
-
Page 58: P Rojector D Imensions
Projector Dimensions Promethean, Company Confidential... -
Page 59: Regulatory Compliance
Changes or modifications not expressly approved by the parties responsible for compliance could void the user’s authority to operate the equipment. Canada This class B digital apparatus complies with Canadian ICES-003. Safety Certifications FCC-B, UL, CB, CE, CCC, KC, GOST, SASO, KUCAS, NOM, and PSB Promethean, Company Confidential...
