Model No. WLEVEX1216.0
Serial No.
Serial Number
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, please call:
08457 089 009
Or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4
Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Decal
USER'S MANUAL
Visit our website at
www.iconeurope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pursuit R 60 Bike and is the answer not in the manual?

Questions and answers

Related Manuals for Weslo Pursuit R 60 Bike

Summary of Contents for Weslo Pursuit R 60 Bike

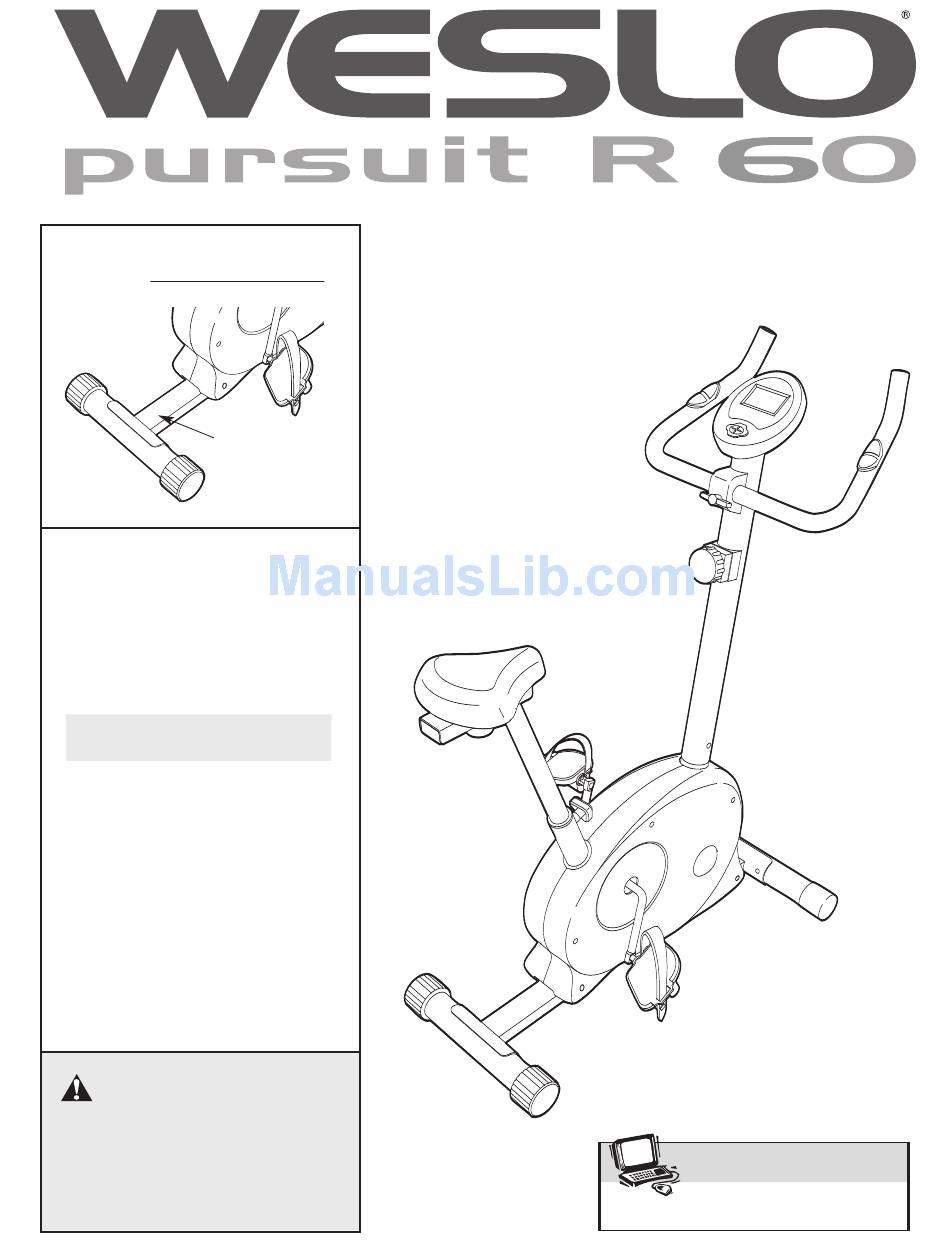

  • Page 1 Model No. WLEVEX1216.0 USER’S MANUAL Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please call: 08457 089 009 Or write: ICON Health &...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............2 BEFORE YOU BEGIN .

  • Page 3: Before You Begin

    BEFORE YOU BEGIN Congratulations for selecting the new WESLO ® after reading this manual, please see the front cover of PURSUIT R 60 exercise cycle. Cycling is one of the this manual. To help us assist you, note the product most effective exercises for increasing cardiovascular model number and serial number before contacting us.

  • Page 4: Assembly

    ASSEMBLY Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included tools and your own adjustable spanner , Phillips screw- driver , and pliers...
  • Page 5 2. While another person lifts the front of the Frame (1), attach the Front Stabilizer (6) with two M8 x 75mm Carriage Bolts (16), two M8 Curved Washers (44), two M8 Spring Washers (59), and two M8 Acorn Nuts (35). 3.
  • Page 6 4. While another person holds the Upright (2) in the posi- tion shown, connect the Upper Wire Harness (30) to the Reed Switch Wire (31). Next, connect the Resistance Cable (13) to the Lower Cable (40) in the following way: •...
  • Page 7 6. Have another person hold the Console (5) near the Upright (2). Connect the console wire to the Upper Wire Harness (30). Console Insert the excess console wire and Upper Wire Wire Harness (30) downward into the Upright (2). Slide the Console (5) onto the Upright.

  • Page 8: How To Operate The Exercise Cycle

    HOW TO OPERATE THE EXERCISE CYCLE HOW TO ADJUST THE SEAT POST HOW TO ADJUST THE PEDALING RESISTANCE For effective exer- To increase the cise, the seat should resistance of the Seat be at the proper pedals, turn the height. As you resistance control Seat Post pedal, there should...
  • Page 9 FEATURES OF THE CONSOLE HOW TO USE THE CONSOLE The easy-to-use console features six modes that pro- Make sure that the console has batteries (see assem- vide instant exercise feedback during your workouts. bly step 5 on page 6). If there is a sheet of clear plastic The console modes are described below.
  • Page 10 3. Select a mode. 5. Measure your heart rate, if desired. Scan mode—To If there are sheets of clear plastic on the metal select the scan mode, contacts of the handgrip pulse sensor, peel off repeatedly press the the plastic. Place your hands on the handgrip MODE button until the pulse sensor, with your palms on the contacts.

  • Page 11: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING BATTERY REPLACEMENT Inspect and tighten all parts of the exercise cycle reg- ularly. Replace any worn parts immediately. If the console display becomes dim, the batteries To clean the exercise cycle, use a damp cloth and a should be replaced;...

  • Page 12: Conditioning Guidelines

    CONDITIONING GUIDELINES During the first few minutes of exercise, your body WARNING: uses easily accessible carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for Before beginning this or any exercise pro- energy.
  • Page 13 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.

  • Page 14: Part List

    PART LIST—Model No. WLEVEX1216.0 R0606A Key No. Qty. Description Key No. Qty. Description Frame Foam Grip Upright Handlebar Endcap Handlebar Seat Post Seat Acorn Nut Console Eye Bolt Front Stabilizer “U” Bracket Rear Stabilizer M6 Nut Front Endcap M10 Flange Nut Rear Endcap Lower Cable Left Pedal/Strap...

  • Page 15: Exploded Drawing

    EXPLODED DRAWING—Model No. WLEVEX1216.0 R0606A 48 49...

  • Page 16: Ordering Replacement Parts

    To help us assist you, please be prepared to give the following information: • the MODEL NUMBER of the product (WLEVEX1216.0) • the NAME of the product (WESLO PURSUIT R 60 exercise cycle) • the SERIAL NUMBER of the product (see the front cover of this manual) •...
