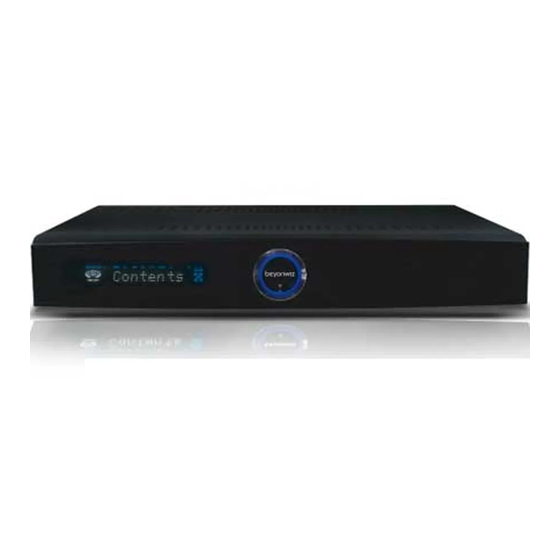

Beyonwiz DP-P2 User Manual

Dvd & pvr
Hide thumbs Also See for DP-P2:
Table of Contents

Advertisement

Quick Links

See also: User Manual
DP-P2
USER GUIDE
Version 1.52_Eng

Advertisement

Table of Contents
loading

Related Manuals for Beyonwiz DP-P2

Summary of Contents for Beyonwiz DP-P2

  • Page 1 DP-P2 USER GUIDE Version 1.52_Eng...
  • Page 2 You can now pause, rewind and record the pay TV with the line-input. You don’t need any tape or DVD for recording. And you can play almost any multimedia content from any connected storage device. With a DP-P2, you don’t have to bring your PC to your living room to enjoy your PC or Internet based content on the big screen.

  • Page 3: Precaution

    Precaution Precaution Do not repair, disassemble or modify this apparatus yourself. It can Read this manual carefully before using this product. The cautions  cause fire or electric shock. If internal checking or maintenance is described below contain important information about safety, and are needed, please contact your service center or agency.
  • Page 4 Precaution WARNING NOTICE If the product is mishandled, the user might receiver a serious If the product is mishandled, it might cause minor damage. or minor injury. Damage or loss to the user’s property may also occur. If the apparatus becomes marked, clean it gently with a soft cloth or ...
  • Page 5 Precaution About the internal hard disk drive The internal hard disk drive (HDD) is a fragile piece of equipment. Please use the apparatus within the guidelines below to protect against possible HDD failure or to protect against accidental loss. This symbol is intended to alert the user to the presence of Do not move the apparatus whilst it is on.
  • Page 6 Precaution Copyright This manual is protected by copyright laws. Copy, use, reproduction of this manual in part or whole without beyonwiz's prior written permission is prohibited. Disclaimer The manufacturers, distributors and agents are not liable to any kind of damage caused by the use of the information contained in this manual.

  • Page 7: Table Of Contents

    3. A/V Bypass 1-2. Information Box 4. Recommended Configuration 1-3. Volume Level Adjust 4-1. Case 1: Connecting DP-P2 to TV with HDMI 1-4. Soundtrack Change 4-2. Case 2: Connecting DP-P2 to TV with S-VIDEO 1-5. Subtitle and Teletext Service 5. Antenna Connection...
  • Page 8 1. Exploring Contents Specification 2. Contents Playback Warranty Conditions 2-1. Movie Playback WEEE Information 2-2. Music Playback 2-3. Photo Playback Contact Beyonwiz 2-4. Playlist 7. File Management 1. Add Folder 2. Delete 3. Auto Delete 4. Rename 5. Copy / Move...
  • Page 9 This page intentionally left as blank.

  • Page 10: Package Contents

    Package Contents 1. Package Contents The following elements are included in the gift box. Please check all package contents before using your product. DP-P2 Remote Control Batteries    (AAA size x2) User Manual RCA Audio/Video Cable Component (Y/Pb/Pr) Video Cable Ethernet Cable ...
  • Page 11 This page intentionally left as blank.

  • Page 12: Introduction

    The DP-P2 provides 10 different colour themes for OSD (On-screen functions for the pay-TV service with the DP-P2. Please refer to 3. How Display) on your taste. to Connect and get the recommended configurations.

  • Page 13: Front Panel

    Five buttons are placed on the front panel. A slot door is placed on the right side of the front panel. If you open this STANDBY Button: it switches the DP-P2 between the operation and door, you can find the following ports;...

  • Page 14: Rear Panel

    Introduction 3. Rear Panel Indicates hard disk space used. Lights when there is no space left on the HDD. Lights when there is no time information. Lights when a timer recording is programmed in standby mode. Lights when the signal comes out via HDMI. Lights when the signal is High Definition (will be implemented).

  • Page 15: Remote Control

    SETUP Go to SETUP Menu. WizTV Go to Internet Service. In order to operate the DP-P2 with the enclosed remote control, please LIVE Go to Live TV. select STB mode by pressing the STB button. The red backlight File PLAY Go to File Play.

  • Page 16: Operating Other Beyonwiz Products

    If you want to return the operating mode of the remote control to operate the DP-P2, please press and hold the numeric button 2 for 5~6 seconds while pressing the OK button. The red backlight beneath the TV button blinks three-times if the remote control changes its operating mode successfully.

  • Page 17: Operating Tv Set

    Introduction 4-3. Operating TV set 2) Manual Set You can set your remote control with 3-digit code manually. Please look The enclosed remote control can also be used to control a TV set at the following table and find the brand of your TV. provided by major TV manufacturers.
  • Page 18 NOTE If your TV brand is not listed on above, please visit the following  website to get the correct code if available: www.beyonwiz.com.au. Your remote will not always be compatible with all branded televisions.  If this remote doesn’t work or no code exists, please obtain the original remote from the manufacture of your TV.

  • Page 19: Remote Control Hexa Code

    SETUP 0xBE0107F8 WizTV 0xBE0152AD allow you to program your own programmable remote control to LIVE 0xBE0108F7 operate the DP-P2. The coding system used for the DP-P2 is the NEC FILE PLAY 0xBE0144BB VOL +/- 0xBE0102FD 0xBE0103FC type. CH +/- 0xBE0100FF 0xBE0101FE...

  • Page 20: How To Connect

    How to Connect 3. How to Connect 1. Connect to TV To connect your DP-P2 to your TV or audio system, the following options Depending on the A/V equipment you own, there are various ways you are available; can connect the DP-P2. To choose the best connection option, please S/PDIF Digital Audio output (COAXIAL, OPTICAL) refer to the manual of equipment you would like to connect to.

  • Page 21: A/V Inputs

    2. A/V Inputs 3. A/V Bypass The DP-P2 has A/V input ports for connecting other A/V device such as In the standby mode, the DP-P2 is designed to bypass the video and a set-top box. You can record or enable the time-shifting functions for a audio signals from the external A/V device connected to the A/V input pay-TV service with the DP-P2.

  • Page 22: Recommended Configuration

    4-2. Case 2: Connecting DP-P2 to TV with S-VIDEO 4-1. Case 1: Connecting DP-P2 to TV with HDMI If you connect the DP-P2 to TV set with the HDMI connection, please If you connect the DP-P2 to TV set with the S-VIDEO (or Composite)

  • Page 23: Antenna Connection

    Connect your TV Antenna to the DP-P2 as follows; Antenna In (connecting to the roof Antenna)  RF LOOP OUT (only for bypassing the signal to another device)  NOTE The DP-P2’s two tuners are connected internally, so only one antenna  cable is required.

  • Page 24: Ethernet Connection

    As shown in the picture, connect the DP-P2 to the router with Ethernet cable included in the box. If you purchase a router with a DP-P2 and In order to fully utilize the DP-P2, it is strongly recommended that you have no experience of connecting a router with a PC, please refer to connect the DP-P2 to your home network via a network router.

  • Page 25: Direct Connection To A Pc

    How to Connect 6-2. Direct Connection to a PC With this configuration, you can share contents with a PC but the DP-P2 If your PC has the DHCP server feature and it is enabled, all the cannot access the internet.

  • Page 26: Direct Connection To Internet

    With this configuration, you cannot share contents with a PC through your home network. For this configuration, you will need to connect the DP-P2 to your ADSL Modem or Cable Modem with an Ethernet crossover cable (not included in the box). Most ISPs (Internet Service Provider) support DHCP.
  • Page 27 This page intentionally left as blank.

  • Page 28: Quick Setup

    The front display will show “Welcome”, “Loading” and “Start” successively. When you turn on the DP-P2 for the first time, it will start up in the setup menu automatically and show “Service Scan” on the front display.

  • Page 29: Quick Setup Of Video Output Format

     section and go on to the next section “Basic Operation”. If the front TV-OUT button. display indicates that the DP-P2 is ready to use but nothing is displayed Allow 3 seconds after pressing the TV-OUT button for the ...

  • Page 30: Basic Operation

    Quick Setup 1-2. Basic Operation 1) Enter and Exit Setup Menu You can enter the setup mode by pressing the SET-UP button on the remote control. To return to the previous operation mode (e.g. STB/PVR or File Playback), press the EXIT button. 2) Setup Menu Structure The setup menu is grouped into four main categories (represented by icons across the top of the screen): Configuration (“Config.”), Network,...
  • Page 31 Quick Setup 3) How to Change Configuration Setup using the NUMERIC buttons: The NUMERIC buttons are used In the setup menu, there are several ways to change configuration.  to set configuration with numbers such as time information. You can Here are three examples of configuration changes frequently used.
  • Page 32 Quick Setup On-screen keyboard: If you need to input alphabetic characters, a If you need to input special characters, press the GREEN button.  “Keyboard Input” pop-up window will be displayed. You can move The screen keyboard now displays special characters. You can return the cursor with the UP/DOWN/LEFT/RIGHT buttons and select the to small characters by pressing the GREEN button again.

  • Page 33: Configuration

    Quick Setup AUTO – the time and date information is received automatically  from the digital broadcast signal when you turn on the DP-P2. 2. Configuration MANUAL – the time and date information is set by you, and  maintained by the DP-P2’s internal clock.

  • Page 34: A/V Output Setting

    TV set can accept, your TV will not display a picture (refer to your TV’s user manual). If you set the HDMI output as Auto, the DP-P2 configures the best  format of HDMI suitable for your TV set automatically. Some TV sets do not support the auto-configuration function.
  • Page 35 2ch. In this case the DP-P2 down mixes the 5.1ch audio signals to a stereo audio signal. If you connect a 5.1ch speaker system to the DP-P2 through the digital audio outputs, please choose 5.1ch for the...

  • Page 36: Service Scan

    The leftmost rectangle changes from black to yellow when the tuner locks the signal properly. DANGER IF THE ANTENNA IS A PASSIVE TYPE, ENABLING THE DC POWER MAY  DAMAGE THE ANTENNA AND THE DP-P2.
  • Page 37 Quick Setup Start Scan: After selecting your scanning range, select Start Scanning NOTE  and then press the OK button. On the screen, the scanning window You cannot select an end channel smaller than the start channel.  appears and displays the progress. If you perform a “FULL”...

  • Page 38: A/V Input

    A/V Input: You can enable or disable the A/V input ports. When the  The DP-P2 can receive either Composite or S-Video signals from a A/V input is enabled, a new service named with “950 A/V Input” will external A/V device. You need to configure the A/V input ports to suit appear in the service list.

  • Page 39: Network

    3-1. Ethernet Setting The first step is to enable the Ethernet interface. In the Network Device menu, select the “LAN” option. NOTE If you select “Disable”, the DP-P2 will not appear as a networked  device on your network.

  • Page 40: Automatic Configuration

    Then press the RED In order to use the DHCP function for the DP-P2, your router must  button to update the LAN settings. A “LAN Status” pop-up window support DHCP (refer to your router’s user manual).
  • Page 41 Quick Setup 2) Manual Configuration If you set “DHCP” to “Disable”, you must input the network settings Then press the RED button to update the LAN settings. A “LAN Status” manually. Use the NUMERIC and LEFT/RIGHT buttons to configure pop-up window will now appear to show you the updated LAN settings. the following items;...

  • Page 42: Ice Guide

    The DP-P2 supports IceTV service through the Internet. If you have an  Password: Enter your password for your IceTV account. IceTV account, and wish to utilise this service on your DP-P2, you must  Check User Info: Press the OK button to check if your IceTV account ...

  • Page 43: Wizpnp

    PCs. The following picture illustrates how WizPNP functions; play files in the server. You can set the DP-P2 to be a WizPNP client, a WizPNP server, or both To set the DP-P2 as a WizPNP client, select “Enable” in the “Client”...
  • Page 44 WizPNP client, so the Name: This name is used to identify the WizPNP server. The default client can play files in the DP-P2. It also allows your PC to access the ...

  • Page 45: Windows Sharing

    Quick Setup 3-5. Windows Sharing The DP-P2 can access files in a shared folder on your PC. This function NOTE The PC’s “Guest” account cannot be used to copy files from the DP-P2 requires configuration in the following situations; to a shared folder on the PC. To perform this function, a different PC (i) if the PC’s “Guest”...

  • Page 46: Stb & Pvr Function

    This chapter describes the STB and PVR functions. Now that your DP- P2 is set up (see Chapter 4 “Quick Setup”), your unit will automatically start up in this mode. If you are using the DP-P2 in another operating mode, you can return to the STB/PVR mode by pressing the LIVE button on the remote control.
  • Page 47 2) Change Service with Service List If your service list is very long, you can scroll through the list quickly by The service list contains all the broadcasting services your DP-P2 can using the LEFT/RIGHT buttons to skip up and down one page receive.
  • Page 48 NUMERIC buttons: Use the NUMERIC buttons to change to a service  last button press. directly e.g. to change to service 146, press the 1, 4, and 6 buttons When the DP-P2 is recording two programs simultaneously, both  consecutively and then press OK. tuners are allocated for the recordings.

  • Page 49: Information Box

    STB & PVR Function 1-2. Information Box You can view information about the current service and the current program using two information boxes, both accessed by using the  button. The first press will show an information box containing details of the current service, current program title and its recording status (if applicable).

  • Page 50: Volume Level Adjust

    STB & PVR Function 1-4. Soundtrack Change 1-3. Volume Level Adjust If the current TV program provides more than one language or audio Use the VOL+/VOL- buttons respectively to increase or decrease the format (e.g. MPEG audio and Dolby audio together), you can change the level of the analogue and the digital audio outputs.

  • Page 51: Subtitle And Teletext Service

    As the teletext service is optional, not all TV subtitles function will now be activated. To turn off the subtitles programs include teletext information. The DP-P2 supports teletext function, press the SUBTITLE button again, select “Disable” from the services by emulating a teletext interpreter. Press the TELETEXT button to display the teletext pages.

  • Page 52: Sleep Timer

    1-6. Sleep Timer NOTE The sleep timer can be used to set the DP-P2 to turn off automatically The Subtitle Language, Sound Track, Teletext and Sleep timer at a specific time. To set a timer, press the SLEEP button repeatedly ...

  • Page 53: Service Edit

    STB & PVR Function 2. Service Edit 2-1. Service List Edit You can edit the service list to lock, delete or rename services. Press The editing functions available are as follows; the LIST button to show the service list, then use the UP/DOWN Lock/Unlock: For your privacy, you can protect a service from ...

  • Page 54: Favorite Group

    STB & PVR Function 2-2. Favorite Group A favorite group is your personal collection of TV or radio services. Up to 20 favourite groups can be created. 1) Favorite Group Edit To start, you must create your favorite groups in the Setup menu (see “Favorite”...
  • Page 55 STB & PVR Function 4) Service Change on Favorite Group To exit from a favorite group and show all services available in the Select a service in a favorite group using step 2 above. You can now service list, press the BLUE button when the service list is displayed. change services within this favorite group in the following ways;...

  • Page 56: Pvr Functions

    Trick-mode operations are not available if there is less than 10  The DP-P2 retains all received broadcast data from the current service seconds of data in the time-shift buffer. up to a maximum of 2 hours on the internal HDD.

  • Page 57: Instant Recording

    STB & PVR Function 3-2. Instant Recording Starting Point: Select the starting point of the recording. Use the  To record the current service and store it on the HDD instantly, press LEFT/RIGHT buttons to select one of the following options; the REC button.
  • Page 58 In this case, the only starting position you can choose is “Live”, therefore the “Current Program” and “All” options will not appear. The asterisk(*) mark on the file name indicates that the DP-P2 has  assigned the program name automatically.

  • Page 59: Timer

    STB & PVR Function 3-3. Timer You can set the DP-P2 to automatically record programs by setting timers. The timer function can also be used to automatically change service in order to view an important program, or to transmit the picture to an external recording device such as a VCR (Video Cassette Recorder).
  • Page 60 STB & PVR Function 2) Add New Timer To set a new timer, press POP-UP then OK to display the timer list. Then press the RED button to display the “Add Timer” window, as shown below. Start Time: Set the start time of the recording. Move the cursor with ...
  • Page 61 STB & PVR Function Recurrence: Set the recurrence of the recording (if any). Use the Auto Delete: You can set automatic deletion function to automatically   LEFT/RIGHT buttons to select one of the following options; delete unwanted files that are older than the specified time. Use the LEFT/RIGHT buttons to select one of the following options;...
  • Page 62 STB & PVR Function 3) Edit Timer 4) Delete Timer To modify an existing timer, press POP-UP then OK to display the timer To delete an existing timer, press POP-UP then OK to display the timer list. Then use the UP/DOWN buttons to select your desired timer and list.
  • Page 63 If you attempt to put the DP-P2 into standby mode while a recording is If a timer starts while the DP-P2 is in standby mode, the DP-P2 will turn in progress, a “Power Off” dialog will be displayed, as shown below.

  • Page 64: Trick Mode Operation

    STB & PVR Function 3-4. Trick Mode Operation If you are watching a service while it is being recorded, or change to a service which is already being recorded, you can perform the same trick-mode operations as for time-shifting and file playback (see “Movie Playback”...

  • Page 65: Recording Control

    STB & PVR Function 3-5. Recording Control 1) Pause/Resume and Stop Recording To pause recording for a period of time (e.g. to skip commercial To hide the recording control menu, press EXIT. advertisements), press the REC button while you are watching the service being recorded.
  • Page 66 STB & PVR Function 2) Change Recording Options while Recording You can change some of the recording options even after the recording has started. Press the POP-UP button and use the DOWN button to select “Recording Information”, and then press OK. You can now change the following recording options;...

  • Page 67: Timer Conflict

    A timer begins while a recording is already in progress on the same  service. NOTE When you set a new timer, the DP-P2 will only check for conflicts with  existing timers. It will not check if the new timer conflicts with recordings started by the instant recording method, and will only do this check when the timer is ready to begin.
  • Page 68 STB & PVR Function 2) Timer Overlaps Two Current Recordings 3) Timer Overlaps Current Recording on Same Service If a new timer begins while two recordings are already in progress, the If a timer overlaps a current recording on the same service, the following timer conflict dialog will be displayed: following timer conflict dialog will be displayed: In order to allow the timer to begin, you must stop one of the current...

  • Page 69: Epg (Electronic Program Guide)

    When using the EPG data transmitted by the TV service broadcasters,  Use the UP/DOWN/LEFT/RIGHT buttons to move the cursor around the DP-P2 cannot provide a full 7-day EPG if some broadcasters do the screen. If you move beyond the limits of the table, the UP/DOWN not provide this information.

  • Page 70: Epg With Single Service

    Use the LEFT/RIGHT buttons to view the data for the previous or next  which have already finished screening. However the DP-P2 can only service respectively. Use the UP/DOWN buttons to move the cursor begin storing this data from the moment you turn it on.

  • Page 71: Service Change And Recording

    STB & PVR Function 4-3. Service Change and Recording NOTE If two programs are being recorded simultaneously, the number of  The procedure for changing service and setting timers differs, services you can view will be limited. Services which are unavailable depending on your chosen setting for “EPG Action”...
  • Page 72 STB & PVR Function 3) Set timer To set a timer for a future program, perform the appropriate procedure as follows; For EPG Action = “Change Svc”, place the cursor on your desired  program and use the following functions; To set a recording timer: Press the REC button.

  • Page 73: File Playback Function

    This chapter covers all functions regarding playing multimedia content. The File Playback menu is structured in three parts; as follows; The DP-P2 can play movie, music and photo files from the following Device menu: A vertical menu on the left side of the screen where ...
  • Page 74 File Playback Function To scan and update the list of PCs connected to your home network, 1) Step 1: Select Content Type press the RED button. Use the UP/DOWN buttons to select the type of storage device you wish to access, as follows: HDD: This is the internal hard disk drive.
  • Page 75 You can clear the list of network devices by pressing the YELLOW  button and selecting “Yes”. USB: This will show all USB devices currently connected to the DP-P2.  Memory Card: This will show all memory cards currently inserted into ...
  • Page 76 Connecting devices consuming more than 500mA can All media icon: This will show all media files contained in the selected damage the DP-P2 if there is no additional power supplied to the USB  device. device.
  • Page 77 File Playback Function To choose a particular selection of files, select a desired file and press 3) Step 3: Select File(s) the BLUE button. A tick will appear in the box alongside the selected You must now select the file(s) you wish to play. Press the OK button file.

  • Page 78: Contents Playback

    “Exploring Contents”) and press the OK button. Some video files will not play if the content is in a format not  supported by the DP-P2. It may take a few seconds for a video file to start playing, depending ...
  • Page 79 File Playback Function You can also skip or jump to a different position in the video file, as 1) Trick Mode follows; During playback, the following trick mode operations are available; LEFT button: skip backward 15 seconds.  RIGHT button: skip forward 15 seconds. ...
  • Page 80 File Playback Function 2) Bookmark Bookmarks can be placed at any position in the video file. This enables You can also set multiple bookmarks. Each press of the RED button you to return to a chosen position easily. will create a bookmark at the current position. To see the location of all bookmarks, open the progress bar by pressing the OK button.
  • Page 81 File Playback Function 3) A-B Repeat The DP-P2 can play a chosen section of the video file repeatedly. To display a list of all bookmarks placed, press the BLUE button. Use the UP/DOWN buttons to select a bookmark. To play from this position, press OK.
  • Page 82 File Playback Function 4) Subtitle The DP-P2 can decode and display subtitles from a subtitle file. To play You can change the subtitle settings, as follows; a movie with subtitles, ensure the subtitle file has the same name as Subtitle State: Press the OK button to switch between hiding and ...

  • Page 83: Music Playback

    NOTE Some audio files will not play if the content is in a format not The DP-P2 automatically begins a slide show. After a set duration, the  supported by the DP-P2. next photo in the File list will be shown If you wish to play a selection of audio files located in different folders ...

  • Page 84: Playlist

    File Playback Function 2-4. Playlist During viewing, you can use the following functions; LEFT or PREV button: Jumps to the previous photo in the File list.  The playlist is a personal collection of multimedia content that stores a RIGHT or NEXT button: Jumps to the next photo in the File list. ...
  • Page 85 File Playback Function 2) View Files in Playlist 4) Remove File from Playlist To check the files in the playlist, select the ‘Playlist’ icon (above “HDD” To remove a file from the playlist, select the unwanted file(s) (see in the Device menu) and press the OK button. The File list will now previous section “Exploring Contents”) and press the GREEN button.

  • Page 86: File Management

    File Management 7. File Management The DP-P2 has several functions to help you organise your media files. These functions allow you to; (i) create folders on the internal hard disk drive (HDD). (ii) rename and delete files and folders. (iii) backup your media files to a PC or external storage device.

  • Page 87: Delete

    File Management 2. Delete NOTE You can press the GREEN button a second time to confirm the delete To delete files or folders in a storage device, select the unwanted file(s)  function, instead of selecting “Yes”. or folder(s) in the File list (see “Exploring Contents” section in Chapter You can only delete folders which are empty.

  • Page 88: Auto Delete

    File Management 4. Rename 3. Auto Delete To rename a file or folder, select a file or folder in the File list (see To set automatic deletion function to automatically delete unwanted “Exploring Contents” section in Chapter 6). Press the POPUP button to recording files that are older than the specified time.

  • Page 89: Copy / Move

    5. Copy / Move The following options will be displayed alongside the window, as follows; To copy or move files to or from the DP-P2, select the desired file(s) in HDD: Select the internal HDD. the File list (see “Exploring Contents” section in Chapter 6). Press the ...
  • Page 90 File Management Once you have set your destination folder with the RED button, a “Check File Size” pop-up dialog will be displayed to confirm the copy or move function. The file size and estimated time information is displayed, as follows; Use the UP/DOWN buttons to select a device and press the OK button (only for “Network”...
  • Page 91 USB storage devices should be formatted with the DP-P2 (see  “Format USB Storage” section in Chapter 9). You can also backup beyonwiz recorded files from the DP-P2 to a  networked PC by using a software application “WizFX” installed on your PC.

  • Page 92: Edit Recording File

    File Management 6. Edit Recording File Select one of the following functions; You can edit a recorded file. Editing allows you to; Delete A->B: Cut out the selected section. The rest of the file is  (i) remove commercial advertisements from a TV recording. retained.

  • Page 93: Internet Service

    Internet Service 8. Internet Service The DP-P2 is designed to support various Internet services. Press wizTV button to access the services. You can get the latest information by visiting our website, wiztv.com.au www.beyonwiz.com.au...

  • Page 94: Advanced Setup

    Advanced Setup 9. Advanced Setup This chapter describes how to configure the Miscellaneous (“Misc.”) and System categories of the setup menu. These categories are configured in the same manner as described in the “How to Change Configuration” section in Chapter 4. 1.
  • Page 95 Advanced Setup 2) All Service 3) Favorite Service The third column shows all services that you can access. This list The second column displays the services belonging to the favorite group shows either all the TV services, or all the radio services. selected in the first column.

  • Page 96: Osd

    Advanced Setup 1-2. OSD 2) Transparency 1) Help Box Display You can set the transparency of the on-screen display (OSD). This will You can hide the help box that is displayed with the service list. This change how much of the TV image you can see behind the pop-up will extend the service list window so that more services will be listed, messages which appear on your screen from time to time.

  • Page 97: Access Control

    Advanced Setup 1-3. Access Control 3) Colour Theme You can choose between 10 colour themes for on-screen menus and You can set a 4-digit PIN number to control access to certain set-up information boxes. menus. After setting a PIN number, users must enter the PIN number to access the menu.
  • Page 98 Censorship: To view a program with a selected classification rating or  higher. Start-up: Every time the DP-P2 is turned on.  Setup Menu: To access to Setup menu.  Time Setting Menu: To change the time and date settings.

  • Page 99: Pvr

    Advanced Setup 1-4. PVR 2) Time-Shift Warning 1) Time-shifting You can have a warning message displayed if you are currently time- You can turn off the time-shift function to reduce the workload of the shifting and you attempt to perform an action which would delete the internal hard disk drive (HDD).
  • Page 100 Advanced Setup 3) EPG Action 4) Soft Padding You can control the action of the OK button when a future program You can automatically add additional time to the duration of your timers (one not shaded light blue) is selected in the EPG (see “Service Change to allow for differences between the scheduled broadcast times and the and Recording”...
  • Page 101 Advanced Setup Soft Padding Priority: Determines how to resolve timer conflicts  caused by the addition of pre-padding or post-padding. Select one of the following options; None: The scheduled start and end times of a timer override the  pre-padding and post-padding of a previous or following timer. Pre-padding: The scheduled end time of a timer will be overridden ...
  • Page 102 Advanced Setup 5) Dynamic Channel Management 6) Skip for recordings You can automatically update new services. You can configure the skip function. Press the LEFT/RIGHT buttons to change the interval of skip.  NOTE NOTE If DCM is enabled, newly added channels or deleted channels can be Negative numbers indicate backwards skips.

  • Page 103: File Player

    Advanced Setup 1-5. File Player 2) Automatic Play Next 1) Resume Play You can set automatic play function to automatically play next files in You can control the behaviour of the starting position for playback of the file list. files that have already been partially played. Select one of the following options;...

  • Page 104: Preference

    Advanced Setup 1-6. Preference 3) Auto Delete 1) Keyboard Order You can set to enable or disable the automatic deletion function to You can control the behaviour of the remote control keypad when using automatically delete unwanted files that are older than the specified the NUMERIC buttons to enter letters and characters.

  • Page 105: Management

    2) Firmware Upgrade You can upgrade or initialize your DP-P2 in this menu. You can upgrade your DP-P2 with the latest firmware. Please visit the beyonwiz website (www.beyonwiz.com.au) for firmware information. To upgrade the firmware, download the latest version from the above 2-1.
  • Page 106 It takes several minutes to complete the upgrade. Ensure that your (only for “Network” and “USB” device types). DP-P2 is NOT turned off until the upgrading process is completed. Now use the following functions to locate your firmware file; NOTE If the firmware upgrade progress bar does not update when you ...

  • Page 107: Hdd

    Select “Yes” and press the OK button to proceed. To cancel the HDD format function, select “No” and press the OK button, or press the EXIT button. If you select “Yes”, the DP-P2 will restart and format the internal HDD automatically.
  • Page 108 “No” and press the OK button, or press the EXIT button. NOTE When you turn the DP-P2 on after it is turned off incorrectly, a  warning message asks you to check the onboard HDD. The HDD check process takes several minutes. During this process, ...
  • Page 109 Advanced Setup 4) Format USB Storage NOTE In order for the DP-P2 to be able to write files to a USB storage device, It takes several minutes to format a USB HDD.  the USB device must be formatted first. Select the “Format USB HDD”...

  • Page 110: Initialize

    2) Factory Setting 1) Clear Service Information You can restore the DP-P2 to its factory configuration. This will erase You can clear all the scanned services information. If you select this all setup information. If you select this menu item with the OK button, menu item with the OK button, a confirmation pop-up dialog will be a confirmation pop-up dialog will be displayed, as shown below;...
  • Page 111 Advanced Setup 3) Clear IceGuide Disk Cache The EPG information from IceTV is stored on the internal HDD (see “Ice Guide” section in Chapter 4). You can clear the EPG information and reload the data from the IceTV server. If you select this menu item with the OK button, a confirmation pop-up dialog will be displayed, as shown below.

  • Page 112: Troubleshooting Guide

     Check if the channel is currently on air.  The remote with the DP-P2 can control other brands. If you wish to Check if the TV is set to the correct input  Before contacting Beyonwiz Technical Support, please check the corresponding to the product’s video output...
  • Page 113 Troubleshooting Guide strength and/or quality is optimal. If not, front panel of the DP-P2 has been removed. please contact an authorized antenna service Remote control To manipulate the equipment with Remote  agent or licensed contractor to seek advice does not operate control, the Remote control's emitter should concerning improving your TV reception.
  • Page 114 Troubleshooting Guide Check to ensure that the other devices on your Unable to use “trick Check if Time Shift is enabled.   network are configured correctly to connect mode” functions (Setup\Miscellaneous\Preferences) with another network device. with live TV Ensure the Time Shift buffer contains enough ...
  • Page 115 This page intentionally left as blank.
  • Page 116 Specification Specification Video & Audio Decoding Main System MPEG-2 Video MPEG-2 up to 1080i Main Processor RISC CPU MPEG-4.2 Video for DivX MPEG-4.2 720p 500GB MPEG-4.10 (H.264) Video MPEG-4.10 up to 1080i MPEG Audio MPEG-1 Layer I, II, III (MP3) Tuner &...

  • Page 117: Warranty Conditions

    1. Where required by Beyonwiz only the original invoice/receipt issued by the dealer will be accepted as proof of purchase. 2. Beyonwiz may reject warranty claims on equipment which it believes to be illegally acquired or when the “owner” is unable to provide proof of purchase or where security labels or serial numbers have been tampered with or removed.

  • Page 118: Weee Information C

    WEEE Information WEEE Information Correct Disposal of This Product (Waste Electrical & Electronic Equipment) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 119: Contact Beyonwiz D

    Contact Beyonwiz Contact Beyonwiz Beyonwiz Australia support@beyonwiz.com.au www.beyonwiz.com.au Some features and information in this manual may differ slightly from the product itself due to firmware version and changes made after printing.
  • Page 120 Version 1.52_Eng...

This manual is also suitable for:

Dp-p1Dp-s1
