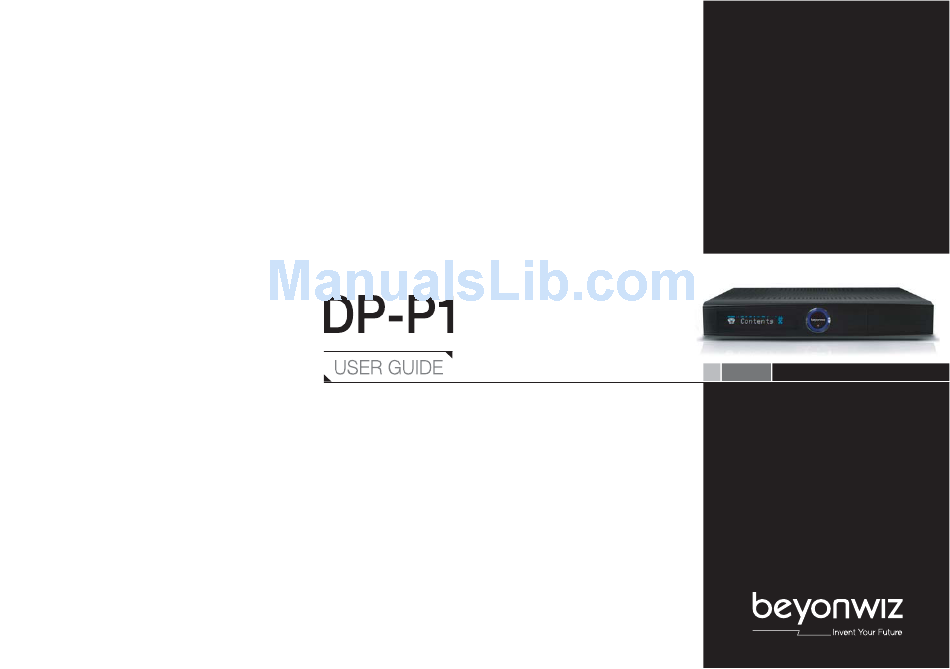

Beyonwiz DP-P1 User Manual

Hide thumbs Also See for DP-P1:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-P1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beyonwiz DP-P1

Summary of Contents for Beyonwiz DP-P1

  • Page 2 Contents...

  • Page 3: Welcome Message

    PC and Internet; the USB (Universal Serial Bus) ports and the networking feature combining with DivX playback, you can play any multimedia content in any storage device with no external device. With a DP-P1, you don’t have to bring your PC to your living room any more.

  • Page 4: Precaution

    Precaution Precaution Do not repair, disassemble or modify this apparatus yourself. It can Read this manual carefully before using this product. The cautions cause fire or electric shock. If internal checking or maintenance is described below contain important information about safety, and are needed, please contact your service center or agency.
  • Page 5 Precaution WARNING NOTICE If the product is mishandled, the user might receiver a serious If the product is mishandled, it might cause minor damage. or minor injury. Damage or loss to the user’s property may also occur. If the apparatus becomes marked, clean it gently with a soft cloth or towel.
  • Page 6 Precaution About the internal hard disk drive The internal hard disk drive (HDD) is a fragile piece of equipment. Please use the apparatus within the guidelines below to protect against possible HDD failure or to protect against accidental loss. This symbol is intended to alert the user to the presence of Do not move the apparatus while it is on.
  • Page 7 Precaution Copyright This manual is protected by copyright laws. Copy, use, reproduction of this manual in part or whole without beyonwiz's prior written permission is prohibited. Disclaimer The manufacturers, distributors and agents are not liable to any kind of damage caused by the use of the information contained in this manual.

  • Page 8: Table Of Contents

    3. PVR Functions 4. EPG (Electronic Program Guide) 1. Package Contents 6. File Playback Function 2. Introduction 1. Exploring Contents 1. DP-P1 Highlights 2. Contents Playback 2. Front Panel 3. Rear Panel 7. Internet Service 4. Front Display Window 8. Advanced Setup 5.

  • Page 9: Package Contents

    Package Contents Package Contents The following elements are included in the gift box. Please check all package contents before using your product. DP-P1 Remote Control Batteries of the Remote Control (AAA size x2) User Manual RCA Audio/Video Cable Component (Y/Pb/Pr) Video Cable...

  • Page 10: Introduction

    2. Front Panel 1. DP-P1 Highlights Standby Button As a HD (High Definition) multimedia epicenter, the DP-P1 supports Channel, Volume Buttons various ways of connecting to HD TVs and audio systems; HDMI port combining with HD video decoders, which support MPEG-2, MPEG-4, H.264 and WMV9, give you the true HD digital A/V environment.

  • Page 11: Front Display Window

    4. Front Display Window The front display window gives you easy way to check the status of the Indicates hard disk space used. DP-P1. Lights when there is no space left on the HDD. Lights when there is no time information.

  • Page 12: Remote Control

    TV manufacturers. The STB and TV buttons set the WizTV Go to Internet Service. (for future use) LIVE Go to Live TV. remote control to control the DP-P1 and TV set respectively. You can FILE PLAY Go to File Play. VOL +/- Adjust the volume. (Increase/Decrease)

  • Page 13: How To Connect

    If your TV does not support HDMI but has a DVI input, a HDMI to DVI converter can be purchased separately. (In this case, Audio signal output is disabled) If you do not have a High Definition display, you can connect the DP-P1 and A/V equipment via other connection options.

  • Page 14: Antenna Connection

    How to Connect 2. Antenna Connection 1-2. Audio Connection To connect your DP-P1 to your TV or audio system, you have the Please connect your TV Antenna to the DP-P1. following options; Only one connection can be done at a time.

  • Page 15: Ethernet Connection

    3-1. Connection Using a Network Router In order to utilize the DP-P1 fully, it is strongly recommended to As shown in the picture, you have to connect the DP-P1 to the router connect the DP-P1 to the home network with a network router.
  • Page 16 With this configuration, you can share contents with a PC through home If your PC has the DHCP server feature and it is enabled, all the network but the DP-P1 can not access to Internet. For this connection, configurations for networking will be set automatically and the DP-P1 is the following equipment is required;...
  • Page 17 The most ISP (Internet Service Provider) services DHCP feature. Therefore, you can connect your DP- P1 to Internet with a crossed cable and enjoy it. If you have to configure your DP-P1 manually, please contact your ISP for more information. Internet...

  • Page 18: Quick Setup

    “Start” successively. Component: HD PAL or HD NTSC If you turn on the DP-P1 for the first time after purchasing, there will be HDMI: PAL HDMI Auto, NTSC HDMI Auto, HDMI PAL or HDMI NTSC no digital broadcasting services stored in the DP-P1, it will switch to NOTE SETUP MENU automatically by showing “Service Scan”...
  • Page 19 Quick Setup 1-2. Basic Operation 1) Enter and Exit Setup Menu You can enter the SET-UP MENU with the SET-UP button on the remote control and exit to the previous operation mode such as LIVE or FILE PLAY with the EXIT button. 2) Setup Menu Structure The SET-UP menu is grouped in four parts: CONFIGURATION, NETWORK, MISCELLANEOUS and MANAGEMENT.
  • Page 20 Quick Setup 3) How to Change Configuration In the setup menu, there are several ways to change the configuration. Setup using the NUMERIC buttons: The NUMERIC buttons are used This manual explains how to change the configuration, here are three to set a configuration with numbers such as time information.
  • Page 21 Quick Setup On-screen keyboard: If you need to input alphabetic characters, an If you need to input numbers, please use the NUMERIC buttons on on-screen keyboard will be displayed. You can move the cursor with the RCU. the UP/DOWN/LEFT/RIGHT buttons and select the letters with the If you need to input special characters, please press the GREEN OK button.

  • Page 22: Configuration

    Quick Setup 2. Configuration Mode: You can select how to set the date and time. Please press the 2-1. Time Setting OK button then you get a pop-up menu. You can choose one with the Please set the current date and time. The date and time information will UP/DOWN buttons and select it with the OK button.
  • Page 23 Under the “AUTO” mode, the GMT information can be received (DD-day, MM-month, YYYY-year) automatically from DTV station when you turn on the DP-P1 and Time Format: Please select how to display the time: either a 12-hour watch a program. Please note that some DTV stations don’t send the format or a 24-hour format.
  • Page 24 You have to set the video and audio configuration according to your TV Current Video Mode: It indicates the video output format as you set. Please make sure the video and audio port of the DP-P1 is configure the video output mode.
  • Page 25 Quick Setup - Pan&Scan: The picture is displayed in full on your 4:3 TV screen, HDMI Video: If you set the HDMI output as Auto, the DP-P1 but left and right sides of the original picture cannot be displayed. configures the best format of HDMI suitable for your TV set automatically.
  • Page 26 NOTE The DP-P1 supports 5.1ch audio in an analog format. It has Dolby If you set the audio format as 2ch, the DP-P1 mixes down 5.1ch Digital decoder so that it can decode and output the Dolby sound audio source to 2ch audio.
  • Page 27 You can select the options for each item with a pop-up menu. Please press the OK button to get a pop-up menu. DANGER IF THE ANTENNA IS PASSIVE TYPE, THE DC POWER WILL DAMAGE THE ANTENNA AND THE DP-P1 ITSELF.
  • Page 28 Quick Setup Start Scan: After selecting your scanning range, you can “start NOTE scanning”. Select Start Scanning and then press the OK button. On You can not select an end channel smaller than the start channel. the screen, the scanning window appears and displays the process. If you scan over all the channels with the “FULL”...

  • Page 29: Network

    Quick Setup 3. Network The DP-P1 supports an Ethernet interfaces. This section will guide you how to configure the network interfaces. 3-1. Ethernet Setting The first step is to enable the Ethernet interface. You can select this in the Network Device menu. You will get a pop-up menu by pressing the OK button.
  • Page 30 Quick Setup 3-2. Automatic Configuration If you enable the Ethernet interface by selecting the “LAN” option on the “Network Device” menu, all the items to be configured for the Ethernet interface will be displayed. You can also get the pop-up window and check the current effective configuration of the Ethernet interface with the GREEN button.
  • Page 31 The effective configuration of the Ethernet is always displayed as a pop-up window by pressing the GREEN button. To use the DHCP function for the DP-P1, your router should support the DHCP function. Please check the manual and the configuration of your router.
  • Page 32 3-4. Ice Guide Owner ID: If you press the OK button, on-screen keyboard will The DP-P1 supports IceTV service through the Internet. If you have an displayed and you can enter your ID of IceTV account. IceTV account, please set your account to utilize the service on your DP- Password: If you press the OK button, the on-screen keyboard will displayed and you can enter your password.

  • Page 33: Stb & Pvr Function

    Internet services which will be updated later. You can watch TV services or listen to radio services with the DP-P1. This chapter describes the functions of STB and PVR. You can access The TV/RADIO button changes the operation mode.
  • Page 34 STB & PVR Function 2) Change Service with Service List You can also edit the service list in the list view. This will be explained in The service list contains all the broadcasting services you can receive. the later section. You can get the service list as a pop-up menu by pressing the LIST button and select a service with the UP/DOWN buttons.
  • Page 35 STB & PVR Function 3) Other Ways to Change Service As in conventional TV sets, you can change a service which you want to NOTE watch or listen to in the following ways; If you change a service continuously with the CH+ or CH- button, only the information box will be changed according to your command: Service Change with the CH+/CH- buttons: As you press the CH+ or You can watch the changed service 3 seconds after you press the last...
  • Page 36 STB & PVR Function 1-2. Information Box You can check the information of a service and the program using three information boxes; the information box contains specific information of a current service and program. The extended information box contains more details about the current program. And the recording information box shows the recording status.
  • Page 37 STB & PVR Function 1-4. Soundtrack Change 1-3. Volume Level Adjust If the current TV program provides more than one language or audio With the VOL+/VOL- buttons, you can adjust the volume level of the format, i.e. MPEG audio and Dolby audio, together, you can select one analog audio output.
  • Page 38 As the teletext service is optional, it does not button. You can also change the subtitle language if the program mean that all TV programs include teletext information. The DP-P1 provides more than one subtitle language. Please select a language with support teletext service by emulating a teletext interpreter.
  • Page 39 You can set the DP-P1 to turn off automatically at a specific time. Press the SLEEP button to set the timer. The DP-P1 will only turn off after a recording has finished even if you set it to turn off before the completion of the current recording(s).

  • Page 40: Service Edit

    STB & PVR Function 2. Service Edit 2-1. Service List Edit You can edit the service list if you want. The followings illustrate the Lock/Unlock: For your privacy, you can protect certain service from editing functions you can use to edit a service list. unauthorized access.
  • Page 41 STB & PVR Function 2-2. Favorite Group Favorite group is your personal collection of TV or radio services. You can organize up to 20 groups including three default groups. 1) Favorite Group Edit Before you use the favorite service groups, you have to organize them. Please refer to Chapter 8.
  • Page 42 STB & PVR Function 4) Service Change on Favorite Group If you change services using the service list when you select a favorite You can also exit from the favorite list by pressing the RED button when group, the service list will show the services belong to that favorite the favorite list is displayed.

  • Page 43: Pvr Functions

    You can pause and resume live TV program, and even rewind and replay it. The time-shifting function is enabled all the time unless you disable it in the Setup menu. The DP-P1 keeps 2-hour recording buffer of TV program by utilizing the HDD storage. The buffer will reset if you change to another service.
  • Page 44 STB & PVR Function You can also display the progress bar with the OK button. The OK You can jump to a certain position with the LEFT/RIGHT/UP/DOWN button can also hide the progress bar. buttons. LEFT/RIGHT buttons skips and moves backward or forward 15 NOTE seconds at a time respectively.
  • Page 45 STB & PVR Function 3-2. Instant Recording Starting Point: You can select the starting point of recording with the 1) Start Recording LEFT/RIGHT buttons when the time-shift function is enabled. If the You can record the current service and store it in the HDD instantly by time-shift function is disabled, you can only record from the current pressing the REC button.
  • Page 46 “Current Program” and “All” have the same meaning. Therefore option “Current Program” does not appear. The star(*) mark on the file name indicates that the DP-P1 will assign the file name as the program name automatically. If you change the file name with a screen keyboard, the star(*) mark will be removed automatically.
  • Page 47 STB & PVR Function 3) Pause/Resume and Stop Recording If you want to skip recording for a certain period of time, i.e., NOTE commercial advertisements, please press the REC button while you are You cannot pause recording if you are watching at time-shifted watching the recording service.
  • Page 48 STB & PVR Function 4) Change Recording Options while Recording Please select a recording item with the UP/DOWN buttons to change. You can change the duration of a recording or file name after the If there is one recording, only one item will be displayed. recording has started.
  • Page 49 You can set programs which you would like to record to HDD. The timer function can also be used to turn on the DP-P1 and watch the set program or transmit the picture to an external recording device such as a VCR (Video Cassette Recorder) according to your timer reservations.
  • Page 50 STB & PVR Function 2) Add New Timer To add a timer, please press the RED button to display a menu on the screen. A new pop-up window will appear to configure the timer. You can configure the following items with your preference for a new time record.
  • Page 51 STB & PVR Function 3) Edit Timer Mode: If you would like to watch a certain program or transfer it to an You can modify a timer setting such as service, start date, start time, external recorder instead of recording it to HDD, please choose “View” duration, recurrence and mode.
  • Page 52 DP-P1 or not. If there is no confirmation to turn off, the DP-P1 will be turned off and go into standby mode. If you want to use the DP-P1 continuously, select “No” on the screen and press the OK button.
  • Page 53 NOTE When you set a new timer, the DP-P1 checks if the new timer conflicts only with exiting timers: it does not check if the new timer conflicts In order to add a new timer, please delete one group of timers displayed with recordings set by instant recording option.
  • Page 54 2) When New Recording Starts 3) New Timer Overlaps Existing Timer If a new recording starts according to a timer while the DP-P1 records Because the DP-P1 checks recording conflict only with timers when you two programs simultaneously, the following pop-up will be displayed.
  • Page 55 STB & PVR Function NOTE The new recording has higher priority than the existing recordings. Therefore, when a new recording starts it will stop one of the existing recordings, which ends earlier respectively, there confirmation or cancellation. You may not notice the warning message so make sure you organize the timer list properly specifically if you are recording a very important program.

  • Page 56: Epg (Electronic Program Guide)

    IceTV. Please visit the IceTV website, www.icetv.com.au, to set your right accordingly. trial account and refer to Chapter 8 to organize it on your DP-P1. The DP-P1 supports two types of EPG interface which will be explained. You can enter the EPG with the GUIDE button and change the EPG type with the RED button.
  • Page 57 STB & PVR Function 4-2. EPG with Single Service NOTE This EPG shows only one service at a time. You can change to the The thumb-nail window displays the program you watched before you multiple-service EPG with the RED button. Programs are listed vertically entered the EPG.
  • Page 58 STB & PVR Function 4-3. Service Change and Recording 1) Service Change Also if the cursor is placed on the future program, the REC button sets If you want to change and watch a certain program, place the cursor on a timer.

  • Page 59: File Playback Function

    File Playback Function This chapter covers all functions regarding playing multimedia contents. The DP-P1 can play movie, music and photo files stored in the internal hard disk drive, PCs on the home network, USB storage devices, and memory cards. You can also play the recording contents in this mode.
  • Page 60 “USB” icon on the left menu. If there is more than one USB devices, all the devices will be listed on the screen. Memory Card: If you insert a memory card to the DP-P1, you can access to it with this icon.
  • Page 61 WARNING Each USB port can supply maximum of 500mA to the external device. Connecting devices consuming more than 500mA can damage the DP-P1 if there is no additional power supplier to the USB device.

  • Page 62: Contents Playback

    A certain movie content could not play as it depends on the content format. If you are recording a service, the playback of high-definition movie content can be limited. The DP-P1 plays the successive file in the same folder after playing a file unless you press the STOP button.
  • Page 63 File Playback Function 1) Trick Mode Powerful trick-operation is supported while you watching a movie. PLAY button will display a time-bar. It changes to the normal playback mode while other trick mode is enabled such as PAUSE, FF or REW. PAUSE button will hold the picture until you play again with the PLAY button.
  • Page 64 Time Sync: If the subtitle is out of sync, you can adjust the sync with the movie file and give the same file name as the movie file. The DP-P1 the LEFT/RIGHT buttons.
  • Page 65 You can play the previous or next file with the PREV or NEXT button. NOTE The DP-P1 plays all music files in a folder repeatedly unless you press the STOP button.
  • Page 66 As you press the UP and DOWN buttons, the time interval will be changed. Once the DP-P1 play a photo file, it will play all photos in the folder successively. Auto and Manual Slide Show: The default playback mode is auto but you can stop the auto-slide show with the PAUSE button and resume with the PLAY button.
  • Page 67 File Playback Function 2-4. Play-list The play-list is a personal collection of multimedia contents, which NOTE stores the list of files temporarily. You can organize a separate play-list If you can not put a folder on the play-list. You have to select all files for each media content type: movie, music and photo.
  • Page 68 File Playback Function 3) Play from play-list You can play files in the play-list by pressing the OK or PLAY button. If you change to the previous or next file in the play-list, press the PREV or NEXT button. 4) Remove File from Play-list You can remove a file from the play-list with the YELLOW button the same way as adding a file to a play-list.

  • Page 69: Internet Service

    Internet Service Internet Service The DP-P1 is designed to support various Internet services, however this will be updated at a later time. You can get the latest information for the DP-P1 by visiting the website, www.beyonwiz.com.au.

  • Page 70: Advanced Setup

    Advanced Setup As an extension to Chapter 4. Quick Setup, this chapter illustrates how to configure your DP-P1. The MISCLLANEOUS and MANAGEMENT parts will be explained. In this chapter as they were the remaining two items that were not explained previously.
  • Page 71 Advanced Setup 1-1. Favorite Before using the favorite service groups, you have to organize them. A favorite group can not contain TV services and radio services together. The edit page consists of three columns: Group, Fav. Service and All Therefore, you have to specify as TV or radio group when you make a Service.
  • Page 72 Advanced Setup 2) Favorite Service 3) All Service According to your selection of the favorite group in the first column, the The third column shows all services which you can access. This list services belonging to the favorite group will be displayed on the second shows all the service of TV or radio.
  • Page 73 Advanced Setup 1-2. OSD 2) Transparency 1) Help Box Display You can set the transparency of the OSD. Please press the OK button to You can hide the help box which is displayed with the service list. If you display the options of the transparency. After selecting an option with set this option as “Hide”, the help box does not appear when you press the UP and DOWN buttons, please press the OK button to set the the LIST button.
  • Page 74 Start-up: If you set this, you have to enter the PIN number when you turn on the DP-P1. Setup Menu: If you set this, you have to enter the PIN number when you access to Setup menu.
  • Page 75 Factory Setting Menu: If you set this, you have to enter the PIN number to set your DP-P1 as factory-default setting. To change the configuration, press the OK button to get a pop-up menu to change the configuration. Please select with the UP/DOWN buttons and press the OK button to select.
  • Page 76 Advanced Setup 1-4. Preference 1) Time-shifting If you don’t want to use the time-shifting function, you can disable it. Please select “Time-shifting” and press the OK button. You can select “Disable” on the pop-up menu screen. The default configuration is “Enable”.

  • Page 77: Management

    Press the OK button to get the information: System Identity, Firmware Version and Last Update. You can exit with the EXIT button. The DP-P1 can upgrade firmware which is stored on a PC in the home network, memory card or USB device.
  • Page 78 Advanced Setup If you select the “Network” option, the PCs and network devices If you select the “Memory Card” or “USB” option, a list view will be connected to your home network will be displayed. If you can not see displayed.
  • Page 79 Please select the firmware on the file list and press the OK button to start. It takes several minutes to complete upgrading. Please make sure that your DP-P1 is NOT turned OFF until it finishes upgrading. NOTE If you cannot visually see the firmware upgrading from your PC or...
  • Page 80 If you select “OK” on the screen the HDD. To close the pop-up window, press the EXIT button. and press the OK button, the DP-P1 will restart and format the HDD automatically. If you do not want to format the HDD, please select “No”...
  • Page 81 Advanced Setup 3) Check HDD If the DP-P1 is turned off improperly, it is strongly recommended to check the HDD. Please press the OK button to check the HDD.
  • Page 82 1) Clear Service Information You can clear all the service information. If you select this with the OK If factory setting is selected, the DP-P1 will erase all information and button, a pop-up window will be displayed to get your confirmation. If reset itself to the factory configuration.
  • Page 83 Advanced Setup 3) Clear IceGuide Disk Cache The EPG information from the IceTV is stored on the HDD. You can clear the EPG information and receive the data from the IceTV server.

  • Page 84: Set Remote Control

    Set Remote Control 2. Manual Set Set Remote Control You can set your remote control with 3-digit code manually. Please look at the following table and find the brand of your TV. The remote with the DP-SI can control other brands. If you wish to Turn on your TV then press and hold the TV button until the red- control your TV, please press the TV button.
  • Page 85 NOTE If your TV brand is not listed on above, please visit the following website to get the correct code if available: www.beyonwiz.com.au. Your remote will not always be compatible with all branded televisions. If this remote doesn’t work or no code exists, please obtain the original remote from the manufacture of your TV.
  • Page 86 Specification Specification Video & Audio Decoding Main System MPEG-2 Video MPEG-2 MP@HL up to 1080i Main Processor RISC CPU MPEG-4.2 Video for DivX MPEG-4.2 up to 730p 200GB MPEG-4.10 (H.264) Video MP@4.0 & HP@4.0 up to 1080i MPEG Audio MPEG-1 Layer I, II, III (MP3) 2 Ch Tuner &...

  • Page 87: Warranty Conditions

    1. Where required by Beyonwiz only the original invoice/receipt issued by the dealer will be accepted as proof of purchase. 2. Beyonwiz may reject warranty claims on equipment which it believes to be illegally acquired or when the “owner” is unable to provide proof of purchase or where security labels or serial numbers have been tampered with or removed.

  • Page 88: Weee Information C

    WEEE Information WEEE Information Correct Disposal of This Product (Waste Electrical & Electronic Equipment) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 89: Contact Beyonwiz D

    Contact Beyonwiz Contact Beyonwiz Beyonwiz Australia support@beyonwiz.com.au www.beyonwiz.com.au Some features and information in this manual may differ slightly from the product itself due to firmware version and changes made after printing.
