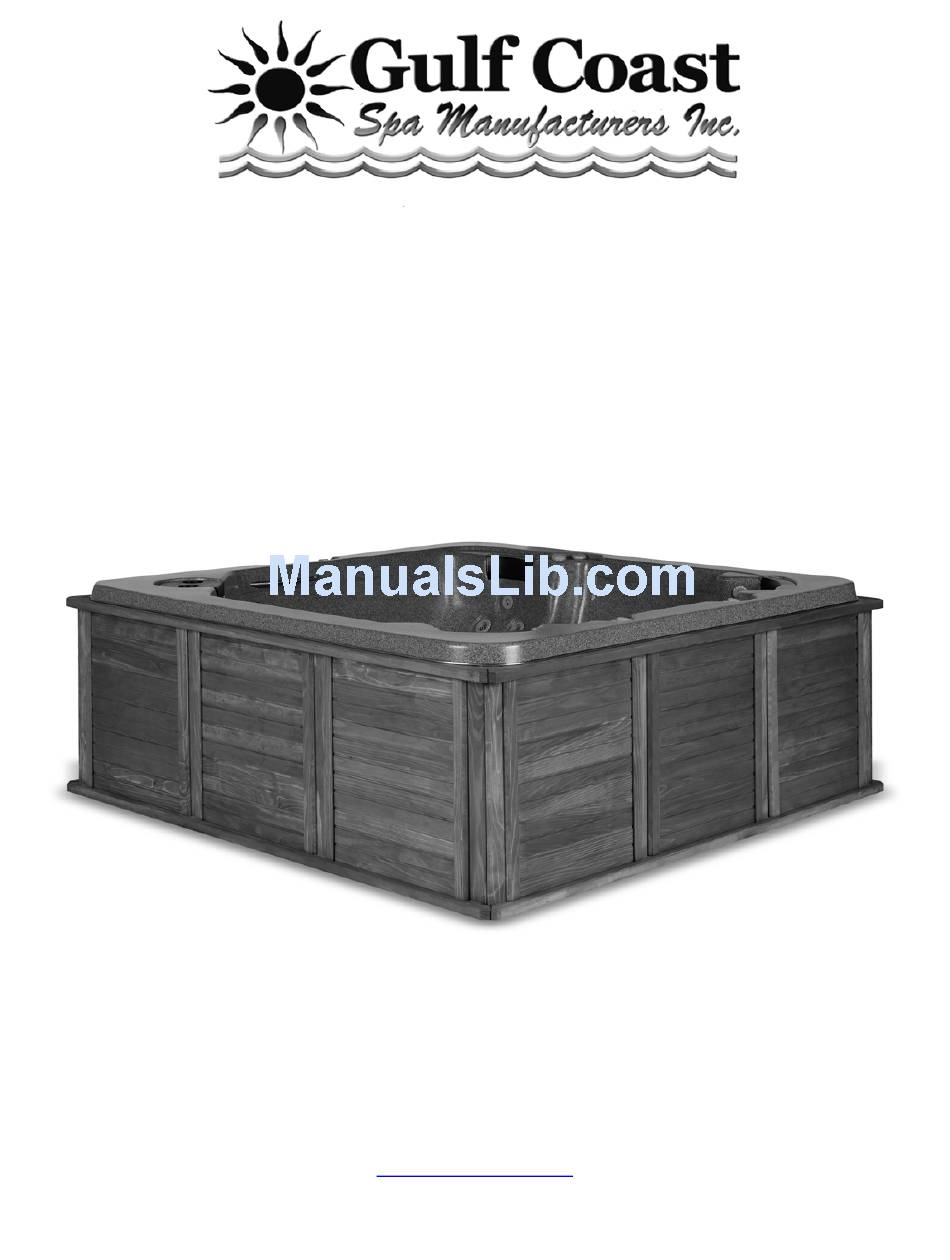

- Page 1 COOL NIGHTS SERIES OWNER’S MANUAL 11620 - 54th Street North Clearwater, FL 33760 (727) 573-9888 www.GulfCoastSpas.com Premier Spas and Custom Wood Products...
-
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS..……………………………………………….………………………………………….3 INSTALLATION……………………………………………………..………………………………………………………………….5 ELECTRICAL SPECIFICATIONS…………………………………………………………………………………………………….6 STARTUP PROCEDURES…………………………………………………………………………...……………………………….9 CHEMICAL-FREE AQUACLARA WATER MANAGEMENT SYSTEM………………………………………………………….10 SARASOTA INSTRUCTIONS……………………………………………………………………………………………………. ONE-TOUCH CONTROLS (Cape Haze, Englewood, Rotunda and Boca Grande)…..…………………………………..11 PROGRAMMING FILTER CYCLES (Cape Haze, Englewood, Rotunda and Boca Grande)………………………………..12 FREQUENTLY ASKED QUESTIONS……………………………………………………………………………………………...13 TROUBLESHOOTING GUIDE….…………………………….…………………………………………………………………….14 MAINTENANCE and CARE…………………………………………………………………………………………………………15 SHUTDOWN PROCEDURES………………………………………………………………………………………………………16... -
Page 3: Introduction
Gulf Coast Manufactures has tried to anticipate all of your needs and desires: however, if you need any additional information, feel free to call your authorized Dealer. - Page 4 WARNING SIGN MUST BE POSTED The (red) WARNING sign above is packed with your new Gulf Coast spa. This sign must be posted in a prominent place in close proximity to the spa installation site immediately upon completion of spa installation.
-
Page 5: Installation
is permanently connected by a minimum No. 8 AWG (8.4mm2) solid copper conductor to the wire connector on the terminal box that is proved for this purpose. Do not permit any electrical appliance, such as a light, telephone, radio or television within 5 feet (1.5m) of the spa, unless factory installed. Position spa to provide proper drainage of the compartment for electrical components. -
Page 6: Electrical Specifications
6/3 With Ground Cape Haze-Double Pump Englewood, Rotunda, Boca Dual Pumps 230 VAC 60 Amp Dedicated 6/3 With Ground Sarasota-Single Pump 1.5 KW Heater 120 VAC 20 Amp Dedicated 12/3 Standard Size 5.5 KW Heater 230 VAC 50 Amp Dedicated 8/3 Standard Size ALL SPAS WITH DUAL 5.0 HP PUMPS MUST BE WIRED WITH A 60 AMP BREAKER. - Page 7 DISCONNECTER DU CIRCUIT D'ALIMENTATION ELECTRIQUE AVENT L'ENTRETIEN. BEFORE OBTAINING ACCESS TO TERMINALS, ALL SUPPLY CIRCUITS MUST BE DISCONNECTED. EN60335-1 and EN60335-2-60. 230vac/50Hz. 2x16A Single Phase. IPX5. Spa Model. Gulf Coast Spa Manufacturers Parts containing live parts supplied with safety extra low voltage not exceeding 12v must be inaccessible to a person in the bath.
- Page 8 Breaker Box 60 AMP GFCI IMPORTANT 6 Gauge Wire MUST Be Used! Load (RED) INPUT Load 120 Volts (RED) To Spa 60 Amps Load Neutral (WHITE) To Spa Load 120 Volts (BLACK) To Spa Load (BLACK) INPUT Pig Tail (WHITE) From GFCI Breaker Load Neutral Bar Going To Neutral Bar...
-
Page 9: Startup Procedures
STARTUP PROCEDURES IMPORTANT! Read these step-by-step startup procedures before starting your spa. Failure to follow any of these steps listed may result in damage to the equipment and may void the warranty. NOTE: Running the spa pump dry (without water running through it) could cause IMMEDIATE damage! Be sure the following conditions exist: The spa has been installed properly in accordance with the instructions in this manual. -
Page 10: Chemical-Free Aquaclara Water Management System
Gulf Coast Spa Manufacturers service line at (727) 573-9888. CHEMICAL-FREE AQUACLARA WATER MANAGEMENT SYSTEM* Chemical-Free … Hypoallergenic … Easy-To-Use Gulf Coast Spas now offers a chemical-free water purification system for your spa. You NEVER have to worry about: • Testing or balancing your purifier •... -
Page 11: Sarasota Instructions
SARASOTA INSTRUCTIONS The Sarasota is designed to seat two adults. The 15 hydrotherapy jets can be regulated to provide a relaxing massage to sooth away stress and the air control valve can be turned to adjust the strength of the water massage. The Sarasota holds approximately 222 gallons of water and offers an automatic, programmable heating (94°... -
Page 12: Sarasota Console Diagram
Sarasota Console Diagram Using the Sarasota Console Pump Key: Press this key once to turn the pump on low speed. Press this key a second time to turn the pump on high speed. Press this key a third time to turn off the pump. Unless manually turned off, the pump automatically will shut off after 20 minutes. - Page 13 To save the new setting, press and release the pump key and up arrow key at the same time. The cycles will repeat every eight, 12 or 24 hours. Gulf Coast recommends setting the filtration cycles opposite sleeping hours.
- Page 14 14 14...
-
Page 15: One-Touch Controls (Cape Haze, Englewood, Rotunda And Boca Grande)
ONE-TOUCH CONTROLS Top Side Control Functions The Quick Reference Card provides a quick overview of your spa’s main functions and the operations accessible with your digital control Starting Pump 1: Turning on Light: Press Light key to turn Light on. Press a Press Pump 1 key to turn Pump 1 on second time to turn light off. -
Page 16: Programming Filter Cycles (Cape Haze, Englewood, Rotunda And Boca Grande)
The cycle will be suspended for 40 minutes beyond the last manual activation of any accessory. The filter indicator will flash on the display while the filter cycle is suspended. GULF COAST MANUFACTURERS EQUIPMENT PACK Color Coded Spa Equipment Hook ups. -
Page 17: Frequently Asked Questions
Call our service department at (727) 573-9888. What happens when my warranty is expired? Gulf Coast Spas will continue to service your spa after your warranty has expired via its 24/7 service hotline – (727) 573-9888. Are the jets removable? Interchangeable? Replaceable? Most jets are made removable for easy cleaning and customized hydrotherapy. -
Page 18: Troubleshooting Guide
TROUBLESHOOTING GUIDE Gulf Coast Spa Manufacturers always has endeavored to represent spas that are second to none in terms of quality. Problems may arise that may or, or may not require service. If a problem does arise, check the following troubleshooting guide for a solution. If the problem cannot be solved in this manner, please call our service hotline 24 hours a day, 7 days a week at (727) 573-9888 or refer to the interactive SpaTech™... -
Page 19: Maintenance And Care
MAINTENANCE and CARE IMPORTANT! The warranty on your spa and equipment is dependent on proper use of the AquaClara Water Management System™. A special section of this manual will cover the AquaClara Water Management System. In addition, the following maintenance procedures must be followed periodically. -
Page 20: Shutdown Procedures
WARNING! If these steps are not taken during cold weather when the spa is shut down, serious damage to the lines and spa may result! Freezing of the spa and/or equipment is not covered under warranty. If necessary, call the Gulf Coast 24-hour technical support hotline at (727) 573-9888. -
Page 26: Warranty Claims
If you have any questions whatsoever, do not hesitate to call Gulf Coast for more details. SPECIAL NOTE: When calling for service, it is imperative to have your sales invoice in hand to expedite the servicing of your spa. -
Page 27: Important Warranty Information
Under no circumstances shall Gulf Coast, or any of its representatives be held liable for injury to any person or damage to any property however arising. - Page 28 _________________________ Stamp _________________________ _________________________ (Return Address) 11620 54 St. N. Clearwater, FL 33760 www.GulfCoastSpas.com...
