Cellphone-Mate SureCall CM2000-WL User Manual

SureCall
®
CM2000-WL 62dB
Dual Band Wireless
SOHO Amplifier

User Manual

Model: CM2000-WL 62 dB
FCC ID: RSNDUAL-62UNDER
Canada IC: 7784A-D60UNDER
CONTENTS OF THE PACKAGE
1. CM2000-WL 62dB Amplifier
2. 110V AC Power Adaptor
3. User Manual (this document)
4. Velcro and Screw Mounting Kits
COMPLETE KIT OPTION: fdgbsddg
Complete kit includes outdoor and indoor antennas as well as two
pieces of CM400 cable as required for full operation. Please consult
the Cellphone-Mate website (www.Cellphone-Mate.com) or call toll
free at 888-365-MATE. See picture below.

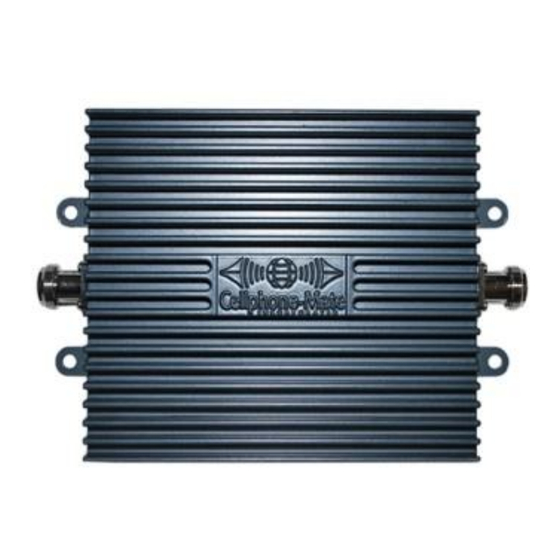

1. CM2000-WL 62dB: 62dB Amplifier with Power Supply
2. CM001-30: 30ft CM400 Cable
3. CM001-75: 75ft CM400 Cable
4. CM222(or CM222W): Dome Indoor Antenna
5. CM288(or CM288W): Fiber Glass Outdoor Antenna
SAFETY NOTES fdgbsddg
This product has been tested by the Federal Communications
Commission (FCC) and found to comply with RF Exposure
Requirements Pursuant to FCC Part 24. In order to comply with the
FCC RF exposure requirements, the user's body should always
be separated from the antenna of the Amplifier by at least 25cm
(10'').
Don't expose this product to extreme high or low temperature. For
fdgbsddg
example, putting the Amplifier under direct sunlight for too long may
cause it to overheat, thereby damaging the electronic components
inside.
There are no consumer serviceable or modifiable parts inside this
Amplifier product.
components will void this product's warranty, and could be
dangerous to the user.
CONNECTING THE AMPLIFIER
The signal is received by the outside antenna from the cell tower,
then AMPLIFIED and transmitted to your phone through the inside
antenna. When the phone transmits, the signal is received by the
inside antenna, then AMPLIFIED and transmitted to the cell tower
through the outside antenna.
Connect the Inside Antenna: The indoor dome antenna is
recommended over the patch antenna. First mount the dome
antenna on the ceiling, and using the CM400 cable, connect the
dome antenna to the side of amplifier marked "INDOOR". Be sure to
tighten it.
If the patch antenna is selected over dome antenna: The patch
antenna is intended for indoors use only. Do not mount on a surface
within 4 inches of metal. Screw the patch antenna to the amplifier
connector marked "INDOOR" and make sure to tighten it.
Connect the Outside Antenna: The CM100-S fiberglass antenna
is for outdoor use only. Select an outside mounting location. For best
performance, try to keep the antenna on top of the house. The
outside antenna should be located in an area with at least a 12"
radius clear of obstructions, and other radiating elements. Using the
CM400 cable, connect the outside antenna to the "OUTDOOR"
connector of the amplifier and tighten it.
NOTE: Keep the separation distance between the inside and outside
antennas at least 75 feet apart if possible.
WARNING: The outside antenna must not be co-located or
operating in conjunction with any other antenna or amplifier.
Connect the Power Cord: To prevent damage to the Amplifier,
before plugging in the Amplifier to an AC power outlet, make sure
the Amplifier's power switch is in the OFF position. Connect the
power cords to the Amplifier, and then connect the plug to 110V AC
power outlet. Make sure that all of the connections to the Amplifier
are tight and secure, and then turn on the Amplifier's power switch.
The LED light will glow, indicating that the Amplifier is ready to use.
Warning light: if the red light turns on, it means
that the indoor and outdoor antennas are too close
Alteration or abuse of the Amplifier or other
