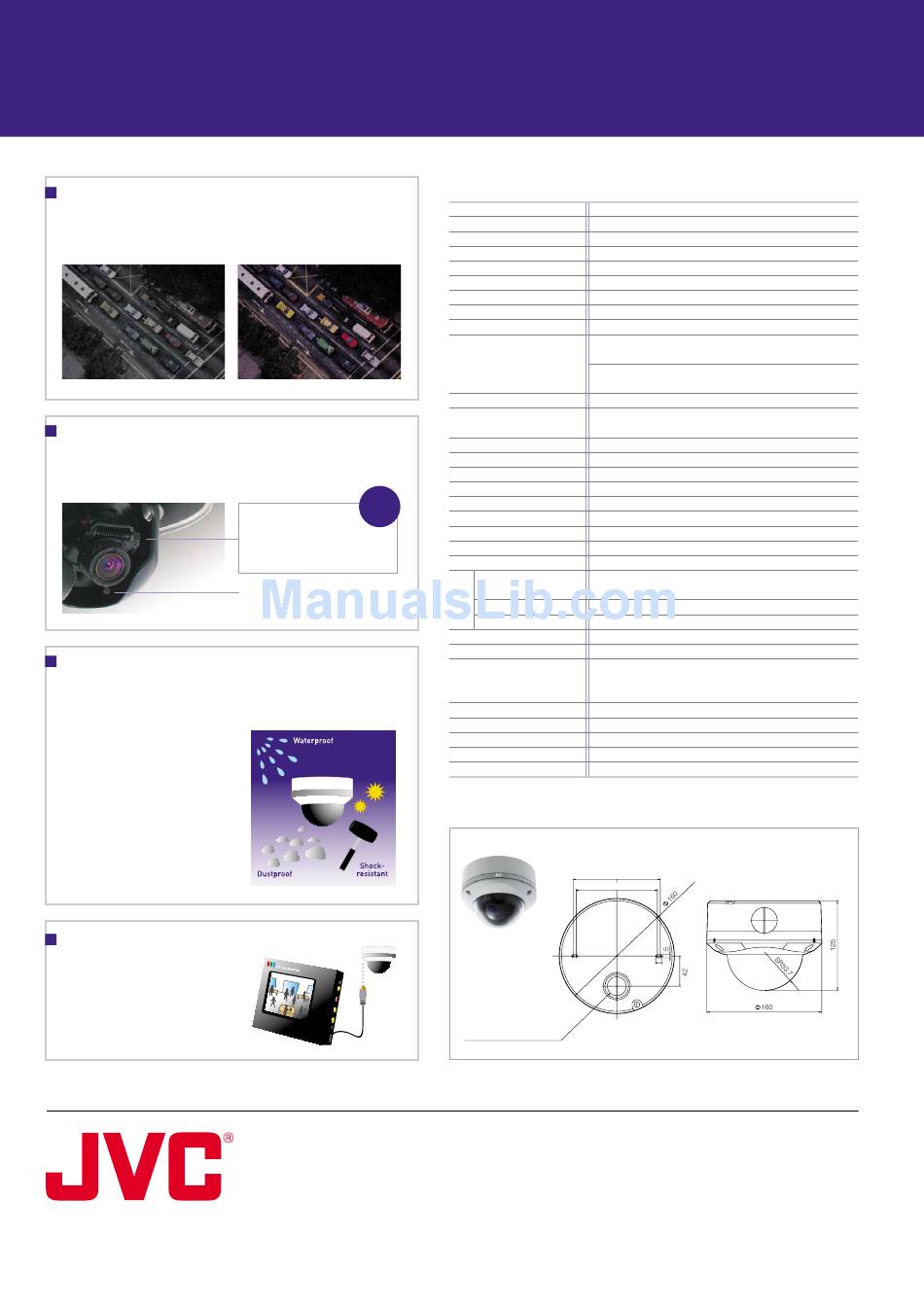

Specifications - JVC TK-C2201WPE(EX) Specifications

Day & Night Outdoor Monitoring with High-Resolution Images
and Vandal-Proof Rugged Body
Super LoLux 2 "COLOUR IN VIRTUAL ZERO LUX"
TM
This camera has been designed to assure precise colour
reproduction in low light situations. It is possible to identify
image colours in much darker places.
Normal camera
Fine Focus Adjustment Technology
For assisting focusing to the finest point, the Variable-Focal
lens now incorporates a newly developed focus gear
mechanism (Patent Pending).
JVC-Quality Vandal Protection
Robust Dome Cover: Using polycarbonate, a material
offering superior intensity, it remains damage-free against
strong shocks of over 50J*.
Robust Body: Using die-cast
aluminum for main unit, it
assures complete vandal
proofing.
IP66 compliant: Designed to
protect from water and dust, it's
suitable for outdoor installation.
* "J" stands for "Joule" which is the
energy exerted by a force of one Newton
acting to move an object through a
distance of one meter.
RCA Monitor Output for Quick Installation
An external monitor can be
connected via the RCA jack.
You can easily check the
camera angle on the spot
during or after installation.
JVC Super LoLux TM
Patent
Pending
New "Fine Adjust"
mechanism
With a very subtle movement, finer,
more accurate adjustment is
possible.
Normal Focus ring and
lock screw
DISTRIBUTED BY

Specifications

Signal system PAL
Image device 1/3 type IT CCD
Number of effective pixels 440,000 (752H x 582V)
Sync system Internal
Scanning system 2:1 interlace, 625 lines
Scanning frequency 15.625kHz (H), 50Hz (V)
Video output Composite video signal: 1.0V (p-p), 75 ohms (BNC)
Video S/N ratio 52 dB (AGC off)
Horizontal resolution 600 TV lines
Minimum illumination (typical) 0.05 lx (50%, F1.2, AGC HIGH)
0.025 lx (25%, F1.2, AGC HIGH)
B&W mode 0.006 lx (50%, F1.2, AGC HIGH)
0.003 lx (25%, F1.2, AGC HIGH)
Iris control DC iris
White balance ATW (wide/narrow) / AWC / Manual
(ATW colour temp. range: 2300K to 10,000K)
Day/Night True D/N with IR cutoff filter
3DNR NORMAL / HIGH
Display mode (Monitor type) LCD1/LCD2/CRT
BLC off/on (4 patterns)
AGC OFF/MID/HIGH
Sens-up off / x2 to x128
Digital zoom x1, x1.4, x2
Privacy mask 4 areas
Focus adjustment mode Yes
Lens Focal length 2.8mm to 10.5mm, 3.75x vari-focal
(angle of vision) (100 (H) x 73 (V) to 24 (H) x 21( V))
Aperture ratio F1.2 (f=2.8mm) to F3.6 (f=10.5mm)
Angle Adjustment range Horizontal: 350°, Vertical: ±80°, Rotation: ±100°
Power supply 24VAC (50Hz/60Hz) / 12VDC
Power consumption 220 mA without optional heater, 1 A including heater
Operating temperature range -10°C to 50°C
-30°C to 50°C with optional heater
(0°C to 40°C recommended)
Dust and water proof IP66
Vandal protection Vandal Proof
Dimensions (WxHxD) ø160mm x 125mm (H)
Weight (approx.) 1.3kg
Optional accessory KA-ZH215U Heater unit
Dimensions
TK-C2201WPE(EX)
121
113
Screw for conduit
(bottom surface, side surface)
(TK-C2201WPE(EX): M25)
Note: Screen images are explanatory purpose and not actual images attained using this product.
All brand or product names may be trademarks and/or registered trademarks of their respective owners.
Copyright © 2011, Victor Company of Japan, Limited. All Rights Reserved.
Design and specifications subject to change without notice.
TK-C2201WPE(EX)
Unit: mm
9
Printed in Japan
KCN-1857D TK-C2201WPE(EX) 2011/9
