Digital Photo Frame
User's Guide
F7010N
F7010S
F8010N
F8010S
M
ake sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
S
ee the label attached on the product and give the information to your dealer when you ask for service.

Advertisement

   Summary of Contents for LG F7010N

  • Page 1: Digital Photo Frame

    Digital Photo Frame User's Guide F7010N F7010S F8010N F8010S ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and give the information to your dealer when you ask for service.

  • Page 2: Table Of Contents

    Setting / Key-Help Functions HomeMenu Screen composition and buttons Slide Show Playing photo and slide show menu Music (Only F7010N/F8010N Model) Playing music Playing screen composition and buttons Video (Only F7010N/F8010N Model) Playing video Playing screen composition and buttons File management...

  • Page 3

    Digital Photo Frame Important Safety Precaution This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential electrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and service.

  • Page 4

    Do not press the LCD screen with your finger for a long time as this may cause some afterimages. Some dot defects may appear as Red, Green or Blue spots on the screen. However, this will have no impact or effect on the display performance.

  • Page 5: Composition Of Product

    Composition of product Accessories Check the accessories. Digital Photo Frame Digital Photo Frame F7010S/F8010S F7010N/F8010N CD User's guide / Cards Remote USB Cable to PC Power Adapter Note The Digital Photo Frame and it accessories may look different from those shown here.

  • Page 6: Names Of Parts

    There is a remote controller sensor of the product at the center of the product. sensor Please press toward remote controller sensor when using remote controller. LG Logo If connecting to the power, LG logo's light is on. Touch Key Button MENU Button It pops up menu...

  • Page 7

    Digital Photo Frame Composition of product Back POWER Button You can turn the power on and off. Connecting part to external device ( Power saving button If pressing once, the screen goes to power saving mode, and if pressing once again, it goes back to default setting.

  • Page 8: Remote Control Button Names And Functions

    Go to Up Go to Down Go to Left Go to Right OK(The Play/Pause button is used to play Slide Show, Music, and Video files.) F7010N/F8010N Go to previous screen Select the file It goes to mute It adjusts volume Note Before using the remote control, please remove the safety film on the bottom of the remote control as shown in the picture.

  • Page 9: Replacing The Remote Control Battery

    Digital Photo Frame Composition of product Remote Controller Sensor There is a remote controller sensor of the product at the center of the product. Please press toward remote controller sensor when using remote controller. Replacing the Remote Control Battery Push the tab of the battery holder on the Pull the battery holder out.

  • Page 10: Installation And Connection Of Product

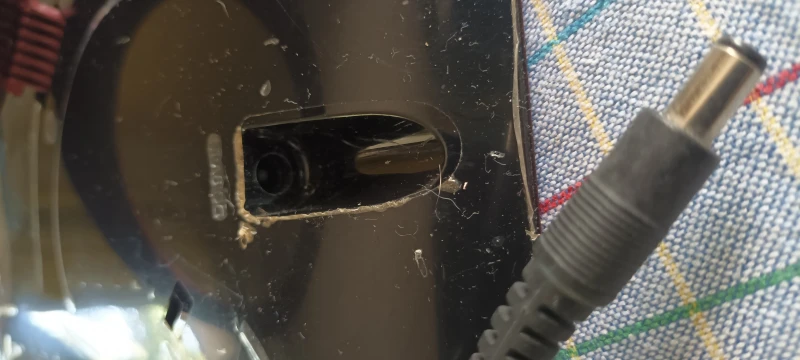

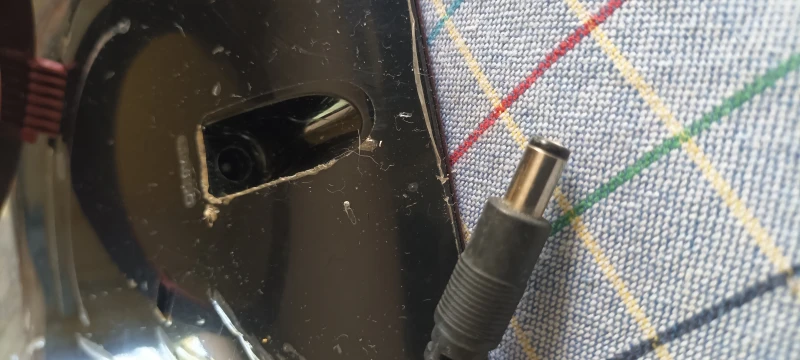

    Digital Photo Frame Installation and connection of product Installing Stand You can use by setting up horizontally or vertically. Please set up by gently pulling the product stand. Connecting Power Cord After connecting power adapter to DC 9V IN terminal at the product side, please connect power code.

  • Page 11: Connecting Usb / Connecting Memory Card

    Digital Photo Frame Installation and connection of product Connecting USB / Connecting Memory card SD/MS/xD/MMC SD/MS/xD/MMC terminal USB Cable Storage USB terminal USB Memory Used to connect storage device device USB Cable USB terminal Used to connect PC 1. Please connect to product's USB terminal. Storage device connection 2.

  • Page 12

    Digital Photo Frame Installation and connection of product PC connection 1. Please connect to product's USB terminal using a provided USB cable. 2. Please connect to PC's USB terminal. 3. If PC is read, a window pops up as below. Please select use mode you want between a Mass storage and Mini monitor.

  • Page 13: Before Beginning

    Digital Photo Frame Before beginning Setting When turning on the power at first, the setup window that you can set up Language, Date and Time, and Power on Message pops up. After finishing setup, it doesn't appear again, and if initializing, it reappears. Please refer to Setup ( 23P) for details about each menu.

  • Page 14: Homemenu

    You can select and manage the photo. ( P19) Photo Music You can play the music. ( P15) (Only F7010N / You can select and manage the music. ( P19) F8010N Model) Video You can play the video. ( P17) (Only F7010N / You can select and manage the video.

  • Page 15: Slide Show

    Slide Show at home menu, it basically plays photo. If you want to play music or video, please begin at Music and Video. ( Music, Video - Only F7010N/F8010N Model) Slide Show Menu Function Operating key Open/close menu Menu movement...

  • Page 16

    If the size/capacity of the photo is large, photo switching time could be longer than the time that you originally set. If you want to appreciate photo and music together, please set up Music auto play at Setup. (Only F7010N/F8010N Model)

  • Page 17: Music (only F7010n/f8010n Model)

    Digital Photo Frame Music (Only F7010N/F8010N Model) Playing music If you want to play the music, please selects Music at Home Menu. Please select the file you want by button. If pressing button, it plays the music you selected.

  • Page 18: Playing Screen Composition And Buttons

    Digital Photo Frame Music (Only F7010N/F8010N Model) Playing screen composition and buttons Operating key Play mode setup Playing previous song Playing next song Pause/play Volume adjustment Key-Help File information indication It indicates file name, musician, and album title. It indicates the total number of the file to be played and order of the file being Playing order currently played.

  • Page 19: Video (only F7010n/f8010n Model)

    Digital Photo Frame Video (Only F7010N/F8010N Model) Playing video If you want to play the video, please select Video at Home Menu. Please select the file you want by button. If pressing button, it plays the video you selected.

  • Page 20: Playing Screen Composition And Buttons

    Digital Photo Frame Video (Only F7010N/F8010N Model) Playing screen composition and buttons Operating key Open/close play bar Rewind Fast rewind Pause / play Volume adjustment Key-Help File information indication It indicates name of the file being currently played. It indicates playing state of the file being currently played.

  • Page 21: File Management

    Below is an explanation by giving you an example of the Photo, and operation method of Music Video is also identical. ( Music, Video - Only F7010N/F8010N Model) Key-Help Device type selection Indicates inside memory and connected external memory apparatus. Please select desired type.

  • Page 22: File Management Menu

    Photo, Music, and Video, it moves to each menu. Music, Video - Only F7010N/F8010N Model) The usable menu could be different according to the format of the file. Key-Help Selected file Indicates the number and capacity of selected file.

  • Page 23: File Copy/delete

    Digital Photo Frame File management File copy / delete File selection Selecting Copy/Delete menu The file selected in Photo, Music, or Video Pressing the button in Photo, Music, appears automatically. Select the Select from of the list Video displays the menu. Select the Copy menu if you want to select another file.

  • Page 24: Selecting All File/unselecting All File

    Digital Photo Frame File management Selecting all file / Unselecting all file Select all files/Unselect all files within the device If pressing button at Photo, Music, and Video menu appears. Please select Select all or Unselect all. Select all files/Unselect all files within folder If pressing button at the location of corresponding folder, it performs select all.

  • Page 25: Setup

    The outer edges may be cut off depending on the size of the picture. Video Aspect Ratio Adjust video aspect ratio. (Only F7010N/F8010N Model) • Original It shows by automatically adjusting the screen ratio. It shows as the ratio of 4:3.

  • Page 26

    Music Auto play If music file is detected at photo slide show, it sets up that both are automatically played together. (Only F7010N/F8010N Model) Power Saving You can set up the time that power is turned on or off. Starting mode Set up the screen that initially shows up when turning on the power.

  • Page 27: Power On Message Function

    Please select the Photo(Video). Please select Skip button unless you want to insert. * If selecting video, you cannot insert the music. F7010S/F8010S F7010N/F8010N Selecting music (Only F7010N/F8010N Model Setup completion / It counts only for selecting the photo.) You can preview the Power On Message by Please select the music.

  • Page 28: Troubleshooting

    Digital Photo Frame Troubleshooting Problems Solutions The screen does not work. • Check if the product is connected to the power adapter properly. • Check if the power adapter is connected to the power outlet properly. • Press the Power button to turn the product on. The photo is not displayed on •...

  • Page 29

    Digital Photo Frame Troubleshooting Problems Solutions • Please adjust the aspect ratio of the screen. You can adjust it in the The screen ration is not nor- mal. Setup -> Photo Aspect Ratio or Setup -> Video Aspect Ratio. The screen color is dim or •...

  • Page 30: Specifications

    Digital Photo Frame Specifications F7010S/F8010S * Information in this document is subject to change without notice. F8010S Model F7010S Size 8" 7" Dimension Fold Stand Fold Stand (Width x Height x 195.6 x 161.2 x 29.5 mm 221.8 x 178.3 x 29.5 mm Depth) Unfold Stand Unfold Stand...

  • Page 31

    Digital Photo Frame Specifications F7010N/F8010N * Information in this document is subject to change without notice. F8010N Model F7010N Size 8" 7" Dimension Fold Stand Fold Stand (Width x Height x 195.6 x 161.2 x 29.5 mm 221.8 x 178.3 x 29.5 mm...

  • Page 32: Service Information

    Digital Photo Frame Service information Service center LG Electronics Service center web site : http://www.lgservice.com Software Update For software update, please refer to www.lge.com Product Registration Visit www.lge.com and register the Serial No. on the product package or the back of the product.

This manual also for:

F7010s, F8010n, F8010s
