Gotop VT810 User Manual

Gps vehicle tracker
Hide thumbs

Advertisement

Table of Contents

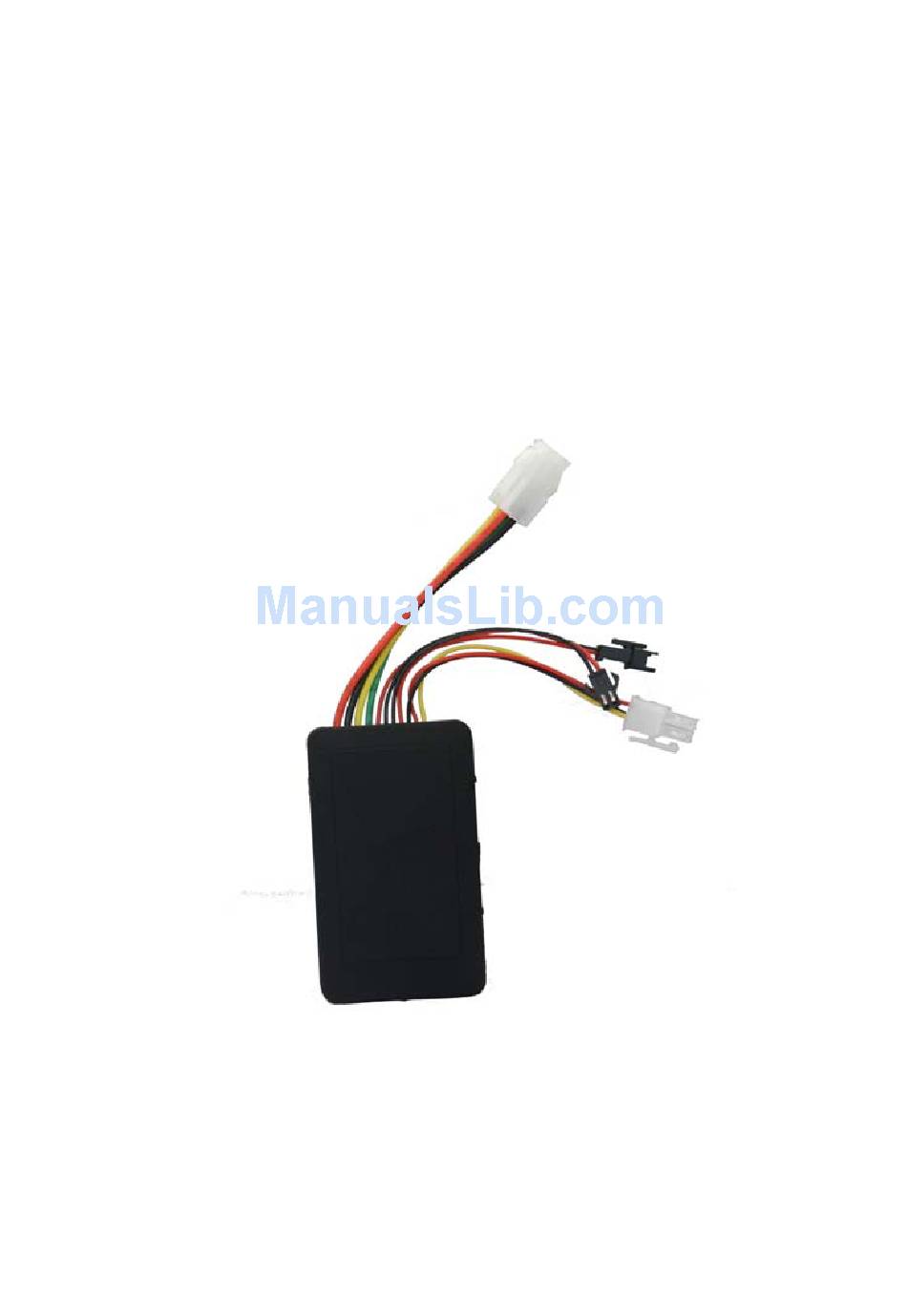

GPS Vehicle Tracker

User Manual

VT810
1. Please read this manual carefully for correct operation.
2. You need to ask a professional to install this product in a safe position of your vehicle. Avoid dangerous or
unsuitable positions, otherwise, harm to the driver or passengers may occur.
3. This manual is just for your reference. The contents and operating steps described in this manual may be different
from that of the actual product, please refer to the actual product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT810 and is the answer not in the manual?

Questions and answers

Related Manuals for Gotop VT810

Summary of Contents for Gotop VT810

  • Page 1: User Manual

    GPS Vehicle Tracker User Manual VT810 1. Please read this manual carefully for correct operation. 2. You need to ask a professional to install this product in a safe position of your vehicle. Avoid dangerous or unsuitable positions, otherwise, harm to the driver or passengers may occur.
  • Page 2 1. Overview This vehicle tracker is a remote vehicle positioning device consisting of a GPS module and a GSM/GPRS module, which is featured by compact size, good concealment and high precision. It can provide the GPS satellite positioning information, and can also provide the positioning information supported by the GSM base station if the GPS satellite information is unavailable, and the information about the latitude and longitude coordinates can be sent to the system platform and the preset mobile phone number.
  • Page 3 3. Operating environment Operating temperature -20---65℃ Humidity 5%---95% Dimensions (mm) 90x53x21 Average current Less than 80MA ( On Standby) Weigh 82×47 mm PCBA Size Frequency GSM850/900/1800/1900 Mhz GPS capability Hot start: <1.5s Warm start: <34s Cold start: <35s(Autonomous) Position Accuracy: 3.0 m 2D-RMS ，DGPS: 2.5 m Velocity Accuracy: 0.1m/s，DGPS:0.05m/s GPS antenna 25×25×2 Built-in...
  • Page 4 4. Wiring precautions Power supply, ACC, relay (4-PIN) (1) The standard power supply of the equipment is 9V-58V DC. Please use the factory supplied power cord, the red wire is the positive wire, and the black wire is the negative wire. When connecting the negative wire, please ground it separately, and do not connect it to other ground wires;...
  • Page 5 7. Query by SMS Send the message 9880000 to the terminal using a mobile phone, and then the terminal will return a message about the location information with Google map link, click the link by cell phone, then the detailed position will show on Google map directly.

  • Page 6: Instruction List

    Instruction list Instruction Description Set the center number. Set the center number through the message sent by a mobile phone. After successful setting, the terminal returns “&710&Config OK&&”. #710#center number#user password ## e.g.: #710#134xxxxxxxx#0000## Description: The SOS alarm and low battery alarm messages will be returned to the number.
  • Page 7 Set the timed data uploading function The factory-set uploading interval of the product is 30, and under this circumstance, the timed uploading function is turned on. The user can change the parameter according to his needs. #730#sampling interval (0 or e.g.: #730#20#4#0000## 15-65535 seconds)#number of Description: “20”...
  • Page 8 Set the service address This instruction is used to set the GPRS center server address. The server address can either be a fixed IP, whose format is xxx.xxx.xxx.xxx; or a domain name, whose length is less than 64 bytes. After successful setting, #803#fixed IP address#port “&803&Config OK&&”...
  • Page 9 Cancel the electronic fence #760#user password## Turn on the fuel/power cut-off function 223+user password Turn off the fuel/power cut-off function 233+user password Read the user parameters After the instruction is sent, the terminal returns the following message: #center number#password#user name#user password#preset number 1# preset number 2#preset number 3# preset number 4#IMEI number## #901## e.g.:...

  • Page 10: Short Message

    Short Message Format of Short Message Description IMEI number: SOS (Latitude & longitude information or base station information) SOS message IMEI number: Terminal battery is low, please charge in time! Low battery alarm message IMEI number: Out of the fence (Latitude & An alarm message indicating the vehicle is out of longitude information) the fence...
