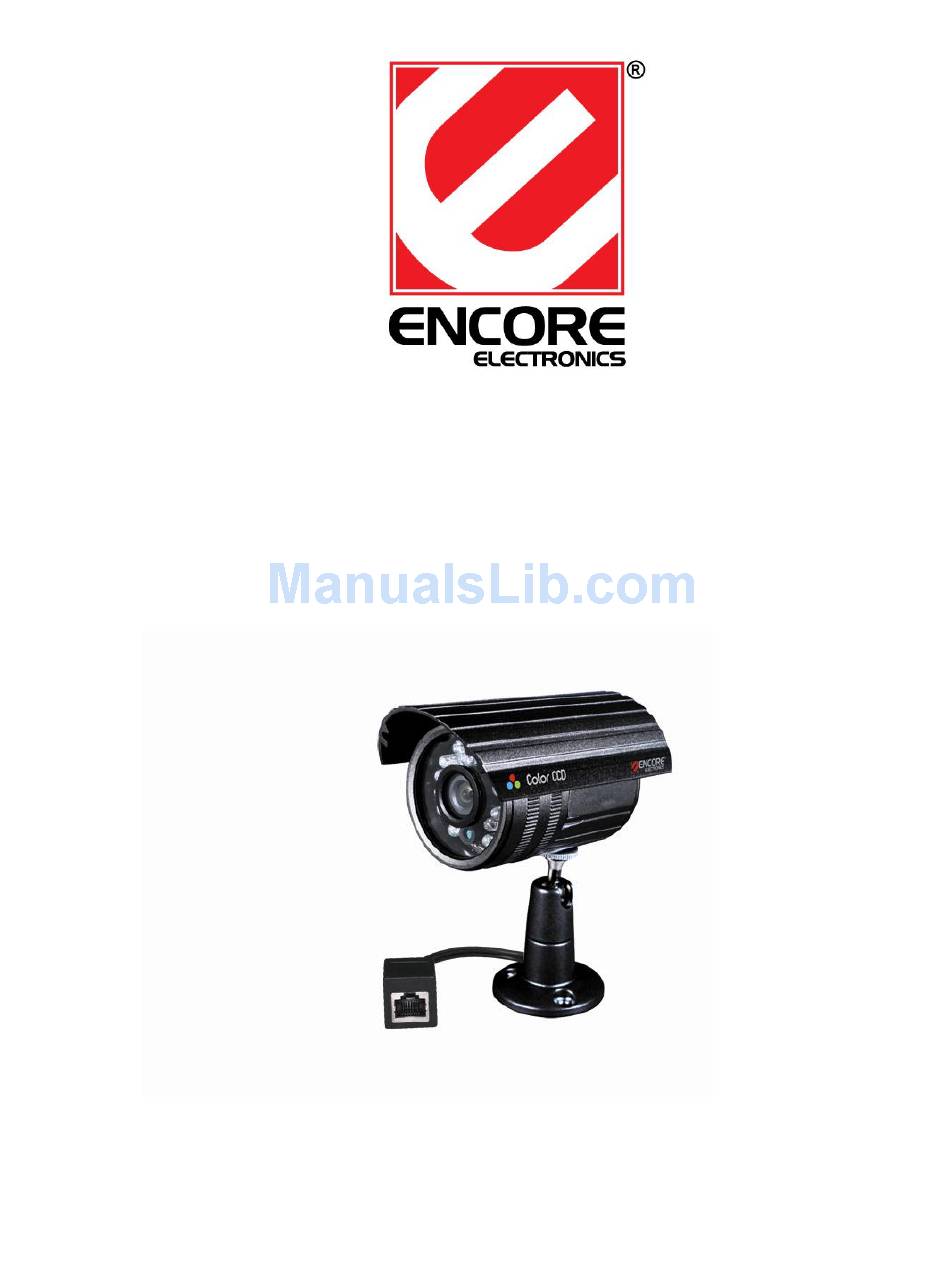

- Page 1 ENCA-CCDP All Weather Color CCD Security Camera With Night Vision PAL TV System USER MANUAL and SPECIFICATIONS ENCA-CCDP :NPENV2 All Weather CCD Security Camera with Night Vision www.encore-usa.com...
- Page 2 INTRODUCTION: Encore’s ENCA-CCDP All Weather Color CCD Security Camera with Night Vision is a high quality indoor and outdoor camera for your Surveillance security DVR System. Safe to place outdoor on any weather type, it features water and lightning proof. It uses a 1/4“...
- Page 3 Volts DC. Check your surveillance DVR user manual power supply system. Do not focus the camera while in operation to any extreme light, like directly to the sun, laser light, etc. CONNECTION DIAGRAM: ENCA-CCDP :NPENV2 All Weather CCD Security Camera with Night Vision www.encore-usa.com...
- Page 4 Video-Out port and the other end to the surveillance security DVR’s Video-In port. Check your Surveillance DVR installation manual. Some DVR comes with a non- RJ45 video-in port like BNC connectors, connecting ENCA-CCDP to this type requires an adapter that converts to RJ45 port, this adapter is called BALUN that can be purchase separately from the local electronic parts store.
