OVERVIEW:
The Vaddio™ CeilingVIEW SD CCU (Figure 1) is a Standard
Definition ceiling Document Camera designed for use with
videoconferencing codecs,
applications where image quality and resolution are critical. The
CeilingVIEW SD CCU can be configured for 4:3 standard
definition video with Y/C and composite video outputs.
Equipped with a 36x optical motorized zoom lens and 12X
digital zoom range, the camera has a 432x total zoom
capability. The ¼" CCD image sensor has approximately
380,000 pixels. The heart of the CCU system is its ability to
adjust red and blue gain, aperture, as well as iris and gain of the
camera module.
Vaddio's active cabling system uses high speed differential signaling (HSDS) for video signals from the
camera module to the Quick-Connect™ CV HD/SD interface as opposed to baluns. HSDS gives this system
superior video quality over CAT-5 cabling and the ability to adjust the video signal depending on the length of
the cabling used. The EZCamera series cabling system delivers video up to 400 feet over standard CAT-5
cable. The Quick-Connect CCU connects directly to the RS-232 port on the camera module. RS-232 from
an external device, such as Vaddio's ProductionVIEW FX, or an external control system can be used in-line.
The CeilingVIEW SD CCU is unmatched for price and performance as compared to other ceiling mounted
document cameras available today.
INTENDED USE:
Before operating the CeilingVIEW SD CCU system, please read the entire manual thoroughly. The
CeilingVIEW SD CCU Document Camera was designed, built and tested for use indoors and with the
provided power supply. The use of a power supply other than the one provided or outdoor operation has not
been tested and could damage the electronics and/or create a potentially unsafe operating condition.
SAVE THESE INSTRUCTIONS:
The information contained in this manual will help you install and operate your Vaddio CeilingVIEW SD. If
these instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and
most pertinent product drawings for the Vaddio product line on the website. These documents can be
downloaded from www.vaddio.com
IMPORTANT SAFEGUARDS:
Read and understand all instructions before using. Do not operate the system if it has been dropped or
damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk
of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.
Use only the power supply (or power supplies) provided with the CeilingVIEW. Use
of any unauthorized power supply will void any and all warranties.
ⓒ2008 Vaddio - CeilingVIEW SD CCU- All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and
pricing are subject to change without notice. Vaddio, CeilingVIEW, EZCamera, Quick-Connect, WallVIEW, EZCable and PowerRite are trademarks of
Vaddio, Inc. All other trademarks are property of their respective owners. Document 341-769 RevA.
I E W ™
I E W ™
D o c u m e n t C a m e r
D o c u m e n t C a m e r
monitors and
free of charge.
Installation and User Guide
S D C C U
S D C C U
a S y s t e m w i t h C C
a S y s t e m w i t h C C
presentation

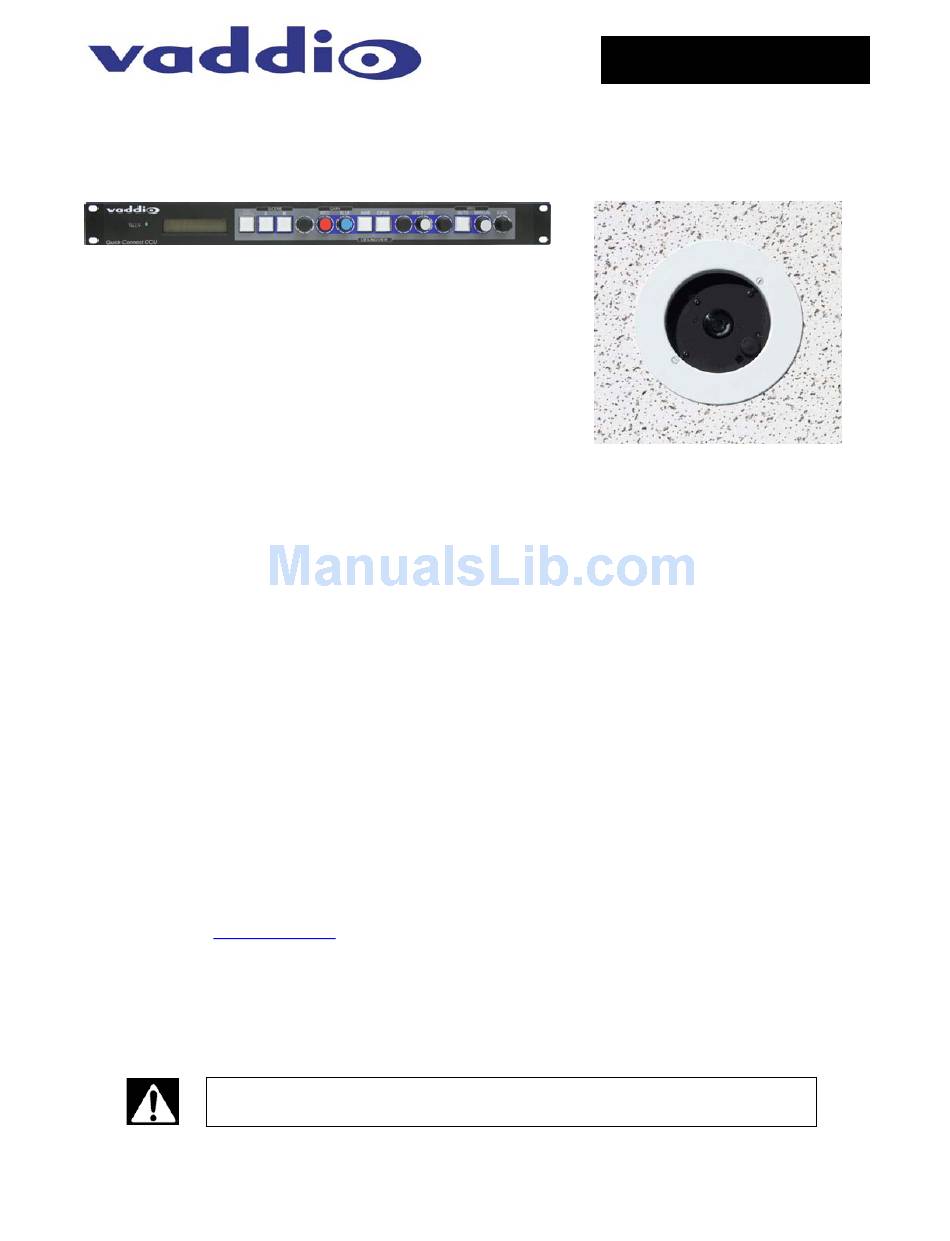

Figure 1: CeilingVIEW CCU (above left);
CeilingVIEW SD Document Camera (above).
