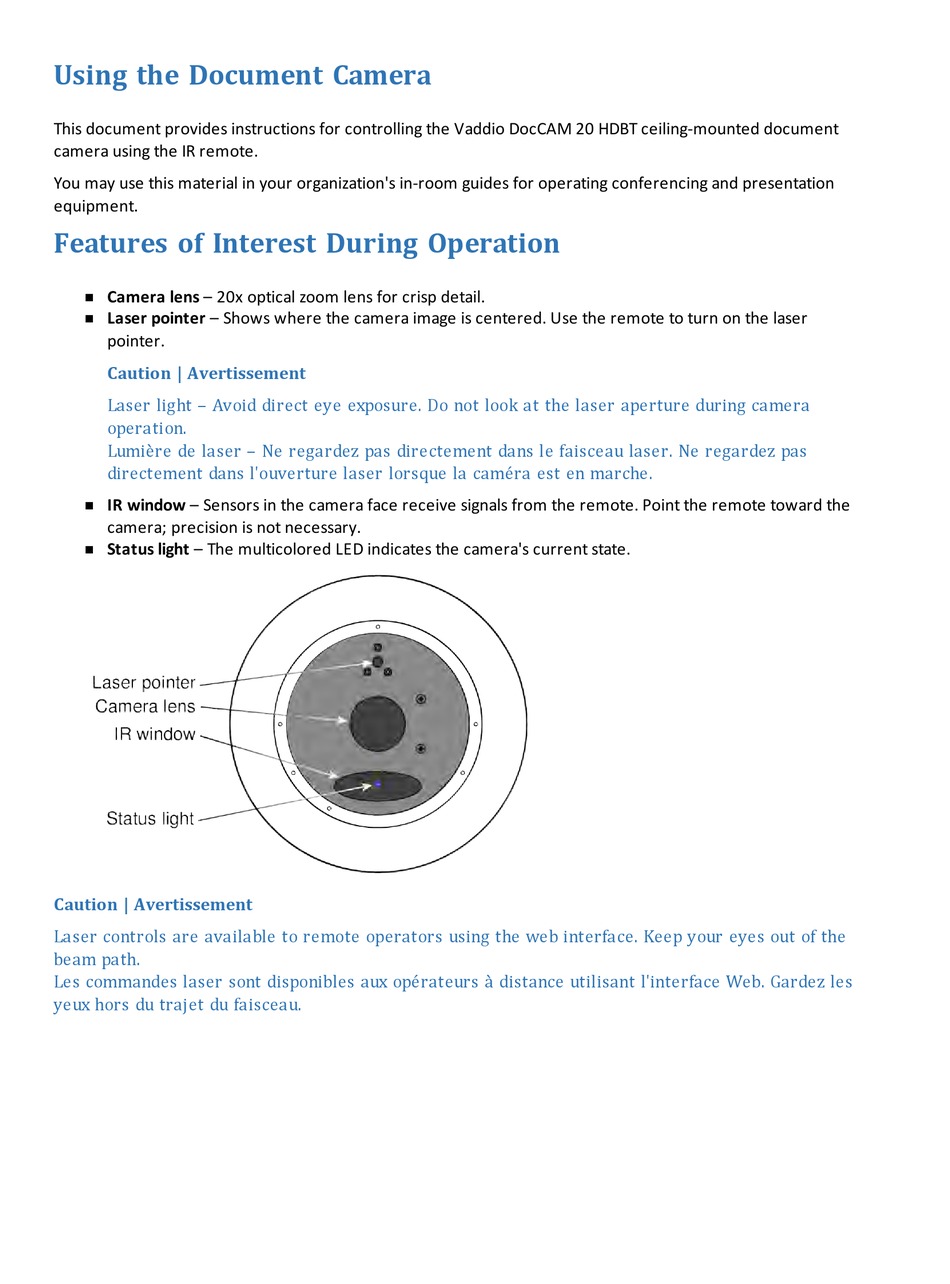

Using the Document Camera

This document provides instructions for controlling the Vaddio DocCAM 20 HDBT ceiling-mounted document
camera using the IR remote.
You may use this material in your organization's in-room guides for operating conferencing and presentation
equipment.

Features of Interest During Operation

Camera lens – 20x optical zoom lens for crisp detail.
n
Laser pointer – Shows where the camera image is centered. Use the remote to turn on the laser
n
pointer.
Caution | Avertissement
Laser light – Avoid direct eye exposure. Do not look at the laser aperture during camera
operation.
Lumière de laser – Ne regardez pas directement dans le faisceau laser. Ne regardez pas
directement dans l'ouverture laser lorsque la caméra est en marche.
IR window – Sensors in the camera face receive signals from the remote. Point the remote toward the
n
camera; precision is not necessary.
Status Light – The multicolored LED indicates the camera's current state.
n
Caution | Avertissement
Laser controls are available to remote operators using the web interface. Keep your eyes out of the
beam path.
Les commandes laser sont disponibles aux opérateurs à distance utilisant l'interface Web. Gardez les
yeux hors du trajet du faisceau.
